Category: Supermicro Motherboard
ดูรายละเอียดเพิ่มเติมได้ที่ https://www.supermicro.com/products/motherboard/Xeon/C600/X9DRT-F.cfm
฿16,800.00
- 8th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processor ., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 120W TDP
- Intel® Z370 Express
- 32GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 2 DIMM slots
- 1 PCI-E 3.0 x16
- M.2 Interface: 2 PCI-E 3.0 x4
- M.2 Form Factor: 2280
- M.2 Key: M-Key
- *1 M.2(E-Key) for 1GBit WiFi and Bluetooth module included
- 1 HDMI port, 1 DP (DisplayPort) port
- Intel® Z370 Express controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Single LAN with Intel® single Ethernet PHY i219V
- Single LAN with WiFi 802.11 a/b/g/n/ac + BT 4.2 combo card
- SuperDoctor® 5, Watchdog
- RGB LED support
- Warranty 1Y

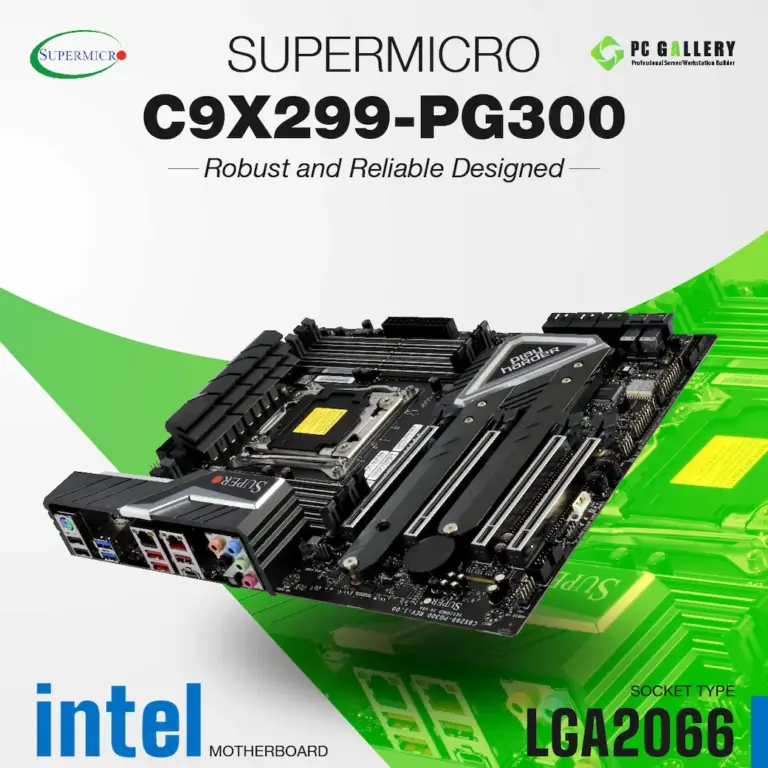

- Intel® Core™ i7 X-series Processor, Intel® Core™ i9 Extreme X-series Processor, Intel® Core™ i9 X-series Processor. , Socket R4 (LGA 2066) supported, CPU TDP support 165W TDP
- Intel® X299
- 128GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 8 DIMM slots
- 4 PCI-E 3.0 x16
***4xPCI-E3.0 x16 Slots(8/NA/16/16 or 8/8/8/16(Core i9) or NA/4/8/16(Core i7)***
M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1
M.2 Form Factor: 2280, 2280/22110
M.2 Key: M-Key
M-Key for SSD and Optane
U.2 Interface: 2 PCI-E 3.0 x4 - 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Single LAN with Intel® single Ethernet PHY i219V
Single LAN with Aquantia® AQC107 10G Ethernet Controller
- ATX 12″ x 9.6″ (30.5cm x 24.4cm)
- Single AMD EPYC™ 7003/7002 Series Processor
- Up to 2TB DDR4 ECC RDIMM 3200 MHz
- 5 PCI-E 4.0 x16,2 PCI-E 4.0 x8
- Supports 2 M.2 (PCIe4.0 x4)
- SATA3 (6 Gbps)
- 2 RJ45 Gigabit Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port
- Remote management (IPMI)
฿20,000.00
» 8th Generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® E processor (Coffee Lake-S) Server, Intel® Xeon® E processor (Coffee Lake-S) Workstation., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
» Intel UHD P630 graphic(For CPU Xeon E-21XXG series only)
» Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
» Support vPro
- Intel® Xeon E-2100/2200, Single Socket LGA-1200
- Chipset Intel® C242
- Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
- 3x PCI-E 3.0
- 1x M.2 PCI-E 3.0 x4, 2280/22110 M-Key
- 2x GbE LAN
- Support RAID 0,1,5,10
฿9,200.00
► Intel® Xeon® Scalable Processors, Intel® Xeon® W-32xx Processor. Single Socket LGA-3647 (Socket P) supported, CPU TDP support 205W TDP Intel® C621
► Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz Or 3TB DCPMM, DDR4-2666MHz, in 12 DIMM slots;
► Xeon-W 32xx supports up to 2TB 3DS ECC RDIMM/LRDIMM, Xeon-W 32xx supports up to 1TB 3DS RDIMM/LRDIMM. ;
► Xeon-W32xx series processors don’t support DCPMM.
► 4 PCI-E 3.0 x16
► 3 PCI-E 3.0 x8 (in x16 slot)
► PCI-Ex16 Slot#1 shares with M.2, Slot#2 shares with Slot#3(NA/16,8/8), Slot#4 shares with Slot#5(NA/16,8/8), Slot#6 shares with Slot#7(NA/16,8/8) (16/NA/16/NA/16/NA/16 or 16/8/8/8/8/8/8)
► M.2 Interface: 4 PCI-E 3.0 x4, RAID 0 & 1
► M.2 Form Factor: 2242/2260/2280/22110
► M.2 Key: M-Key
► M.2 shares PCI-E lanes with PCI-Ex16 slot#1, VROC key is required for Raid.
► 1 VGA port, VGA connector is dedicated for IPMI.
► Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
► Single LAN with Intel® Ethernet Controller I210-AT
► Single LAN with Aquantia® AQC107 10G Ethernet Controller
► Single LAN with Realtek RTL8211E PHY (dedicated IPMI)
ประกัน 1ปี อะไหล่และค่าแรง
฿21,000.00
- E-ATX (12″ x 13″)
- 3rd Gen Intel® Xeon® Scalable processors
- 16 DIMM slots ECC 3DS DDR4 LRDIMM, RDIMM
- PCIe 4.0
- Supports 2 M.2 (PCIe4.0 x4)
- 8 SATA 6Gb/s
- 2 RJ45 (1GbE) by Intel® i210
- HDMI
- Remote management (IPMI)
฿35,000.00
- ATX (12.23″ x 10″)
- 3rd Gen Intel® Xeon® Scalable processors
- 8 DIMM slots ECC 3DS DDR4 LRDIMM, RDIMM
- PCIe 4.0
- Supports 2 M.2 (PCIe4.0 x4)
- 12 SATA 6Gb/s
- 2 RJ45 (1GbE) by Intel® i210
- Remote management (IPMI)
฿31,500.00
