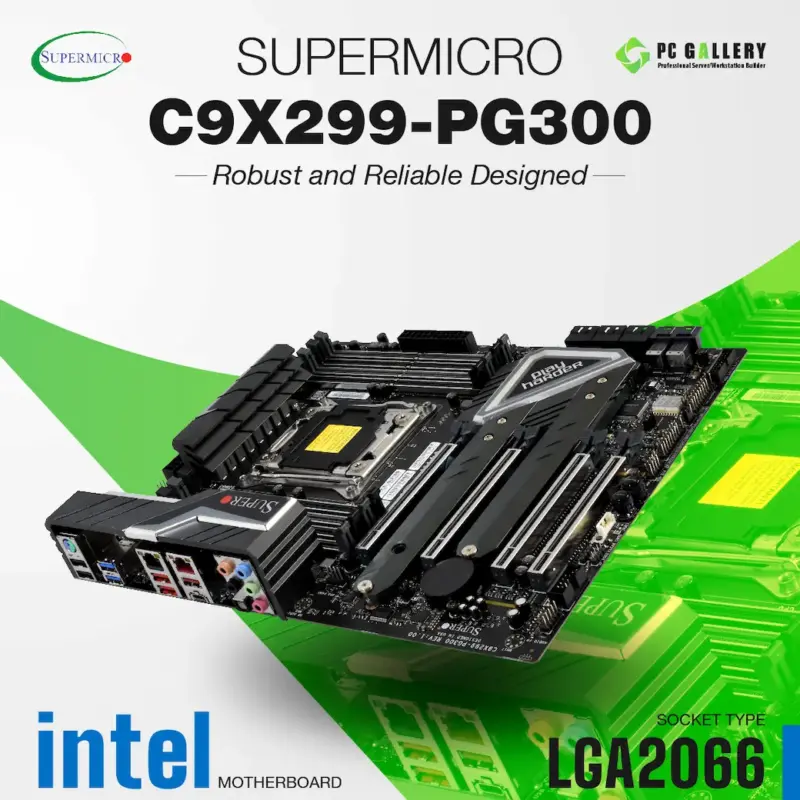

เมนบอร์ด Supermicro C9X299-PG300, LGA2066, ATX (X299)
- Intel® Core™ i7 X-series Processor, Intel® Core™ i9 Extreme X-series Processor, Intel® Core™ i9 X-series Processor. , Socket R4 (LGA 2066) supported, CPU TDP support 165W TDP
- Intel® X299
- 128GB Unbuffered non-ECC UDIMM, DDR4-2666MT/s, in 8 DIMM slots
- 4 PCI-E 3.0 x16
***4xPCI-E3.0 x16 Slots(8/NA/16/16 or 8/8/8/16(Core i9) or NA/4/8/16(Core i7)***
M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1
M.2 Form Factor: 2280, 2280/22110
M.2 Key: M-Key
M-Key for SSD and Optane
U.2 Interface: 2 PCI-E 3.0 x4 - 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Single LAN with Intel® single Ethernet PHY i219V
Single LAN with Aquantia® AQC107 10G Ethernet Controller
ติดต่อสอบถามเกี่ยวกับสินค้าทางไลน์ ก่อนชำระเงิน
Please contact us via LINE for product inquiries before making a payment.
| Form factor | ATX |
|---|---|
| Dimension | 12" x 9.6" (30.48 cm x 24.38 cm) |
| Processor System | Intel® Core i7 X-series Processor |
| System Memory | 128GB Unbuffered non-ECC UDIMM, DDR4-2666MT/s, in 8 DIMM slots |
| Expansion Slots | 4 PCI-E 3.0 x16 |
| M.2 Slot | M.2 Interface : 2 PCI-E 3.0 x4 |
| Storage | 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Ethernet | Single LAN with Intel® single Ethernet PHY i219V |
| Audio | ALC 1220 HD Audio |
| Rear Panel I/O | LAN : 1GbE LAN 1Port,10GbE LAN 1Port RJ45 |
| Internal Connector | USB 2.0 Header : 1Port |
