Conroller Card

SAS/SATA/NVMe Controller Card

คอนโทรลเลอร์การ์ด

พีซี แกลเลอรี่ จำหน่ายคอนโทรลเลอร์การ์ด RAID Card สำหรับเครื่องเซิฟเวอร์ รองรับการทำงานทั้งแบบ RAID, HBA, JBOD รองรับการเชื่อมต่อแบบ SAS/SATA/NVMe

Tri-Mode (SAS/SATA/NVMe)

  • ►Ports: 8 Internal
  • ►Host Bus Type: PCIe 3.1 x8
  • ►Connectors: 2 x SFF-8643
  • ►Support: SAS, SATA, NVMe
  • ►Max Devices: SAS/SATA: 1024, NVMe: 24
  • ►RAID Level:

฿9,800.00

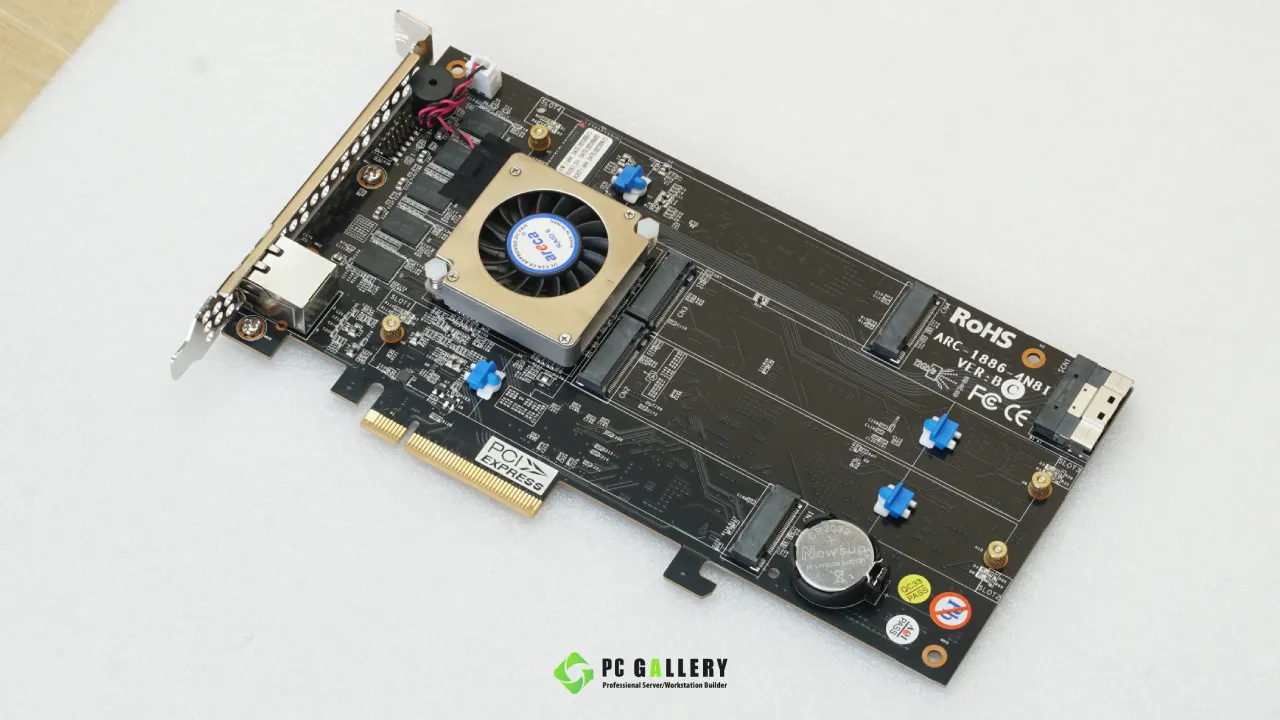

  • PCIe Gen4 x8 lanes
  • maximum transfer rate up to 128Gb/s
  • supports RAID 0, 1, 10, 3, 5, 6, Single Disk or JBOD
  • Support off module power loss protection (PLP)
  • Supports up to 4/6 x PCIe Gen 4.0 M.2 slots and 1x SFF-8654[x8] / 2 x SATA connector
  • Dynamically allocate storage 12Gb/s SAS/SATA/PCIe (NVMe) to NVMe slot1 and SATA/SAS ports on ARC-1886-4N8I
  • Device interface PCIe Gen4 NVMe / 6Gb/s SATA per M.2 slot
  • Support up to 256 SATA or SAS devices using SAS expanders

฿54,500.00

  • ►Ports: 8 Internal
  • ►Host Bus Type: PCIe 4.0 x8
  • ►Connectors:1 SFF-8654 x8
  • ►Support: SAS, SATA, NVMe
  • ►Max Devices: SAS/SATA: 240 NVMe:32
  • ►RAID Level: 0/00/1/10/5/50/6/60
  • ►Cache Size: 4GB

฿36,000.00

  • Connects up to 1024 SAS/SATA devices or 24* NVMe devices
  • Provides maximum connectivity and performance for high-end servers and applications
  • Support critical applications with the bandwidth of PCIe 3.1 connectivity
  • Low Profile Bracket
  • ราคาไม่รวมสาย cable

฿16,500.00

RAID Controller (SAS/SATA)

  • PCIe Gen4 x8 lanes
  • maximum transfer rate up to 128Gb/s
  • supports RAID 0, 1, 10, 3, 5, 6, Single Disk or JBOD
  • Support off module power loss protection (PLP)
  • Supports up to 4/6 x PCIe Gen 4.0 M.2 slots and 1x SFF-8654[x8] / 2 x SATA connector
  • Dynamically allocate storage 12Gb/s SAS/SATA/PCIe (NVMe) to NVMe slot1 and SATA/SAS ports on ARC-1886-4N8I
  • Device interface PCIe Gen4 NVMe / 6Gb/s SATA per M.2 slot
  • Support up to 256 SATA or SAS devices using SAS expanders

฿54,500.00

  • ►Ports: 8 x Internal
  • ►Host Bus Type: PCIe 3.0 x8
  • ►Connectors: 2 x SFF-8643
  • ►Support: SAS, SATA
  • ►Max Devices: SAS/SATA: 256
  • ►RAID Level: 0, 1, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD

฿35,800.00

►Eight internal 6Gb/s SATA+SAS ports
►Two Mini-SAS internal connectors (SFF8087)
►LSI SAS 2208 Dual- core 6Gb/s ROC –x2 800MHz PowerPC Processors
►PCI Express 3.0 Host Interface
►1GB DDRIII cache memory
►RAID Levels 0, 1, 5, 6, 10, 50 and 60
►Support for optional heat-tolerant battery backup

฿9,000.00

Host Bus Type
Host Interface: PCI-E x8
Device Interface: PCI-E Gen3 x8 host interface
Physical Dimension
Form Factor: TYAN Proprietary
Board Dimension: 2.52″x3.52″ (64×89.5mm)

฿3,800.00

  • Port = 1 x SFF- 8088
  • Speed = 6Gbps
  • ประกัน = 1ปี

฿9,500.00

Host Bus Type
Host Interface: PCI-E x4
Device Interface: SAS/SATA (II/I)
Physical Dimension: 79.4 x 67.5 x 0 mm

฿7,950.00

Host Bus Type
Host Interface: PCI Express x4 compatible with (x8and x16) interface
Device Interface: Serial ATA I or II
Physical Dimension: 664″L x 3.349″H (118.47mm x 85.06mm)

฿12,500.00

  • PCIe Gen4 x8 lanes
  • maximum transfer rate up to 128Gb/s
  • supports RAID 0, 1, 10, 3, 5, 6, Single Disk and JBOD
  • Support off module power loss protection (PLP)
  • Supports up to 4/6 x PCIe Gen 4.0 M.2 slots and 1x SFF-8654[x8] / 2 x SATA connector
  • Dynamically allocate storage 12Gb/s SAS/SATA/PCIe (NVMe) to NVMe slot1 and SATA/SAS ports on ARC-1886-6N2I
  • Device interface PCIe Gen4 NVMe / 6Gb/s SATA per M.2 slot
  • Support up to 256 SATA or SAS devices using SAS expanders

฿56,800.00

  • Connect up to 16 SATA or SAS drives via direct connection inside the box or up to 240 drives leveraging SAS expander technology
  • Fit into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
  • Support critical, high-bandwidth applications with PCIe® 3.0 connectivity
  • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
  • Add more protection and peace of mind with optional CacheVault® flash cache protection.

฿38,000.00

LSI, RAID Controller, MegaRAID, SAS, 9361-8i, 12Gb/s, SAS/SATA, 8port, 1GB
ฮาร์ดแวร์RAID 0,1,5,10,50,6,60 ราคายังไม่รวมสาย รับประกัน 1ปี

฿21,000.00

  • 12Gb/s SAS/SATA 8port 1GB
  • 8 Internal port
  • Host bus x8 PCI Express 3.0
  • Support RAID 0, 1, 5, 6, 10, 50, 60
  • Battery (Optional)
  • ราคาไม่รวมสาย cable

฿14,500.00

  • Connects up to 1024 SAS/SATA devices or 24* NVMe devices
  • Provides maximum connectivity and performance for high-end servers and applications
  • Support critical applications with the bandwidth of PCIe 3.1 connectivity
  • Low Profile Bracket
  • ราคาไม่รวมสาย cable

฿16,500.00

► Eight internal 6Gb/s SATA+SAS ports
► Two Mini-SAS internal connectors
(SFF-8087)
► LSI SAS 2108 6Gb/s RAID-on-Chip
––800MHzPowerPC®
► 512MB 800MHz DDRII cache memory
► Optional battery backup module (BBU-08)
► RAID Levels 0, 1, 5 and 6
► RAID Spans 10, 50 and 6
รองรับ Key Cachevault

฿9,500.00

HBA (Host Bus Adapter)

  • ►Ports: 8 Internal
  • ►Host Bus Type: PCIe 3.1 x8
  • ►Connectors: 2 x SFF-8643
  • ►Support: SAS, SATA, NVMe
  • ►Max Devices: SAS/SATA: 1024, NVMe: 24
  • ►RAID Level:

฿9,800.00

  • ►Ports: 8 External
  • ►Host Bus Type: PCIe 3.1 x8
  • ►Connectors: 2 x SFF-8644
  • ►Support: SAS, SATA
  • ►Max Devices: SAS/SATA: 1024
  • ►RAID Level:

฿13,500.00

• Quad port PCI-E x16 Gen-3 NVMe controller
• 4 internal lanes per OCuLink port
• Supports 4 physical NVMe Devices
• PCI-E Retimer
• OS Support: Windows, Linux, VMware
• Uses 4 OCuLink Connectors
• Operating Temp: 10° to 55°C

฿6,200.00

• Dual port PCI-E x8 Gen-3 NVMe controller
• 2 internal lanes per OCuLink port
• Supports 2 physical NVMe Devices
• PCI-E Retimer
• OS Support: Windows, Linux, VMware
• Uses 2 OCuLink Connectors
• Operating Temp: 10° to 55°C

฿4,500.00

Host Bus Type
Host Interface: PCI-E Gen3 x16
Device Interface: PCI-E Gen3 x8 via (2) OCuLink (SFF-8612) connectors
Physical Dimension
Form Factor: Half height, half length
Board Dimension: 2.53″ x 4.72″ (64.41 x 120mm)

฿6,200.00

  • Connect up to 1024 SAS and SATA devices with 8 external 12Gb/s SAS and SATA ports
  • Fit into 1U/2U rack-mounted servers and workstations with low-profile form factor (full-height bracket included)
  • Provide up to 12Gb/s SAS and up to 6Gb/s SATA performance across 8 lanes of PCIe® 3.0 connectivity

฿12,500.00

  • Connect up to 1024 SAS and SATA devices with 8 internal 12Gb/s SAS and SATA ports
  • Fit into 1U/2U rack-mounted servers and workstations with low-profile form factor (full-height bracket included)
  • Provide up to 12Gb/s SAS and up to 6Gb/s SATA performance across 8 lanes of PCIe® 3.0 connectivity

฿9,000.00

HBA Features

  • Implements one LSI SAS 2308 eight-port 6Gb/s to PCIe 3.0 controller
  • Supports eight-lanes, full-duplex PCIe 3.0 performance
  • Supports eight internal 6Gb/s SATA+SAS ports
  • Supports SAS link rates of 1.5Gb/s, 3.0Gb/s, and 6.0Gb/s
  • Provides two x4 internal mini-SAS connectors (SFF-8087) with sidebands
  • Supports up to 256 SATA or SAS end devices
  • Offered with a full-height bracket and low-profile vented bracket
  • Provides one heartbeat LED
  • Uses sideband signals in multilane connectors to support serial general purpose input/output (SGPIO)

฿4,000.00

1. Provides maximum connectivity with 24 SAS/SATA devices for direct attach storage; or up to 1024 SAS/SATA devices using expanders
2. Supports critical applications with the bandwidth of PCIe® 3.0 connectivity
3. Delivers more than 1.5 million IOPS for performance-sensitive applications
4. Top edge connector cable exit extends into full height card area.

฿14,500.00

  • Eight-port 12Gbps PCI Express RAID controller
  • supporting 3/6/12 Gbps SAS
  • supporting 3/6 Gbs SATA hard-disk or solid-state drives
  • ราคาไม่รวมสาย cable

฿6,500.00

For OEM applications such as mid-sized storage servers, tiered storage systems and backup and recovery, balance protection and connectivity with integrated RAID data protection. The SAS 9217-8i 6Gb/s SAS Host Bus Adapter offers ample room for storage-intensive systems plus the data protection of built-in, entry-level RAID.
  • Connect up to 256 SAS and SATA devices with 8 internal 6Gb/s SAS and SATA ports
  • Fit into 1U/2U rack-mounted servers and workstations with low-profile form factor (full-height bracket included)
  • Bandwidth to support critical applications with PCIe® 3.0 connectivity
  • Deliver data protection with integrated RAID for redundancy and high availability in environments where advanced RAID levels are not needed
  • Available only to OEMs through direct sales

฿4,500.00

เทคโนโลยี Tri-Mode SerDes ของ Broadcom ช่วยให้การทำงานของอุปกรณ์ NVMe, SAS หรือ SATA ในช่องใส่ไดรฟ์เดียวช่วยให้สามารถออกแบบได้อย่างไม่มีที่สิ้นสุด
► เชื่อมต่ออุปกรณ์ SAS / SATA ได้สูงสุด 63 อุปกรณ์หรืออุปกรณ์ NVMe 24 ตัวต่ออุปกรณ์ควบคุม
► เหมาะสำหรับติดตั้งบนแร็คเซิร์ฟเวอร์ที่มีแฟ็กเตอร์ฟอร์ม low-profile และขั้วต่อ SAS ด้านข้าง
► มีการเชื่อมต่อแบบPCIe® 3.1
► รองรับRAID ระดับ 0, 1, 5, 10 และ 50

฿12,800.00

» Connect up to 1024 SAS and SATA devices with 8 external 12Gb/s SAS and SATA ports
» Fit into 1U/2U rack-mounted servers and workstations with low-profile form factor (full-height bracket included)
» Provide up to 12Gb/s SAS and up to 6Gb/s SATA performance across 8 lanes of PCIe® 3.0 connectivity

฿16,800.00

VROC

► รองรับระดับ RAID 0, 1, 10, 5
► ระบบปฏิบัติการที่รองรับ: Windows* 2016, Windows* 2012 R2, Windows* 10, Windows* 7 SP2 Red Hat Enterprise Linux* 7.3, SUSE Linux Enterprise* 12 SP3
► # อุปกรณ์ที่รองรับ 24 อุปกรณ์
► การระบุคีย์ 4pin
** อุปกรณ์นี้ไม่ขายแยกใช้ติดตั้งไปกับเครื่องชุดเท่านั้น

฿13,500.00

► รองรับระดับ RAID 0, 1, 10
► ระบบปฏิบัติการที่รองรับ: Windows* 2016, Windows* 2012 R2, Windows* 10, Windows* 7 SP2 Red Hat Enterprise Linux* 7.3, SUSE Linux Enterprise* 12 SP3
► # อุปกรณ์ที่รองรับ 24 อุปกรณ์
► การระบุคีย์ 4pin
** อุปกรณ์นี้ไม่ขายแยกใช้ติดตั้งไปกับเครื่องชุดเท่านั้น

฿5,850.00

► รองรับระดับ RAID 0, 1, 10, 5
► ระบบปฏิบัติการที่รองรับ: Windows* 2016, Windows* 2012 R2, Windows* 10, Windows* 7 SP2 Red Hat Enterprise Linux* 7.3, SUSE Linux Enterprise* 12 SP3
► # อุปกรณ์ที่รองรับ 24 อุปกรณ์
► การระบุคีย์ 4pin
** อุปกรณ์นี้ไม่ขายแยกใช้ติดตั้งไปกับเครื่องชุดเท่านั้น

฿4,850.00
