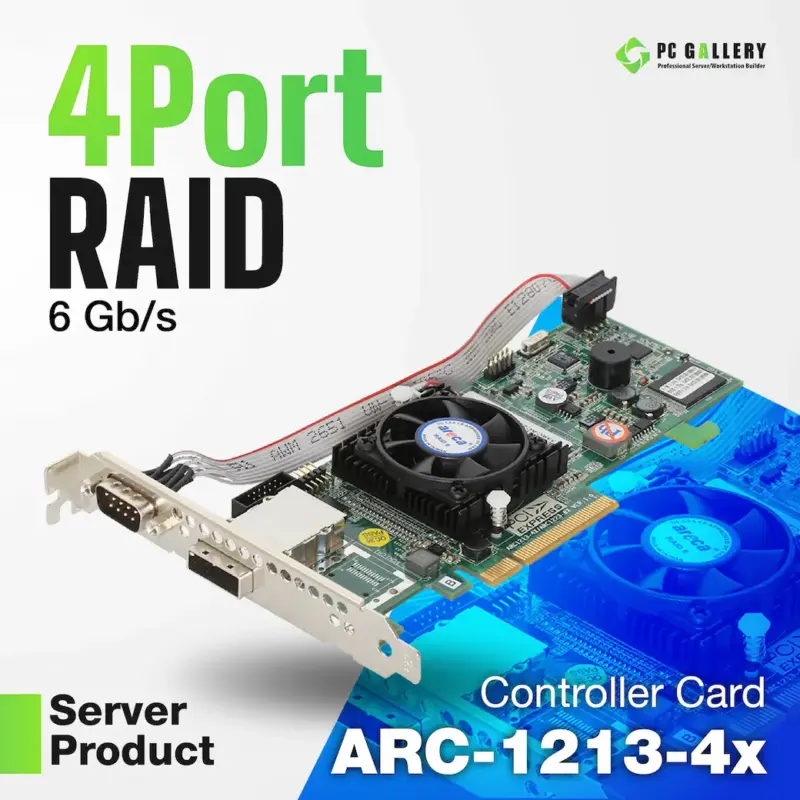

การ์ดRAID ARECA, ARC-1213-4x , SAS, 6Gb/s
- Port = 1 x SFF- 8088
- Speed = 6Gbps
- ประกัน = 1ปี
฿9,500.00
แจ้งกับทางร้านก่อนชำระเงิน เพื่อตรวจสอบสถานะสินค้า และค่าจัดส่ง
| Model Name | ARC-1213-4x |
|---|---|
| I/O Processor | RAID-on-Chip 800MHz |
| Host Bus Type | PCIe 2.0 x 8 Lanes |
| Drive Connector | 1 x SFF- 8088 |
| Drive Support | 4 x SAS/SATA |
| RAID Level | 0, 1, 10, 3, 5, 6, Single Disk or JBOD |
| On-Board Cache | 512MB ECC DDR2-800 SDRAM |
| Management Port | In-Band: PCIe Out-of-Band: BIOS and LCD (option) |
| Enclosure Ready | External Serial Bus |
| Form Factor (H x L) | 62 x 168 mm |
