Brackets | Full height and low profile |
---|---|
Cable Support | Passive Copper |
Devices Supported | SAS/SATA: 1024; NVMe: 24 |
Generation | 12 Gb/s |
Host Bus Type | x8 lane PCI Express® 3.1 |
Internal Connectors | 4 Mini-SAS HD x4 SFF-8643 |
Internal Ports | 16 |
Management Software | LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) |
MTBF | > 4,500,000 hours at 40° C |
OS Support | Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Citrix XenServer, Ubuntu Linux, CentOS Linux, Oracle Enterprise Linux, Fedora, FreeBSD, Debian Linux |
Physical Dimensions | Low profile 6.127” x 2.712” |

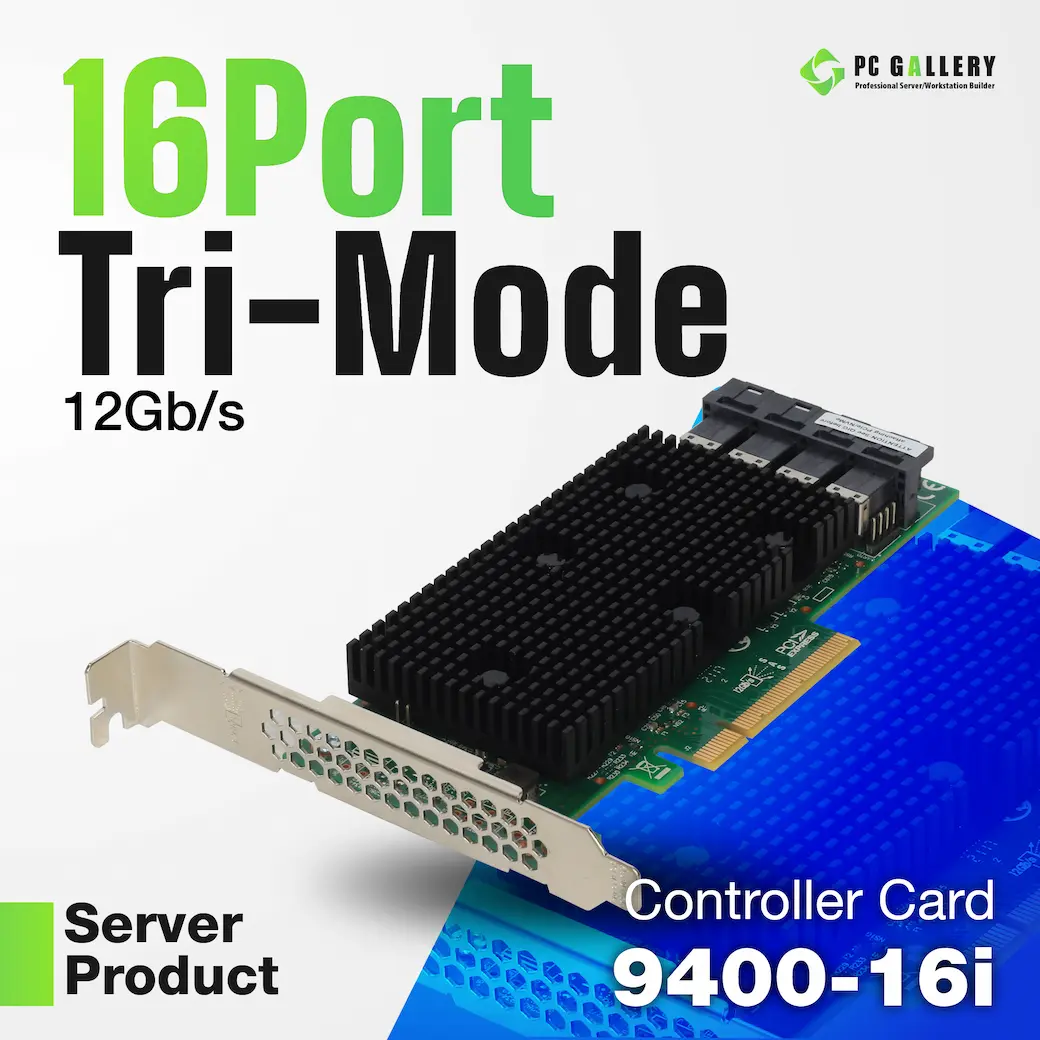

การ์ดSAS 9400-16i Tri-Mode Storage Adapter (none-RAID, SAS/SATA/NVMe)
- Connects up to 1024 SAS/SATA devices or 24* NVMe devices
- Provides maximum connectivity and performance for high-end servers and applications
- Support critical applications with the bandwidth of PCIe 3.1 connectivity
- Low Profile Bracket
- ราคาไม่รวมสาย cable
฿16,500.00
แจ้งกับทางร้านก่อนชำระเงิน เพื่อตรวจสอบสถานะสินค้า และค่าจัดส่ง
Related Products
Host Bus Type
Host Interface: PCI Express x4 compatible with (x8and x16) interface
Device Interface: Serial ATA I or II
Physical Dimension: 664″L x 3.349″H (118.47mm x 85.06mm)
฿12,500.00
Host Bus Type
Host Interface: PCI-E Gen3 x16
Device Interface: PCI-E Gen3 x8 via (2) OCuLink (SFF-8612) connectors
Physical Dimension
Form Factor: Half height, half length
Board Dimension: 2.53″ x 4.72″ (64.41 x 120mm)
฿6,200.00
เทคโนโลยี Tri-Mode SerDes ของ Broadcom ช่วยให้การทำงานของอุปกรณ์ NVMe, SAS หรือ SATA ในช่องใส่ไดรฟ์เดียวช่วยให้สามารถออกแบบได้อย่างไม่มีที่สิ้นสุด
► เชื่อมต่ออุปกรณ์ SAS / SATA ได้สูงสุด 63 อุปกรณ์หรืออุปกรณ์ NVMe 24 ตัวต่ออุปกรณ์ควบคุม
► เหมาะสำหรับติดตั้งบนแร็คเซิร์ฟเวอร์ที่มีแฟ็กเตอร์ฟอร์ม low-profile และขั้วต่อ SAS ด้านข้าง
► มีการเชื่อมต่อแบบPCIe® 3.1
► รองรับRAID ระดับ 0, 1, 5, 10 และ 50
฿12,800.00
► Supports up to four PCIE® 3.0 M.2 drives, with transfer bandwidth up to 128Gbps
► Supports Intel VROC technology, allowing you to use CPU PCIe® lanes to create BOOTable RAID arrays
► Integrated blower-style fan to prevent throttling
฿3,500.00
