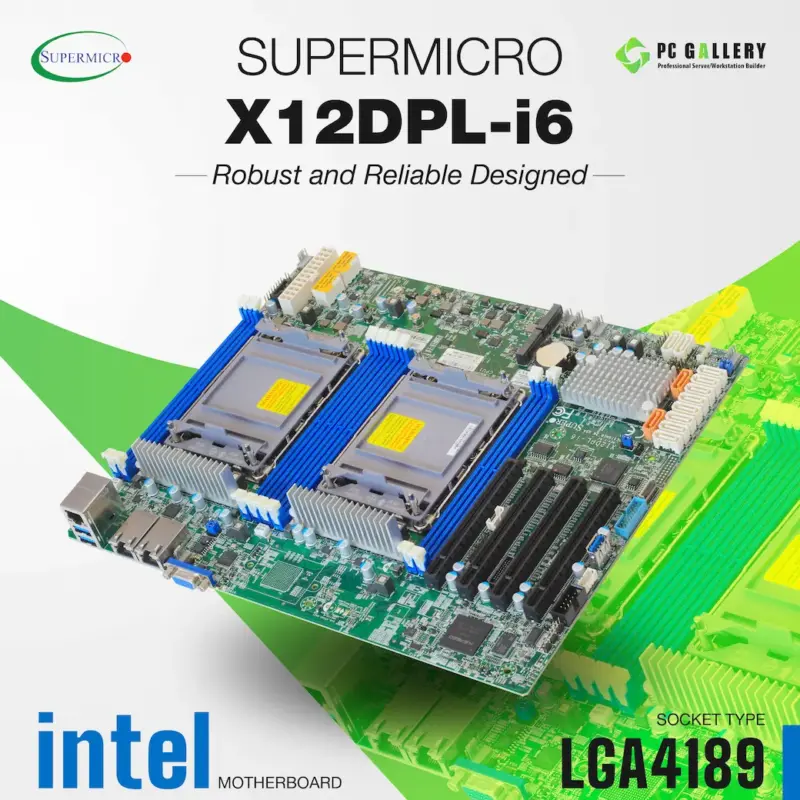

เมนบอร์ด Supermicro X12DPL-i6, Socket LGA4189, ATX, (C621A)

  • ATX (12.23″ x 10″)
  • 3rd Gen Intel® Xeon® Scalable processors
  • 8 DIMM slots ECC 3DS DDR4 LRDIMM, RDIMM
  • PCIe 4.0
  • Supports 2 M.2 (PCIe4.0 x4)
  • 12 SATA 6Gb/s
  • 2 RJ45 (1GbE) by Intel® i210
  • Remote management (IPMI)

฿31,500.00

แจ้งกับทางร้านก่อนชำระเงิน เพื่อตรวจสอบสถานะสินค้า และค่าจัดส่ง

Description

News & Update

ทดสอบ M.2 NVMe บน X12DPL-I6 RAID Onboard

     สำหรับการทดสอบในหัวข้อวันนี้เป็นการทดสอบโดยติดตั้ง M.2 NVMe PCIe 4.0 2ตัว บน Mainboard Supermicro X12DPL-I6 ทดสอบสร้าง RAID0,1 ซึ่งในส่วนของการตั้งค่าต่างๆบน Mainboard Supermicro X12DPL-I6 จะมีขั้นตอนอย่างไรสามารถดูได้จากข้อมูลทางด้านล่าง อุปกรณ์ที่ใช้ในการทดสอบ Mainboard Supermicro X12DPL-I6 CPU Xeon

Read More »

Support OS

TrueNAS 13.0

TrueNAS 13.0

TrueNAS 13.0

TrueNAS 13.0

TrueNAS 13.0

TrueNAS 13.0

TrueNAS 13.0

TrueNAS 13.0

Additional information

Form Factor

ATX
12.23" x 10" (31.06cm x 25.4cm)

CPU

Supports: 3rd Gen Intel® Xeon® Scalable processors

Socket

Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 1850W TDP, Dual UPI up to 11.2 GT/s

Chipset

Intel® C621A

System Memory

Total Slots: 8 DIMM slots
Max Memory Size : 2TB
Memory Type: 3200/2933/2666MHz ECC DDR4 LRDIMM (3DS), RDIMM
DIMM Sizes: 256GB, LRDIMM: 256GB, RDIMM: 256GB

Expansion Slot

x 4 PCI-E 4.0 x16,

Storage

Intel® C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
8 x SATA 7-pin connectors, including 1 support SATA DOM
2 x M.2 Interface: 2 PCI-E 4.0 x4, RAID 0 & 1 Form Factor: 2280/22110

Graphics

ASPEED AST2600 BMC

Ethernet

Dual LAN with Intel® i210 Gigabit Ethernet Controller
2 x RJ45 (1GbE) by Intel® i210

Management

SuperDoctor® 5, NMI, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog

Rear Panel I/O

1 x VGA D-Sub Connector port(s)
3 x GLAN RJ45+(IPMI)
5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
1 COM Port(s) (1 header)
1 x UID

OS Compatibility

OS COMPATIBILITY
CentOS 7
CentOS 8.2
Debian 10.2
FreeNAS 11.3
Proxmox VE5.3
Proxmox VE6.3
Proxmox VE7.0
Redhat 8.2
TrueNAS 12
Ubuntu 16.04
Ubuntu 18.04
Ubuntu 20.04
VMwareESXi 6.5
VMwareESXi 6.7
VMwareESXi 7.0
Windows 10Pro
Windows server 2012 R2
Windows server 2016
Windows server 2019
Windows server 2022
