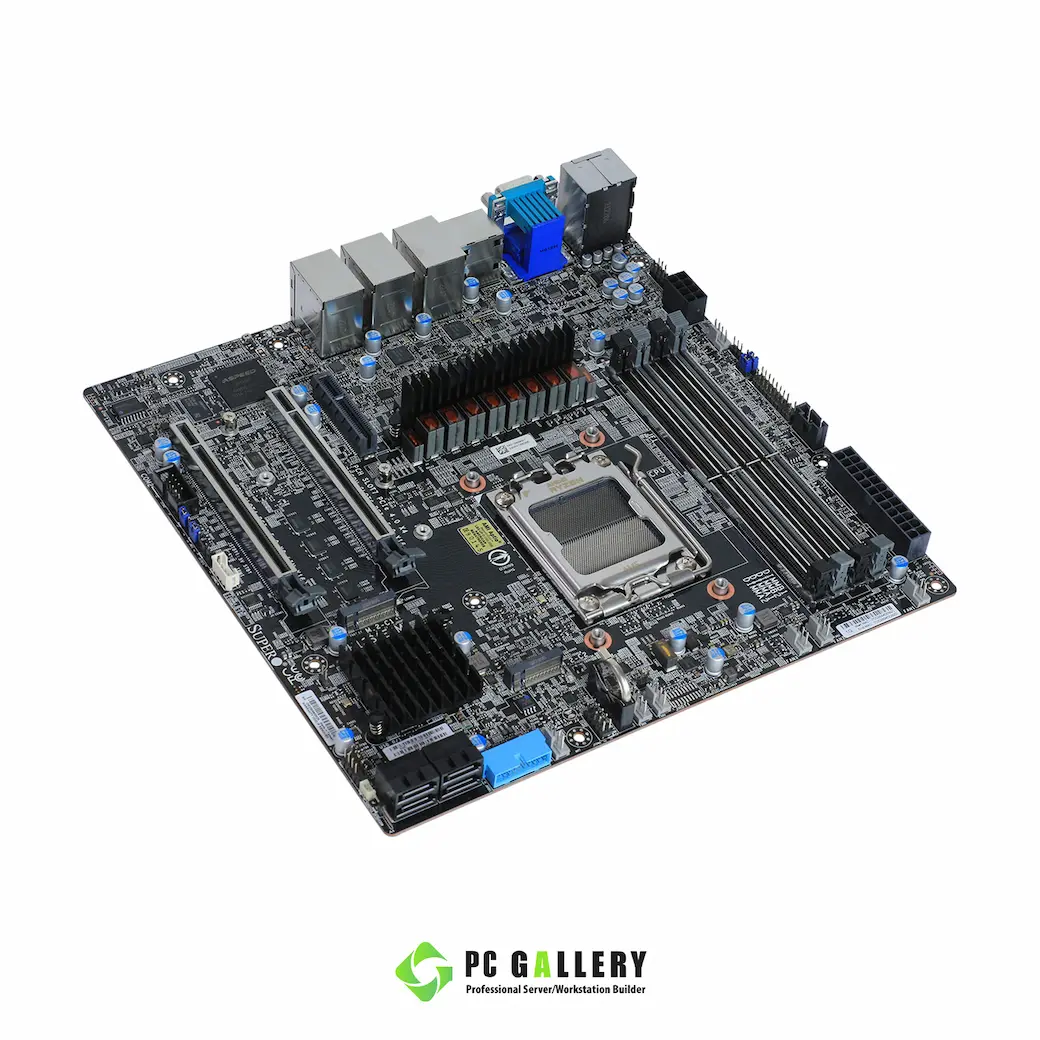

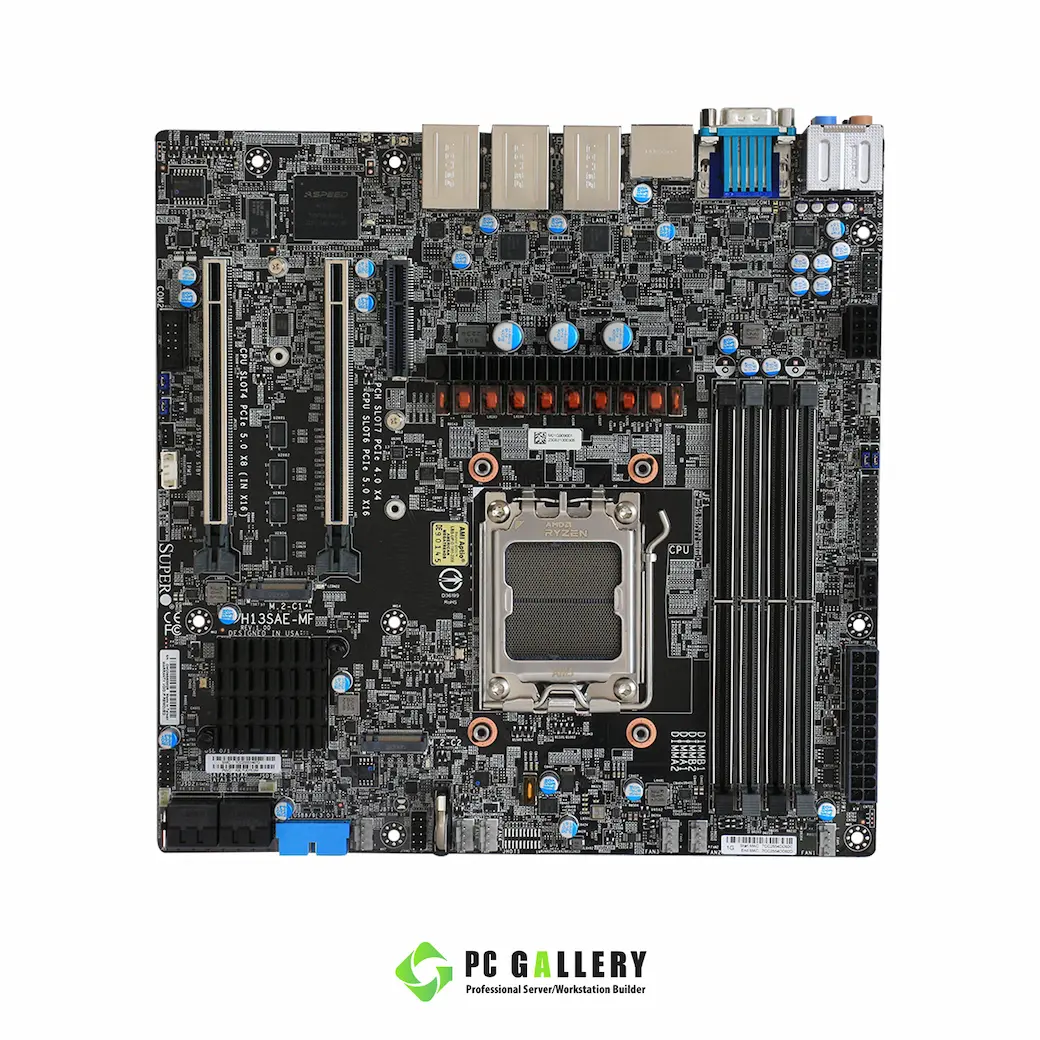

เมนบอร์ด Supermicro H13SAE-MF, AMD AM5, Micro-ATX

  • AMD socket AM5
  • Chipset B650
  • 4 x DDR5 ECC-UDIMM, None-ECC
  • PCIe 4.0, PCIe 5.0
  • 2 x GLAN
  • ► Remote management (IPMI)
  • ► Micro-ATX (9.6″ x 9.6″)

฿21,500.00

แจ้งกับทางร้านก่อนชำระเงิน เพื่อตรวจสอบสถานะสินค้า และค่าจัดส่ง

News & Update

Physical Status
Form factor
  • Micro-ATX(9.6″ x 9.6″)
Dimensions
  • 9.6” x 9.6” (244 mm x244 mm)

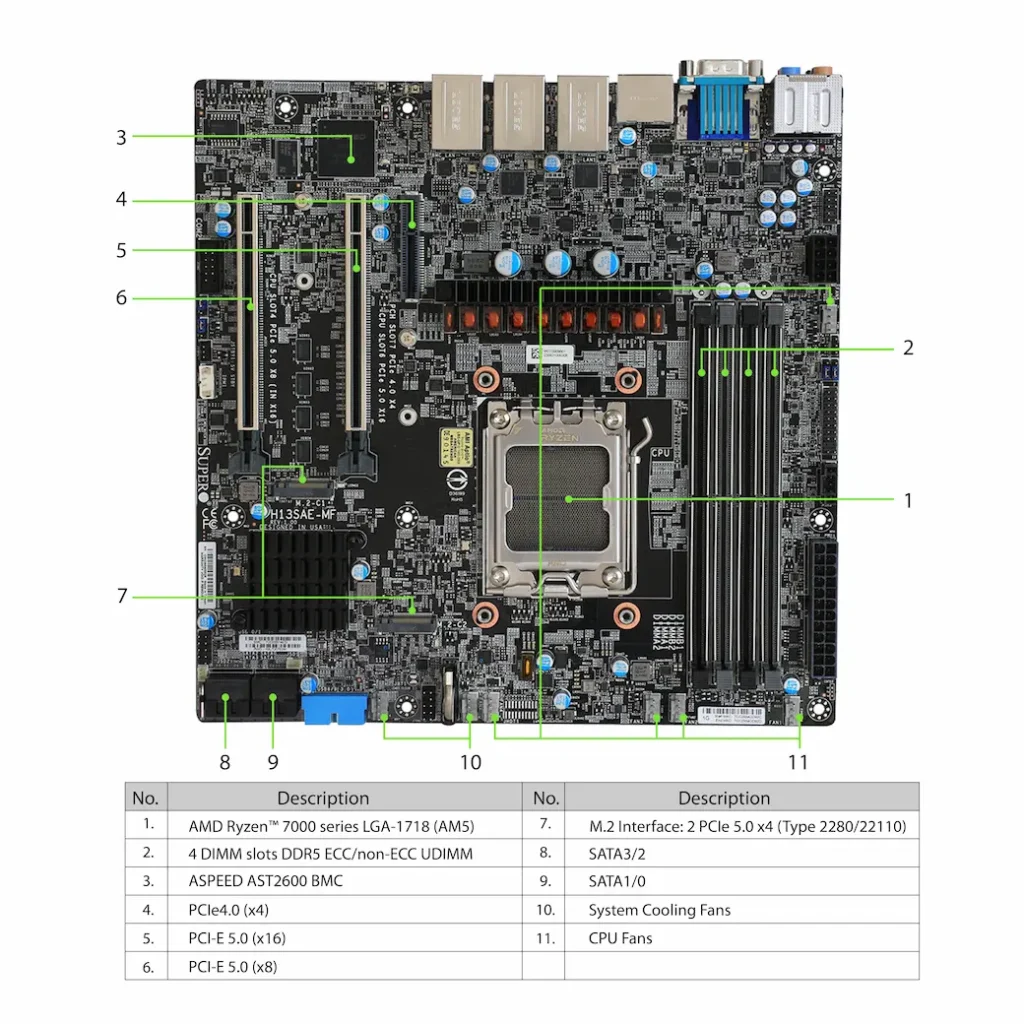

Processor
Processor Support
  • AMD Ryzen™ 7000 series Processors
  • CPU TDP supports Up to 170W TDP
Socket
  • Single Socket LGA-1718 (socket AM5)
Chipset
  • AMD B650
Memory Support
Total Slot
  • 4 DIMM slots
Max Memory Size
  • Up to 192GB
Memory Capacity
  • 8GB, 16GB, 32GB, 48GB

DIMM Type

  • DDR5 ECC-UDIMM / None-ECC
Frequency
  • 3600/4800/5200MT/s
Network / IPMI
Integrated LAN
  • 2 x RJ45 Gigabit Ethernet LAN ports with Intel® i210 Gigabit Ethernet Controller
IPMI
  • 1 x IPMI ASPEED AST2600 BMC

Graphic

Controller
  • ASPEED AST2600 BMC

Expansion Slots

PCI-Express (PCI-E)
  • 1 x PCI-E 4.0 x4
  • 2 x PCI-E 5.0 x16 (16/NA or 8/8)
M.2
  • 2 x M.2 Interface: 2 PCI-E 5.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
Storage / Controller
PCH Built-in Storage
  • 4 x SATA3 (6Gbps) ports
  • support RAID 0/1/10
Storage Controller
  • N/A

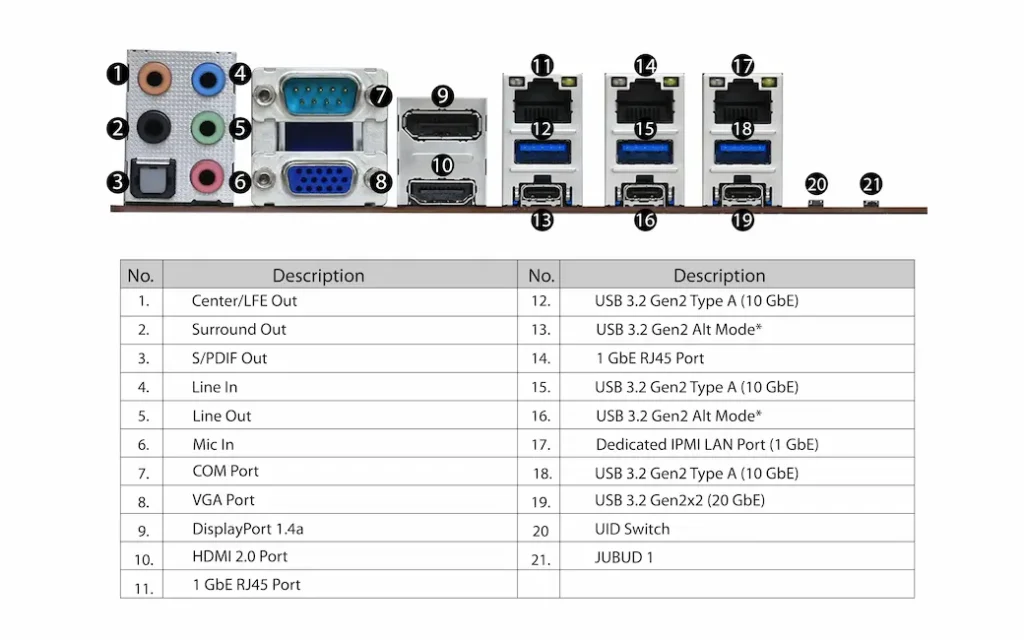

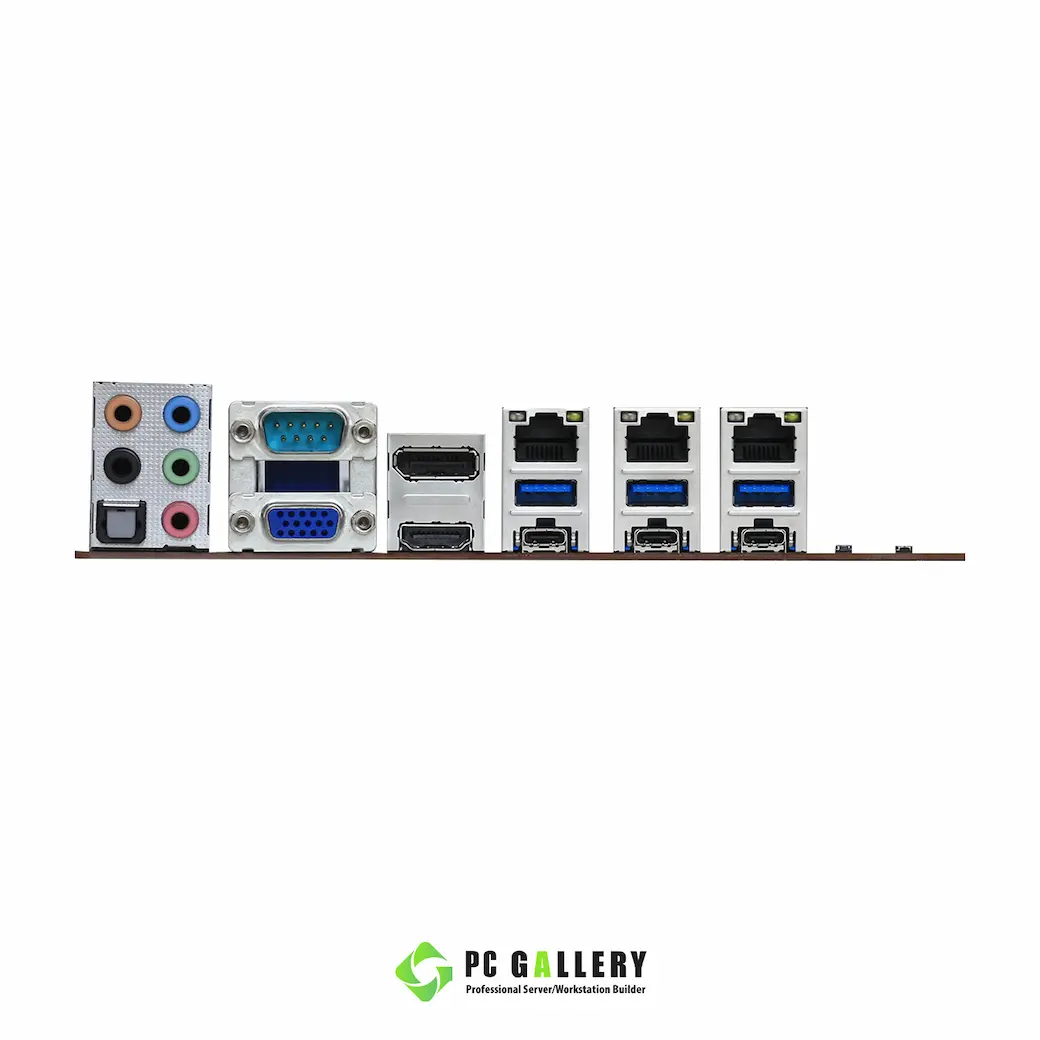

Input / Output
SATA
  • 4 x SATA3 (6Gbps) ports
LAN
  • 2 x RJ45 Gigabit Ethernet LAN ports
Dedicate LAN
  • 1 dedicated IPMI
USB
  • 1 USB 3.2 Gen2x2 port (1 rear type C 20Gb)
  • 5 USB 3.2 Gen2 ports (3 rear type A 10Gb; 2 rear type C DP 1.4 Alt mode)
  • 2 USB 3.2 Gen1 ports (2 headers 5Gb)
  • 1 USB 2 ports (1 via header 2 ports by a header)
Video Output
  • 1 HDMI 2.0 port
  • 1 DP 1.4a port
  • 2 rear type C ports
  • DP 1.4 Alt mode
Serial Port
  • 1 x COM Port(s) (1 header)
DOM
  • N/A
TPM
  • 1 x TPM Header

Supported OS

Microsoft Windows



Linux



Virtual Machine
