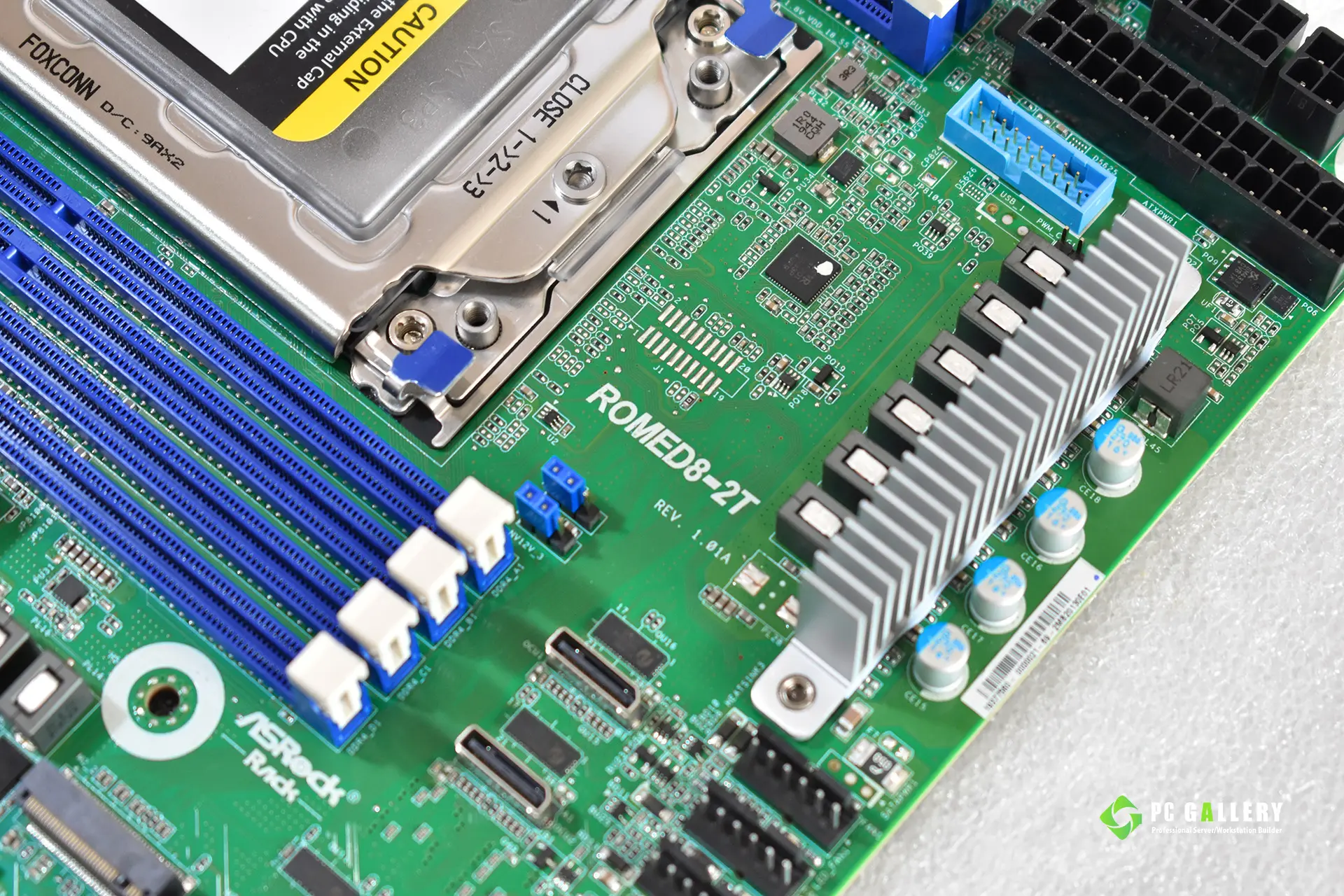

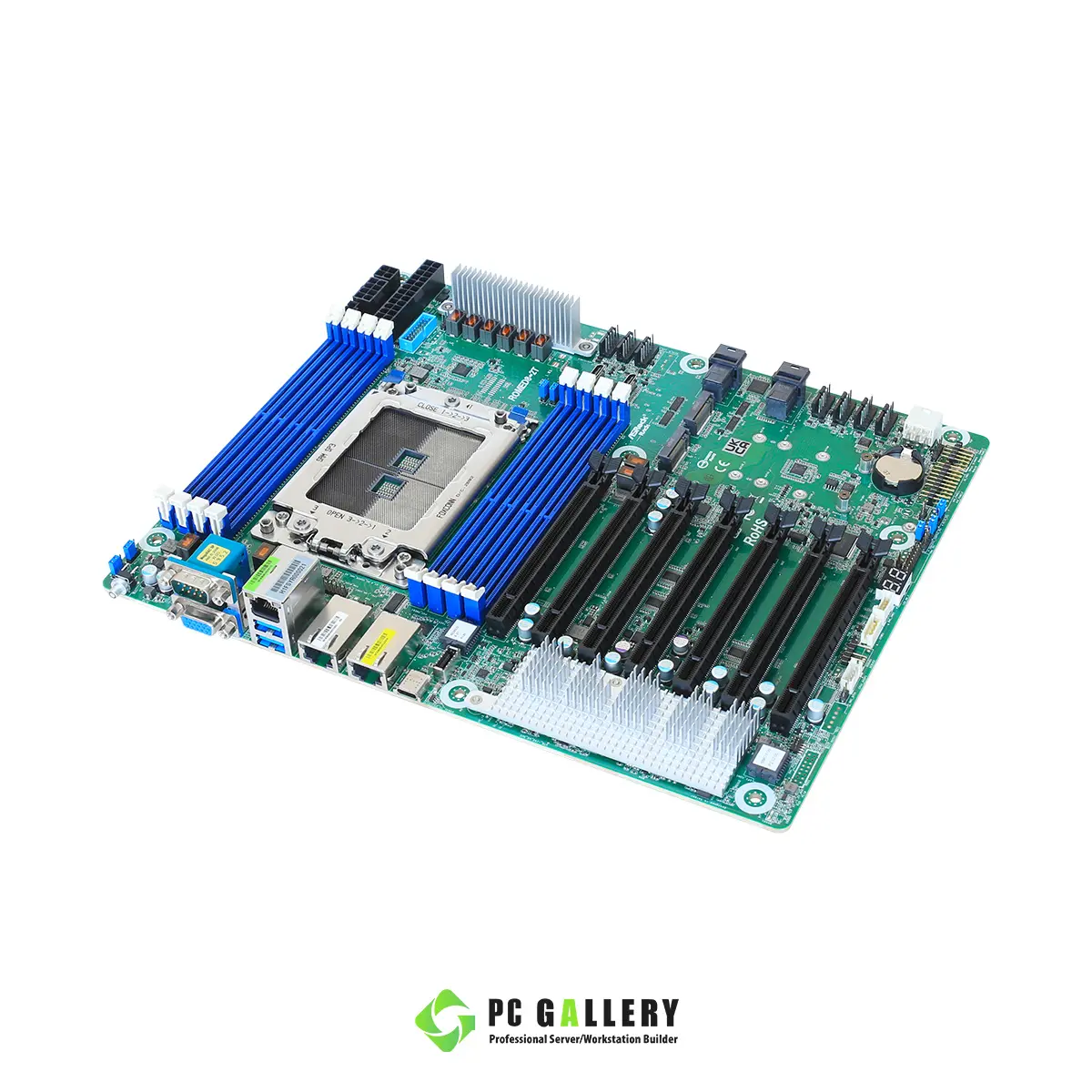

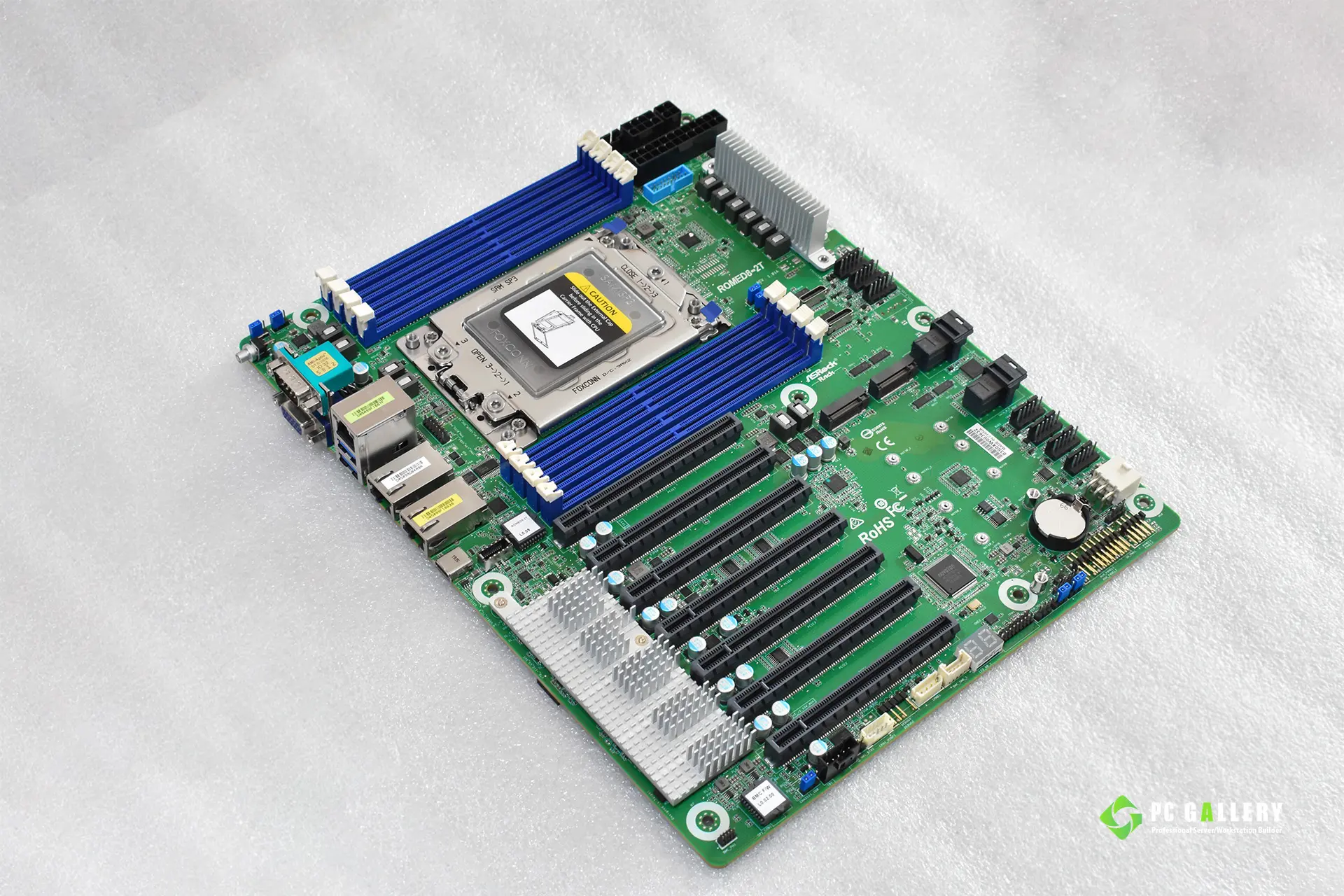

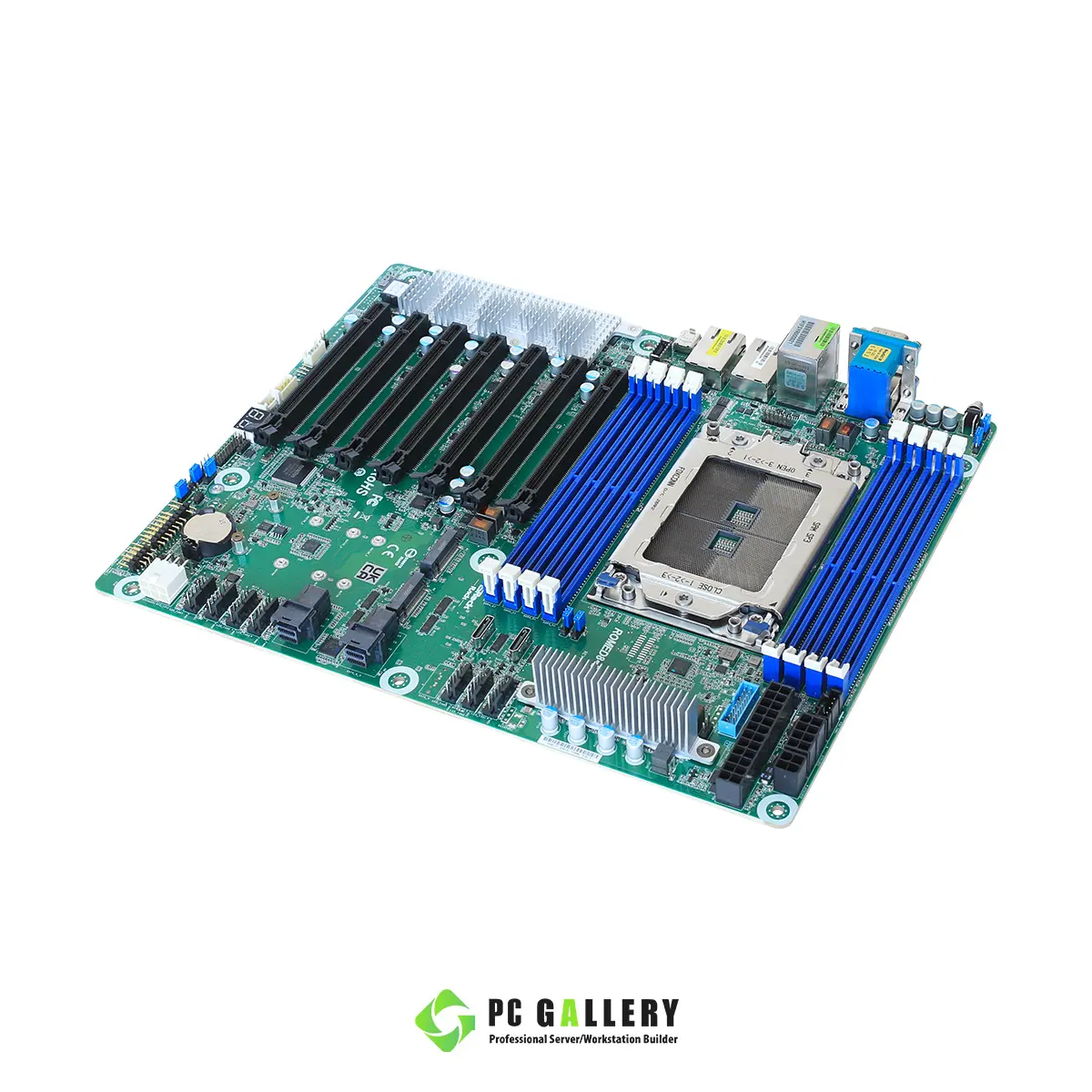

เมนบอร์ดเซิฟเวอร์ ASRockRack ROMED8-2T, SP3, ATX

  • ATX 12” x 9.6”
  • Single Socket SP3 (LGA4094) support AMD EPYC™ 7002/7001 series processor family
  • Supports 8 Channels DDR4 3200/2933/2666/2400 RDIMM, LRDIMM/NV DIMM 8 x DIMM slots
  • Supports 8x SATA3 6.0 Gb/s (from 2x mini SAS HD), 1x SATA DOM(BOM option), and 2 x M.2
  • Supports 2 X 10G LAN by Intel X550 -AT2
  • Supports 7 PCIe 4.0x 16
  • Supports 2 OCulink(share with PCIE2 by Jumper)

฿29,000.00

แจ้งกับทางร้านก่อนชำระเงิน เพื่อตรวจสอบสถานะสินค้า และค่าจัดส่ง

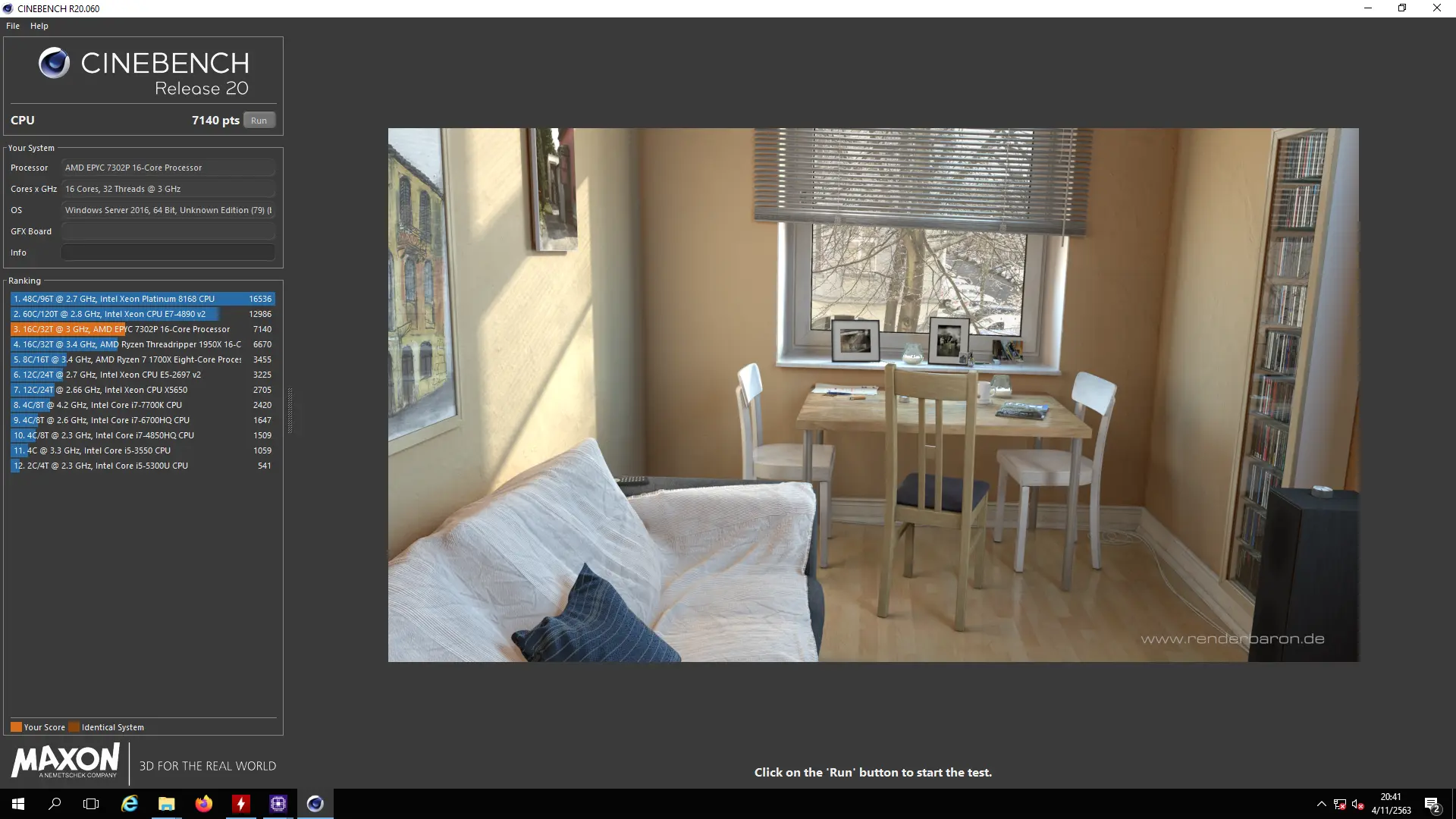

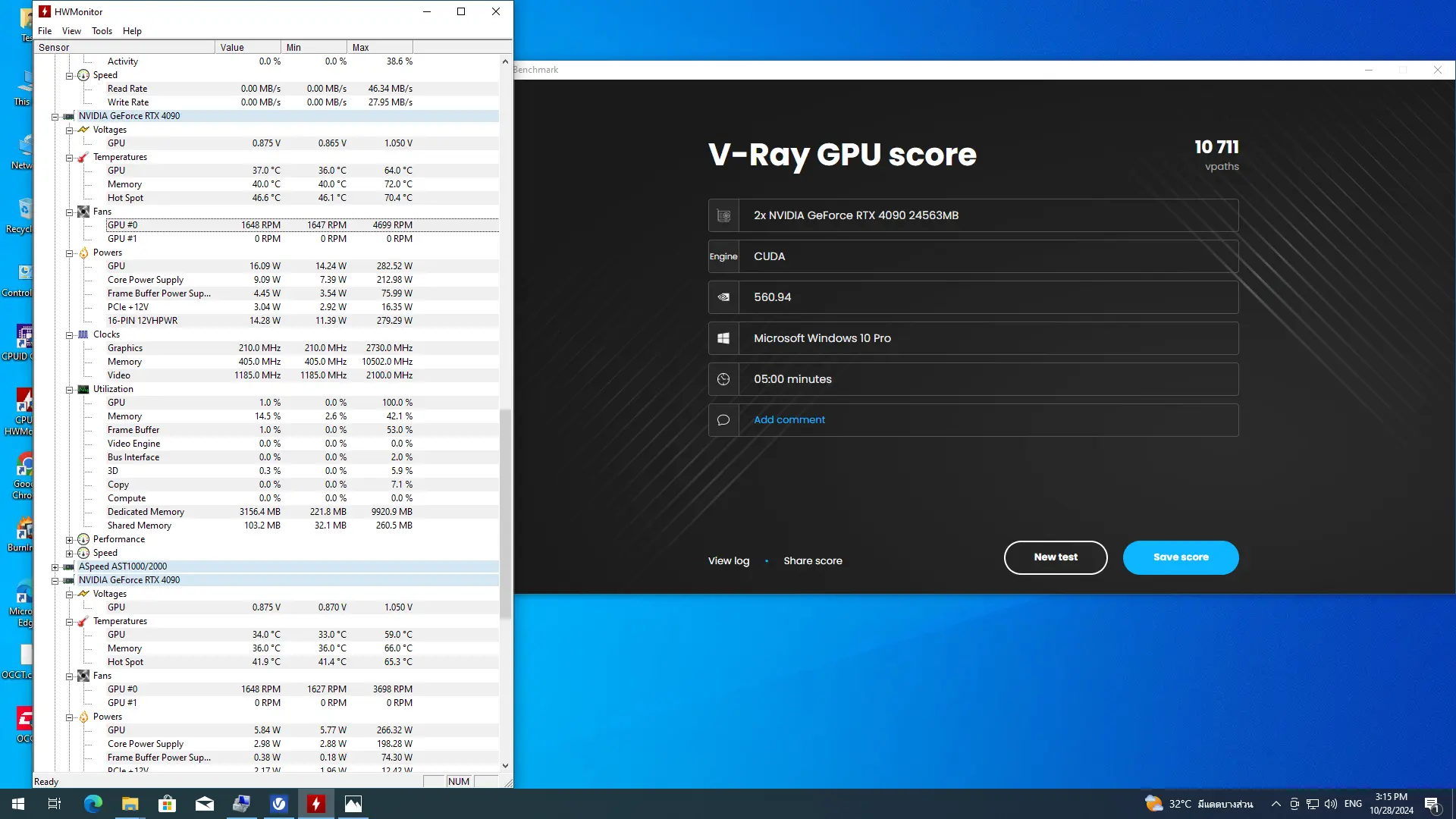

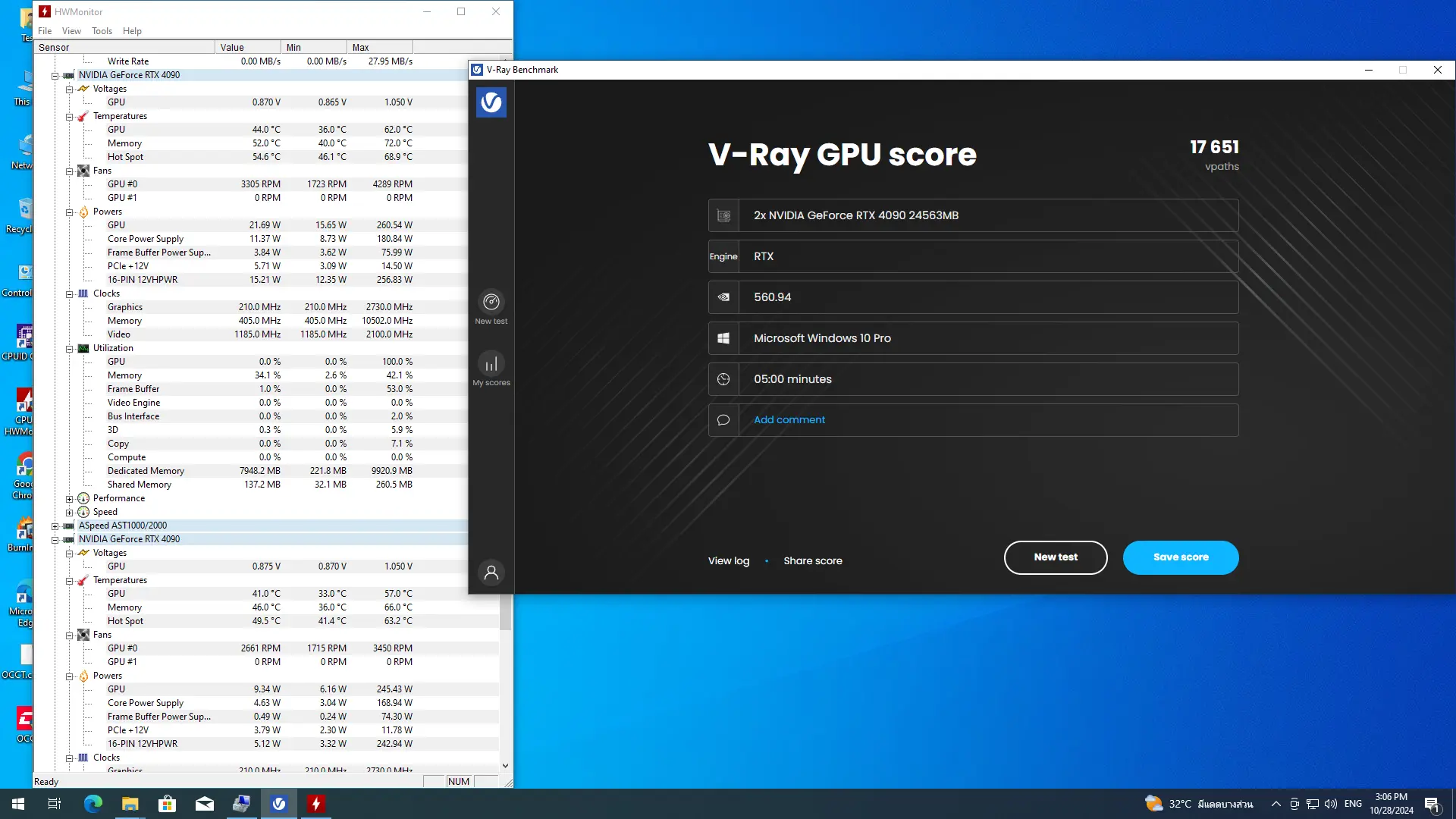

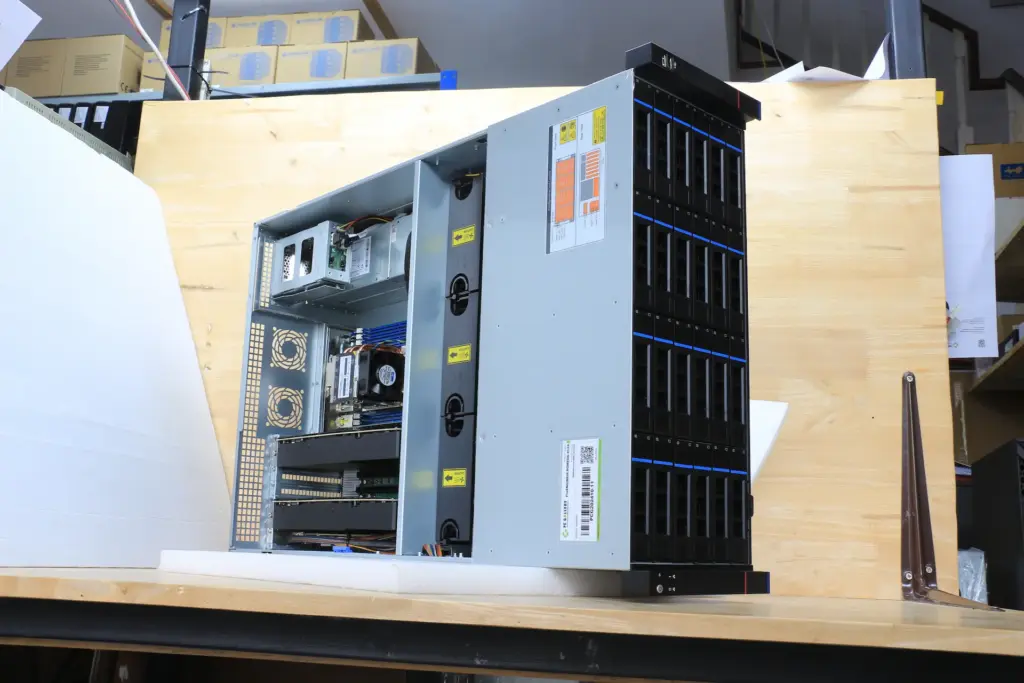

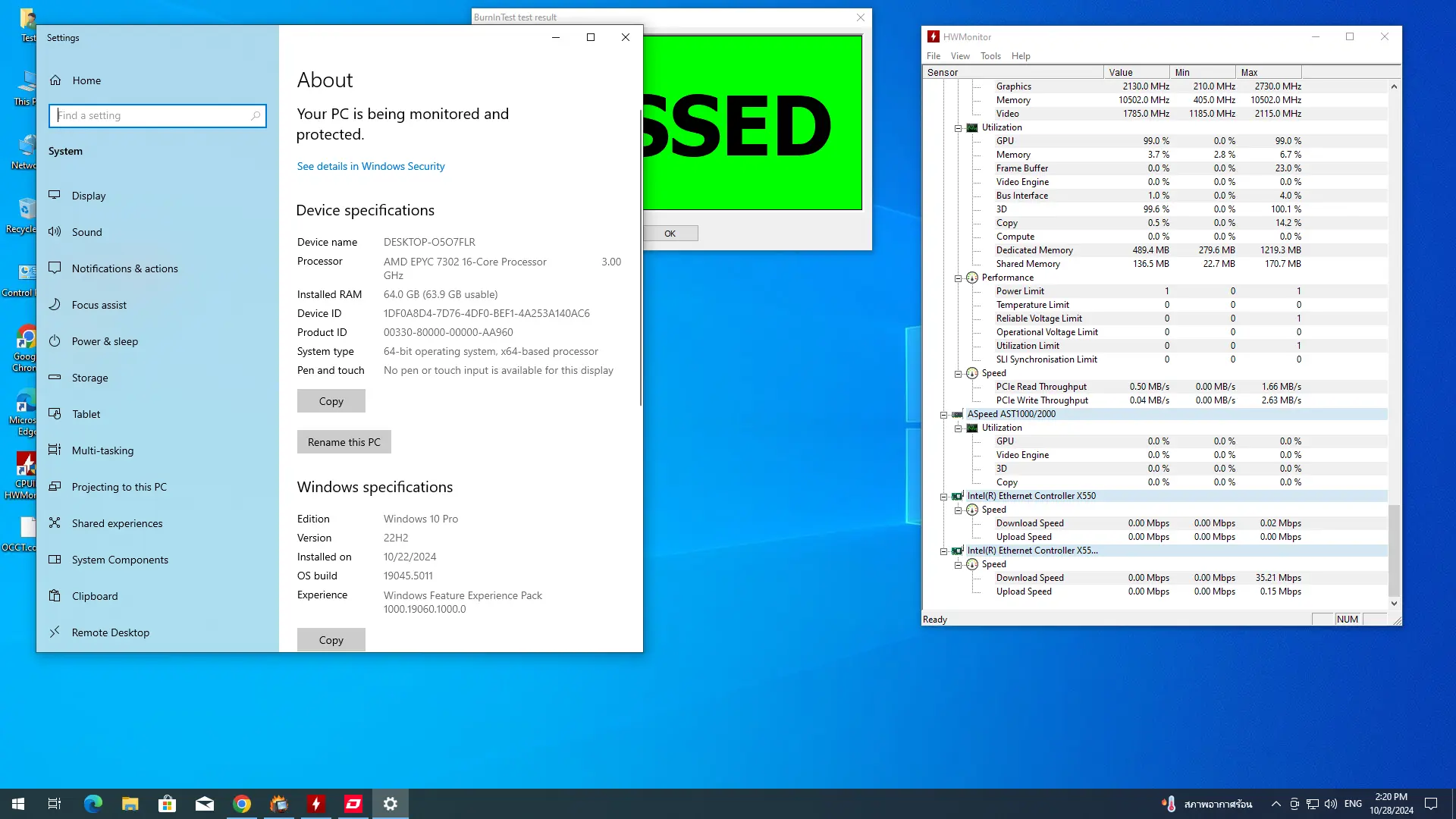

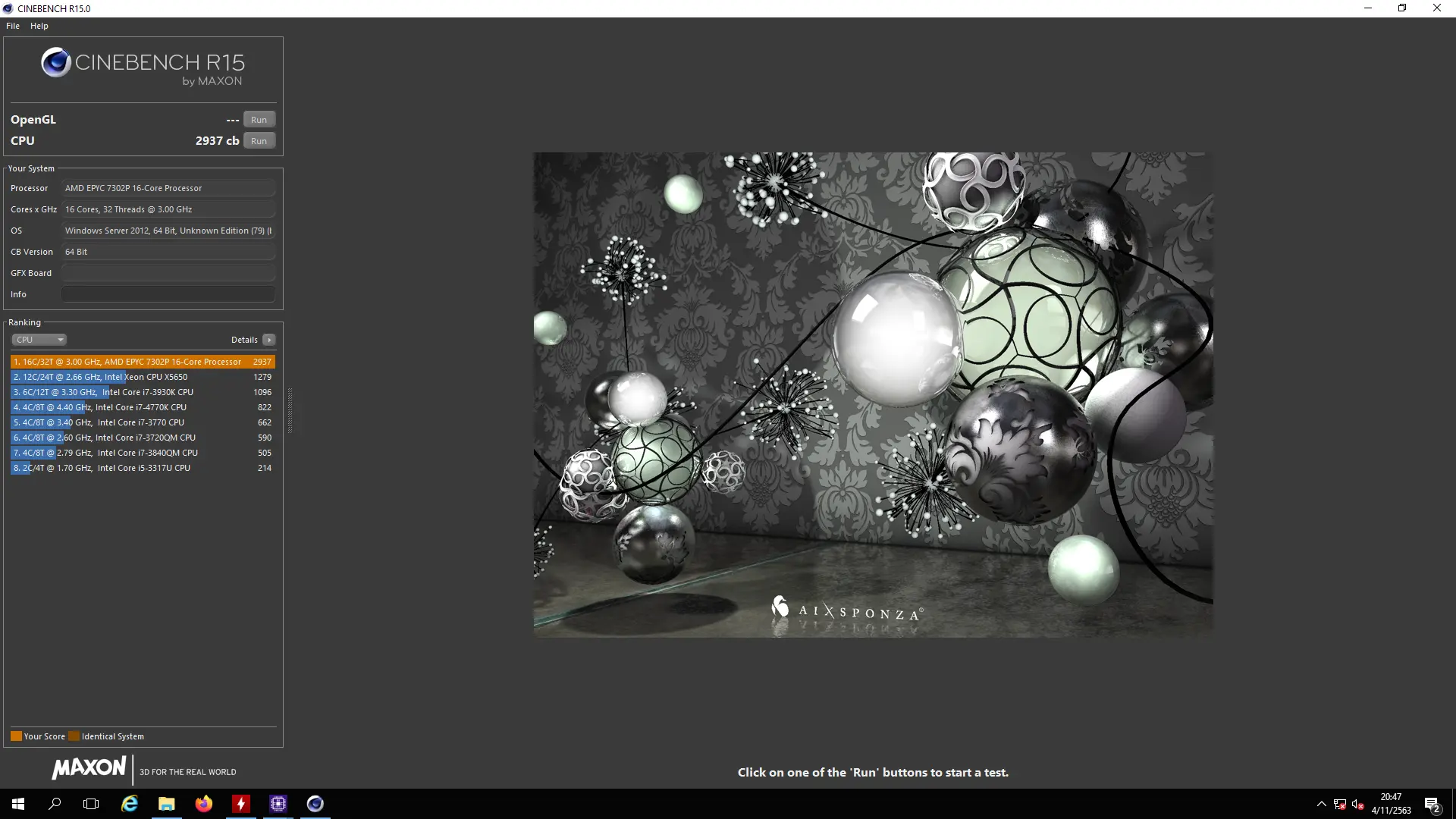

การทดสอบที่เกี่ยวข้องกับ ROMED8-2T

Form Factor

ATX
Dimensions

12'' x 9.6'' (30.5 cm x 24.4 cm)

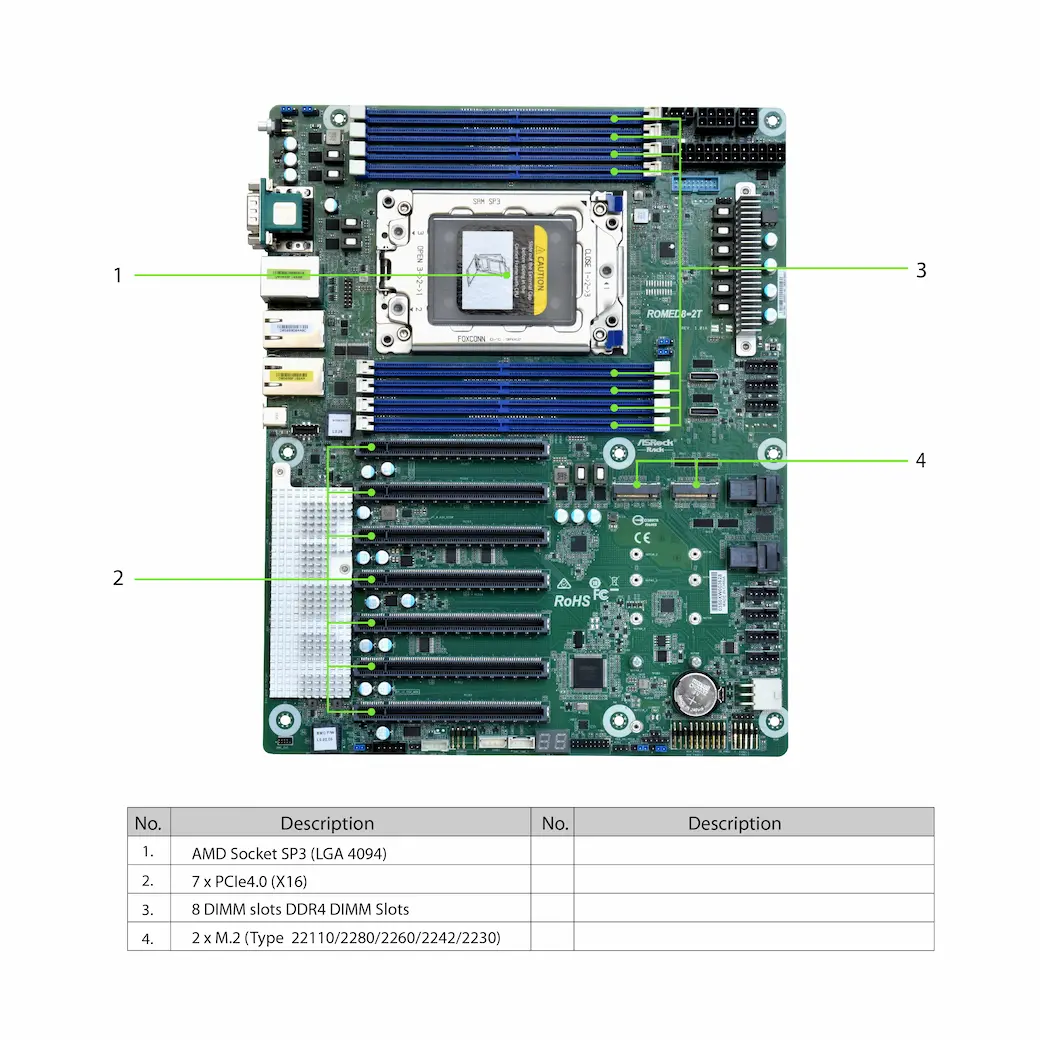

Processor System

CPU: AMD EPYC™ 7002/7001 series processor family

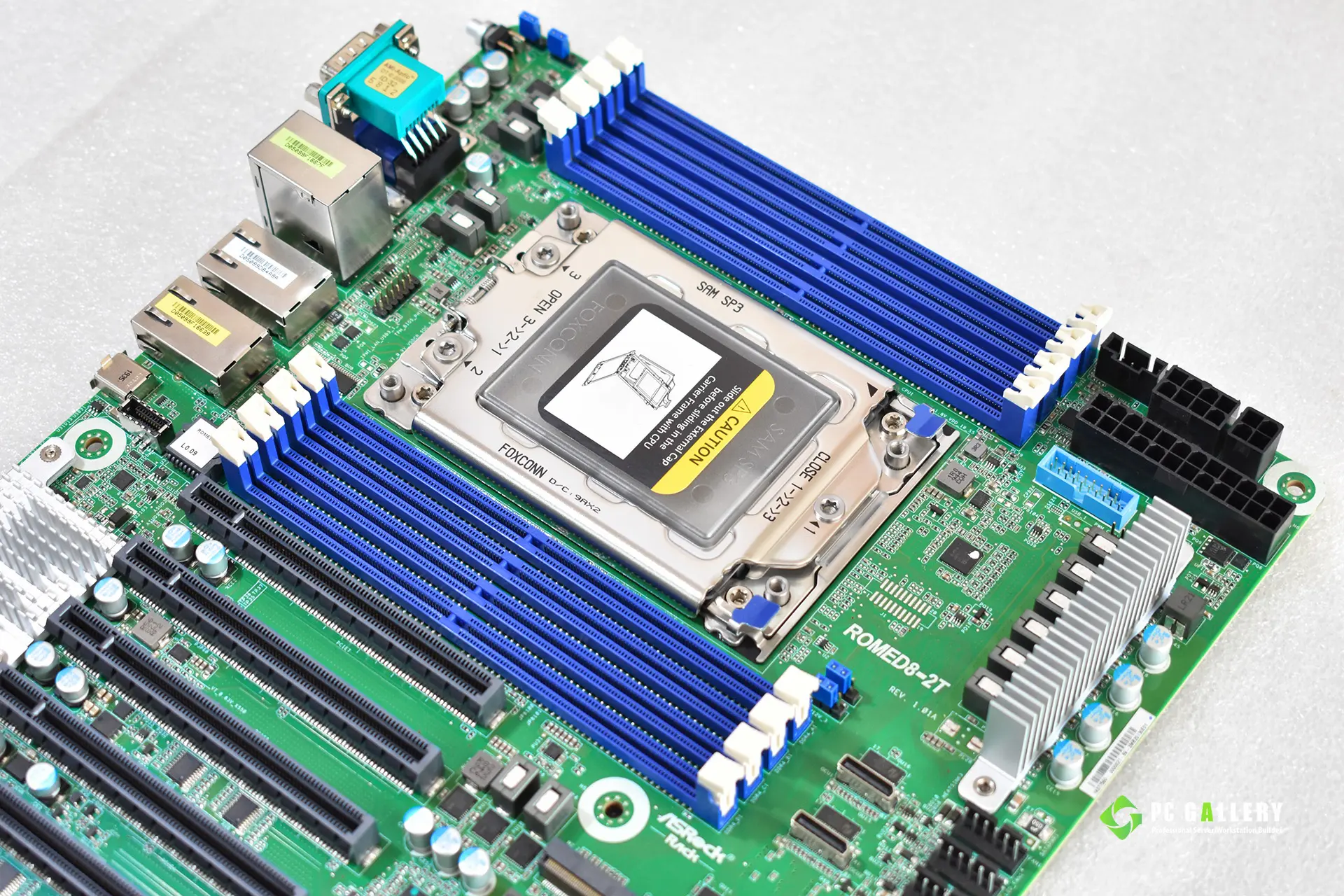

Socket: Single Socket SP3 (LGA4094)
System Memory

(8) DDR4 DIMM slots
Eight Channel DDR4 memory technology
Supports DDR4 RDIMM and LRDIMM
DIMM Size Per DIMM:
RDIMM: 64GB*,32GB, 16GB, 8GB*
LRDIMM: 256GB*,128GB, 64GB**
NV DIMM:32GB***

*64GB wait device to validate
**256GB wait device to validate
***wait device to validate

DIMM Frequency:
RDIMM: 3200/2933/2666/2400MHz
LRDIMM: 3200/2933/2666/2400MHz
NV DIMM: 3200/2666/2400MHz*

*wait device to validate

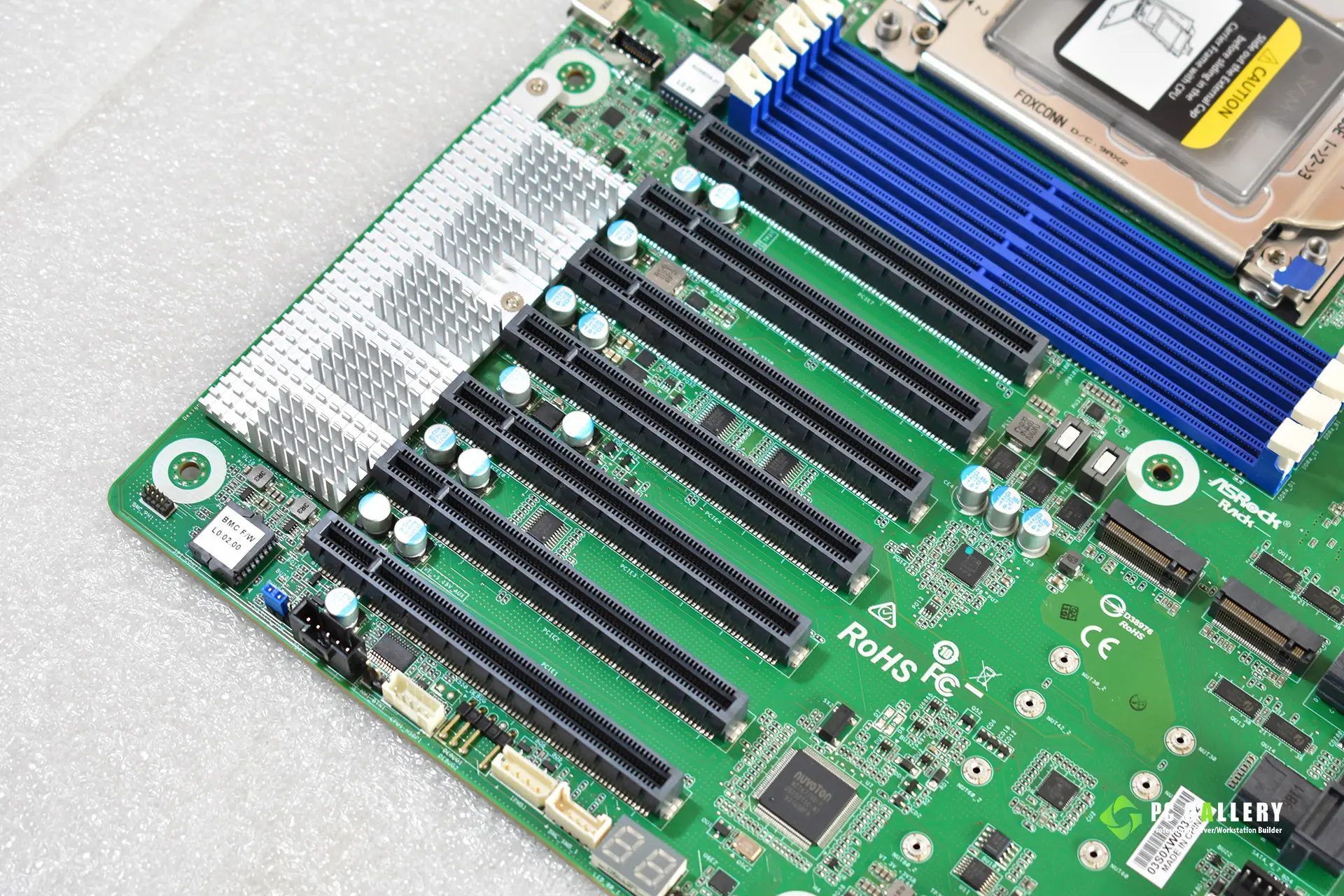

Expansion Slot

PCIe 4.0 x16:
– PCIE1: Gen4 x16 link
– PCIE2: Gen4 x16 link or Gen4x8 link+2x M.2+2x miniSASHD or no PCIE slot +2x OCulink+2xM.2+2x miniSASHD(by jumper)
– PCIE3: Gen4 x16 link
– PCIE4: Gen4 x16 link
– PCIE5: Gen4 x16 link
– PCIE6: Gen4 x16 link
– PCIE7: Gen4 x16 link
Storage

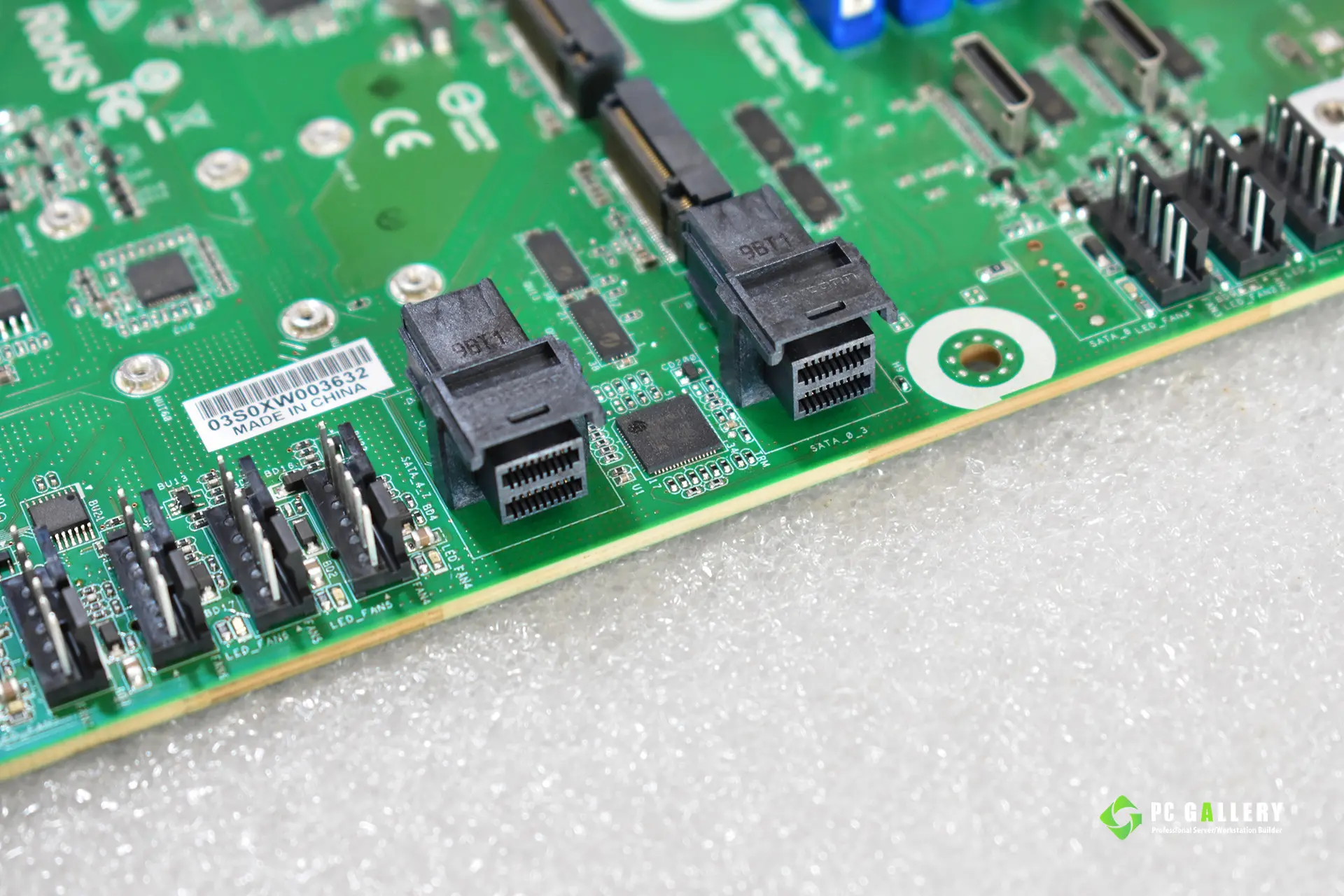

8 x SATA3 6.0 Gb/s (SATA_0_3:by miniSASHD.SATA_3 share with SATA_8(by BOM option), SATA_4_7: by miniSASHD,share with PCIE2 by Jumper)
1 x M-key* (PCIe4.0 x4 or SATA 6Gb/s), supports 2280/2260/2242/2230 form factor
1 x M-key* (PCIe4.0 x4 or SATA 6Gb/s), supports 22110/2280/2260/2242/2230 form factor
*Share with SLOT2 by jumper

OCuLink for U.2:
2 x ( OCU1 & OCU2, share with PCIE2 by Jumper)
Ethernet

10000/1000 /100 Mbps by Intel® X550-AT2
(2) RJ45 10G base-T by Intel® X550-AT2
(1) RJ45 Dedicated IPMI LAN port by RTL8211E
– Supports Wake-On-LAN
– Supports Energy E_cient Ethernet 802.3az
– Supports Dual LAN with Teaming function
– Supports PXE
– LAN1 supports NCSI
Management

ASPEED AST2500
(1) Realtek RTL8211E for dedicated management GLAN
– Watch Dog
– NMI
Graphics

ASPEED AST2500, DDR4 512MB

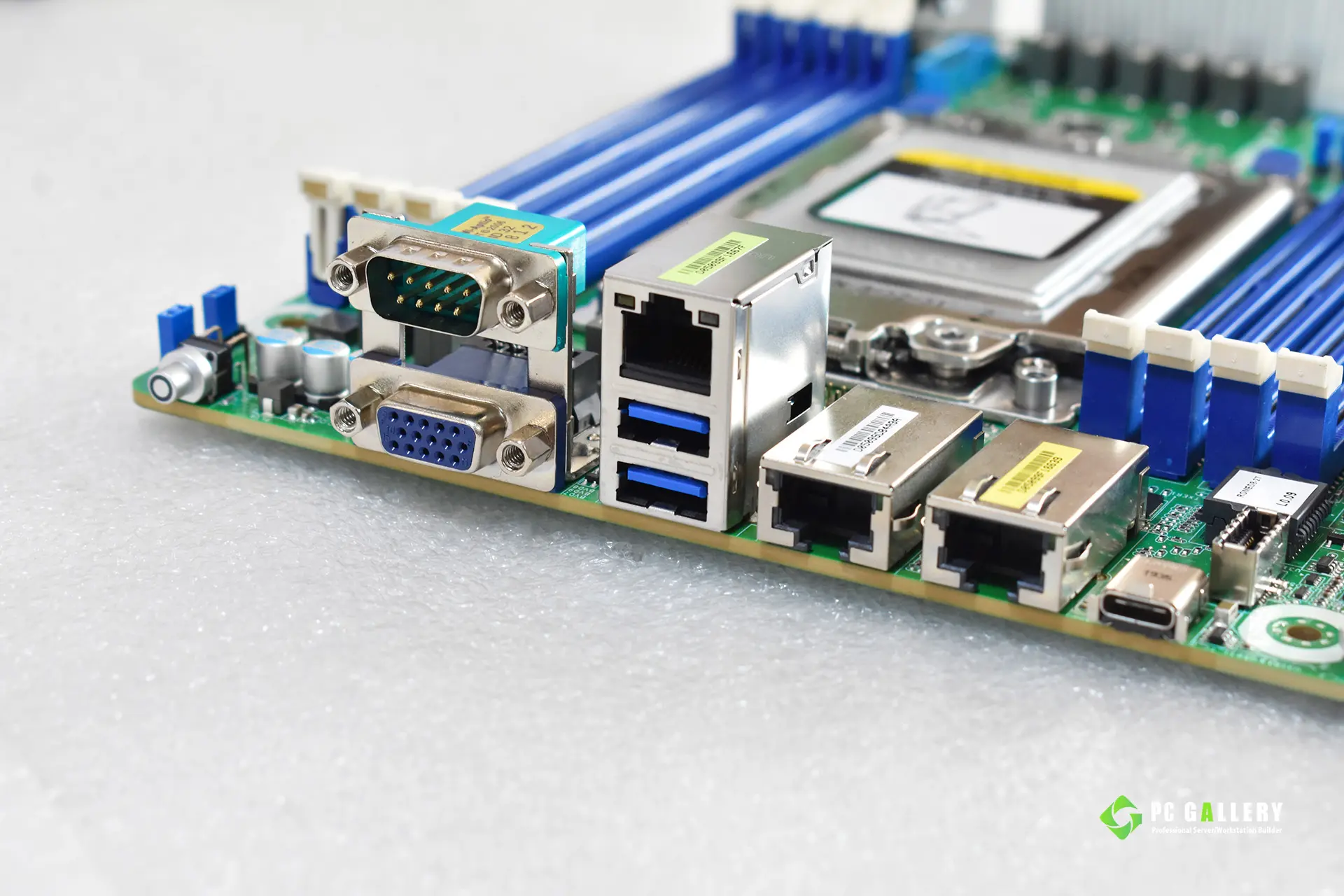

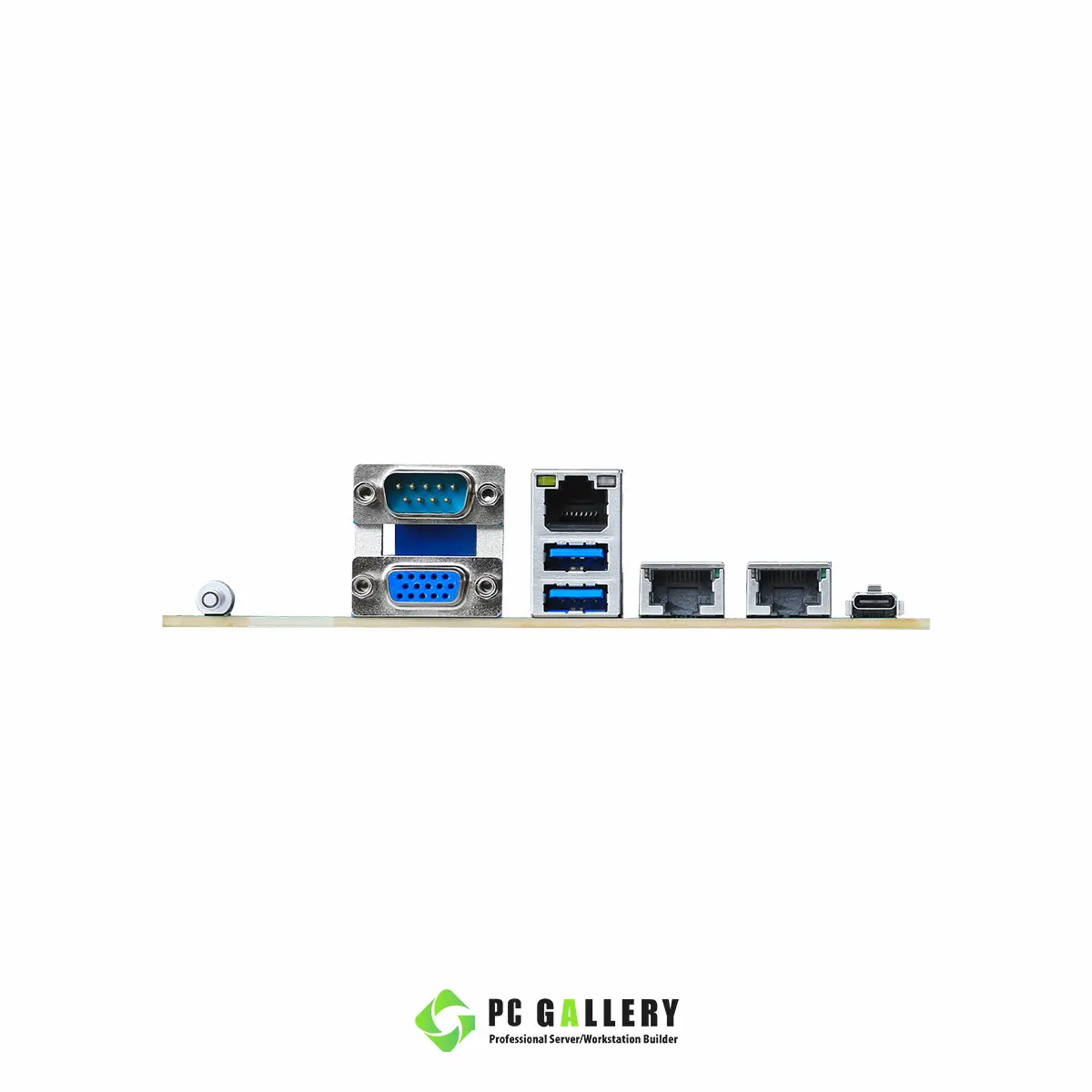

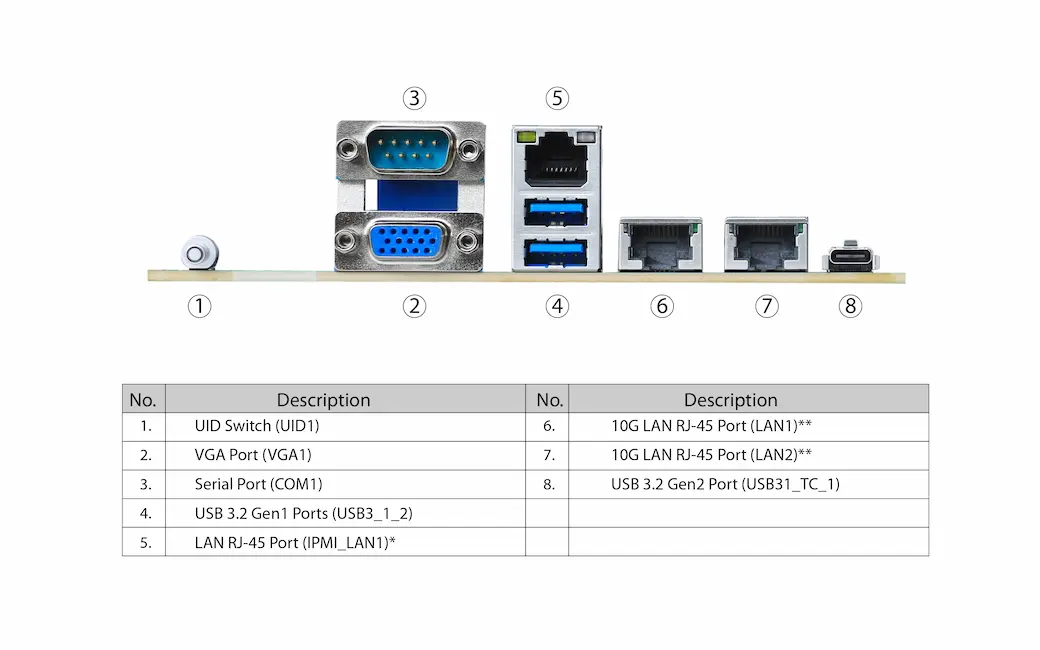

Rear Panel I/O

(1) D-Sub
(2) USB 3.1 Gen1 Port
(1) USB 3.1 Gen2 Port (Type C)
(2+1) Lan Port RJ45 Gigabit Ethernet LAN port
– LAN Ports with LED (ACT/LINK LED and SPEED LED)
(1) COM port
(1) UID Button/UID LED
Internal Connector

(1) SATA DOM (BOM option)

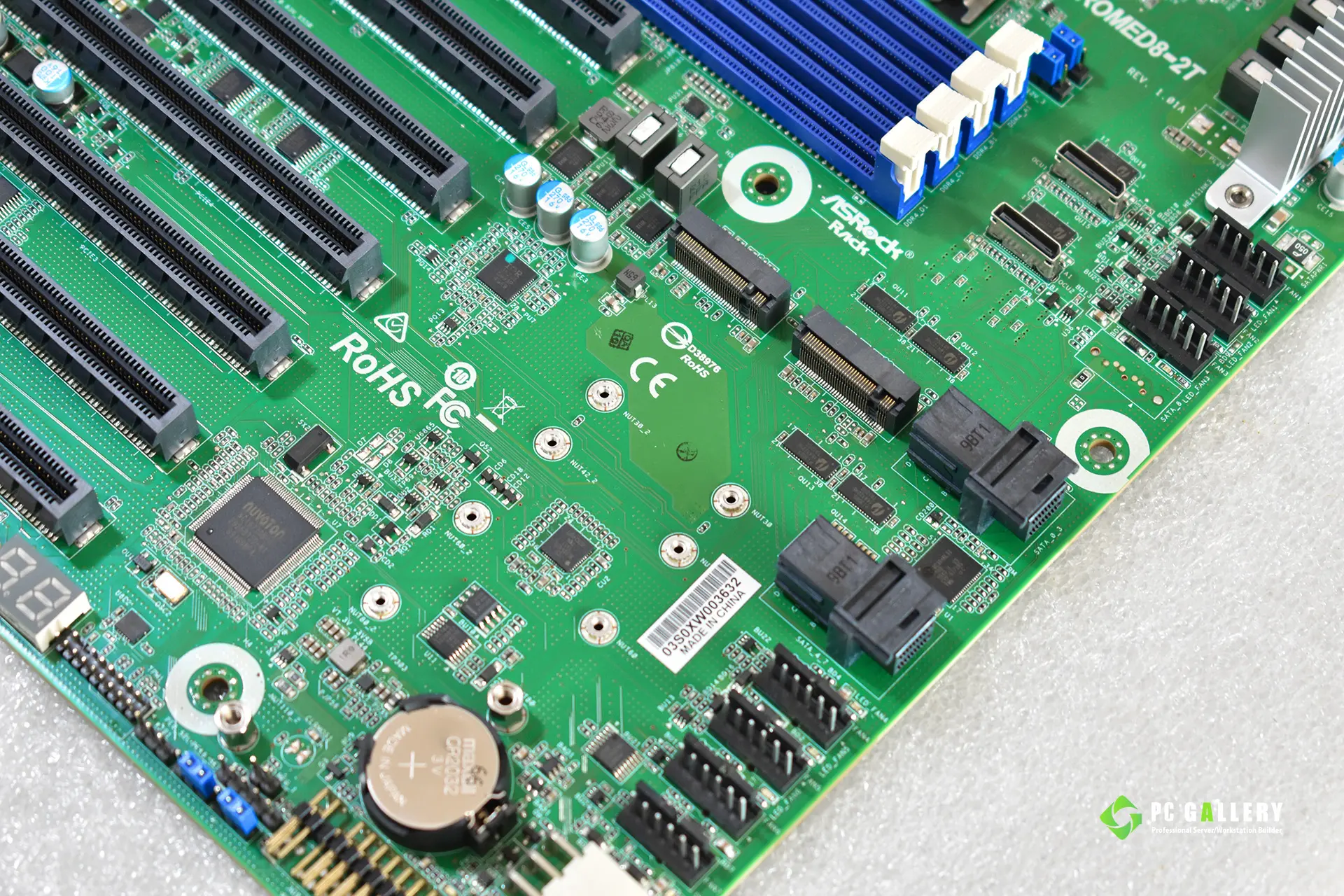

(2) M.2 (M2_1(share with PCIE2 by Jumper): 2230/2242/2260/2280, SATA/PCIE Gen4(X4); M2_2:2230/2242/2260/2280/22110, SATA/PCIE(X4))
(1) Auxiliary Panel Header (includes chassis intrusion, location button & LED, and front LAN LED)
(1) TR1 Header
(1) TPM Header
(1) IPMB Header

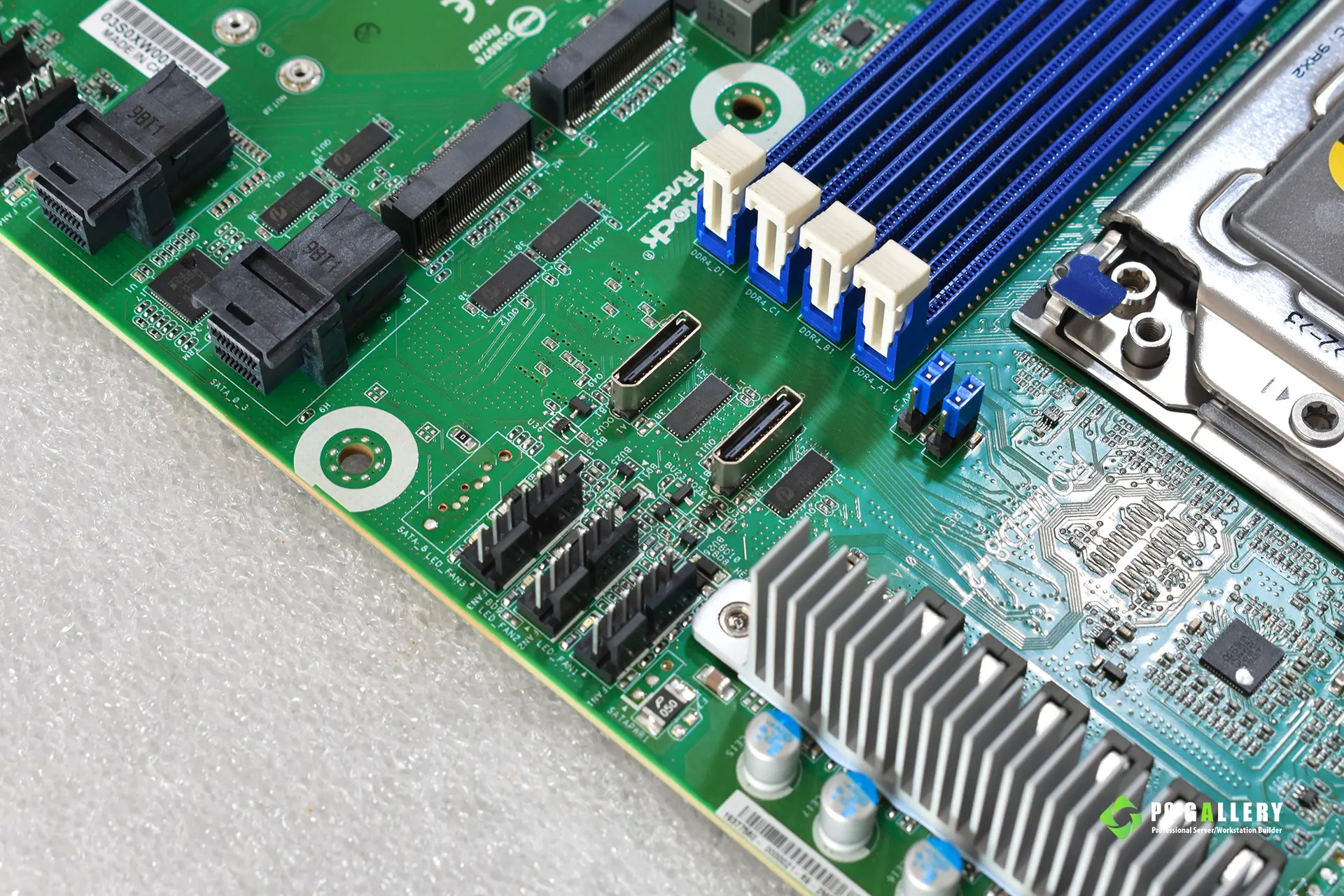

Fan Header: (7) Fans x 6-pin (1CPU/4Front/2Rear)

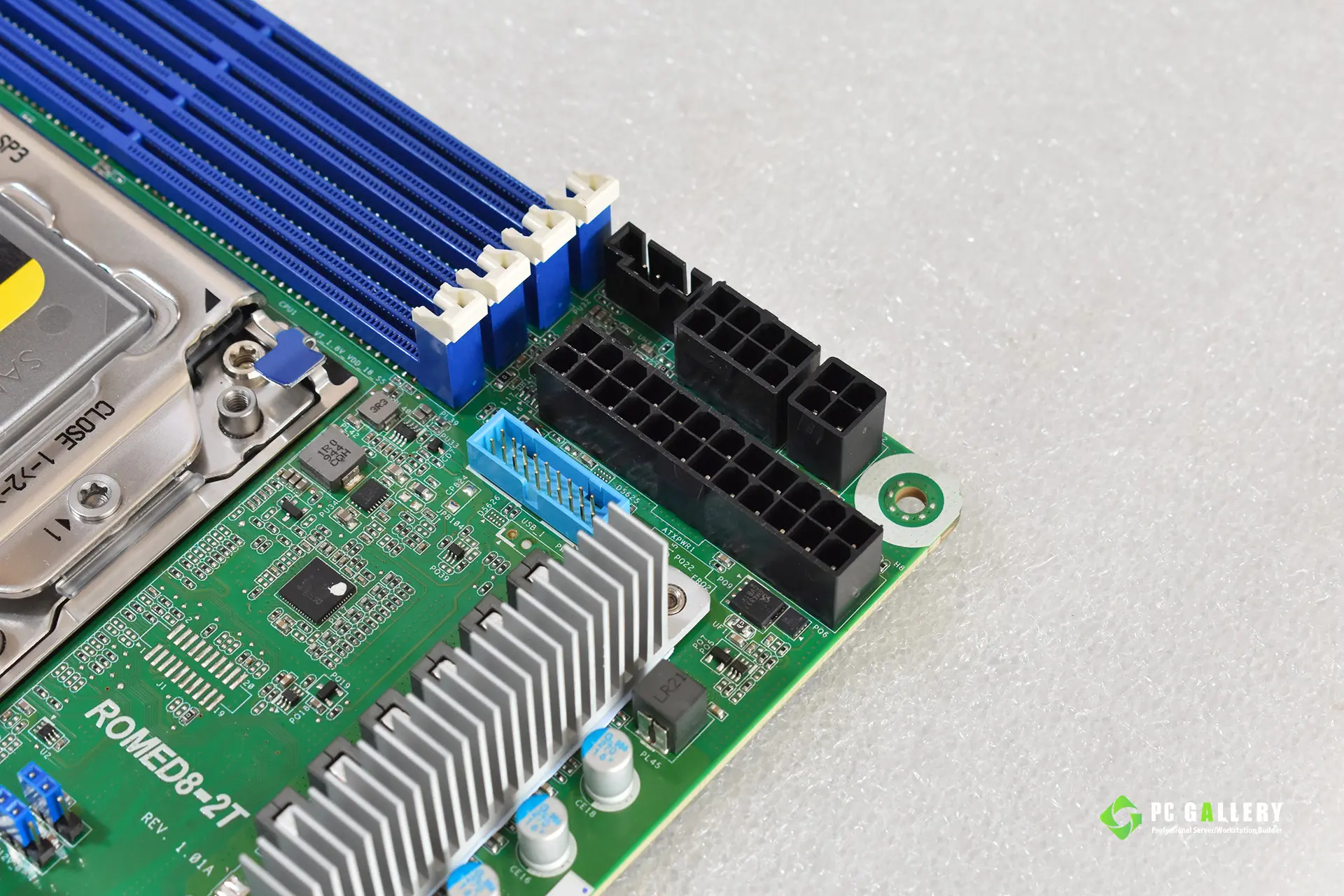

(1) ATX Power (24-pin) + 1 x (8-pin) + 1 x (4-pin) + 1 x (6-pin)(6 pin for GPU for PCIE Slot)
(1) USB 3.1 (Gen1) Header (supports 2 USB 3.0 ports)
(1) USB 3.1 (Gen2) Header (supports 2 USB 3.0 ports)
(1) NMI Button

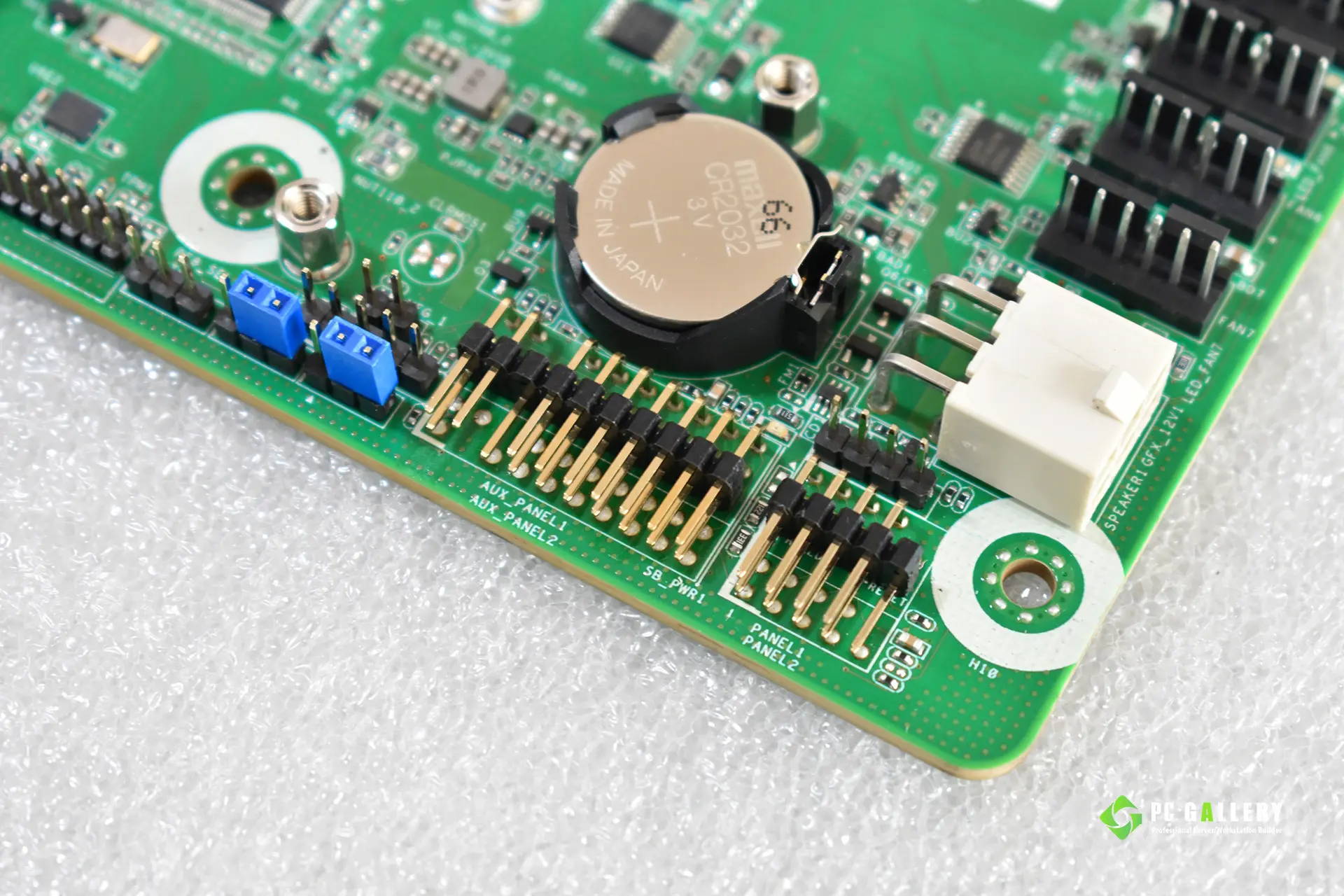

(1) Front Panel (rst, pwrbtn, hddled, pwrled)
(1) Speaker Header (4pin)
(1) BMC_SMB Header
(1) Clear CMOS
(1) PSU SMB Header
