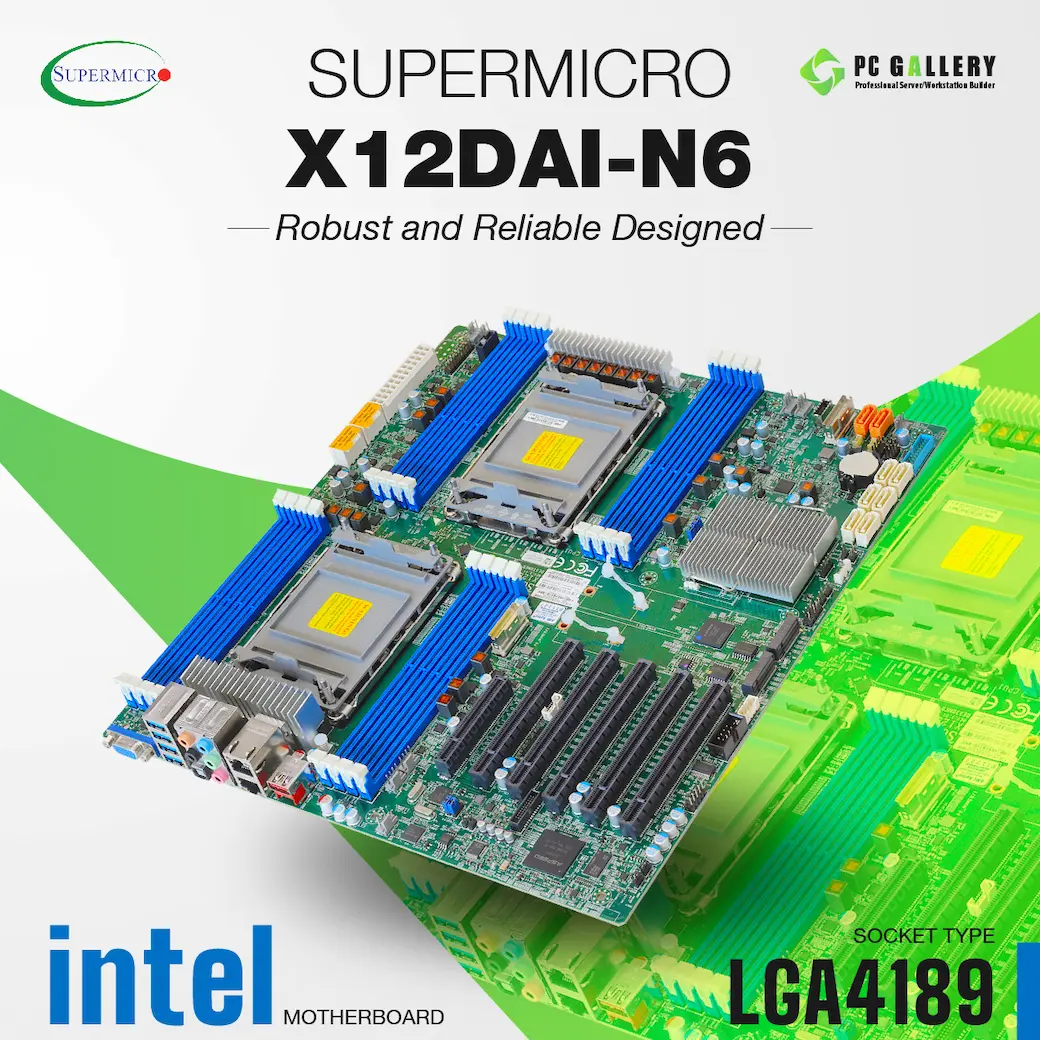

เมนบอร์ด Supermicro X12DAI-N6, Socket LGA4189, E-ATX, (C621A)
- Form Factor: E-ATX (12″ x 13″)
- CPU Support: 3rd Gen Intel® Xeon® Scalable processors
- Memory Support: 16 DIMM slots ECC 3DS DDR4 LRDIMM, RDIMM
- Expansion Slots: PCIe 4.0
- M.2 Slots: Supports 2 M.2 (PCIe4.0 x4)
- SATA Slots: 8 SATA 6Gb/s
- NIC: 2 RJ45 (1GbE) by Intel® i210
- VIDEO port: HDMI
- BMC: Remote management (IPMI)
►รับประกัน 3 ปี เมื่อสั่งซื้อพร้อมเครื่องชุด
►รับประกัน 1 ปี เมื่อสั่งซื้อแยกเป็นอะไหล่
฿37,000.00
| Form Factor | E-ATX |
|---|---|
| CPU | Supports: 3rd Gen Intel® Xeon® Scalable processors |
| Socket | Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s |
| Chipset | Intel® C621A |
| System Memory | Total Slots: 16 DIMM slots |
| Expansion Slot | x 1 PCI-E 4.0 x8, |
| Storage | Intel® C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Graphics | ASPEED AST2600 BMC |
| Ethernet | Dual LAN with Intel® i210 Gigabit Ethernet Controller |
| Management | SuperDoctor® 5, SUM, SPM, Intel® Node Manager, SSM, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support |
| Rear Panel I/O | 1 x VGA D-Sub Connector port(s) |
