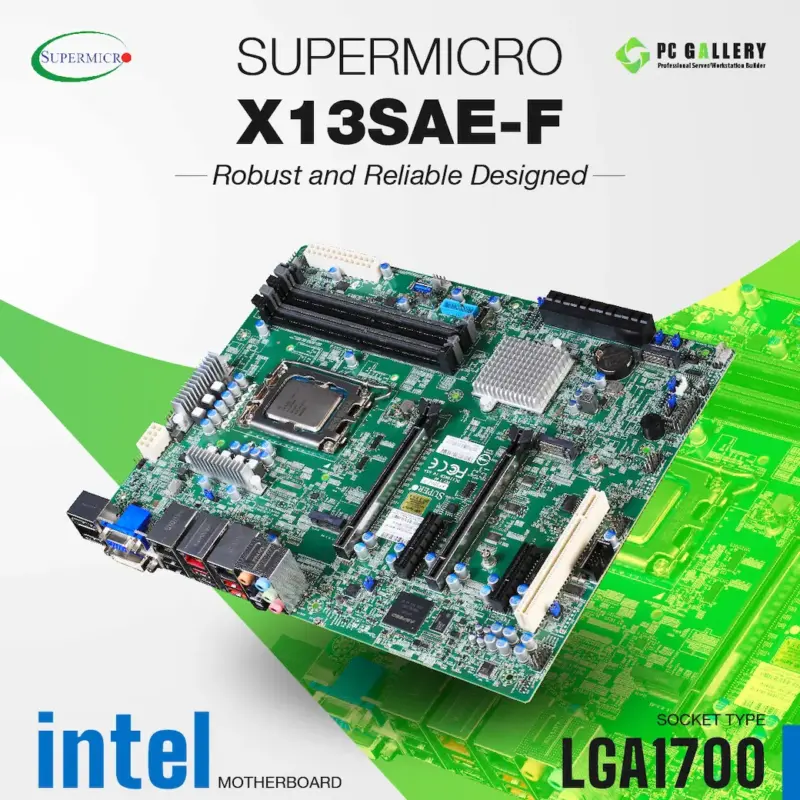

เมนบอร์ด Supermicro X13SAE-F, LGA1700, ATX

  • ► ATX 12″ x 9.6″ (30.48 cm x 24.38 cm)
  • ► Support 12th/13th/14th Gen Intel® Core™ i3/i5/i7/i9 Processors
  • ► Intel socket 1700
  • ► Chipset W680
  • ► 4 DIMM Slots, Supports DDR5 non-ECC/ECC UDIMM
  • ► PCIe 5.0
  • ► 1 x GbE LAN, 1 x 2.5 GbE LAN
  • ► Remote management (IPMI)

฿23,200.00

แจ้งกับทางร้านก่อนชำระเงิน เพื่อตรวจสอบสถานะสินค้า และค่าจัดส่ง

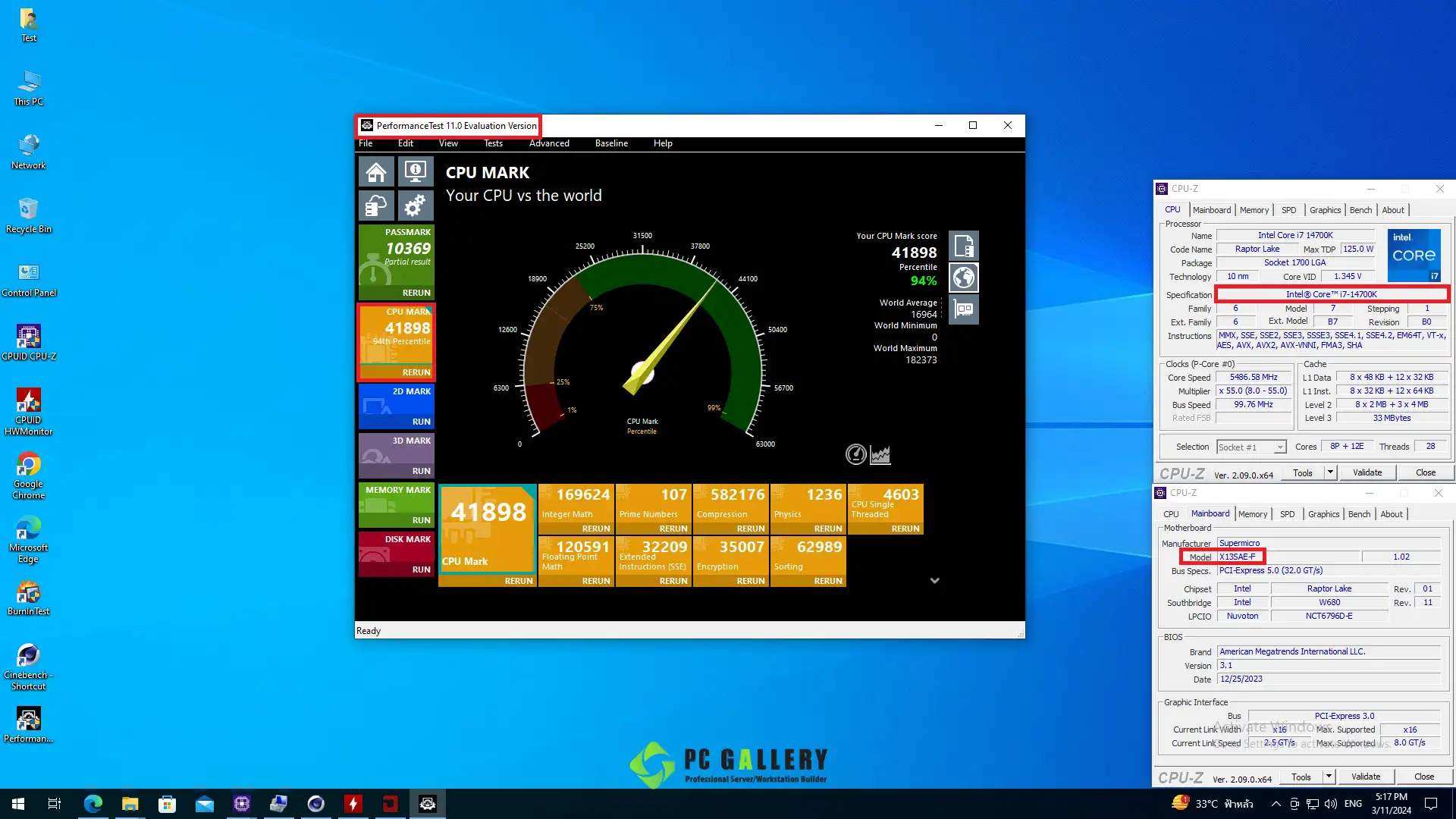

ผลทดสอบ CPU I7-14700K ติดตั้งบน X13SAE-F

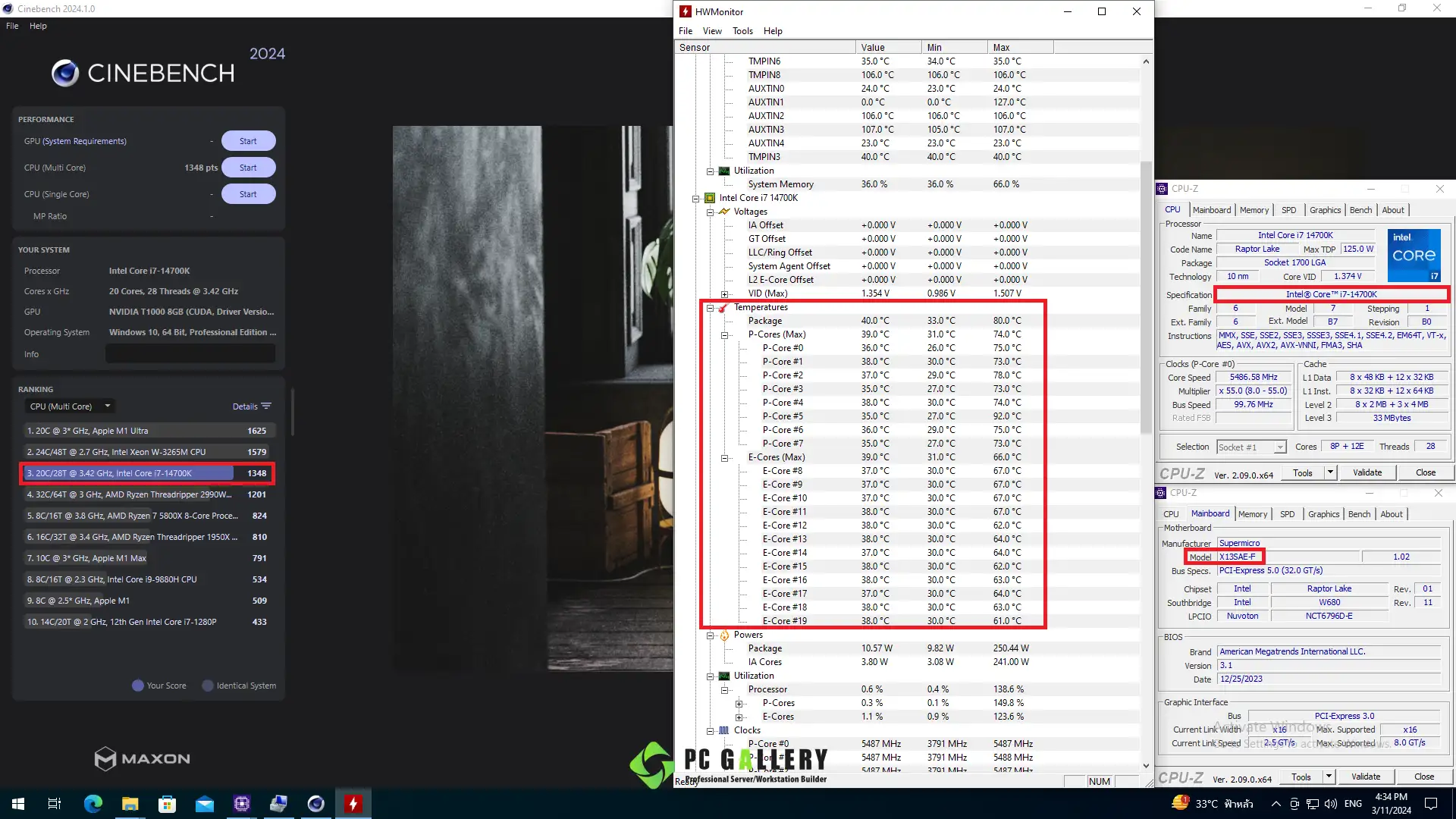

การทดสอบ Cinebench R24 ติดตั้งชุดระบายความร้อน CPU I7-14700K เป็น TH120 V2 ARGB Sync All-In-One Liquid Cooler

News & Update

X13SAE-F ontop layout
X13SAE-F IO layout

Support OS

Windows 10Pro

Windows 11Pro

Windows Server 2019

Windows Server 2022

Proxmox VE 7.1

Proxmox VE 7.2

Proxmox VE 7.3

Proxmox VE 7.4

Ubuntu 20.04.2 LTS

Ubuntu 22.04 LTS

Ubuntu 23.04

Ubuntu Server 20.04.2 LTS

Ubuntu 22.04 LTS

Ubuntu 23.04

SUSE Linux Enterprise Desktop SP4

CentOS 8

Redhat 8.2

Redhat 9.2

CentOS 7

TrueNAS-SCALE-22.12.1

TrueNAS 13.0

Physical Status
Form factor
  • ATX
Dimensions
  • 12″ x 9.6″ (30.48 cm x 24.38 cm)
Processor
CPU
  • 12th/13th/14th Gen Intel® Core™ i3/i5/i7/i9 Processors
Socket
  • Single Socket LGA-1700
Chipset
  • Intel W680
System Memory
Support DIMM slot
  • 4 DIMM slots
DIMM Type
  • DDR5 Non-ECC / ECC UDIMM
Memory Capacity
  • 8GB, 16GB, 32GB
  • up to 128GB
Frequency
  • 4400/4000/3600 MT/s
Network / IPMI
Integrated LAN
  • 1 x RJ45 1 GbE LAN ports with Intel® PHY i219LM Controller, for AMT/vPro
  • 1 x RJ45 2.5 GbE LAN ports with Intel® Ethernet i225LM Controller
  • 1 x RJ45 1 GbE LAN ports with Realtek RTL8211F PHY (Dedicated for IPMI)
IPMI
  • 1 x IPMI ASPEED AST2600 BMC

Graphic
Controller
  • ASPEED AST2600 BMC

Expansion Slots
PCI-Express (PCI-E)
  • 2 x PCIe 5.0 x16 (16/NA or 8/8(CPU))
  • 2 x PCIe 3.0 x4 (PCH)
M.2
  • 1 x M.2 Interface: PCIe 4.0 x4 (CPU)
  • 2 x M.2 Interface: PCIe 4.0 x4 (PCH)
  • Form Factor: 2280
  • Key: M-Key
Note
  • 1 x 5V PCI 32bit
Storage / Controller
PCH Built-in Storage
  • 8 x SATA3 (6Gbps) port(s)
  • support RAID 0/1/5/10
Storage Controller
  • Intel W680
  • RAID support: 0/1/5/10
Input / Output
SATA
  • 8 x SATA3 (6Gbps) port(s)
LAN
  • 1 x RJ45 1 GbE LAN ports
  • 1 x RJ45 2.5 GbE LAN ports
Dedicate LAN
  • 1 x RJ45 dedicated for IPMI
USB
  • 4 x USB 2.0 port(s) (2 rear; 2 via header)
  • 2 x USB 3.2 Gen2x2 port(s) (1 rear; 1 via header)
  • 3 x USB 3.2 Gen2x1 port(s) (3 rear type A)
  • 3 x USB 3.2 Gen1x1 port(s) (2 via header; 1 Vertical Type A)
Video Output
  • 1 x VGA port
  • 1 x DVI-D port
  • 1 x DP 1.4a port
  • 1 x HDMI 2.0b port
Serial Port
  • 1 x COM Port (1 header)
DOM
  • –
TPM
  • 1 x TPM Header

Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown

Supported OS

Microsoft Windows
  • Window 10 Enterprise (64 bit)
  • Window 10 Pro Workstations (64 bit)
  • Window 11 Enterprise(64 bit)
  • Window 11 Pro Workstations (64 bit)

Linux
  • RHEL 8.5 (64 bit)
  • RHEL 8.6 (64 bit)
  • CentOS 8.5 (64bit)
  • Ubuntu 20.04.4 Desktop (64 bit)
  • Ubuntu 20.04 Server (64 bit)
  • Ubuntu 22.04 Server (64 bit)

Virtual Machine
