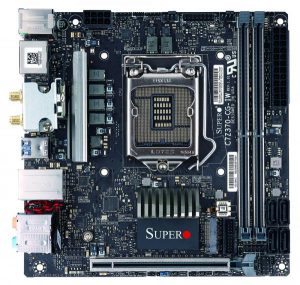

เมนบอร์ด Supermicro C7Z370-CG-IW, LGA1151v2, Mini-ITX
- 8th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processor ., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 120W TDP
- Intel® Z370 Express
- 32GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 2 DIMM slots
- 1 PCI-E 3.0 x16
- M.2 Interface: 2 PCI-E 3.0 x4
- M.2 Form Factor: 2280
- M.2 Key: M-Key
- *1 M.2(E-Key) for 1GBit WiFi and Bluetooth module included
- 1 HDMI port, 1 DP (DisplayPort) port
- Intel® Z370 Express controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Single LAN with Intel® single Ethernet PHY i219V
- Single LAN with WiFi 802.11 a/b/g/n/ac + BT 4.2 combo card
- SuperDoctor® 5, Watchdog
- RGB LED support
- Warranty 1Y
แจ้งกับทางร้านก่อนชำระเงิน เพื่อตรวจสอบสถานะสินค้า และค่าจัดส่ง
Key Features
- 8th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processor ., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 120W TDP
- Intel® Z370 Express
- 32GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 2 DIMM slots
- 1 PCI-E 3.0 x16
M.2 Interface: 2 PCI-E 3.0 x4
M.2 Form Factor: 2280
M.2 Key: M-Key - 1 HDMI port, 1 DP (DisplayPort) port
- Intel® Z370 Express controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Single LAN with Intel® single Ethernet PHY i219V
Single LAN with WiFi 802.11 a/b/g/n/ac + BT 4.2 combo card - SuperDoctor® 5, Watchdog
- RGB LED support
Specification
| Product SKUs |
|
Expansion Slots | |||
| MBD-C7Z370-CG-IW | C7Z370-CG-IW | PCI-E | 1 PCI-E 3.0 x16 | ||
| Physical Stats | M.2 | M.2 Interface: 2 PCI-E 3.0 x4 | |||
| Form Factor | Mini-ITX | Form Factor: 2280 | |||
| Dimensions | 6.75″ x 6.75″ (17.15cm x 17.15cm) | Key: M-Key | |||
| Processor/Cache | *1 M.2(E-Key) for 1GBit WiFi and Bluetooth module included | ||||
| CPU | 8th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processor . | System BIOS | |||
| Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 120W TDP |
|
UEFI 128Mb | |||
| 8th Gen Intel® Core™ desktop processors are supported with Intel® 300 Series chipset motherboards only | Management | ||||
| System Memory |
|
SuperDoctor® 5, Watchdog | |||
| Memory Capacity | 32GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 2 DIMM slots | ||||
| Memory Type | 2666/2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM | ||||
| DIMM Sizes | 4GB, 8GB, 16GB | ||||
| Memory Voltage | 1.2V | ||||
| On-Board Devices | |||||
|
Intel® Z370 Express | ||||
| SATA | Intel® Z370 Express controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | ||||
| Network Controllers | Single LAN with Intel® single Ethernet PHY i219V | ||||
| Single LAN with WiFi 802.11 a/b/g/n/ac + BT 4.2 combo card | |||||
| Audio | ALC 1220 7.1 HD Audio | ||||
| Input / Output | |||||
| SATA | 4 SATA3 (6Gbps) ports | ||||
| LAN | 1 RJ45 Gigabit Ethernet LAN ports | ||||
| USB | 2 USB 2.0 ports (2 headers), | ||||
| 6 USB 3.0 ports (2 headers + 4 Type A), | |||||
| 2 USB 3.1 ports ( + 1 Type A + 1 Type C) | |||||
| Video Output | 1 HDMI port, 1 DP (DisplayPort) port | ||||
| Form factor | Mini-ITX |
|---|---|
| Dimension | 6.75" x 6.75" (17.15 cm x 17.15 cm) |
| Processor System | 8th Generation Intel® Core i9(Non-K only)/i7(8086K and 8700K are not supported)/i5/i3/Pentium®/Celeron® Processor |
| System Memory | Up to 32GB Unbuffered non-ECC UDIMM, in 2 DIMM slots (Limited to Gen 8th series and Gen 9th core i3, Pentium and Celeron) Up to 64GB Unbuffered non-ECC UDIMM, in 2 DIMM slots (Limited to Gen 9th core i5/i7/i9) |
| Expansion Slots | 1 PCI-E 3.0 x16 |
| M.2 Slot | M.2 Interface : 2 PCI-E 3.0 x4 |
| Storage | Intel® Z370 Express controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Ethernet | Single LAN with Intel® single Ethernet PHY i219V |
| Audio | ALC 1220 7.1 HD Audio |
| Rear Panel I/O | LAN : 1GbE LAN 1Port RJ45 |
| Internal Connector | USB 2.0 Header : 1Port |
