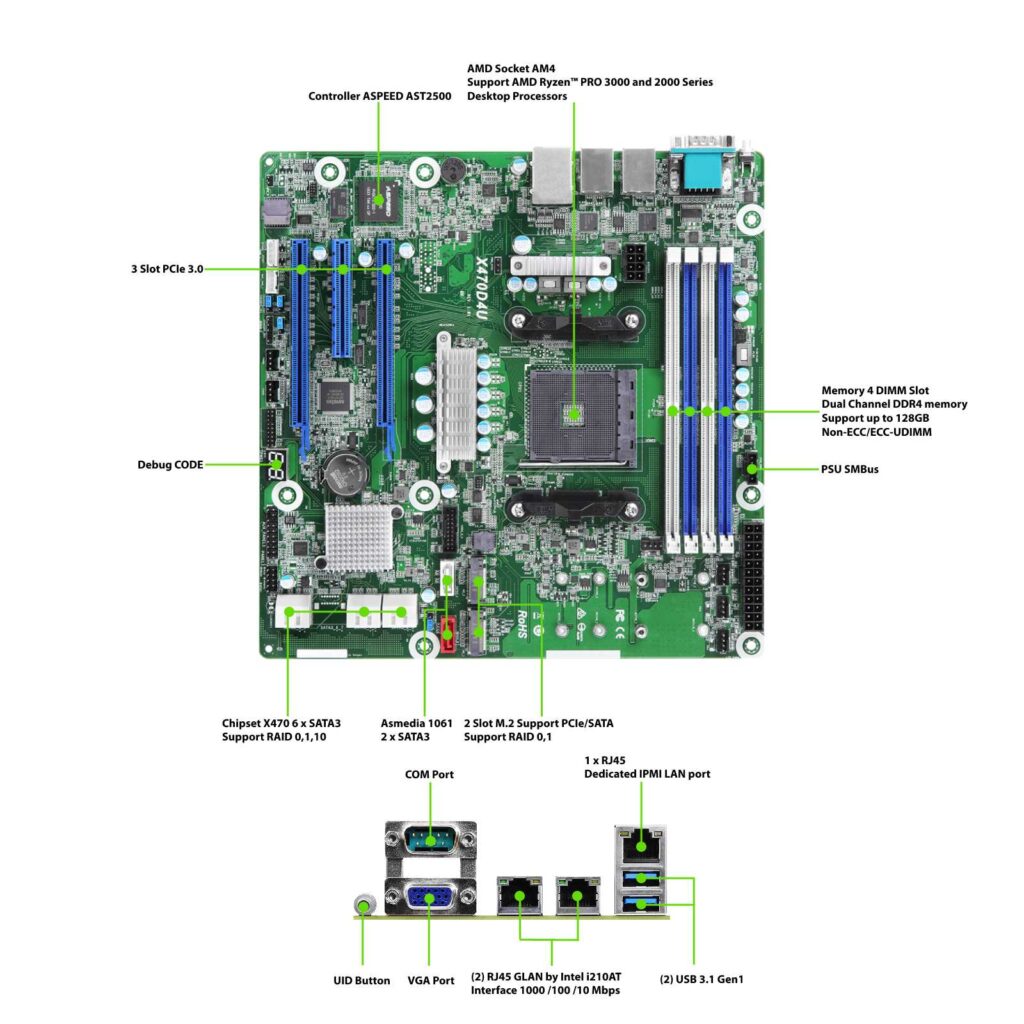

เมนบอร์ด ASRockRack X470D4U, AM4, mATX (X470)

  • Supports AMD AM4 Socket Ryzen™ PRO/ Ryzen™ 2nd and 3rd generation series, processors
  • Supports 4x DDR4 ECC and non-ECC UDIMM, max. 128 GB
  • Supports up to 8x SATA3 6.0Gb/s(6x SATA3 6.0Gb/s from X470, 2x SATA3 6.0Gb/s from Asmedia)
  • Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
  • Supports 2x GLAN by Intel I210AT

฿11,500.00

Out of stock

แจ้งกับทางร้านก่อนชำระเงิน เพื่อตรวจสอบสถานะสินค้า และค่าจัดส่ง

Form Factor

mATX

Dimensions

9.6'' x 9.6'' (24.4 cm x 24.4 cm)

Processor System

CPU: AMD AM4 Socket Ryzen™ PRO/ Ryzen™ 2nd and 3rd generation series processors
Socket: AM4 PGA 1331
Chipset: AMD Promontory X470

System Memory

(4) 288-pin DDR4 DIMM slots
Support up to 128GB DDR4 ECC/UDIMM
Dual Channel DDR4 memory technology
Support DDR4 ECC/UDIMM
ECC/UDIMM: 32GB, 16GB, 8GB
ECC/UDIMM: 3200/2933/2666/2400/2133 MHz

Expansion Slot

PCIe 3.0 x16: Gen3 x16 link (splittable in x4/4/4/4); auto switch to x8 link when PCIE4 is occupied.
SLOT4: Gen3 x8 link
PCIe 3.0 x8: SLOT5: Gen3 x4 link

Storage

(6) SATA3 6.0 Gb/s (1x SATA DOM port), support RAID 0, 1, 10
Asmedia 1061: (2) SATA3 6.0Gb/s
M.2 slot: 2 (2242/2260/2280/22110, supports SATA3 and PCIe 3.0 x2 or supports PCIe 2.0 x4 only)

Ethernet

1000 /100 /10 Mbps by Intel® i210AT
(2) RJ45 GLAN by Intel® i210AT
(1) RJ45 Dedicated IPMI LAN port
– Supports Wake-On-LAN
– Supports Energy Efficient Ethernet 802.3az
– Supports Dual LAN with Teaming function
– Supports PXE
– LAN1 supports NCSI

Graphics

ASPEED AST2500, DDR4 16MB

Rear Panel I/O

(1) D-Sub
(2) USB 3.1 Gen1 Port
(2) RJ45 Gigabit Ethernet LAN ports
(1) RJ45 Dedicated IPMI LAN port
– LAN Ports with LED (ACT/LINK LED and SPEED LED)
(1) Serial Port
(1) UID Button/UID LED

Internal Connector

COM Header : N/A
(1) SATA DOM
M.2: (2) (M2_1: 2242/2260/2280/22110, PCIE(X4); M2_2:2242/2260/2280/22110, SATA/PCIE(X2))
(1) Auxiliary Panel Header (include C_CASEOPEN#、SYSTEM_FAULT_LED、LAN1 & LAN2 LED, location button & LED,BMC alert )
(1) TPM Header
(1) IPMB Header
(1) Buzzer
(6) Fans 4-pin (FAN1(CPU)/FAN2~FAN6(5Front))
(1) ATX Power (24-pin) + 1x (8-pin)
(1) USB 3.1 (Gen1) Header (supports 2 USB 3.1 Gen1 ports)
USB 2.0 Header : N/A
Speaker Header : N/A
(1) BMC_SMB Header
ME/SPS Recovery : N/A
(1) Clear CMOS (short pad)
(1) PSU SMB Header
