เมนบอร์ด Supermicro X13DAI-T, Intel 4677, E-ATX

  • Processor Supports: Intel® Socket LGA-4677 Gen4/Gen5
  • • Memory Supports: 16DIMM slots, DDR5 ECC-RDIMM
  • • Expansion Slots: PCIe 5.0
  • • NIC: 2 x 10GbE
  • Form Factor: E-ATX (12.1″ x 13.1″)

฿51,000.00

แจ้งกับทางร้านก่อนชำระเงิน เพื่อตรวจสอบสถานะสินค้า และค่าจัดส่ง

News & Update

News & Update

Physical Status
Form factor
  • E-ATX(12″ x 13.05″)
Dimensions
  • 12.1” x 13.1” (30.734 cm x 33.274 cm)
Processor
Processor Support
Socket
  • Dual Socket LGA-4677 (Socket E)
Chipset
  • Intel® C741
Memory Support
Total Slot
  • 16 DIMM slots
Max Memory Size
  • Up to 4TB 3DS ECC RDIMM, DDR5-5600MHz
Memory Capacity
  • 8GB, 16GB, 32GB, 64GB, 96GB, 128GB, 256GB

DIMM Type

  • DDR5 ECC-RDIMM
Frequency
  • 4000, 4400, 4800, 5600 MT/s
Network / IPMI
Integrated LAN
  • 2 x LAN with Broadcom BCM57416 10GBase-T
IPMI

Graphic

Controller
  • BMC AST2600

Expansion Slots

PCI-Express (PCI-E)
  • 5 x PCI-E 5.0 x16
  • 1 x PCI-E 5.0 x8
M.2
  • 2 x M.2 Interface: 2 PCIe 5.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
Storage / Controller
PCH Built-in Storage
  • 10 x SATA3 (6Gbps) ports
Storage Controller
  • N/A

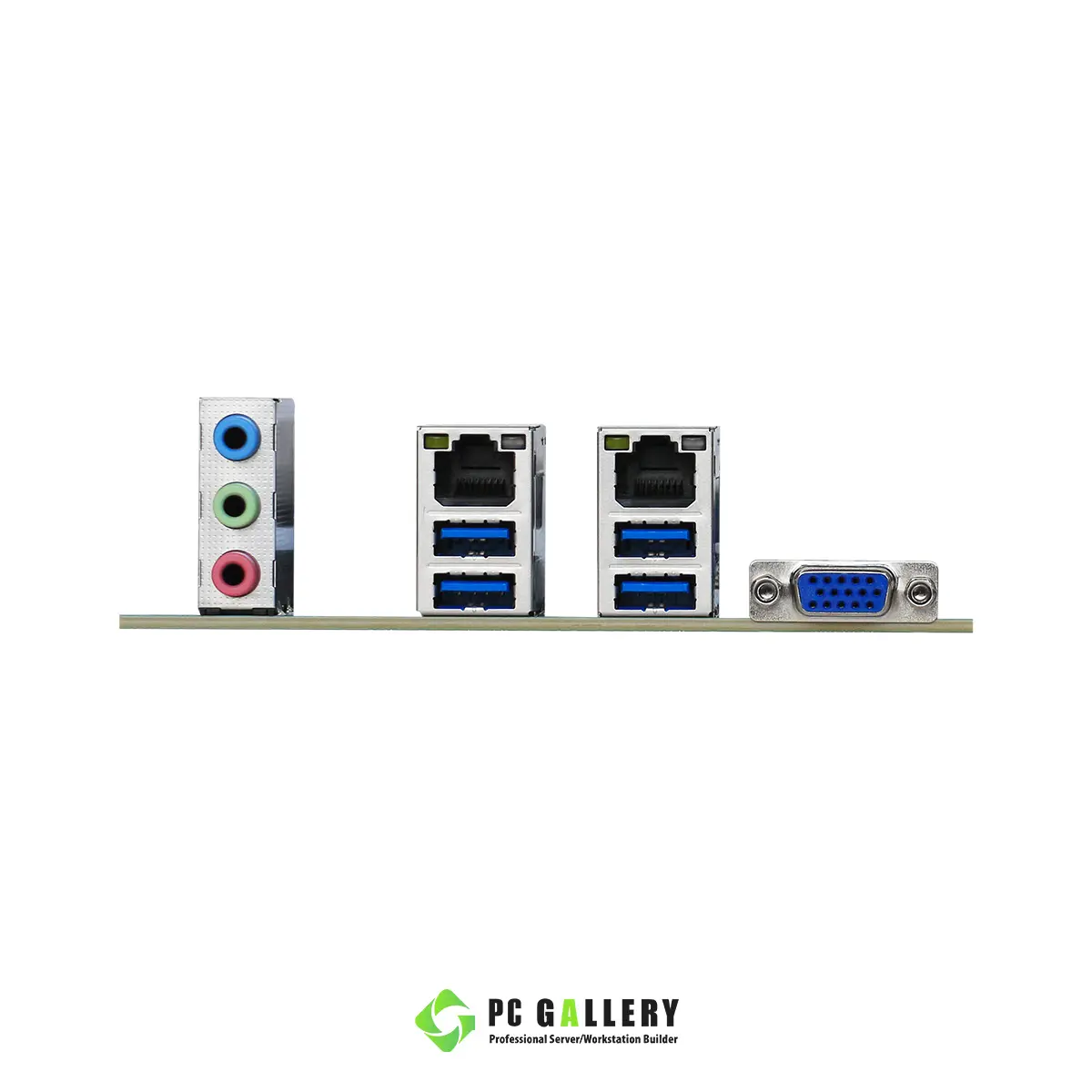

Input / Output
SATA
  • 8 x SATA3 ports; RAID 0, 1, 5, 10
  • 2 x SATA3 ports; RAID 0,1
LAN
  • 2 x RJ45 10Gigabit Ethernet LAN ports
Dedicate LAN
USB
  • 6 USB 3 port(s) (2 headers; 4 rear type A)
  • 2 USB 2 port(s) (2 headers)
  • 1 USB 3.1 Gen2 port(s) (1 headers)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
DOM
TPM
  • 1 TPM 2.0 header

Supported OS

Microsoft Windows



Linux



Virtual Machine
