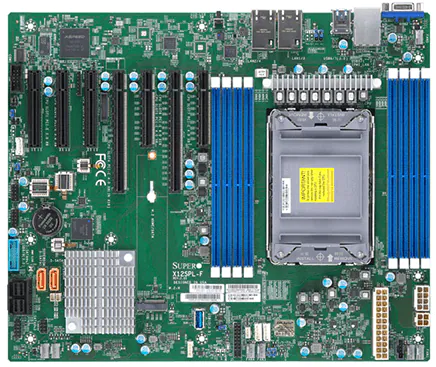

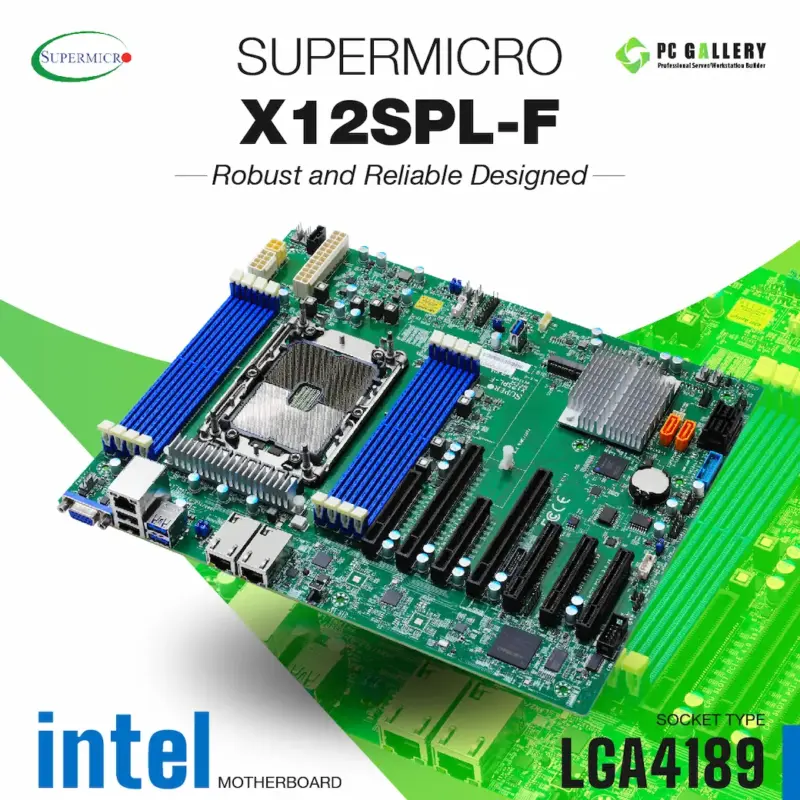

เมนบอร์ด Supermicro X12SPL-F, Intel 4189, ATX (C621A)

• Processor Supports: 3rd Gen Intel® Xeon® Scalable processors
• Memory Supports: 8 DIMM slots, DDR4 ECC-RDIMM
• PCIe: 1 x PCIe4.0(x16), 1 x PCIe1.0(x8 in x16), 2 x PCIe4.0(x8), 3 x PCIe3.0 x8
• M.2: 1 x M.2 PCIe3.0(x4)
• RAID: SATA RAID 0/1/5/10 intel C621A Controller
• NIC: 2 x 1GbE with Intel® I210
• IPMI: 1 x RJ45 Dedicated IPMI LAN port
• Form Factor: ATX
►รับประกัน 1 ปี เมื่อสั่งซื้อแยกเป็นอะไหล่

ราคาล่าสุดวันที่ December 6, 2025

ติดต่อสอบถามเกี่ยวกับสินค้าทางไลน์ ก่อนชำระเงิน
Please contact us via LINE for product inquiries before making a payment.

VDO YouTube

Physical Status
Form factor	ATX
Dimensions	12.1″ x 10″ (30.73cm x 25.4cm)
Processor
Processor Support	3rd Gen Intel® Xeon® Scalable processors
Socket	Single Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP
Chipset	Intel® C621A
Memory Support
Total Slot	8 DIMM slots
Max Memory Size	Up to 2TB Intel® Optane™ Persistent Memory 200 Series Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s
Memory Capacity	8GB, 16GB, 32GB, 64GB, 128GB, 256GB
DIMM Type	DDR4 LRDIMM (3DS), RDIMM (3DS)
Frequency	3200/2933/2666 MT/s
Network / IPMI
Integrated LAN	Dual LAN with Intel® i210 Gigabit Ethernet Controller
IPMI	1 x RJ45 with ASPEED AST2600 BMC
Graphic
Controller	1 Aspeed AST2600 BMC port(s)
Expansion Slots
PCI-Express (PCI-E)	1 PCIe 4.0 x16, 1 PCIe 4.0 x8 (in x16 slot), 2 PCIe 4.0 x8, 3 PCIe 3.0 x8
M.2	M.2 Interface: 1 SATA/PCIe 3.0 x4 Form Factor: 2280/22110 Key: M-Key
Storage / Controller
SATA	Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Storage Controller	Intel® C621A
Input / Output
SATA	10 SATA3 (6Gbps) port(s)
LAN	2 RJ45 Gigabit Ethernet LAN ports
Dedicate LAN	1 RJ45 Dedicated IPMI LAN port
USB	6 USB 2.0 port(s) (4 via header; 2 rear) 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output	1 VGA D-Sub Connector port(s)
Serial Port	1 COM Port(s) (1 header)
DOM	2 SATA DOM (Disk on Module) power connector support
TPM	1 TPM Header
Others	–
