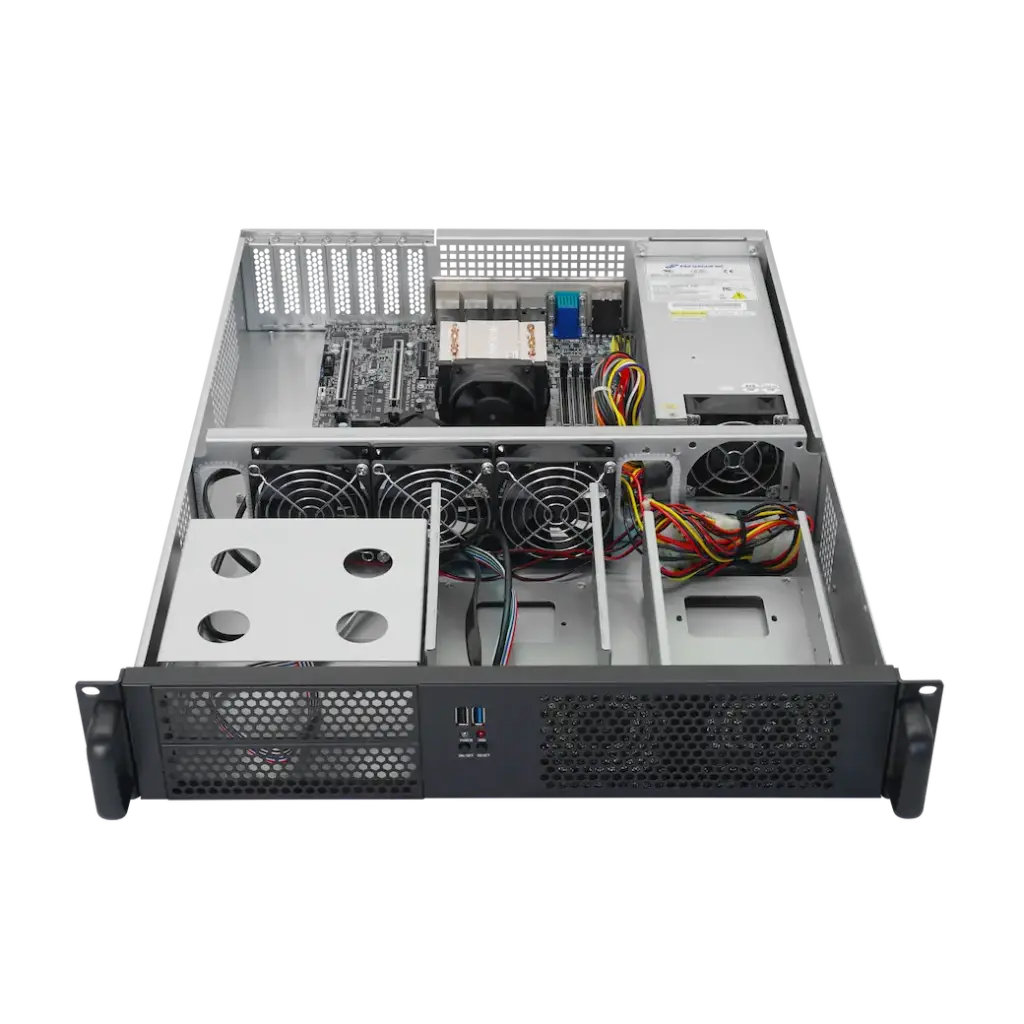

AM5เวิร์คสเตชั่น PowerRACK H13SAE-24550, AMD EPYC, 4244P Raphael, 6C/12T
- • Model: H13SAEMF-24550-400-S6C12T
- • CPU: CPU, AMD, AM5, EPYC, 4244P Raphael, 6C/12T, 3.8GHz, 32MB Cache, 65W
- • CPU Cooler: Dynatron A24 Server Cooler
- • RAM: Option
- • SSD: Option
- • VGA: On-board AST2600 (HDMI, DP via CPU)
- • RAID: B650 (RAID 0/1/10)
- • Drive: 5 x 3.5″ HDD or 2 x 2.5″ SSD Internal Drives
- • LAN: 2 x RJ45 GLAN (Intel® i210-AT)
- • iKVM: 1 x RJ45 by ASPEED AST2600
- • Chassis: 2U Rackmount
- • PSU: 400W Server Grade
- • Warranty: 3-Year อะไหล่และค่าแรง, บริการ Onsite NBD 5/8 เขตกรุงเทพฯ 1 ปี
฿43,200.00
ราคาล่าสุดวันที่ July 4, 2026
ติดต่อสอบถามเกี่ยวกับสินค้าทางไลน์ ก่อนชำระเงิน
Please contact us via LINE for product inquiries before making a payment.
PowerRACK
H13SAE-24550
ออกแบบมาสำหรับงานองค์กรและงานประมวลผลที่ต้องการเสถียรภาพต่อเนื่อง เสริมด้วย RAM DDR5 ECC ที่ช่วยลดความผิดพลาดของข้อมูล เคสแบบ 2U รองรับไดรฟ์สูงสุดถึง 5 x 3.5″ มีระบบจัดการ iKVM ให้ควบคุมระบบระยะไกลได้สะดวก Dual 1GLAN Intel i210 มอบความเสถียรของเครือข่ายในระดับมืออาชีพ รองรับงาน 24/7
| CPU | |
|---|---|
| Standard CPU | CPU, AMD, AM5, EPYC, 4244P Raphael, 6C/12T, 3.8GHz, 32MB Cache, 65W |
| CPU Support | AMD Ryzen™ 7000 series Processors, single socket LGA-1718 (socket AM5) supported TDP supports up to 170W. |
| CPU Cooler | 1 x 1U Active Sink |
| Memory | |
| Standard Memory | Option |
| Memory support | Total Slots : 4DIMM slots Max Memory Size : 192GB Max. Capacity per DIMM : 8GB, 16GB, 24GB, 32GB, 48GB DIMM Type : ECC UDIMM, None ECC Supports DDR4 : 5200/4800/3600MT/s |
| Network / IPMI | |
| Integrated LAN | 2 x RJ45 Gigabit Ethernet LAN ports with Intel® i210 Gigabit Ethernet Controller |
| IPMI | 1 x IPMI ASPEED AST2600 BMC |
| Graphic | |
| Controller | ASPEED AST2600 BMC |
| Expansion Slots | |
| PCI-Express (PCI-E) | 1 x PCI-E 5.0 x16 |
| M.2 | 2 x M.2 PCI-E 5.0 x 4, M-Key, 22110/2280 RAID 0 & 1 |
| Storage / Controller | |
| Standard Storage | Option |
| Drive Bays | 4 x Front Hot-swap drive bays 2.5″/3.5″ SAS12G/SATA6G |
| Storage | 2 x M.2 PCI-E 5.0 x 4, M-Key, 22110/2280 RAID 0 & 1 |
| Storage Controller | Software RAID 6Gb/s RAID support : 0/1/10 |
| SATA | 4 x SATA (6Gbps) ports |
| Cable | N/A |
| Input / Output | |
| LAN | 2 x RJ45 Gigabit Ethernet LAN ports |
| USB | 1 x USB 3.2 Gen2x2 port(s) (1 rear type C 20Gb) 5 x USB 3.2 Gen2 port(s) (3 rear type A 10Gb; 2 rear type C DP 1.4 Alt mode) 2 x USB 3.2 Gen1 port(s) (2 headers 5Gb) 1 x USB 2 port(s) (1 via header 2 ports by a header) |
| Video Output | 1 x VGA Port 1 x HDMI 2.0 port 1 xDP 1.4a port 2 rear type C port(s) DP 1.4 Alt mode |
| Serial Port | 1 x COM Port(s) (1 header) |
| DOM | N/A |
| TPM | 1 x TPM Header |
| Chassis | |
| Form Factor | 2U |
| Expansion Slots | 7 x Expansion slots Low Profile |
| Dimension (DxWxH) | 21.70″(552mm) x 16.80″(426mm) x 3.54″ (89.9mm) |
| Buttons | 1 x Power On/Off 1 x System Reset |
| LEDs | 1 x HDD LED 1 x Power LED |
| Ports | 1 x USB 2.0 1 x USB 3.0 |
| SlideRail | Yes |
| Power Supply | 400W Server Grade |
| Supported OS | |
| Microsoft Windows | |
| Linux | |
| Virtual Machine | |
