เมนบอร์ด Supermicro X13SCL-F, Intel 1700, Micro-ATX (C262)

• Processor Supports: Intel® Xeon® E-2400/Pentium® G7400 and G7400T
• Memory Supports: 4 DIMM slots, DDR5 ECC-UDIMM
• PCIe: 2 PCIe 4.0 x4 (in x8 slot), 1 PCIe 5.0 x8, 1 PCIe 5.0 x8 (in x16 slot)
• M.2: 1 x PCIe 4.0 x4
• RAID: 8 x SATA RAID 0/1/5/10 Intel® C262
• NIC: 2 x 1GbE (Intel® I210)
• IPMI: ASPEED AST2600 BMC
• Form Factor: Micro-ATX

ราคาล่าสุดวันที่ March 21, 2026

ติดต่อสอบถามเกี่ยวกับสินค้าทางไลน์ ก่อนชำระเงิน
Please contact us via LINE for product inquiries before making a payment.

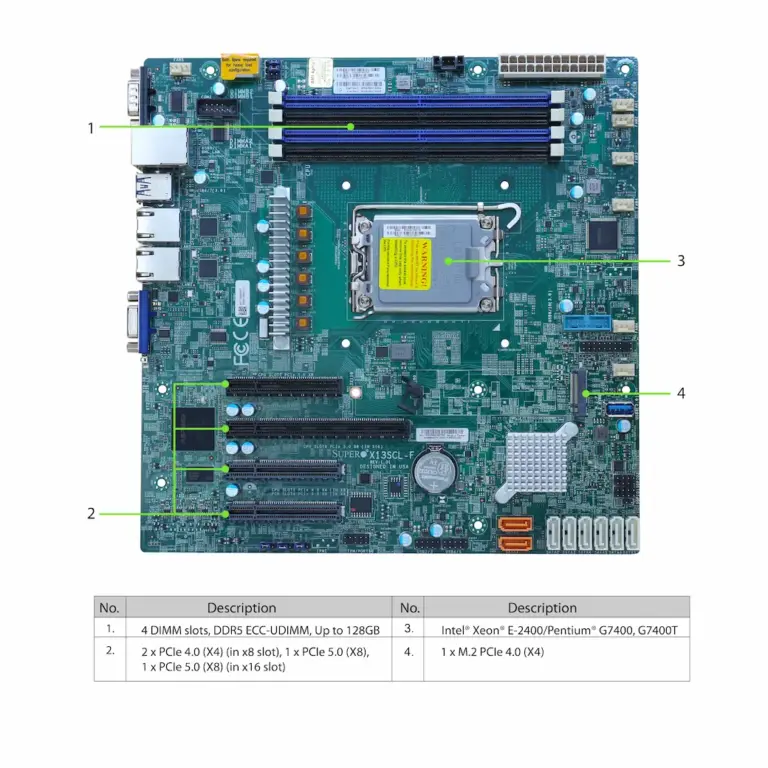

Product Diagram

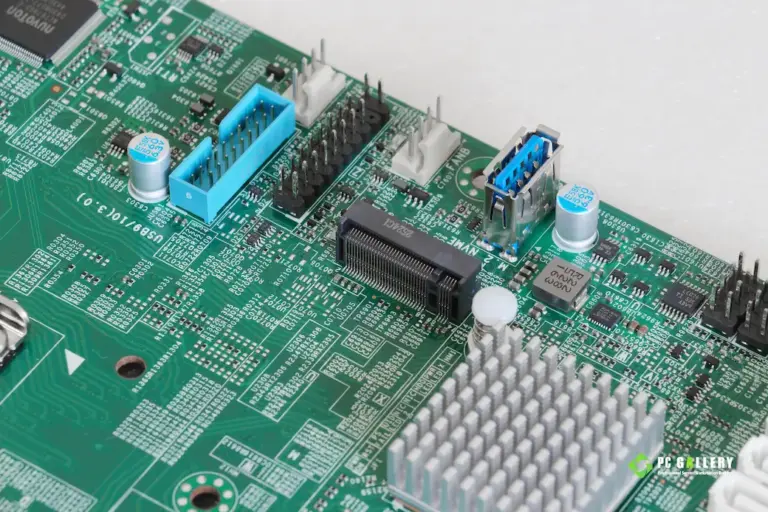

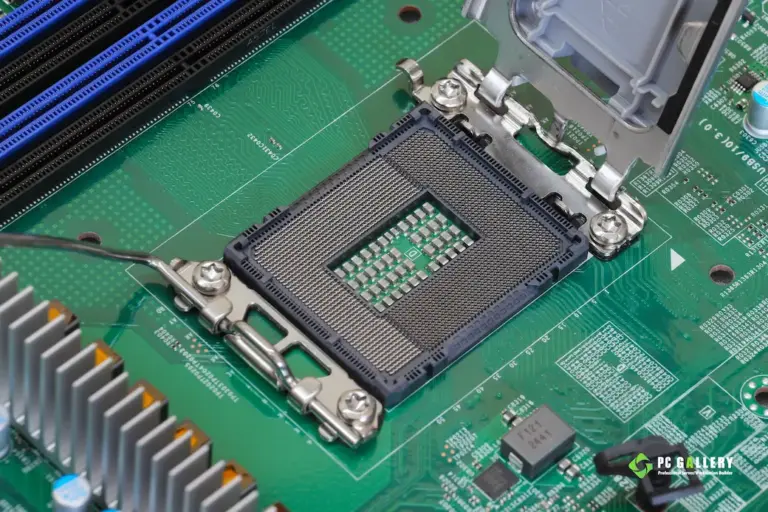

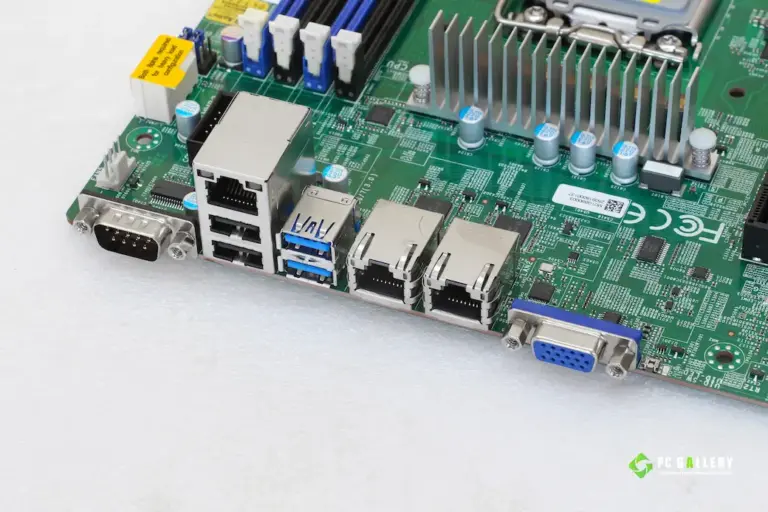

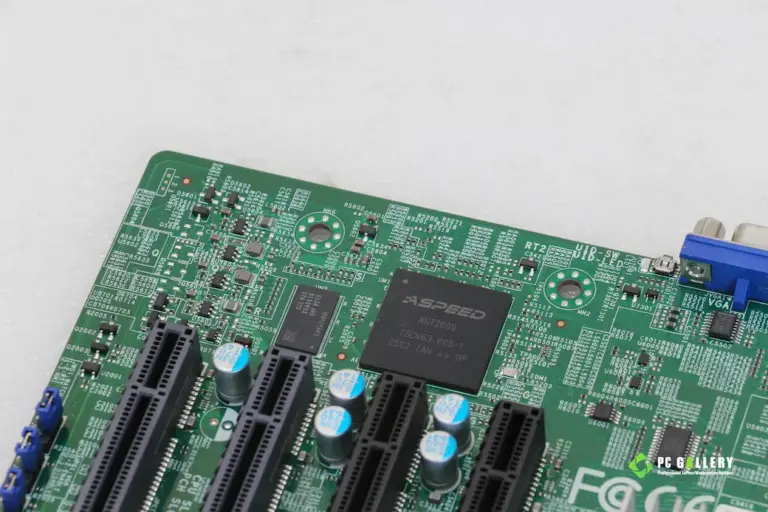

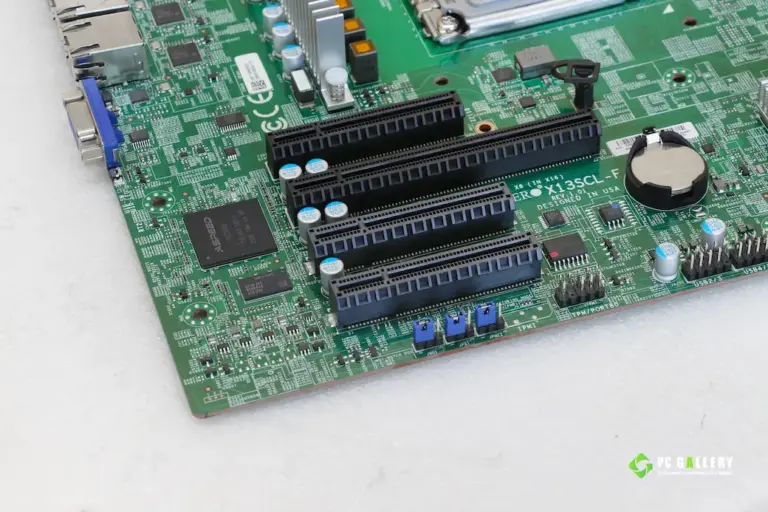

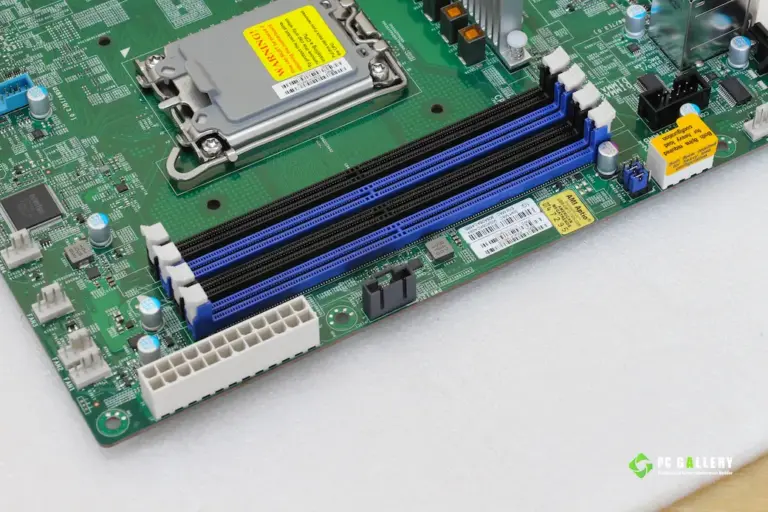

More Picture

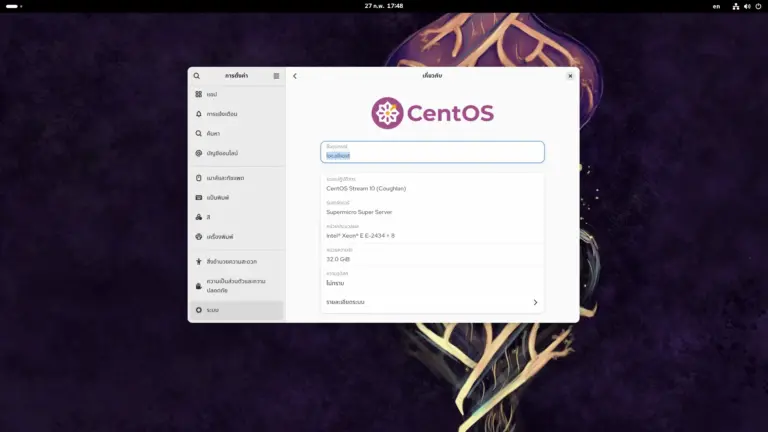

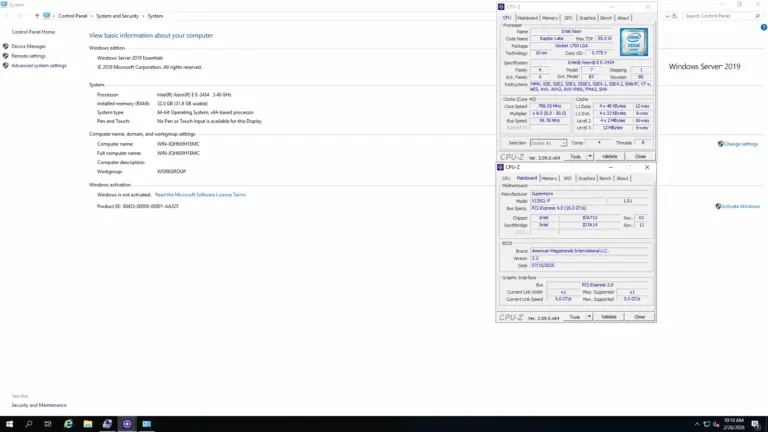

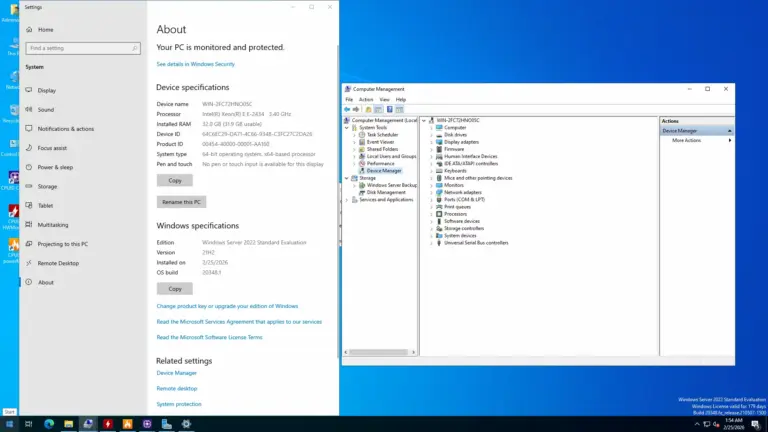

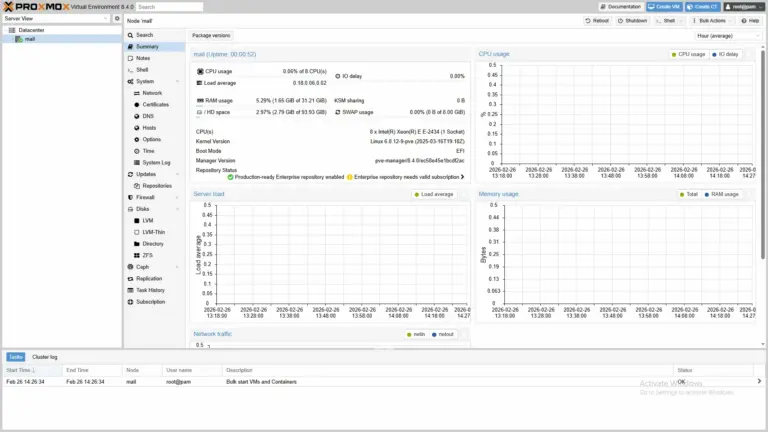

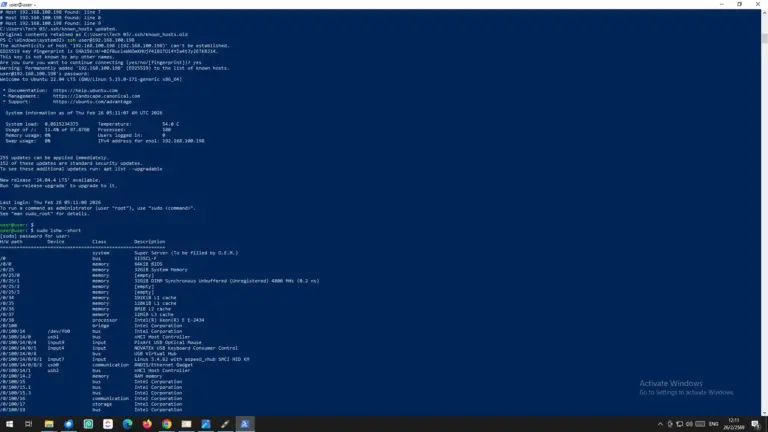

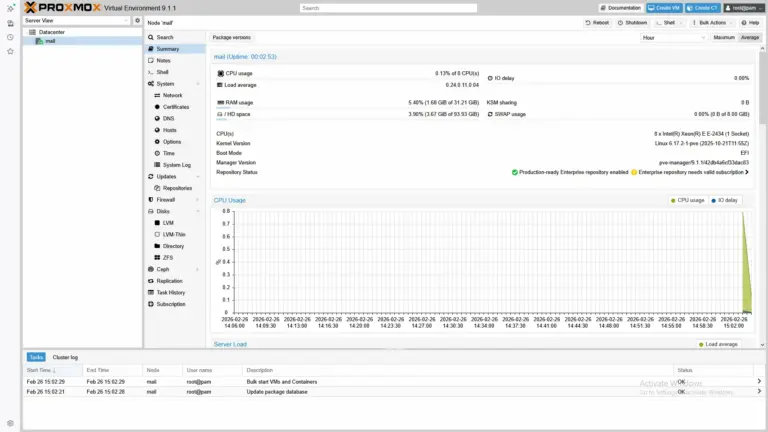

OS Test

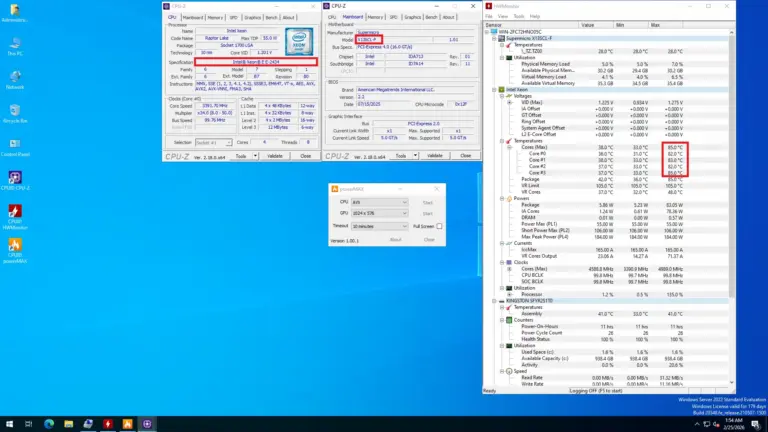

ทดสอบความร้อนกับ CPU E-2434

Physical Status
Form factor	Micro-ATX
Dimensions	9.6″ x 9.6″ (24.38cm x 24.38cm)
Processor
Processor Support	Intel® Xeon® E-2400/Pentium®* Processor CPU TDP supports Up to 95W TDP *Pentium® G7400 and G7400T
Socket	Single Socket Socket V0 (LGA-1700) supported
Chipset	Intel® C262
Memory Support
Total Slot	4 DIMM slots
Max Memory Size	Up to 128GB Unbuffered ECC UDIMM, DDR5-4400MT/s
Memory Capacity	8GB, 16GB, 32GB
DIMM Type	DDR5 ECC-UDIMM
Frequency	4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (2DPC)
Network / IPMI
Integrated LAN	Dual LAN with 1GbE with Intel® I210
IPMI	ASPEED AST2600 BMC
Graphic
Controller	1 Aspeed AST2600 BMC port(s)
Expansion Slots
PCI-Express (PCI-E)	2 PCIe 4.0 x4 (in x8 slot), 1 PCIe 5.0 x8, 1 PCIe 5.0 x8 (in x16 slot)
M.2	M.2 Interface: 1 PCIe 4.0 x4 Form Factor: 2280/22110 Key: M-Key
Storage / Controller
SATA	Intel® C262 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Storage Controller	Intel® C262
Input / Output
SATA	8 SATA3 (6Gbps) port(s)
LAN	2 RJ45 LAN with 1GbE with Intel® I210
Dedicate LAN	1 RJ45 Dedicated IPMI LAN port
USB	6 USB 2.0 port(s) (4 via header; 2 rear) 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output	1 VGA D-Sub Connector port(s)
Serial Port	2 COM Port(s) (1 header; 1 rear)
DOM	–
TPM	1 TPM Header
Supported OS
Microsoft Windows
Linux
Virtual Machine

฿15,800.00
