(NEW!) เมนบอร์ด ASRockRACK W790D8UD-1L1N2T/BCM, Intel 4677, Deep Micro-ATX (W790, รองรับ Xeon W3/W5/W7/W9)
- • Processor Supports: Supports Intel® Xeon® W-2500/2400 and W-3500/3400 series processors
- • Memory Supports: 8 DIMM slots DDR5 ECC RDIMM
- • PCIe: 4 PCIe5.0 x16
- • M.2: 1 M.2 (PCIe4.0 x4)
- • RAID: Up to 8 SATA 6Gb/s; RAID 0/1/5/10 Intel® W790
- • NIC: 2 x 10bE Broadcom BCM57416 | 1 x 2.5GbE Intel® i226 | 1 x GbE Intel® i210
- • IPMI: 1 RJ45 Dedicated IPMI LAN (AST2600)
- • Form Factor: Deep Micro-ATX
- • สำหรับประกอบเครื่องชุดของทางร้านเท่านั้น
฿35,000.00
ราคาล่าสุดวันที่ March 11, 2026
ติดต่อสอบถามเกี่ยวกับสินค้าทางไลน์ ก่อนชำระเงิน
Please contact us via LINE for product inquiries before making a payment.

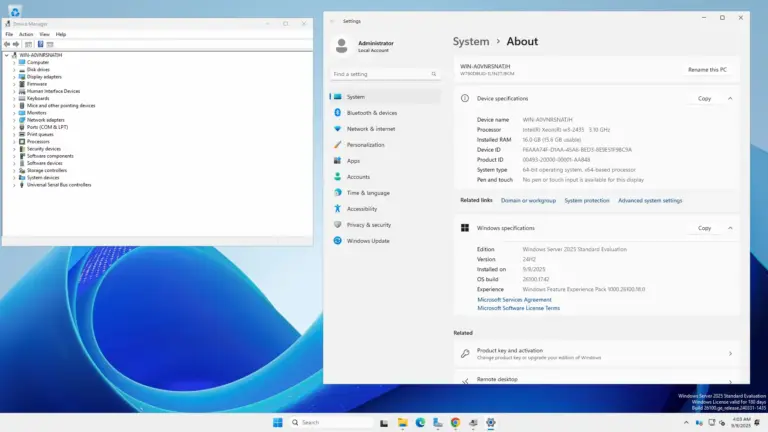

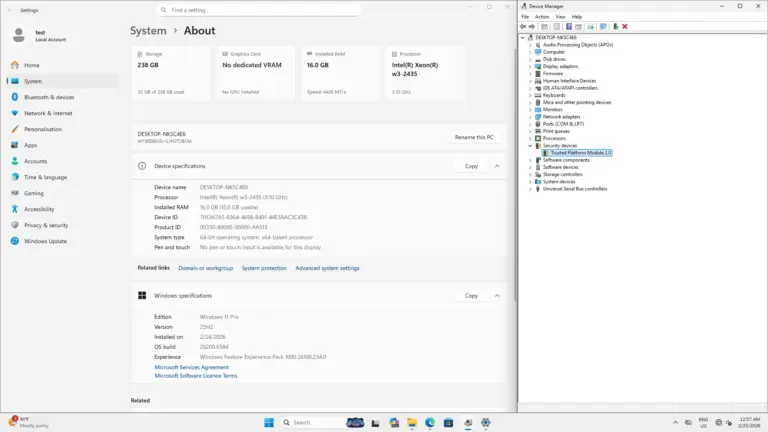

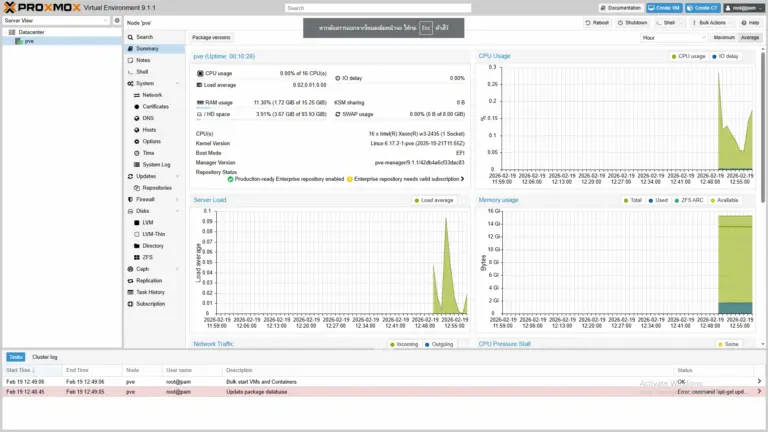

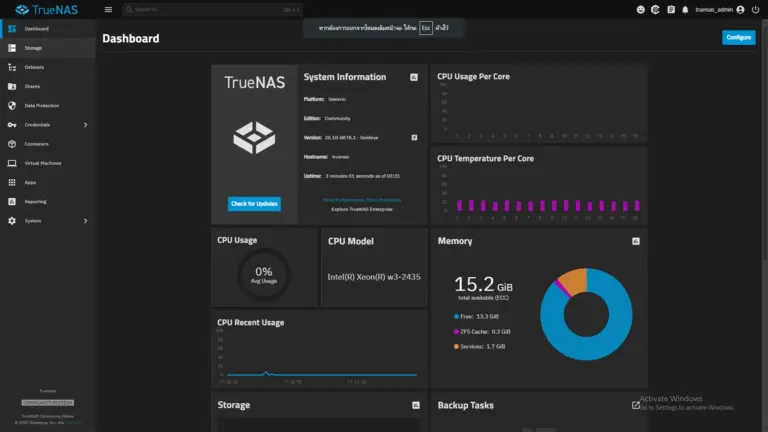

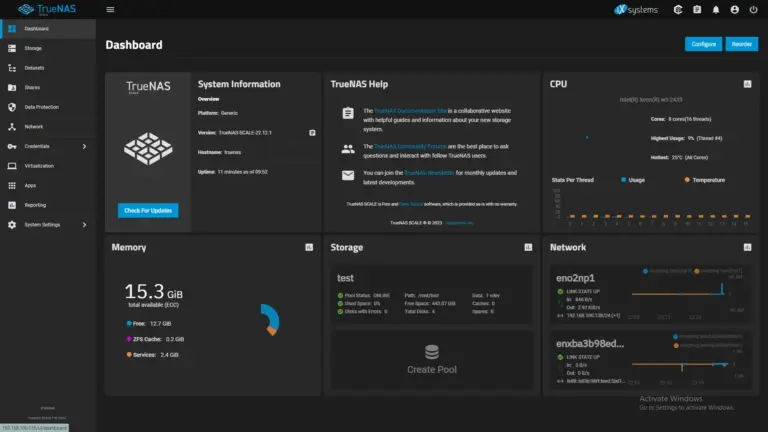

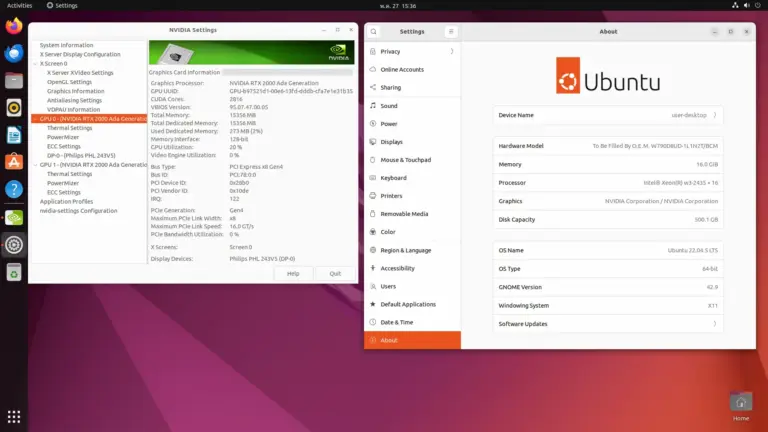

OS Test
| Physical Status | |
| Form Factor | Deep Micro-ATX |
| Dimensions | 10.4” x 10.5” (264 x 266 mm) |
| Processor System | |
| CPU | Intel® Xeon® W-2500/2400 and W-3500/3400 series processors |
| Socket | Single Socket E (LGA 4677) |
| Thermal Design Power | 350W |
| Chipset | Intel® W790 |
| System Memory | |
| Supported DIMM Quantity | 8 DIMM slots (2DPC) |
| Supported Type | DDR5 288-pin RDIMM/ RDIMM-3DS |
| Max. Capacity per DIMM | RDIMM: 64GB RDIMM-3DS: 2H- 128 GB/ 4H- 256 GB |
| Max. DIMM Frequency | 4400MT/s (2DPC) / 4800MT/s (1DPC) |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT7: PCIe5.0 x16 [CPU] SLOT6: PCIe5.0 x16 [CPU] SLOT5: PCIe5.0 x16 [CPU] SLOT4: PCIe5.0 x16 [CPU] |
| Other PCIe Expansion Connectors | |
| M.2 slot | 1 M-key (PCIe4.0 x4), supports 2280 form factor [PCH] |
| OCuLink | 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [PCH] 1 OCuLink (PCIe4.0 x4) [PCH] |
| SATA/SAS Storage | |
| PCH Built-in Storage | Intel® W790 (Up to 8 SATA 6Gb/s; RAID 0/1/5/10): 1 OCuLink for 4 SATA, 4 SATA 7-pin |
| Ethernet | |
| Additional GbE Controller | 2 RJ45 (10GbE) by Broadcom BCM57416 1 RJ45 (2.5GbE) by Intel® i226 1 RJ45 (1GbE) by Intel® i210 |
| Server Management | |
| BMC Controller | ASPEED AST2600: iKVM, vMedia support |
| IPMI Dedicated GLAN | 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F |
| Graphics | |
| Controller | ASPEED AST2600: 1 DB15 (VGA) |
| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| VGA Port | 1 DB15 (VGA) |
| Serial Port | 1 DB9 (COM) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45(10GbE), 1 RJ45(2.5GbE), 1 RJ45(1GbE), 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 1 Micro-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 4 (8-pin, ATX 12V) |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| Speaker Header | 1 (4-pin) |
| Buzzer | 1 |
| Fan Header | 7 (4-pin) |
| Thermal Sensor Header | 1 |
| TPM Header | 1 (13-pin, SPI) |
| SGPIO Header | 1 |
| HSBP | 1 |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| Others | 2 (1-pin, TGPIO header) |
| Front Lan LED Connector | 1 |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED | 1 |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 7 |
| BMC heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI 256Mb SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 5.0 and above compliance wake up events, SMBIOS 2.3 and above, ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side, TR1 Temperature sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | CPU1_PVCCIN, 1.05V_PCH, 1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB, +12V, +12VSB |
| Supported OS | |
| OS |
Microsoft® Windows® Linux Hypervisor: * RAID mode is not supported on the Ubuntu system. |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
