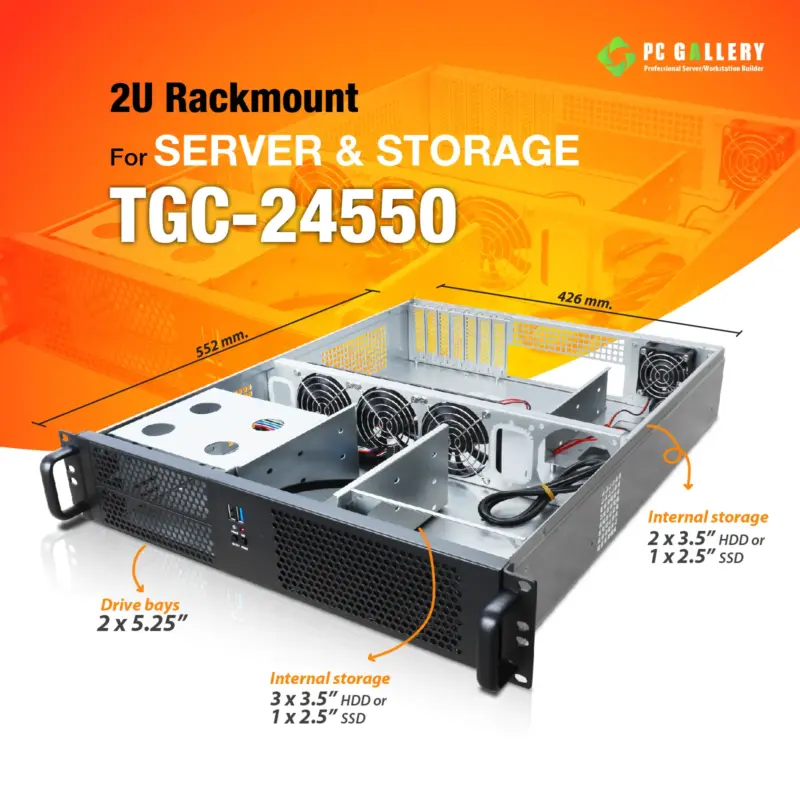

เคสเซิฟเวอร์ 2U Rackmount TGC-24550-3.0, 7Slot PCI, (Redundant/ATX)

  • 2U Rackmount Server Chassis
  • ► Supports ATX Motherboard
  • Supports ATX / 2U Power supply
  • ► 7 x Expansion slots (LP)
  • 5 x 3.5″ HDD or 2 x 2.5″ SSD
  • ► 2 x 5.25″ Drive Bays
  • ราคายังไม่รวม Power supply และ รางสไลด์

฿3,950.00

แจ้งกับทางร้านก่อนชำระเงิน เพื่อตรวจสอบสถานะสินค้า และค่าจัดส่ง

Description

Dimension and Layout

News & Update

TGC 24550 ติดตั้งกับ
ATX power supply

TGC 24550 ติดตั้งกับ
Redundant power supply

TGC 24550 ติดตั้งรางสไลด์
TGC-03A-PRO 500mm

Additional information

DIMENSIONS (D X W X H)

21.70" x 16.80" x 3.54" (552 x 426 x 89.9mm)

DRIVE BAYS

x2 5.25" Drive bay
x2 2.5" Drive bay
x5 3.5" Drive bay

POWER SUPPLY

Support ATX / 2U Radundant

Slide rail

Optional

Specification

Form Factor
Form Factor
  • 2U
Motherboard Support
  • ATX(12.0″ x 9.6″) / Mini-ITX(6.7″ x 6.7″) / Micro-ATX(9.6″ x 9.6″)
Power Supply Support
  • ATX / 2U Power supply
Dimension (DxWxH)
Depth
  • 21.70″(552mm)
Width
  • 16.80″(426mm)
Height
  • 3.54″ (89.9mm)
Expansion Slots
Expansion Slots
  • 7 x Expansion slots Low Profile

Drive Bays / Backplane

Front Drive Bays
  • N/A
Rear Drive Bays
  • N/A
Internal Drive
  • 5 x 3.5″ HDD or 2 x 2.5″ SSD
Peripheral Drives
  • 2 x standard 5.25″ drive bay
Backplane
  • N/A
Front Panel
Button
  • 1 x Power Button
  • 1 x Reset Button
LEDs
  • 1 x HDD LED
  • 1 x Power LED
Front I/O
  • 1 x USB 2.0
  • 1 x USB 3.0
System Cooling
Fans
  • 3 x 8cm Fan(s)
Power Supply
Power Supply
  • N/A
Slide Rail
Slide Rail
  • Optional
