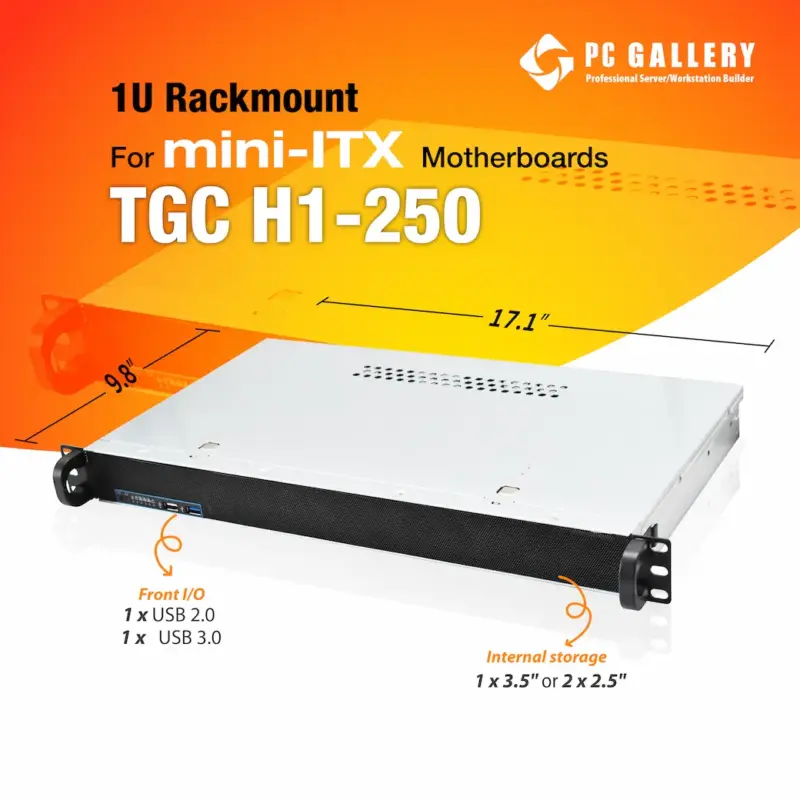

เคสเซิฟเวอร์ 1U Case, TGC H1-250, mini-ITX chassis

  • 1U rackmount chassis, support for motherboard size: 6.7″ x 6.7″ mini-ITX
  • (1) 3.5″ drive bay or (2) 2.5″ drive bays
  • (1) full-height & full-lenght expansion slot(s) (Riser Card Required)
  • (3) 40x56mm fan(s) 3 Pin
  • (1) USB 2.0 & (1) USB 3.0 in front of chassis

฿2,290.00

แจ้งกับทางร้านก่อนชำระเงิน เพื่อตรวจสอบสถานะสินค้า และค่าจัดส่ง

Dimension and Layout

MORE PICTURE

Form Factor

1U rackmount chassis, support for motherboard size: 6.7" x 6.7" mini-ITX

Dimensions(W x H x D)

17.1" x 1.7" x 9.8" (434.34 x 43.2 x 250.7 mm.)

Expansions Slots

(1) full-height & full-lenght expansion slot(s) (Riser Card Required)

Drive Bays

(1) 3.5" drive bay or (2) 2.5" drive bays

Front Panel

Button: Power On/Off button, System Reset Button
LEDs: (3) Network Activity LEDs, HDD activity LED, Power Status LED
Ports: (1) USB 2.0 and (1) USB 3.0

Fans

(3) 40x56mm fan(s) 3 Pin

Power Supply

Optional

Slide Rail

Optional
