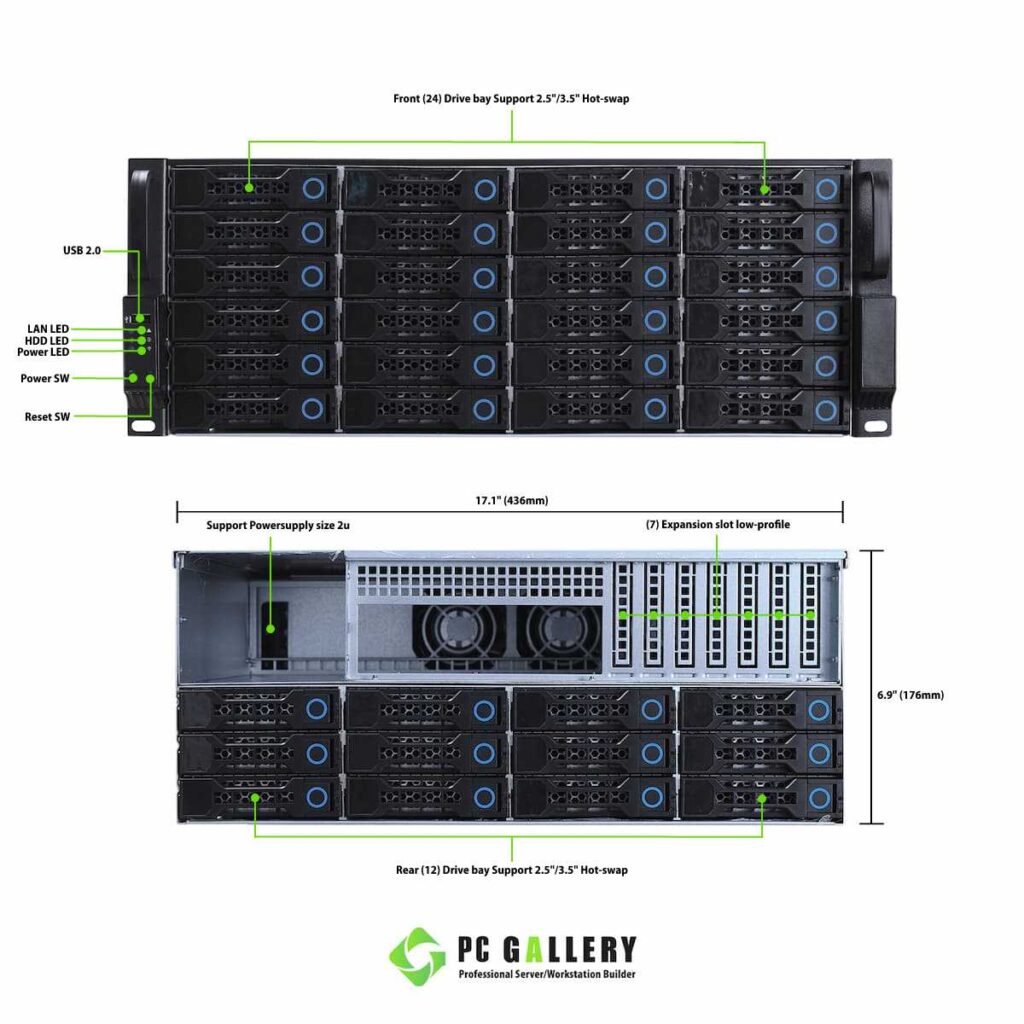

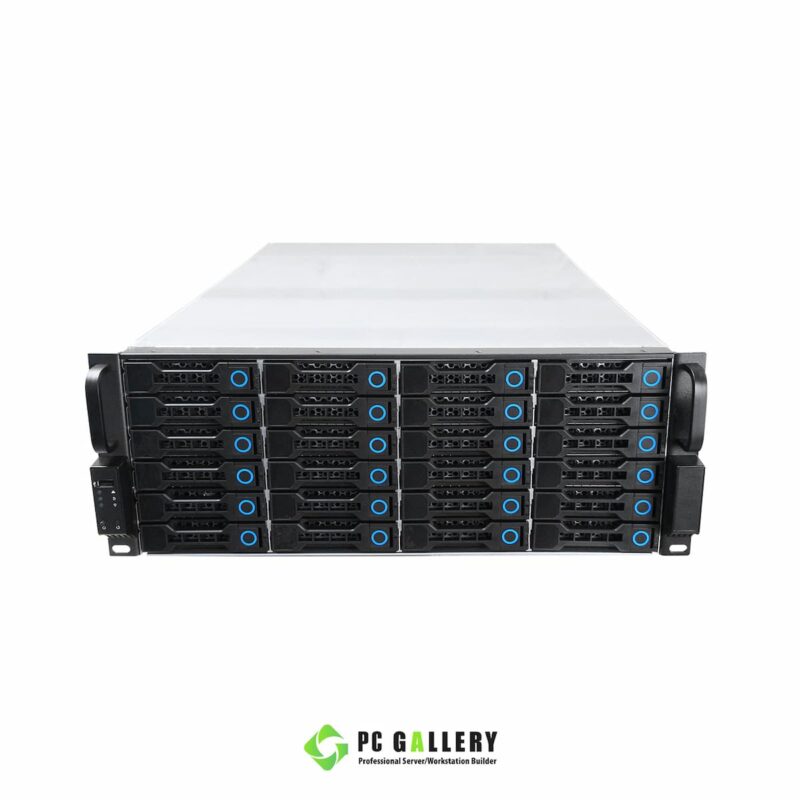

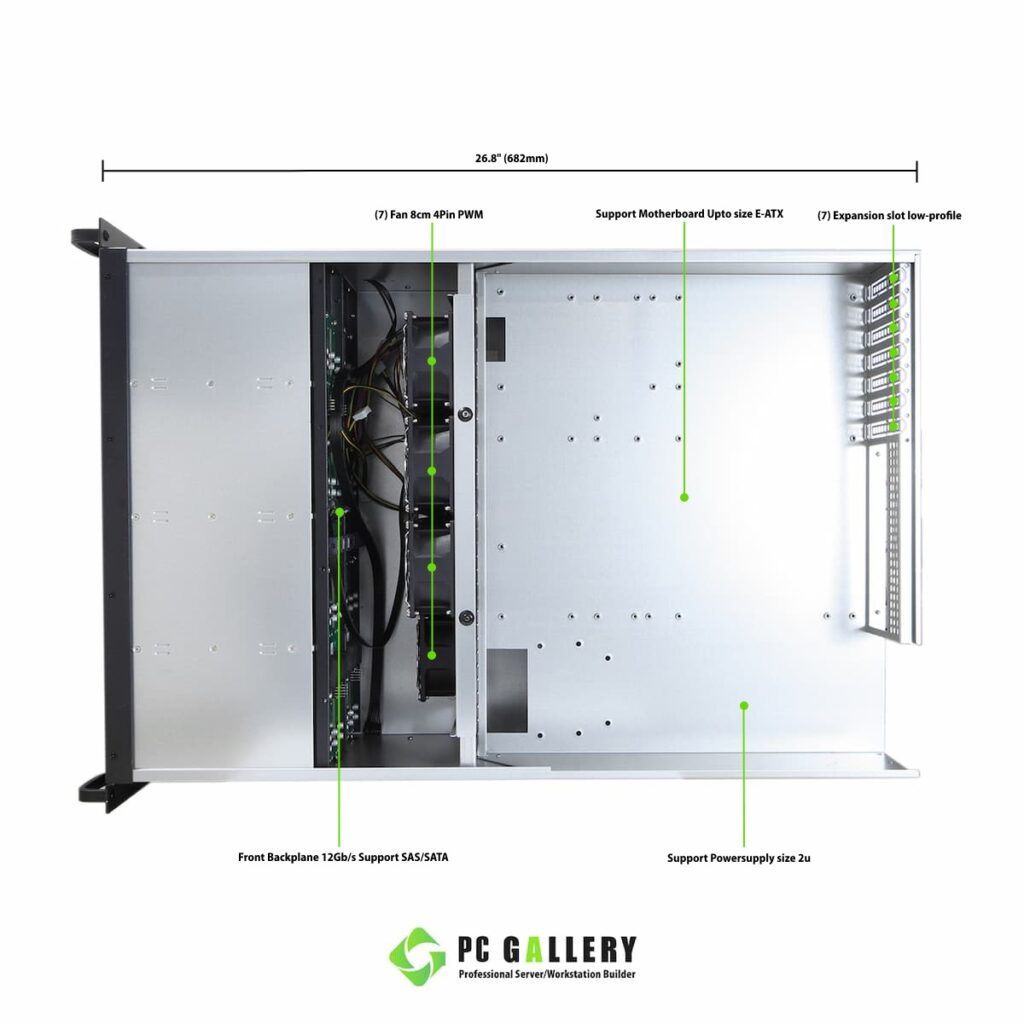

เคสเซิฟเวอร์ 4U TGC DH-4036-12GB-02, 36Bays, non-Expander
► Supports 36 x 2.5″/3.5″ Hot-swap
► 12Gb/s backplane
► x7 Fan 12cm 4Pin PWM
► Supports Motherboard Upto E-ATX
► Supports Powersupply 2U single and 1+1 redundant PSU
► SGPIO = none support
► Slide Rail = not include
฿26,500.00
| FORM FACTOR | 4U |
|---|---|
| MB | Upto EEB (12" x 13") |
| HOT SWAP DRIVER BAY | 36 x 2.5"/3.5" |
| BACKPLANE | Support SATA3 12Gb/s & SAS (SFF-8643 Interface) |
| REAR WINDOW | Full High (7 Slots) |
| FRONT I/O | HDD LED |
| DIMENSION (DXWXH MM) | 682x436x176 mm |
