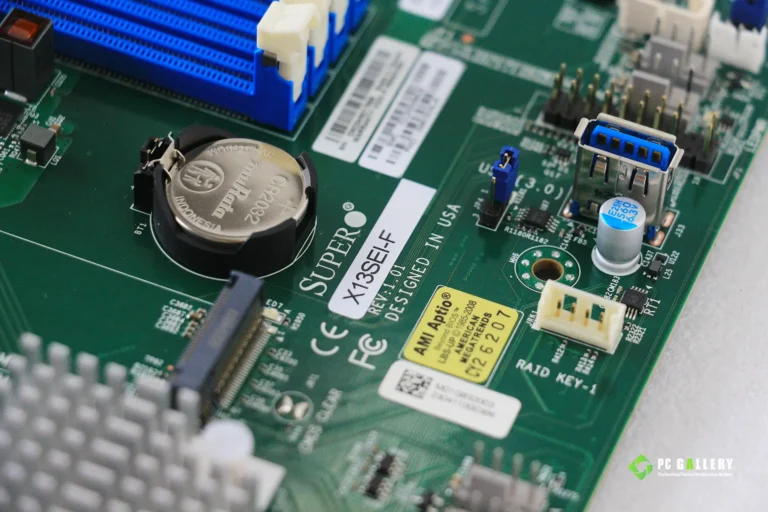

เมนบอร์ด Supermicro X13SEI-F, Intel 4677, E-ATX (C741)

  • Processor Supports: 5th / 4th Gen Intel® Xeon® Scalable processors
  • • Memory Supports: 8 DIMM slots, DDR5 ECC-RDIMM
  • • PCIe: 2 x PCIe5.0(x16), 3 x PCIe5.0(x8), 2 x PCIe5.0(x8) PCIe5.0 MCIO connector
  • • M.2: 2 x M.2 PCIe5.0(x4)
  • • NIC: 2 x 1GbE with with Intel® I210
  • • IPMI: 1 x RJ45 Dedicated IPMI LAN port
  • Form Factor: EATX (12.3″ x 10.1″)

฿28,400.00

แจ้งกับทางร้านก่อนชำระเงิน เพื่อตรวจสอบสถานะสินค้า และค่าจัดส่ง

Description

VDO YouTube

Additional information

News & Update

Specification

Physical Status
Form factor
  • E-ATX
Dimensions
  •  12.3″ x 10.1″ (31.24cm x 25.65cm)
Processor
Processor Support
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Socket
  • Single Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
    *BIOS 2.1 or above is required to support 5th Gen Intel® Xeon® Scalable processors
Chipset
  • Intel® C741
Memory Support
Total Slot
  • 8 DIMM slots
Max Memory Size
  • Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s
  • **24GB & 48GB DIMM only support 1 DPC.
  • *24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel® Xeon-SP CPU.
Memory Capacity
  • 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB

DIMM Type

  • DDR5 ECC-RDIMM
Frequency
  • 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
Network / IPMI
Integrated LAN
  •  Dual LAN with 1GbE with Intel® I210
IPMI

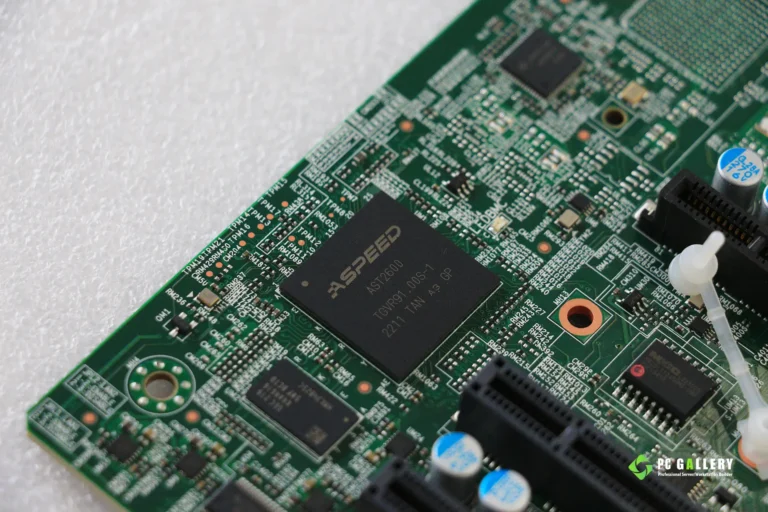

  • 1 x RJ45 with ASPEED AST2600 BMC

Graphic

Controller
  • 1 Aspeed AST2600 BMC port(s)

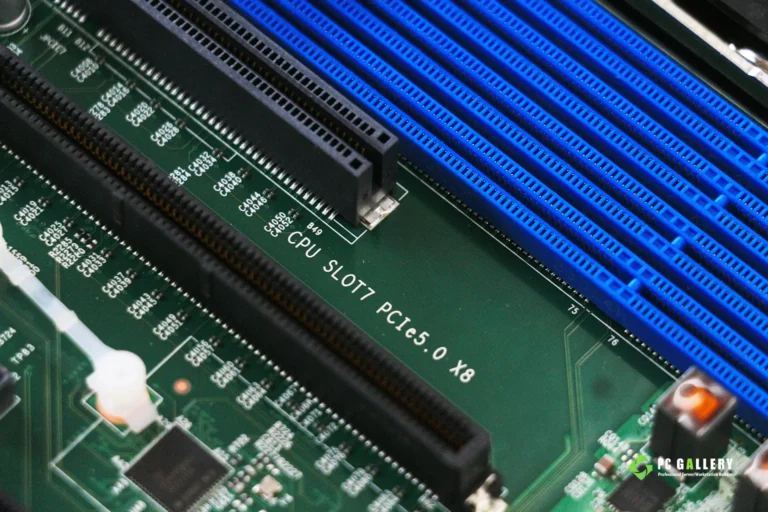

Expansion Slots

PCI-Express (PCI-E)
  • 2 PCIe 5.0 x16,
  • 3 PCIe 5.0 x8,

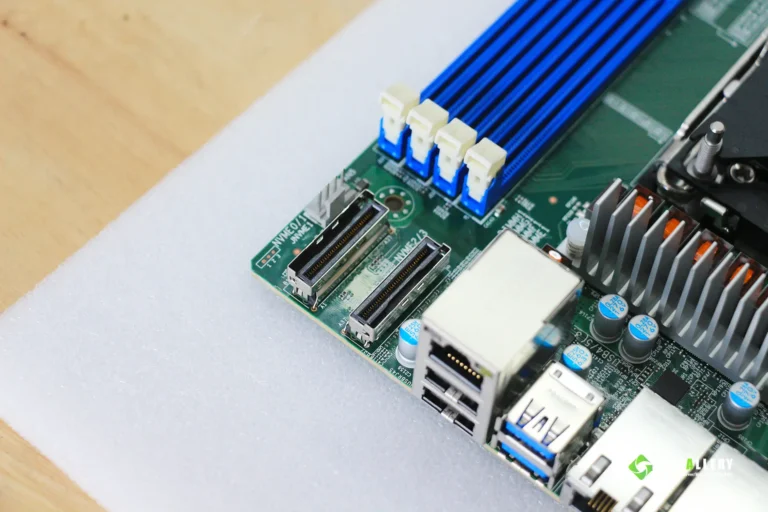

  • 2 PCIe 5.0 x8 PCIe5.0 MCIO connector

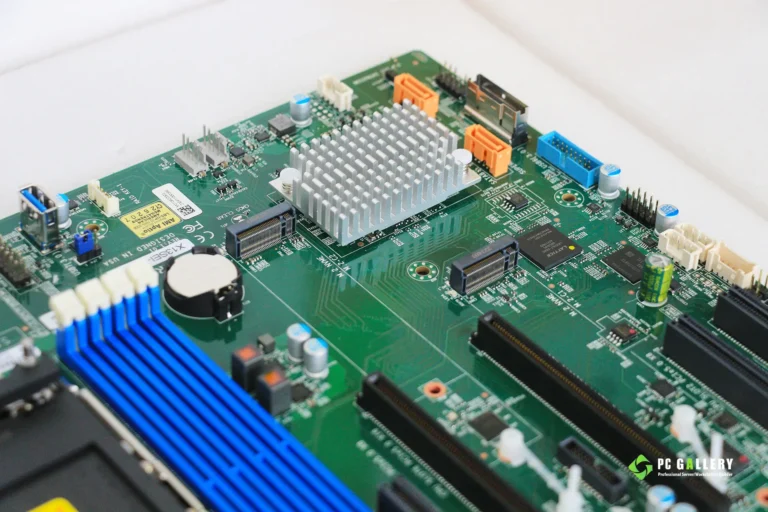

M.2
  • M.2 Interface: 2 PCIe 5.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
Storage / Controller
SATA
  • Intel® C741 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Storage Controller
  • Intel® C741
Input / Output

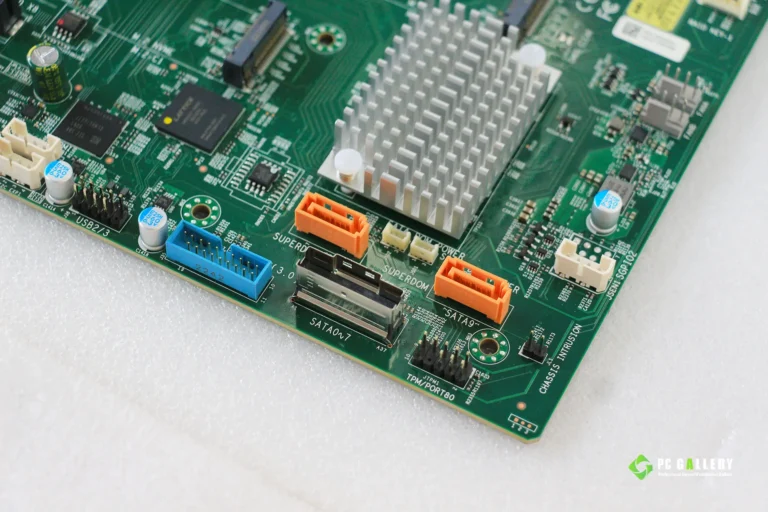

SATA
  • 10 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
Dedicate LAN
  • 1 RJ45 Dedicated IPMI LAN port

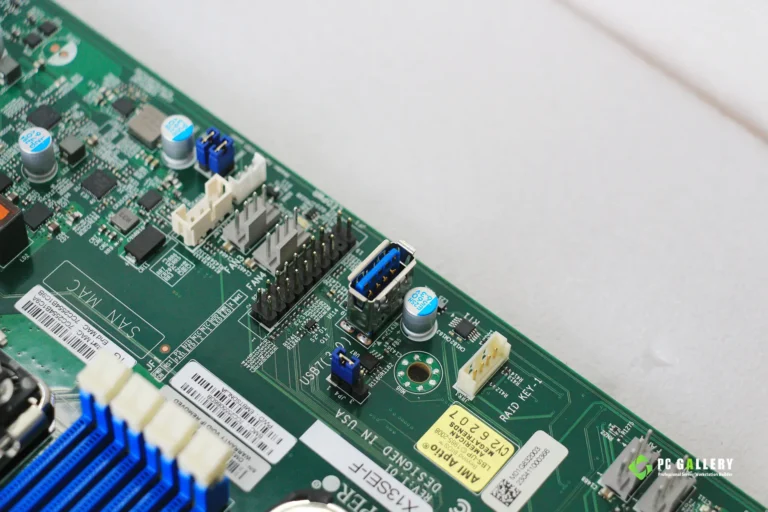

USB
  • 2 USB 2.0 port(s) (2 rear)
  • 4 USB 3.2 Gen1 port(s) (2 rear; 1 via header; 1 type A)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 2 SATA DOM (Disk on Module) power connector support
TPM
  •  1 TPM Header
Others

Supported OS

Microsoft Windows



Linux



Virtual Machine
