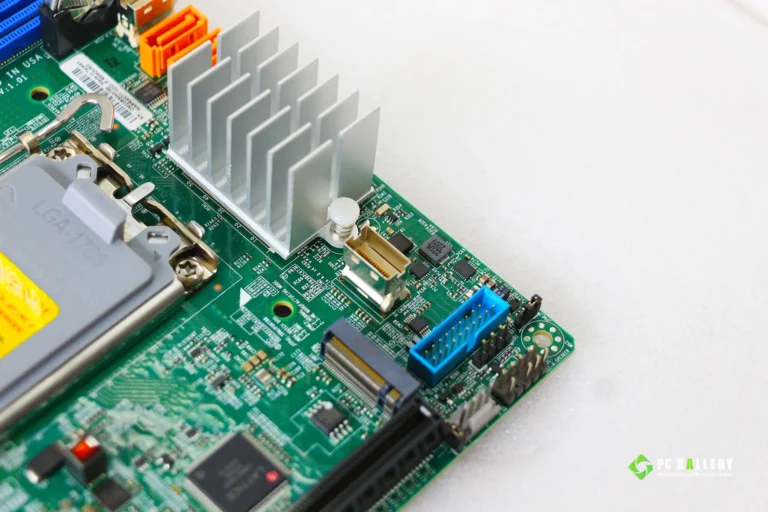

เมนบอร์ด Supermicro X13SCL-IF, Intel 1700, Mini-ITX (C262)
เมนบอร์ด Supermicro X13SCL-IF, Intel 1700, Mini-ITX (C262) - Image 2
เมนบอร์ด Supermicro X13SCL-IF, Intel 1700, Mini-ITX (C262) - Image 3
เมนบอร์ด Supermicro X13SCL-IF, Intel 1700, Mini-ITX (C262) - Image 4
เมนบอร์ด Supermicro X13SCL-IF, Intel 1700, Mini-ITX (C262) - Image 5

เมนบอร์ด Supermicro X13SCL-IF, Intel 1700, Mini-ITX (C262)

  • • Processor Supports:Intel® Xeon® E-2400/Pentium® G7400 and G7400T
  • • Memory Supports: 2 DIMM slots, DDR5 ECC-UDIMM
  • • PCIe: 1 PCIe 4.0 x4 SlimSAS, 2 PCIe 4.0×4 or 1 PCIe 4.0×4 & 4 SATA
  • • M.2: 1 x PCIe 4.0 x4
  • • RAID: 6 x SATA RAID 0/1/5/10 Intel® C262
  • • NIC: 2 x 1GbE (Intel® i210)
  • • IPMI: ASPEED AST2600 BMC
  • • Form Factor: Mini-ITX

ราคาล่าสุดวันที่ February 24, 2026
Line

ติดต่อสอบถามเกี่ยวกับสินค้าทางไลน์ ก่อนชำระเงิน
Please contact us via LINE for product inquiries before making a payment.

VDO YouTube

News & Update

Physical Status
Form factor
  • Mini-ITX
Dimensions
  • 6.7″ x 6.7″ (17.02cm x 17.02cm)
Processor
Processor Support
  • Intel® Xeon® E-2400/Pentium®* Processor
  • CPU TDP supports Up to 95W TDP
  • *Pentium® G7400 and G7400T
Socket
  • Single Socket Socket V0 (LGA-1700) supported
Chipset
  • Intel® C262

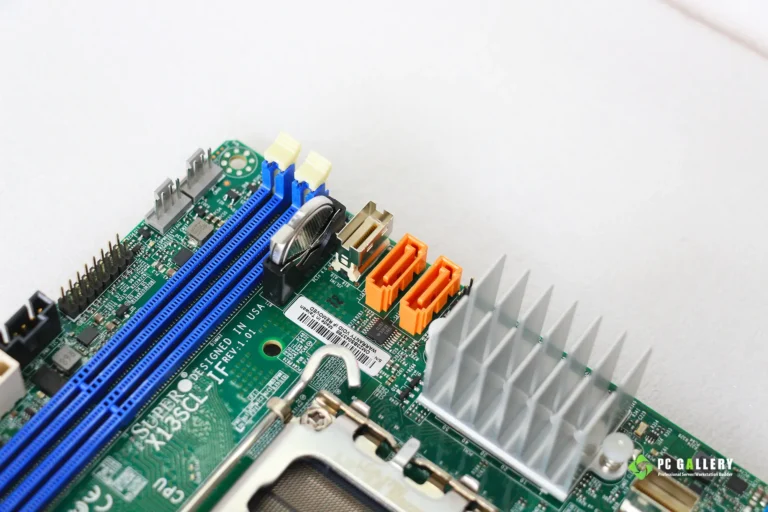

Memory Support
Total Slot
  • 2 DIMM slots
Max Memory Size
  • Up to 64GB Unbuffered ECC UDIMM, DDR5-4800MT/s
Memory Capacity
  • 8GB, 16GB, 32GB

DIMM Type
  • DDR5 ECC-UDIMM
Frequency
  • 4800/4400/4000 MT/s Up to 64GB of memory with speeds of up to 4800MT/s (1DPC)
Network / IPMI
Integrated LAN
  •  Dual LAN with 1GbE with Intel® I210

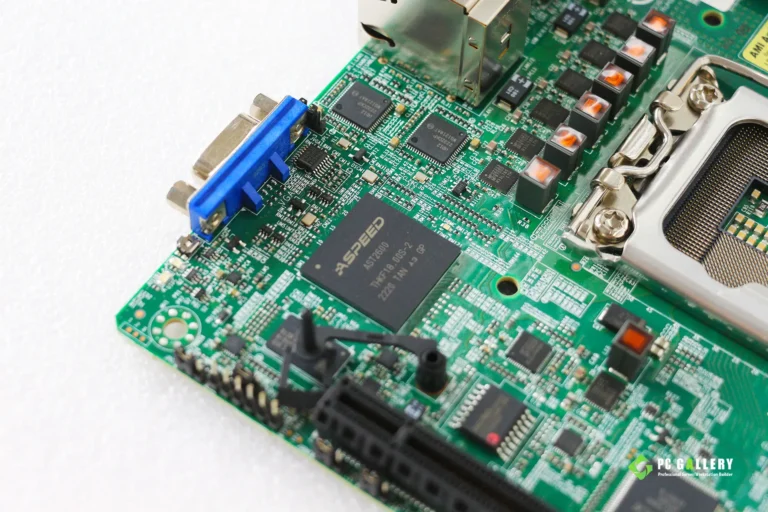

IPMI
  • ASPEED AST2600 BMC

Graphic
Controller
  • 1 Aspeed AST2600 BMC port(s)

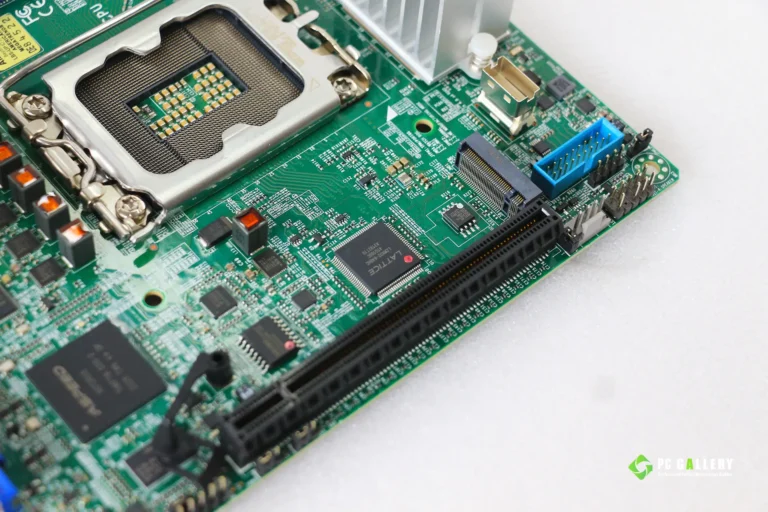

Expansion Slots
PCI-Express (PCI-E)
  • 1 PCIe 5.0 x16,
  • 1 PCIe 4.0 x4 SlimSAS, 2 PCIe 4.0×4 or 1 PCIe 4.0×4 & 4 SATA
M.2
  • M.2 Interface: 1 PCIe 4.0 x4
  • Form Factor: 2280
  • Key: M-Key
Storage / Controller
SATA
  • Intel® C262 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Storage Controller
  • Intel® C262

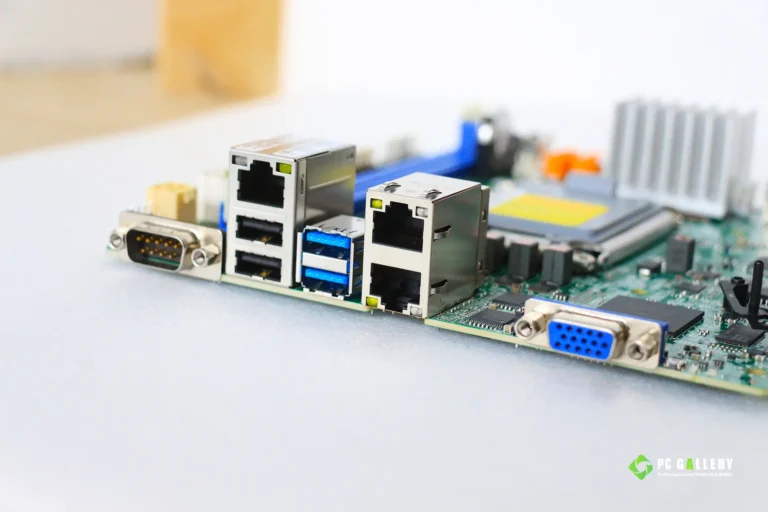

Input / Output
SATA
  • 2 SATA3 (6Gbps) port(s)
  • 4 SATA3 (6Gbps) port(s) via Slimline SAS x4 connector
LAN
  • 2 RJ45 LAN with 1GbE with Intel® I210
Dedicate LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 port(s) (2 rear)
  • 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
DOM
  • –
TPM
  •  1 TPM Header

Supported OS

Microsoft Windows



Linux



Virtual Machine
