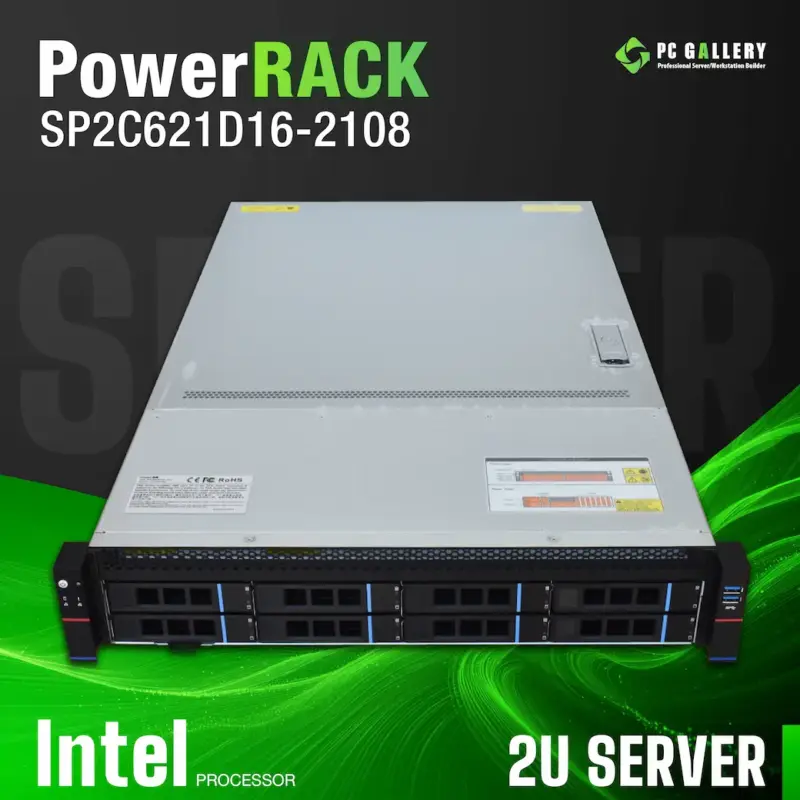

(NEW!) PowerRACK SP2C621D16-2108, Xeon Gold 6326 16C/32T, 1300W Redundant
- • Model: SP2C621D162L-2108-1300R-D16C32T
- • CPU: 1 x Intel Xeon Gold 6326, 2.90GHz, 24MB Cache, 185W, 16C/32T (Dual CPU Support)
- • CPU Cooler: Active Cooler
- • RAM: Option
- • SSD: Option
- • VGA: ASPEED AST2500: 1 DB15 (VGA)
- • RAID: Intel® C621A (14 SATA 6Gb/s, support RAID 0/1/5/10)
- • Drive: 8 x 3.5″/2.5″ Hot-swap SAS/SATA | 2 x 2.5″ rear Hot-swap
- • LAN: 2 x RJ45 (Intel® I350-AM2)
- • IPMI: 1 RJ45 Dedicated IPMI
- • Chassis: 2U Rackmount
- • PSU: 1300W Redundant
- • Warranty: 3-Years อะไหล่และค่าแรง
฿148,500.00
ราคาล่าสุดวันที่ July 4, 2026
ติดต่อสอบถามเกี่ยวกับสินค้าทางไลน์ ก่อนชำระเงิน
Please contact us via LINE for product inquiries before making a payment.
PowerRACK
SP2C621D16-2108
Rack Server ขนาด 2U รองรับหน่วยประมวลผล Intel Xeon Gold 6326 แบบ 16 Core / 32 Thread พร้อมรองรับการอัปเกรดเป็น Dual CPU เพื่อเพิ่มขีดความสามารถของระบบในอนาคต มีไดรฟ์แบบ Hot-swap 8 ช่องด้านหน้า และ 2 ช่องด้านหลัง เพิ่มความยืดหยุ่นในการจัดเก็บข้อมูล นอกจากนี้ยังมี 2 x GLAN และ IPMI พร้อม Power Supply เป็นแบบ Redundant 1300W รองรับการทำงานต่อเนื่อง และรับประกัน 3 ปีเต็ม
|
CPU |
|
|---|---|
| Standard CPU | Intel Xeon Gold 6326, 2.90GHz, 24MB Cache, 185W, 16C/32T (Dual CPU Support) |
| CPU Support | Supports 3rd Gen Intel® Xeon® Scalable processors |
| CPU Cooler |
Active Sink |
| Memory | |
|
Standard Memory |
Option |
| Memory support | Total Slots : 8+8 DIMM slots (1DPC) DIMM Type : DDR4 288-pin RDIMM/RDIMM-3DS/LRDIMM/LRDIMM-3DS, Intel® Optane™ Persistent Memory 200 Series Frequency : max. 3200MT/s |
| Network / IPMI | |
| Integrated LAN |
2 x RJ45 (1GbE) by Intel® I350-AM2 |
| IPMI |
Remote management (IPMI) |
|
Graphic |
|
| Controller | ASPEED AST2500: 1 DB15 (VGA) |
|
Expansion Slots |
|
| PCI-Express (PCI-E) | SLOT6: PCIe4.0 x16 [CPU1] SLOT5: PCIe4.0 x16 [CPU1] SLOT4: PCIe4.0 x16 [CPU1] SLOT3: PCIe4.0 x16 [CPU0] SLOT2: PCIe4.0 x16 [CPU0] SLOT1: PCIe4.0 x8 [CPU0] |
| M.2 | 1 M-key (PCIe4.0 x4); Support 22110/2280 form factor [CPU0] |
| Storage / Controller | |
| Standard Storage | Option |
| Drive Bays | 8 x 3.5″/2.5″ Hot-swap SAS/SATA | 2 x 2.5″ rear Hot-swap |
| Storage | Intel® C621A (14 SATA 6Gb/s, support RAID 0/1/5/10): 1 Mini-SAS HD 8i, 1 Mini-SAS HD 4i, 2 SATA 7-pin |
| Storage Controller | |
| SATA | |
| Cable | |
| Input / Output | |
| LAN | 2 RJ45 (1GbE) by Intel® I350-AM2 1 x IPMI |
| USB | 2 x Type-A (USB3.2 Gen1) |
| Video Output | 1 x DB15 (VGA) |
| Serial Port | |
| DOM |
|
| TPM | 1 (13-pin, SPI) |
| Chassis | |
| Form Factor |
2U |
| Expansion Slots |
7 x Low-Profile expansion slots |
| Dimension (DxWxH) |
695 x 433 x 87.6 (mm) / 27.36” x 17.04” x 3.44” |
| Button | |
| LEDs | 1 x Power LED 1 x HDD LED 1 x Alarm LED 2 x LAN Indicators |
| Ports | 2 x USB3.0 |
| SlideRail |
Yes |
|
Power Supply |
1300W Redundant |
|
Supported OS |
|
|
Microsoft Windows |
|
|
Linux |
|
|
Virtual Machine |
|
