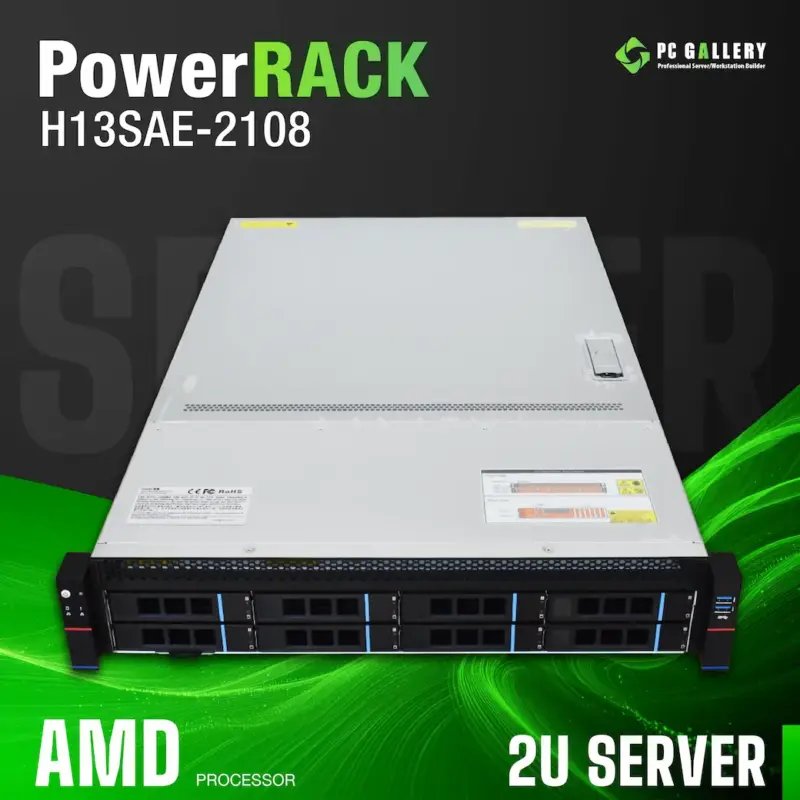

AMD-AM5เซิร์ฟเวอร์ PowerRACK H13SAE-2108, EPYC 4244P Raphael 6C/12T, 8Bays
- • Model: H13SAE-2108-1300R-S6C12T
- • CPU: CPU, AMD, AM5, EPYC, 4244P Raphael, 6C/12T, 3.8GHz, 32MB Cache, 65W
- • CPU Cooler: Dynatron A24 Server Cooler
- • RAM: Option
- • SSD: Option
- • VGA: On-board AST2600 (HDMI, DP via CPU)
- • RAID: RAID Controller, SAS, 9361-8i, 12Gb/s, SAS/SATA, 8port, 1GB
- • Drive: 8 x 3.5″/2.5″ Hot-swap | 2 x 2.5″ Rear Hot-swap | 2 x 2.5″ internal Drives
- • LAN: 2 x RJ45 GLAN (Intel® i210-AT)
- • iKVM: 1 x RJ45 by ASPEED AST2600
- • Chassis: 2U Rackmount with slide rail
- • PSU: 1300W Redundant
- • Warranty: 3-Year อะไหล่และค่าแรง, On-Shop Service
฿86,850.00
ราคาล่าสุดวันที่ July 4, 2026
ติดต่อสอบถามเกี่ยวกับสินค้าทางไลน์ ก่อนชำระเงิน
Please contact us via LINE for product inquiries before making a payment.
PowerRACK
H13SAE-2108
| CPU | |
|---|---|
| Standard CPU | CPU, AMD, AM5, EPYC, 4244P Raphael, 6C/12T, 3.8GHz, 32MB Cache, 65W |
| CPU Support |
AMD Ryzen™ 7000 series Processors |
| CPU Cooler | 1 x Active Cooler |
| Memory | |
| Standard Memory | Opti0n |
| Memory support | Total Slots : 4DIMM slots Max Memory Size : 192GB Max. Capacity per DIMM : 8GB, 16GB, 24GB, 32GB, 48GB DIMM Type : ECC-UDIMM Supports DDR5 : 5200/4800/3600 MT/s |
| Network / IPMI | |
| Integrated LAN | 2 x Dual LAN with Intel® I210 Ethernet controller |
| IPMI | 1 x ASPEED AST2600 BMC |
| Graphic | |
| Controller | ASPEED AST2600/AMD Radeon™ Graphics |
| Expansion Slots | |
| PCI-Express (PCI-E) | 1 x PCIe 4.0 x4 (Low-Profile) 2 x PCIe 5.0 x16 (16/NA or 8/8) (Low-Profile) |
| M.2 | 2 x M.2 PCI-E 5.0 x 4, M-Key, 2280/22110 RAID 0 & 1 |
| Storage / Controller | |
| Standard Storage | Option |
| Drive Bays | 8 x Front drive bays Hot-swap 2.5″/3.5″ 2 x Internal drive bays 2.5″ 2 x Rear drive bays Hot-swap 2.5″ |
| Storage | 2 x M.2 PCI-E 5.0 x 4, M-Key, 2280/22110 RAID 0 & 1 |
| Storage Controller | RAID Controller, SAS, 9361-8i, 12Gb/s, SAS/SATA, 8port, 1GB |
| SATA | 4 x SATA (6Gbps) ports RAID 0/1/10 |
| Cable | SFF 8643 to SFF 8643 |
| Input / Output | |
| LAN | 2 x RJ45 1Gigabit Ethernet LAN ports |
| USB | 2 x USB 3.0 Type A (Front) 3 x USB 3.2 Type A (rear) 3 x USB 3.2 Type C (rear) |
| Video Output | 1 x VGA 1 x HDMI 1 x DisplayPort 1.4a |
| Serial Port | 2 x COM Ports (1 header; 1 rear) |
| DOM | N/A |
| TPM | 1 x TPM Header |
| Chassis | |
| Form Factor | 2U |
| Expansion Slots | 7 x Low-Profile expansion slots |
| Dimension (DxWxH) | 695 x 433 x 87.6 (mm) / 27.36” x 17.04” x 3.44” |
| Buttons | 1 x Power On/Off 1 x System Reset |
| LEDs | 1 x Power LED 1 x HDD LED 1 x Alarm LED 2 x LAN Indicators |
| Ports | 2 x USB3.0 |
| SlideRail | N/A |
| Power Supply | 1300W Redundant |
| Supported OS | |
| Microsoft Windows | |
| Linux | |
| Virtual Machine | |
