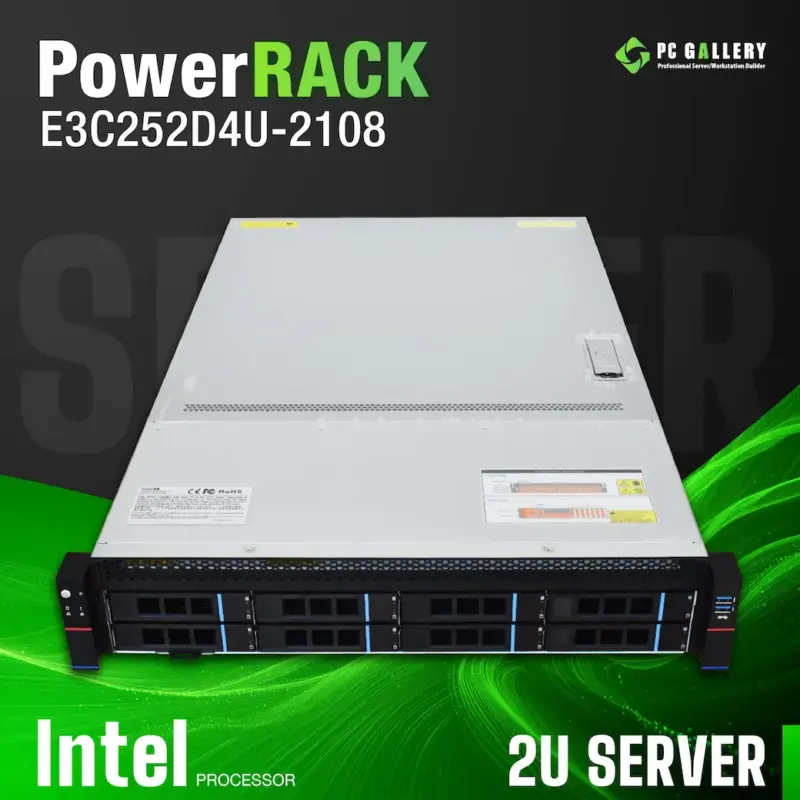

RocketLake เซิร์ฟเวอร์ PowerRACK E3C252D4U-2108, Intel Xeon, E-2378 (2.9GHz, 8C/16T)
- • Model: E3C252D4U-2108-1300R-S8C16T
- • CPU: INTEL, 1200, XEON, E-2378, 2.60GHz, 16MB Cache, 65W, 8C/16T
- • CPU Cooler: Active Sink
- • RAM: Option
- • SSD: Option
- • VGA: On-board AST2500 (Add-on Card for optional)
- • RAID: Broadcom SAS 9311-8i (RAID 0/1/1E/10)
- • Drive: 8 x 3.5″/2.5″ Hot-swap SAS/SATA | 2 x 2.5″ rear Hot-swap | 2 x 2.5″ Internal
- • LAN: 2 x RJ45 GLAN (Intel® i210)
- • iKVM: 1 x RJ45 by ASPEED AST2500
- • Chassis: 2U Rackmount
- • PSU: 1300W Redundant
- • Warranty: 3-Year อะไหล่และค่าแรง, On-Shop Service
฿80,750.00
ราคาล่าสุดวันที่ July 13, 2026
ติดต่อสอบถามเกี่ยวกับสินค้าทางไลน์ ก่อนชำระเงิน
Please contact us via LINE for product inquiries before making a payment.
PowerRACK
E3C252D4U-2108
เซิร์ฟเวอร์มาพร้อม CPU Intel Xeon E-2378 8C/16T สำหรับงานที่ต้องการความเสถียรต่อเนื่อง เมนบอร์ดมีระบบ iKVM สะดวก จัดการได้จากระยะไกล รองรับการขยายไดรฟ์สูงสุด 8 x 3.5″/2.5″, 2 x 2.5″ Hot-swap และ 2 x 2.5″ Internal ยืดหยุ่นในการจัดเก็บ พร้อมเชื่อมต่อเครือข่ายด้วย Intel i210 Dual GLAN รับประกัน 3 ปีเต็ม พร้อมบริการหลังการขาย ดูแลทั้งอะไหล่และค่าแรง
| CPU | |
|---|---|
| Standard CPU | INTEL, 1200, XEON, E-2378, 2.60GHz, 16MB Cache, 65W, 8C/16T |
| CPU Support | Supports Intel® Xeon® E-2300 and 10th Gen Intel® Pentium® series processors |
| CPU Cooler | Active Sink |
| Memory | |
| Standard Memory | Option |
| Memory support | Total Slots : 4DIMM slots Max Memory Size : 128GB Max. Capacity per DIMM : 8GB, 16GB, 32GB DIMM Type : DDR4 288-pin ECC/non-ECC UDIMM |
| Network / IPMI | |
| Integrated LAN | 2 x RJ45 Gigabit Ethernet LAN ports with Intel® i210 Gigabit Ethernet Controller |
| IPMI | 1 x IPMI ASPEED AST2500 |
| Graphic | |
| Controller | 1 ASPEED AST2500 BMC port(s) |
| Expansion Slots | |
| PCI-Express (PCI-E) | 1 PCIe 4.0 x16 (CPU) 1 PCIe 4.0 x4 (CPU) 1 PCIe 3.0 x1 (PCH) |
| M.2 | M.2 Interface: 1 PCIe 3.0 x2 (PCH) Form Factor: 22110/2280/2260 Key: M-Key *SATA0 will be disabled when M2_1 populated with SATA device |
| Storage / Controller | |
| Standard Storage | Option |
| Drive Bays | 8 x 3.5″/2.5″ Hot-swap SAS/SATA | 2 x 2.5″ rear Hot-swap |
| Storage | 2 x 2.5″ Internal |
| Storage Controller | Intel® C252 (On Board) SAS 9311-8i (RAID 0/1/10/1E) (Add On Card) |
| SATA | 6 SATA 6Gb/s; RAID 0/1/5/10): 5 SATA 7-pin, 1 SATA DOM or 1 M.2 |
| Cable | |
| Input / Output | |
| LAN | 2GLAN RJ45 Intel® i210 + IPMI |
| USB | 4 Type-A (USB3.2 Gen1) 1 x USB 3.2 (Gen1) Header 1 x USB 2.0 Header |
| Video Output | 1 VGA D-Sub Connector port(s) 1 HDMI |
| Serial Port | 1 COM Port(s) |
| DOM | 1 SATA DOM |
| TPM | 1 TPM Header |
| Chassis | |
| Form Factor | Rackmount |
| Expansion Slots | 7 x Low-Profile expansion slots |
| Dimension (DxWxH) | 695 x 433 x 87.6 (mm) / 27.36” x 17.04” x 3.44” |
| Buttons | |
| LEDs | 1 x Power LED 1 x HDD LED 1 x Alarm LED 2 x LAN Indicators |
| Ports | 2 x USB3.0 |
| SlideRail | Yes |
| Power Supply | 1300W Redundant |
| Supported OS | |
| Microsoft Windows | |
| Linux | |
| Virtual Machine | |
