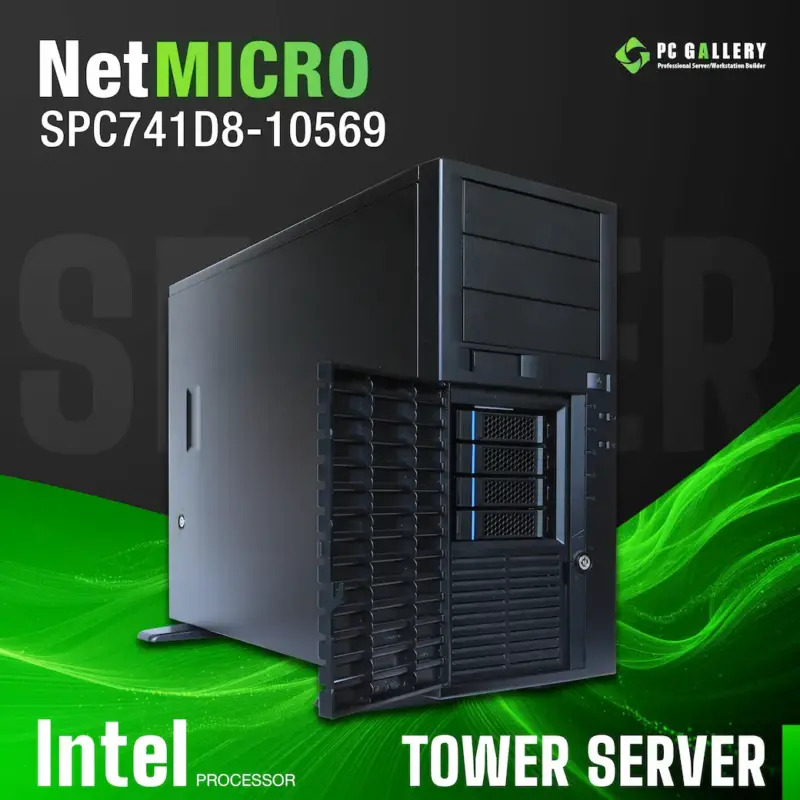

(NEW!) NetMICRO SPC741D8-10569, Xeon Gold 6526Y 16C/32T, 1300W Redundant
- Model: SPC741D82L2T-10569-1300R-S16C32T
- • CPU: 1 x Intel Xeon Gold 6526Y, 2.8GHz, 37.5MB Cache, 195W, 16C/32T
- • CPU Cooler: Active Sink
- • RAM: Option
- • SSD: Option
- • VGA: ASPEED AST2600
- • RAID: support RAID 0/1/5/10
- • Drive: 4 x 3.5″/2.5″ Hot-swap
- • LAN: 2 x 10GbE Broadcom BCM57416 | 2 x GbE Intel® i210
- • iKVM: 1 x RJ45 Dedicated IPMI LAN (AST2600)
- • Chassis: Tower
- • PSU: 1300W Redundant
- • Warranty: 3-Year อะไหล่และค่าแรง
฿208,600.00
ติดต่อสอบถามเกี่ยวกับสินค้าทางไลน์ ก่อนชำระเงิน
Please contact us via LINE for product inquiries before making a payment.
NetMICRO
SPC741D8-10569
เซิร์ฟเวอร์รุ่นใหม่ระดับเอนเตอร์ไพรส์ที่ออกแบบมาเพื่องานประมวลผลหนักขององค์กรยุคดิจิทัล รองรับหน่วยความจำ DDR5 ECC RDIMM ช่วยเพิ่มความเร็วและลดความผิดพลาดของข้อมูล มาพร้อมเครือข่ายความเร็วสูง Dual 10GbE, Dual 1GbE และระบบบริหารจัดการระยะไกลผ่าน IPMI ช่วยให้ดูแลระบบได้ง่ายและปลอดภัย เสริมความมั่นใจด้วย Power Supply Redundant 1300W ที่รองรับการทำงาน 24/7
More Picture
|
CPU |
|
|---|---|
| Standard CPU |
1 x Intel Xeon Gold 6526Y, 2.8GHz, 37.5MB Cache, 195W, 16C/32T |
| CPU Support | Supports 5th and 4th Gen Intel® Xeon® Scalable Processors |
| CPU Cooler |
Active Sink |
| Memory | |
|
Standard Memory |
Option |
| Memory support |
Total Slots : 8 DIMM slots |
| Network / IPMI | |
| Integrated LAN | 2 RJ45 (10GbE) by Broadcom BCM57416 2 RJ45 (1GbE) by Intel® i210 |
| IPMI | 1 RJ45 Dedicated IPMI LAN (AST2600) |
|
Graphic |
|
| Controller | ASPEED AST2600: 1 DB15 (VGA) |
|
Expansion Slots |
|
| PCI-Express (PCI-E) | SLOT7: PCIe5.0 / CXL1.1 x16 [CPU] SLOT5: PCIe5.0 / CXL1.1 x16 [CPU] SLOT3: PCIe5.0 / CXL1.1 x16 [CPU] SLOT1: PCIe5.0 / CXL1.1 x16 [CPU] |
| M.2 | 1 M-key M2_1 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280/2242 form factor [PCH] 1 M-key M2_2 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor [PCH] |
| Storage / Controller | |
| Standard Storage | Option |
| Drive Bays | 3 x External 5.25″ 4 x 3.5″ Hot-swap or x4 2.5″ Hot-swap |
| Storage | |
| Storage Controller | Intel® C741 (Up to 12 SATA 6Gb/s, support RAID 0/1/5/10): 1 MCIO 4i for 4 SATA, 8 SATA via optional M2U2-HD-4G M.2 device |
| SATA | |
| Cable | |
| Input / Output | |
| LAN | 2 RJ45 (10GbE) by Broadcom BCM57416 2 RJ45 (1GbE) by Intel® i210 1 RJ45 Dedicated IPMI LAN (AST2600) |
| USB | 2 Type-A (USB3.2 Gen1) |
| Video Output | 1 DB15 (VGA) |
| Serial Port | |
| DOM |
|
| TPM | 1 (13-pin, SPI) |
| Chassis | |
| Form Factor |
Tower |
| Expansion Slots | 7 x PCI expansion slots |
| Dimension (DxWxH) |
553 x 198 x 425 (mm) , 20.9” x 7.8” x 16.7” (Bezel not included) |
| Button | |
| LEDs | x 1 Power Status x 1 HDD Activity x 2 LAN Activity x 1 Fan Failure and Overheat |
| Ports | 2 x USB3.0 |
| SlideRail | |
|
Power Supply |
1300W Redundant |
|
Supported OS |
|
|
Microsoft Windows |
|
|
Linux |
|
|
Virtual Machine |
|
