ออกแบบมาเพื่องานองค์กรที่ต้องการประสิทธิภาพสูงและความเสถียรระดับดาต้าเซ็นเตอร์ รองรับการทำงานต่อเนื่อง 24/7 และขยาย CPU ได้ถึง 2 ตัว ช่วยให้การประมวลผลลื่นไหล พร้อมรองรับการขยาย Storage สูงสุด 8xHDD การจัดการเซิร์ฟเวอร์ทำได้ง่ายด้วย Dedicated IPMI และมาพร้อม Power Supply Redundant 800W

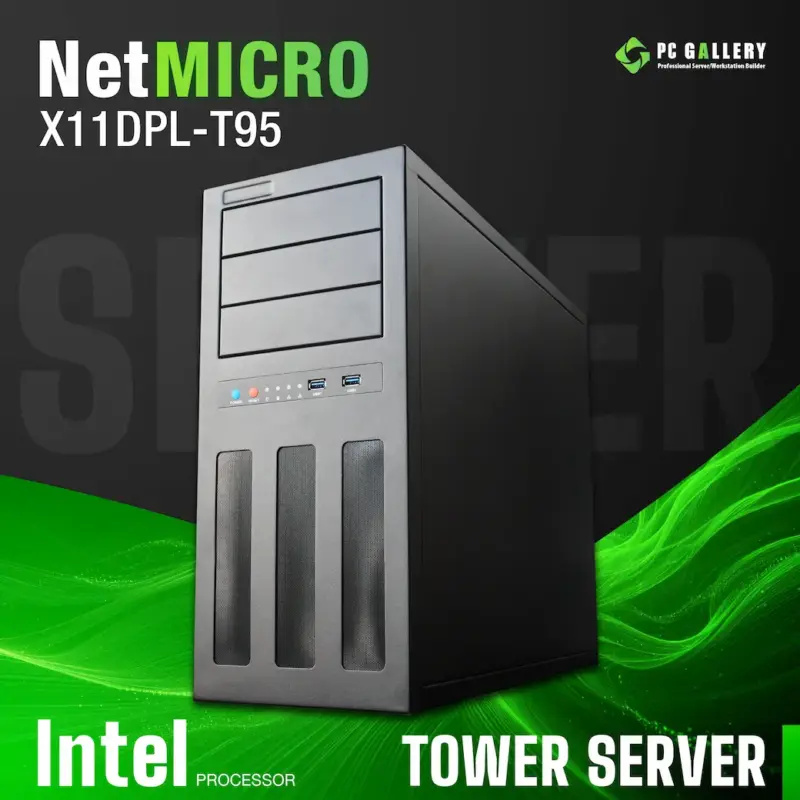

เซิร์ฟเวอร์ NetMICRO X11DPL-T95, Intel Xeon Gold 6130
- • Model : X11DPLI-T95-800-S16C32T
- • CPU: 1 x Intel Xeon Gold 6130, 2.1 GHZ, 22MB CACHE, 125W, 16C/32T (Dual CPU Support)
- • CPU Cooler: Active Sink
- • RAM: Option
- • SSD: Option
- • VGA: ASPEED AST2500 BMC
- • RAID: Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- • Drive: 8 x 3.5″ Internal HDD | 1 x 2.5″ Internal HDD
- • LAN: Dual LAN with 1GbE (with Intel® X722 + Marvell 88E1512)
- • IPMI: 1 RJ45 Dedicated IPMI
- • Chassis: Tower
- • PSU: 800W Redundant (Single 1+0)
- • Warranty: 3Years อะไหล่และค่าแรง, 1-ปี NBD 5/8 Onsite Hardware maintenance ในเขตกรุงเทพฯ และ สมุทรปราการ
฿63,700.00
ราคาล่าสุดวันที่ May 7, 2026
ติดต่อสอบถามเกี่ยวกับสินค้าทางไลน์ ก่อนชำระเงิน
Please contact us via LINE for product inquiries before making a payment.
NetMICRO
X11DPL-T95
| CPU | |
|---|---|
| Standard CPU | 1 x Intel Xeon Gold 6130, 2.1 GHZ, 22MB CACHE, 125W, 16C/32T (Dual CPU Support) |
| CPU Support |
2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors |
| CPU Cooler | 1 x Active Sink |
| Memory | |
| Standard Memory | Option |
| Memory support | Total Slots : 8 DIMM slots Max Memory Size : Up to 2TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-2933MT/s Max. Capacity per DIMM : LRDIMM: 128GB RDIMM: 64GB DIMM Type : 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS) |
| Network / IPMI | |
| Integrated LAN | Dual LAN with 1GbE with Intel® X722 + Marvell 88E1512 |
| IPMI | 1 x IPMI ASPEED AST2500 |
| Graphic | |
| Controller | ASPEED AST2500 BMC port(s) |
| Expansion Slots | |
| PCI-Express (PCI-E) | 2 x PCIe 3.0 x16, 3 x PCIe 3.0 x8, 1 x PCIe 3.0 x4 (in x8 slot) |
| M.2 | M.2 Interface: 1 SATA/PCIe 3.0 x4 Form Factor: 2280, 2260 Key: M-Key |
| Storage / Controller | |
| Standard Storage | Option |
| Drive Bays | 8 x 3.5″ hot-swap SAS/SATA drive bay with SGPIO |
| Storage | |
| Storage Controller | Intel® C621 |
| SATA | Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Cable | |
| Input / Output | |
| LAN | Dual LAN with 1GbE (with Intel® X722 + Marvell 88E1512) + IPMI |
| USB | 2 x USB2.0 |
| Video Output | 1 x VGA port(s) |
| Serial Port | 1 x COM |
| DOM | 2 x SuperDOM (Disk on Module) ports |
| TPM | |
| Chassis | |
| Form Factor | Tower |
| Expansion Slots | 8 x expansion slots |
| Dimension (DxWxH) | 560 x 190 x 440mm |
| Buttons | 1 x Power Button 1 x Reset Button |
| LEDs | 1 x HDD LED 1 x Power LED 1 x LAN Activity 1 LED 1 x LAN Activity 2 LED |
| Ports | 2 x USB 3.0 |
| SlideRail | – |
| Power Supply | 800W Redundant (Single 1+0) |
| Supported OS | |
| Microsoft Windows | |
| Linux | |
| Virtual Machine | |
