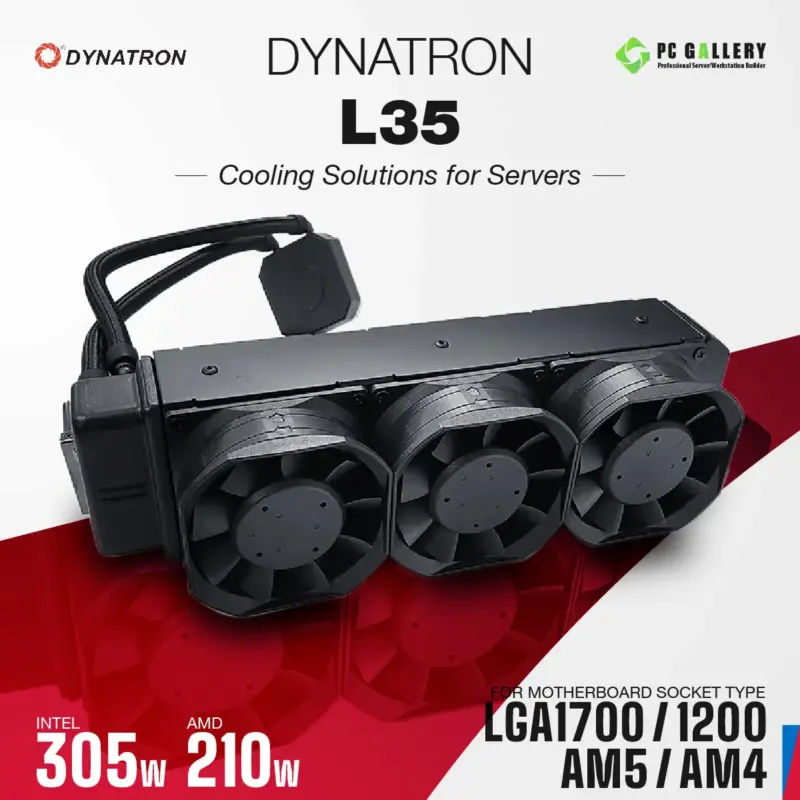

ฮีตซิงค์ Dynatron L35 2U Liquid CPU Cooler Intel/AMD

ฮีตซิงค์ Dynatron L35 2U Liquid CPU Cooler Intel/AMD - Image 2

ฮีตซิงค์ Dynatron L35 2U Liquid CPU Cooler Intel/AMD

• CPU support: Intel / AMD
• CPU socket: LGA115x, LGA1366, LGA1700, LGA2011/2066 Square ILM, AM2/AM3/AM4/AM5/FM1/FM2
• Solution: 2U
• Supported CPU TDP: Intel 305W, AMD 210W
• Warranty: 6 months

฿7,900.00

ราคาล่าสุดวันที่ June 2, 2026

In stock

ติดต่อสอบถามเกี่ยวกับสินค้าทางไลน์ ก่อนชำระเงิน
Please contact us via LINE for product inquiries before making a payment.

Description
Specification

Compatible Case

CPU Support	Intel / AMD
CPU Socket	Intel LGA1851/1700, LGA1200/115X LGA2011/2066/SQUARE LGA1356/1366 AMD AM4/AM5 FM2+/FM2/AM2/AM2+/AM3/AM3+/FM1
Weight	N/A
Material	N/A
Solution	2U Server and Up
Radiator Dimension	304.9 x 82 x 85.1 mm
Fan Dimension	80 x 80 x 38 mm
Rated Voltage	12V
Bearing	2 Ball Bearing
Speed	At Duty Cycle 0~20%: 2400± 200 RPM At Duty Cycle 50%: 4800± 10% RPM At Duty Cycle 100%: 8000±10% RPM
Power	At Duty Cycle 0~ 20%: 1.20 W At Duty Cycle 50%: 5.52 W At Duty Cycle 100%: 24.72 W
Air Flow	At Duty Cycle 0~ 20%: 35.52 CFM At Duty Cycle 50%: 67.24 CFM At Duty Cycle 100%: 115.61 CFM
Air Pressure	At Duty Cycle 0~ 20%: 1.39 mm-H2O At Duty Cycle 50%: 5.97 mm-H2O At Duty Cycle 100%: 34.06 mm-H2O
Acoustical Noise	At Duty Cycle 0~ 20%: 25.63 dBA At Duty Cycle 50%: 47.85 dBA At Duty Cycle 100%: 64.40 dBA
Lead Wir Pin Out	Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM)
