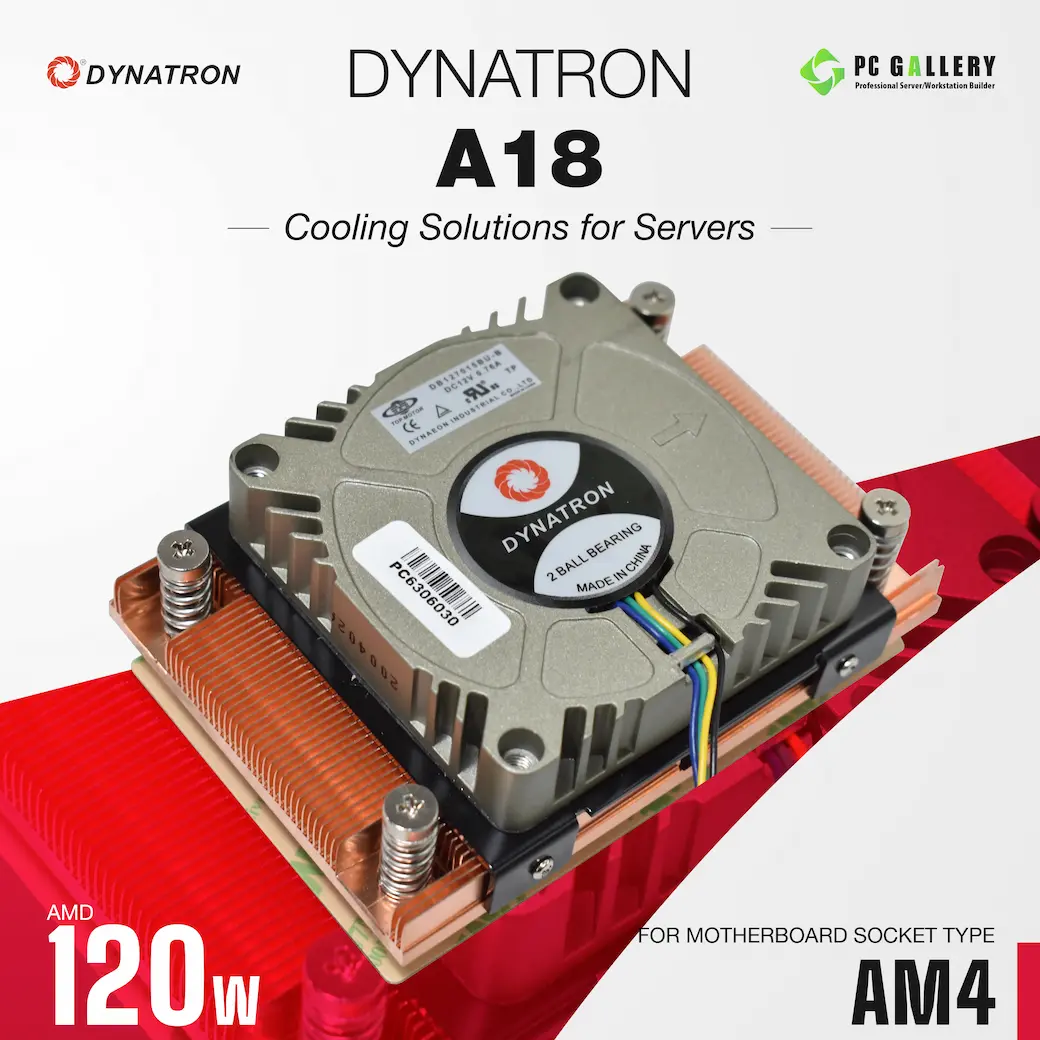

ฮีตซิงค์ DYNATRON A18, 1U Active CPU Heat Sink Socket AMD AM4

Support Socket AMD AM4
70x70x15mm PWM blower with Copper fins
active heatsink for 1U Server
up to TDP 120 Watts.

฿1,920.00

ราคาล่าสุดวันที่ February 14, 2026

ติดต่อสอบถามเกี่ยวกับสินค้าทางไลน์ ก่อนชำระเงิน
Please contact us via LINE for product inquiries before making a payment.

Description
Specification

News & Update

More Pictures

Key Features

► Support CPU Socket AMD AM4
► 70x70x15mm PWM blower with Copper fins
► active heatsink for 1U Server
► up to TDP 95 Watts.
► Up 6000 RPM blower speed

Test Result

ผลการทดสอบความร้อน CPU AMD EPYC 4124P กับเมนบอร์ด B650D4U โดยใช้ Sink A18

CPU Support	AMD® Ryzen
CPU Socket	AM4
Screw Type	#6-32
Installation Torque	6-10 in-lb
Solution	1U Server
Dimensions	106 x 76 x 27.5 mm
Weight	502g ± 5g
Material	Copper 1100 with Skived Fins
Fan Dimension	70 x 70 x 15 mm
Speed	At Duty Cycle 20%: 1100 RPM ± 200 RPM At Duty Cycle 50%: 2600 RPM ± 10% RPM At Duty Cycle 100%: 6000 RPM ± 10% RPM
Power	At Duty Cycle 20%: 0.6 W At Duty Cycle 50%: 1.2 W At Duty Cycle 100%: 8.8 W
Bearing	2 Ball Bearing
Rated Voltage	12V
Air Flow	At Duty Cycle 20%: 2.5 CFM At Duty Cycle 50%: 5.8 CFM At Duty Cycle 100%: 14.3 CFM
Noise Level	At Duty Cycle 20%: 19.1 dBA At Duty Cycle 50%: 34.2 dBA At Duty Cycle 100%: 53.8 dBA
Air Pressure	At Duty Cycle 20%: 1.25 mm-H2O At Duty Cycle 50%: 7.0 mm-H2O At Duty Cycle 100%: 50.46 mm-H2O
Lead Wire Pin Out	Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM)
Thermal Grease	Shin-Etsu 7762 Pre-printed
Life – Continuous operating under normal temperature (40 °C or 104 °F)	70,000 Hours
