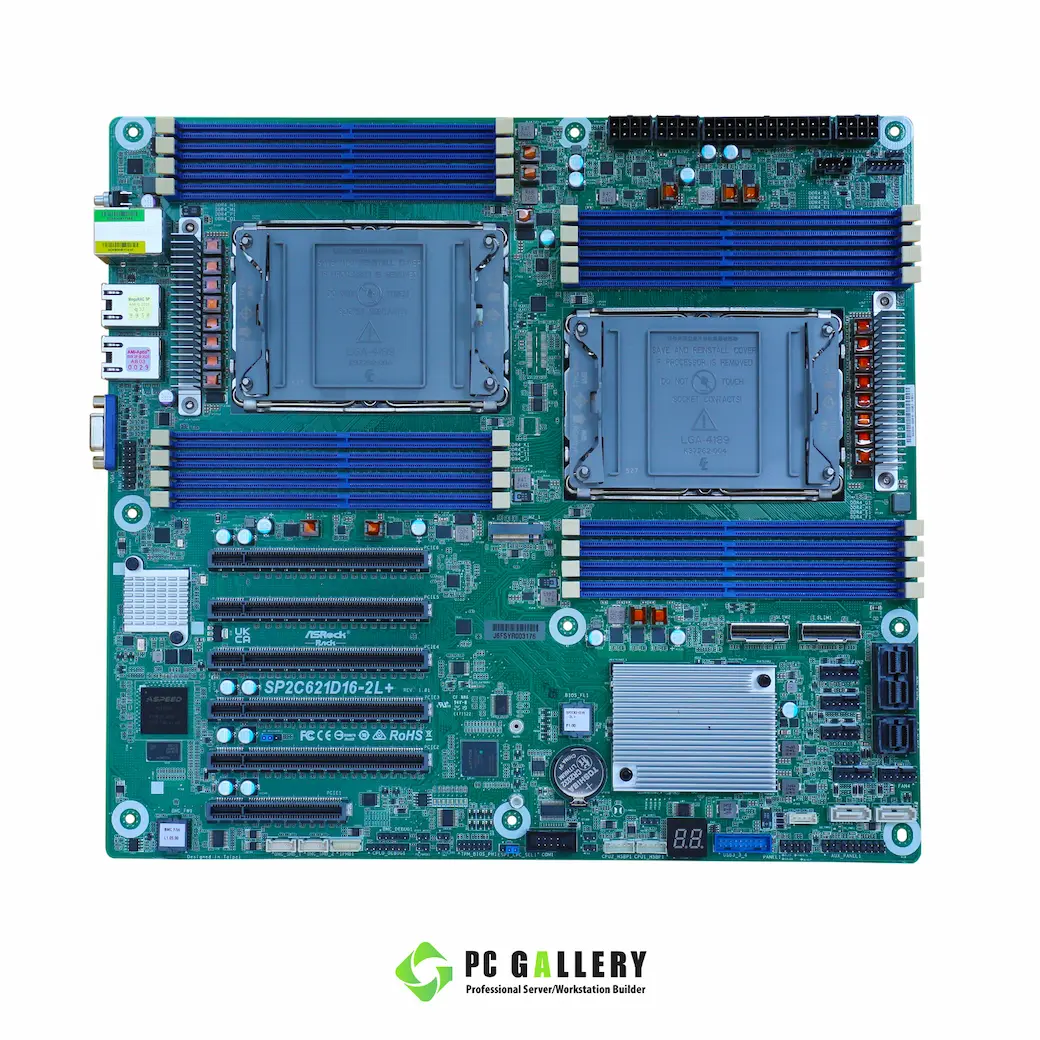

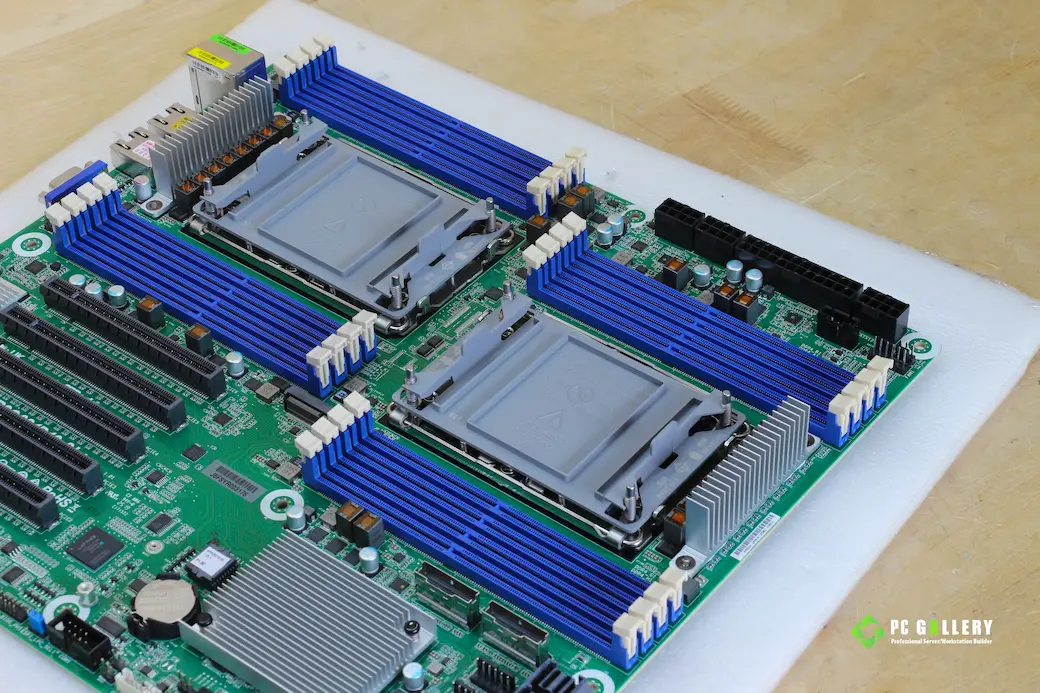

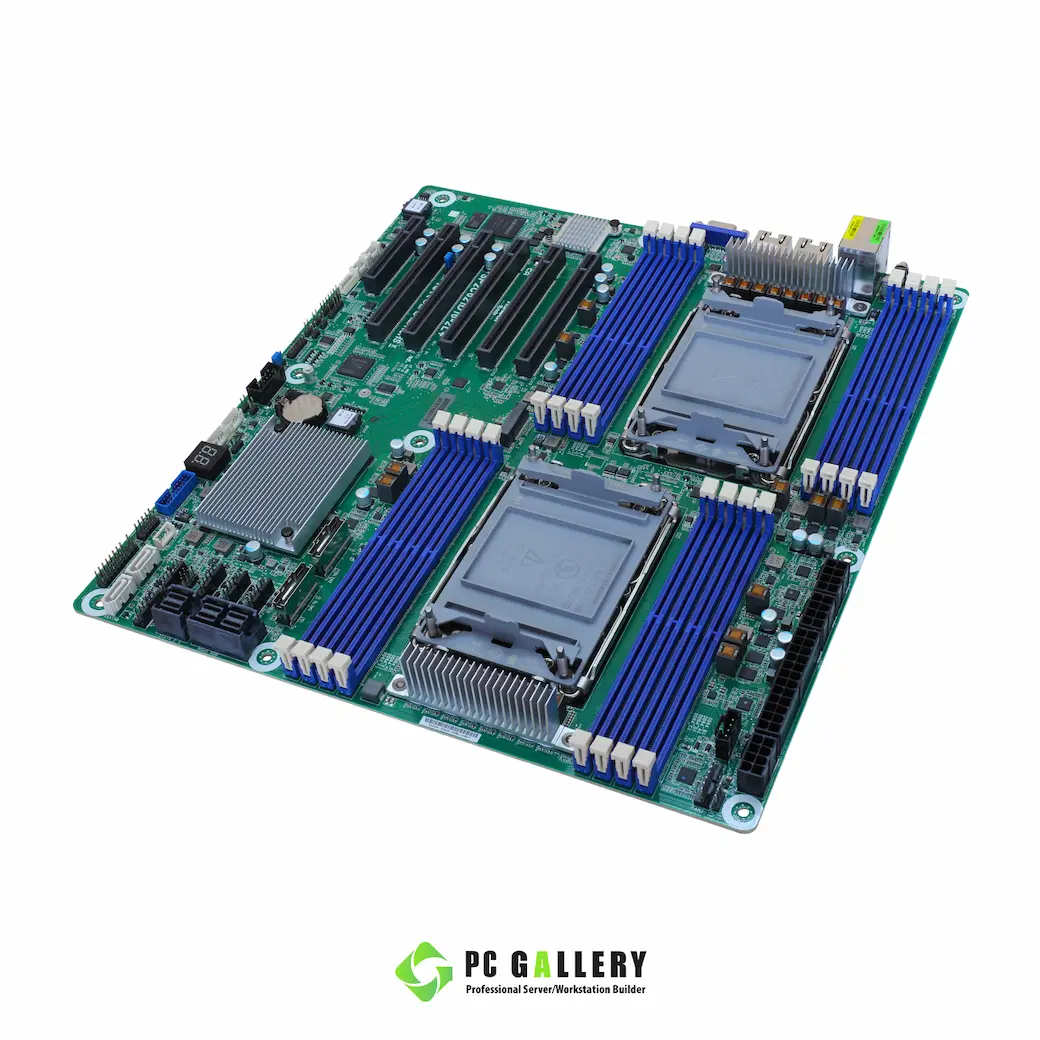

เมนบอร์ด ASRockRack SP2C621D16-2L+, Dual Socket LGA4189, EEB, (C621A)
- EEB (12″ x 13″)
- Dual Socket P+ (LGA 4189), supports 3rd Gen Intel® Xeon® Scalable processors
- 8+8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, and Intel® Optane™ Persistent Memory
- 5 PCIe4.0 x16, 1 PCIe4.0 x8
- 2 SlimSAS (PCIe4.0 x8)
- Supports 1 M.2 (PCIe4.0 x4)
- 14 SATA 6Gb/s
- 2 RJ45 (1GbE) by Intel® I350-AM2
- Remote management (IPMI)
- ►รับประกัน 3 ปี เมื่อสั่งซื้อพร้อมเครื่องชุด
►รับประกัน 1 ปี เมื่อสั่งซื้อแยกเป็นอะไหล่
฿35,500.00
ราคาล่าสุดวันที่ August 16, 2025
ติดต่อสอบถามเกี่ยวกับสินค้าทางไลน์ ก่อนชำระเงิน
Please contact us via LINE for product inquiries before making a payment.

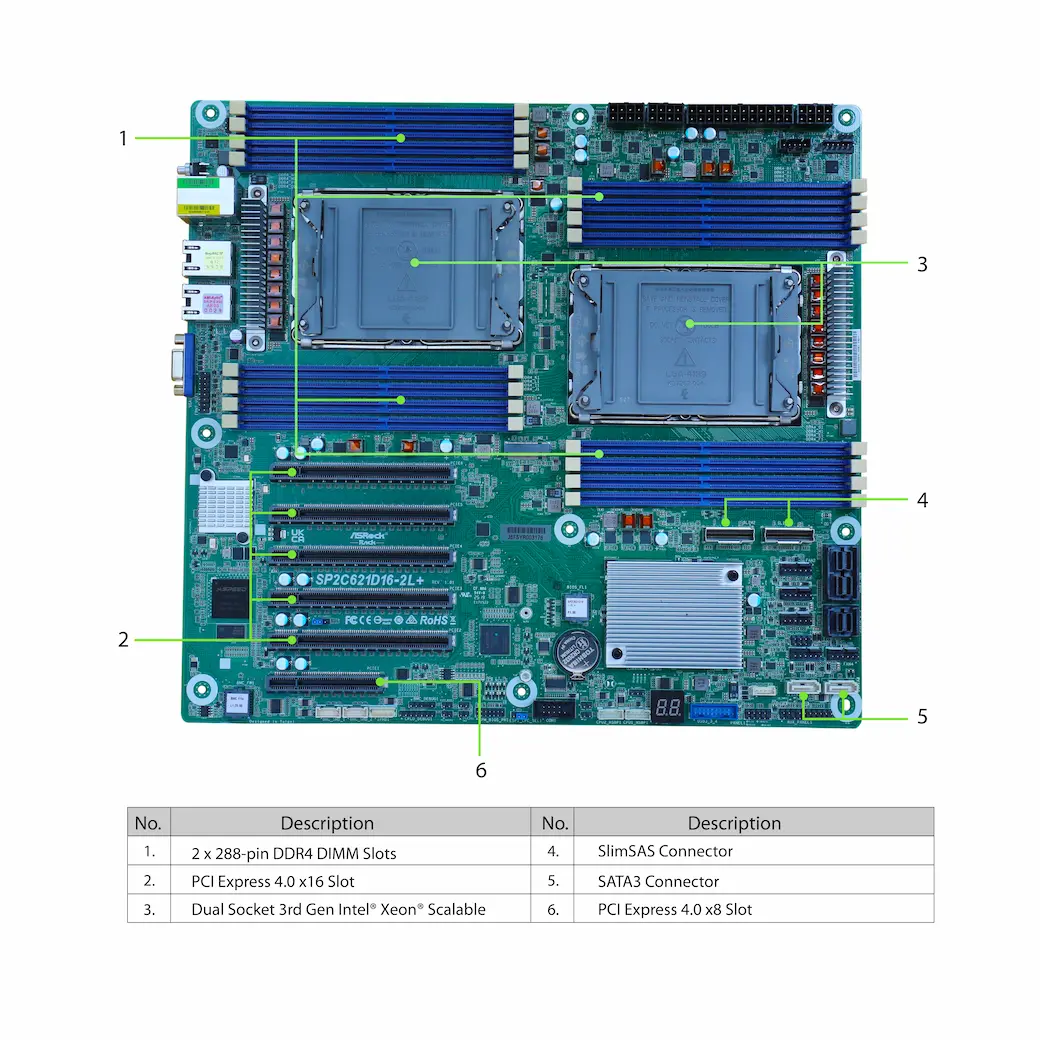

Product Diagram
More Picture
| Physical Status | |
| Form Factor | EEB |
| Dimensions | 12″ x 13″ |
| Processor System | |
| CPU | Supports 3rd Gen Intel® Xeon® Scalable processors |

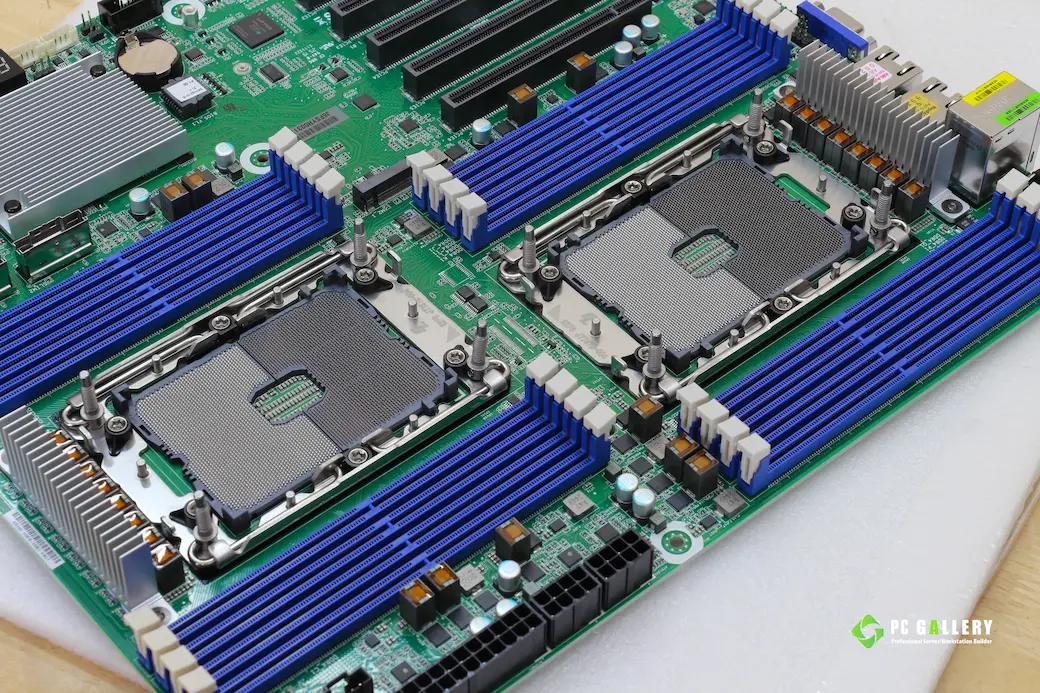

| Socket | Dual Socket P+ (LGA 4189) |
| Chipset | Intel® C621A |
| System Memory | |
| Supported DIMM Quantity | 8+8 DIMM slots (1DPC) |
| Supported Type | DDR4 288-pin RDIMM/RDIMM-3DS/LRDIMM/LRDIMM-3DS, Intel® Optane™ Persistent Memory 200 Series |
| Max. Capacity per DIMM | RDIMM: up to 64GB RDIMM-3DS: up to 256GB LRDIMM: up to 128GB LRDIMM-3DS: up to 256GB |
| Max. DIMM Frequency | max. 3200MT/s |
| Voltage | 1.2V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |

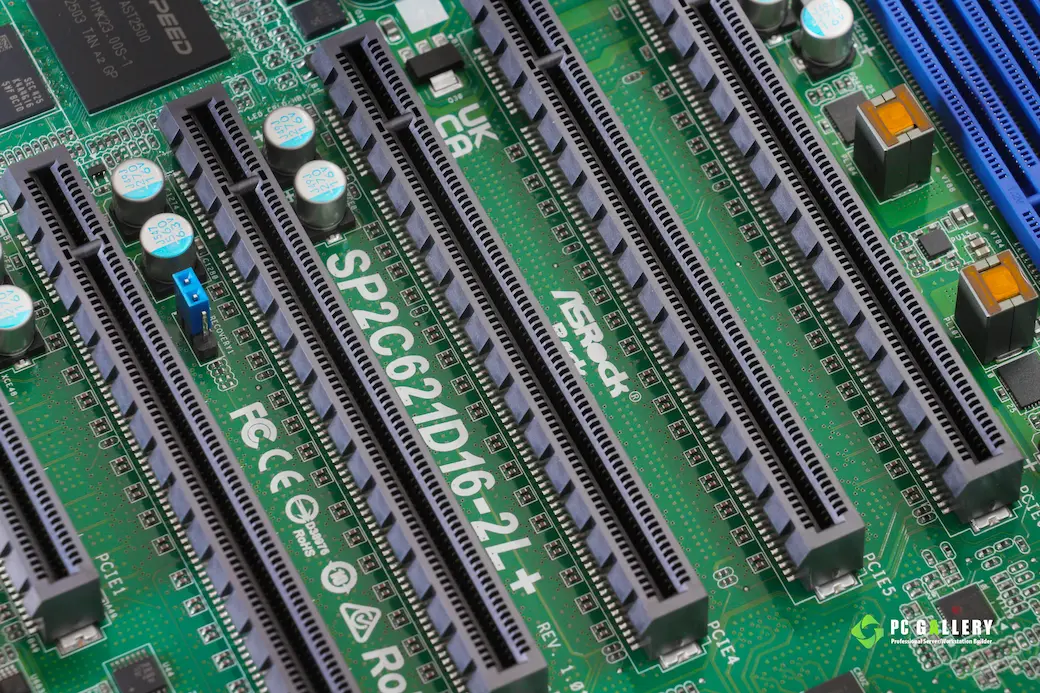

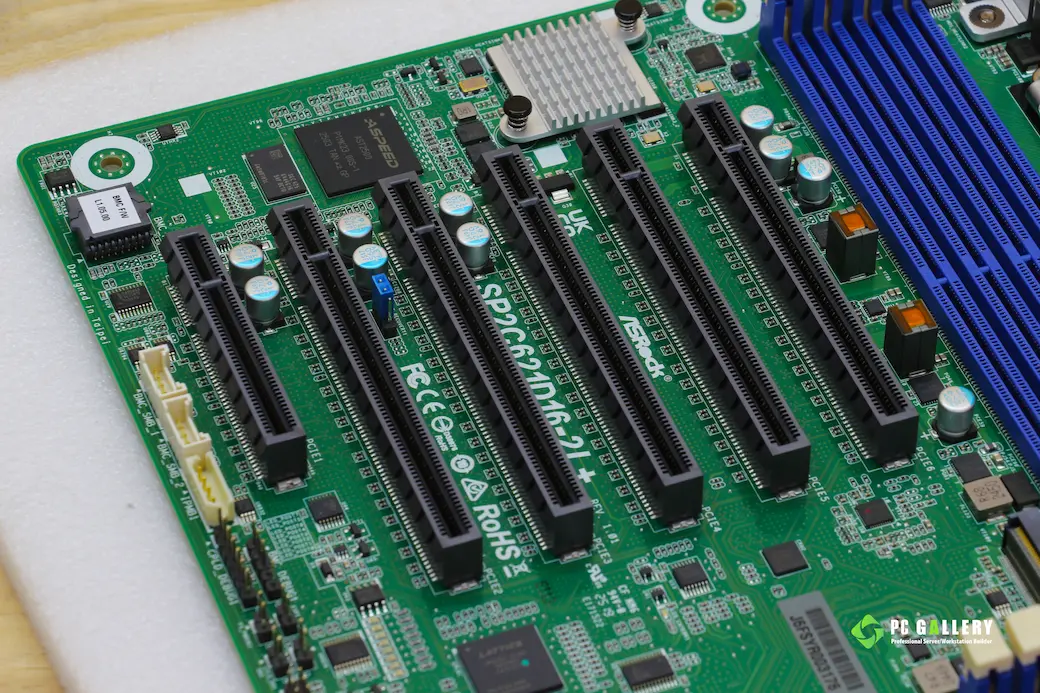

| PCIe x 16 | SLOT6: PCIe4.0 x16 [CPU1] SLOT5: PCIe4.0 x16 [CPU1] SLOT4: PCIe4.0 x16 [CPU1] SLOT3: PCIe4.0 x16 [CPU0] SLOT2: PCIe4.0 x16 [CPU0] |
| PCIe x 8 | SLOT1: PCIe4.0 x8 [CPU0] |
| Other PCIe Expansion Connectors | |
| M.2 slot | 1 M-key (PCIe4.0 x4); Support 22110/2280 form factor [CPU0] |
| Others | 2 SlimSAS (PCIe4.0 x8) [CPU0] |
| SATA/SAS Storage | |
| PCH Built-in Storage | Intel® C621A (14 SATA 6Gb/s, support RAID 0/1/5/10): 1 Mini-SAS HD 8i, 1 Mini-SAS HD 4i, 2 SATA 7-pin |
| Ethernet | |
| Additional GbE Controller | 2 RJ45 (1GbE) by Intel® I350-AM2 |
| Server Management | |

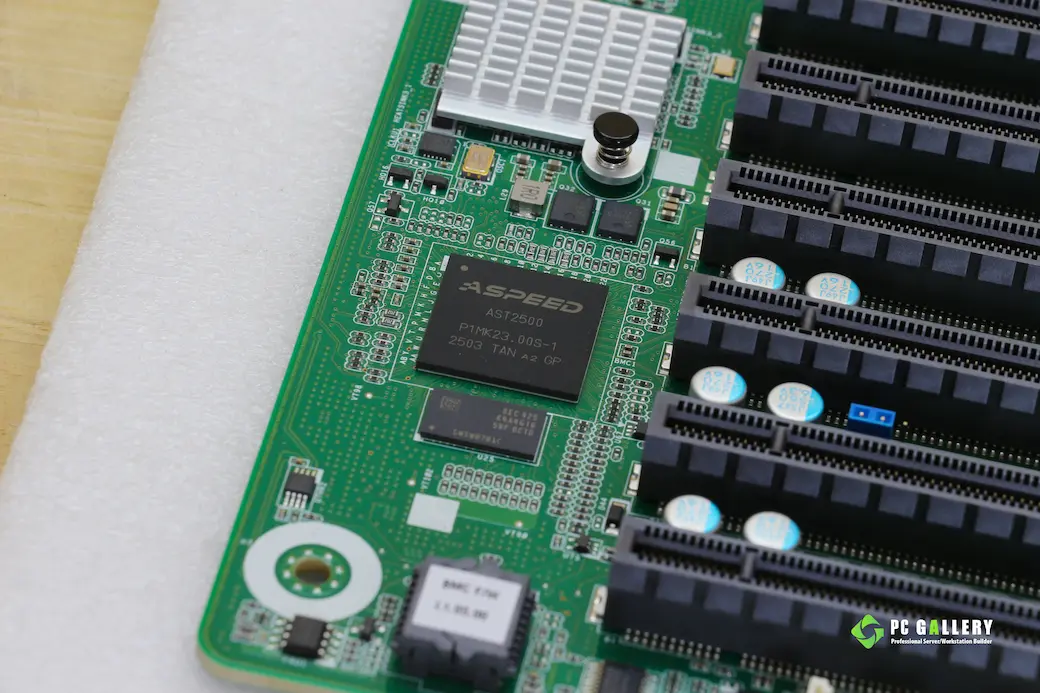

| BMC Controller | ASPEED AST2500: IPMI2.0 with iKVM and vMedia support |
| IPMI Dedicated GLAN | 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211E |
| Graphics | |
| Controller | ASPEED AST2500: 1 DB15 (VGA) |

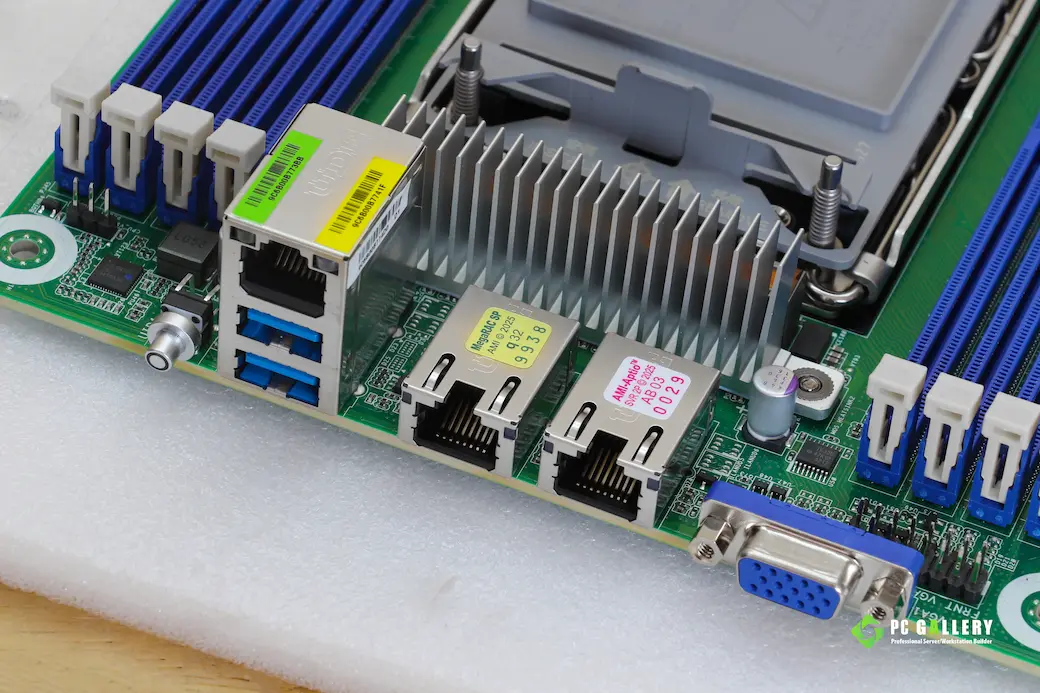

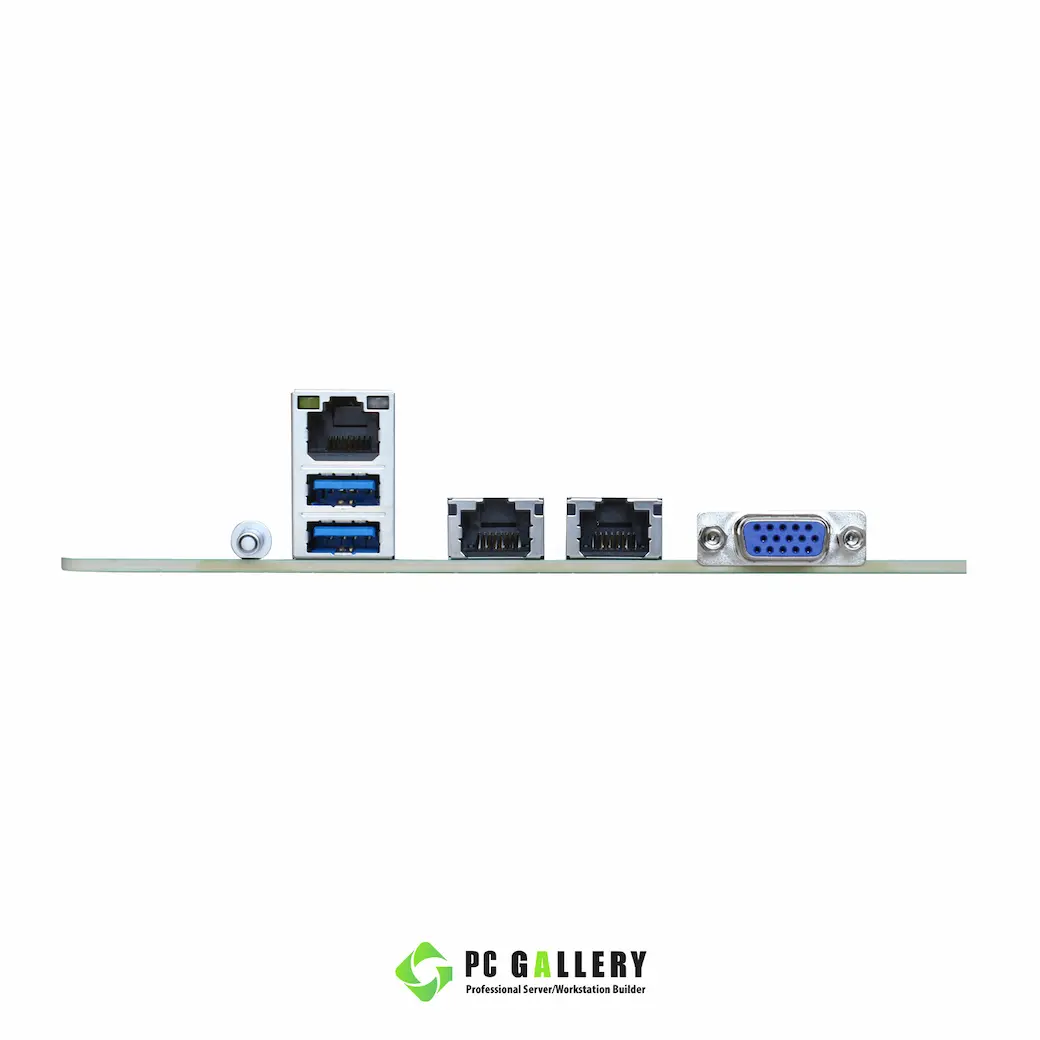

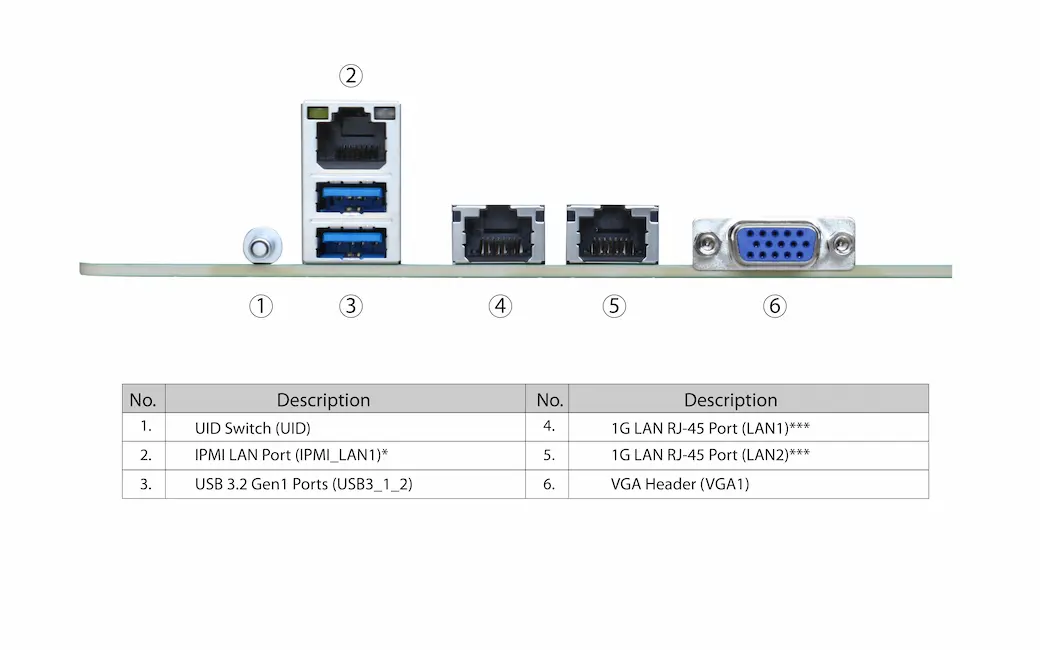

| Rear I/O | |
| UID Button/LED | 1 button w/ LED |
| Video Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45(1GbE), 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 1 (24-pin, ATX main power), 3 ( 8-pin, ATX 12V) |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header | 1 |
| VGA header | 1 |
| Fan Header | 6 (6-pin) |
| TPM Header | 1 (13-pin, SPI) |
| VROC header | 1 |
| SGPIO Header | 1 |
| HSBP | 2 |
| SMBus header | 2 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| ME/SPS Recovery | 1 |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen1) |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED | 1 |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 6 |
| BMC heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI 256Mb SPI Flash ROM |
| BIOS Features | Plug and Play (PnP), ACPI 4.0 and above compliance wake up events, SMBIOS 3.3 and above, ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU, PCH, MB, Card Side, M.2, DDR4 Temperature Sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | +3.3VSB, +5VSB, +1.83V_VCCIN_P1, +1.83V_VCCIN_P2, +1.2V_VDDQ_ABCD, +1.2V_VDDQ_EFGH, +1.2V_VDDQ_IJKL, +1.2V_VDDQ_MNOP, +PVNN_PCH_AUX, +1.05V_PCH_AUX, +1.8V_PCH_AUX, +BAT, +3.3V, +5V, +12V |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
