Home>Computer Parts>Motherboard>เมนบอร์ด ASRock Rack B650D4U, AM5, Micro-ATX

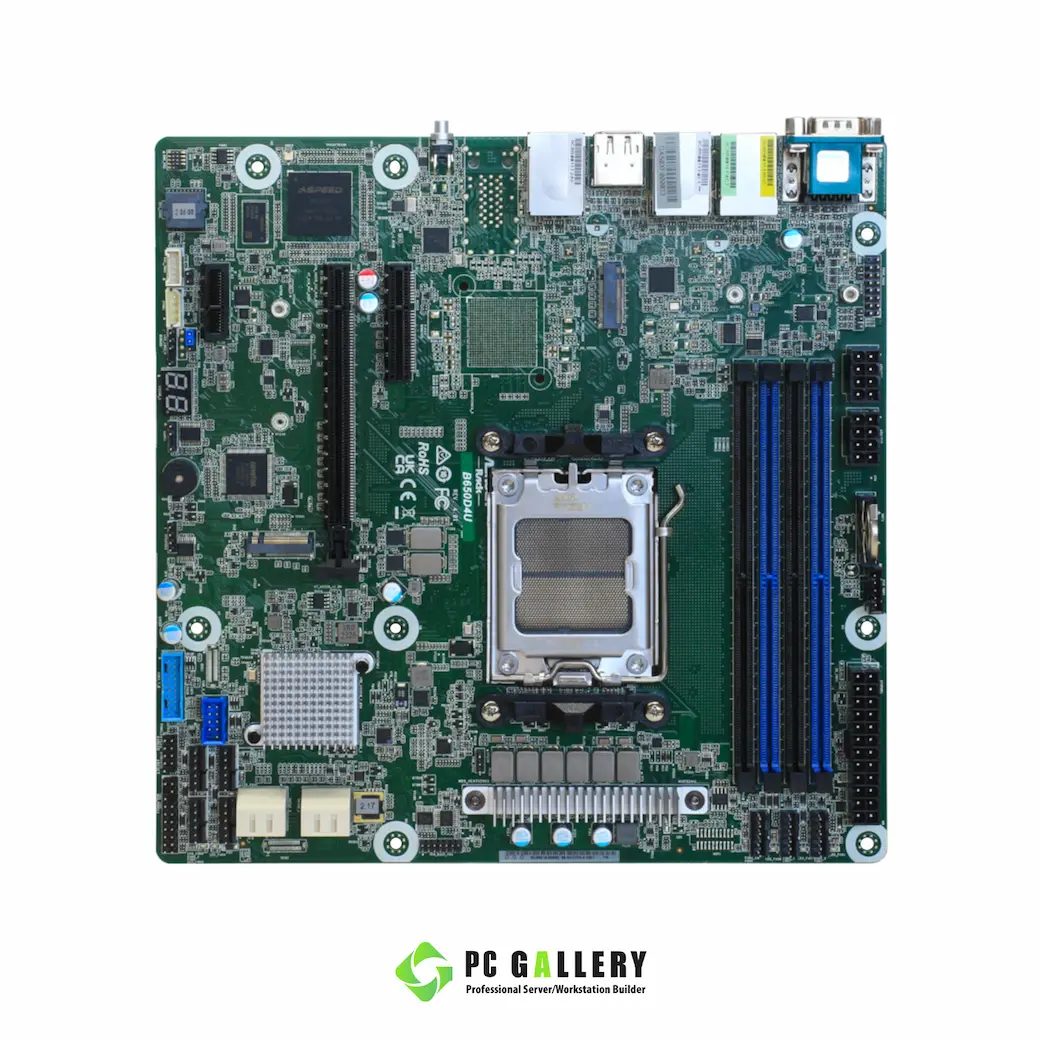

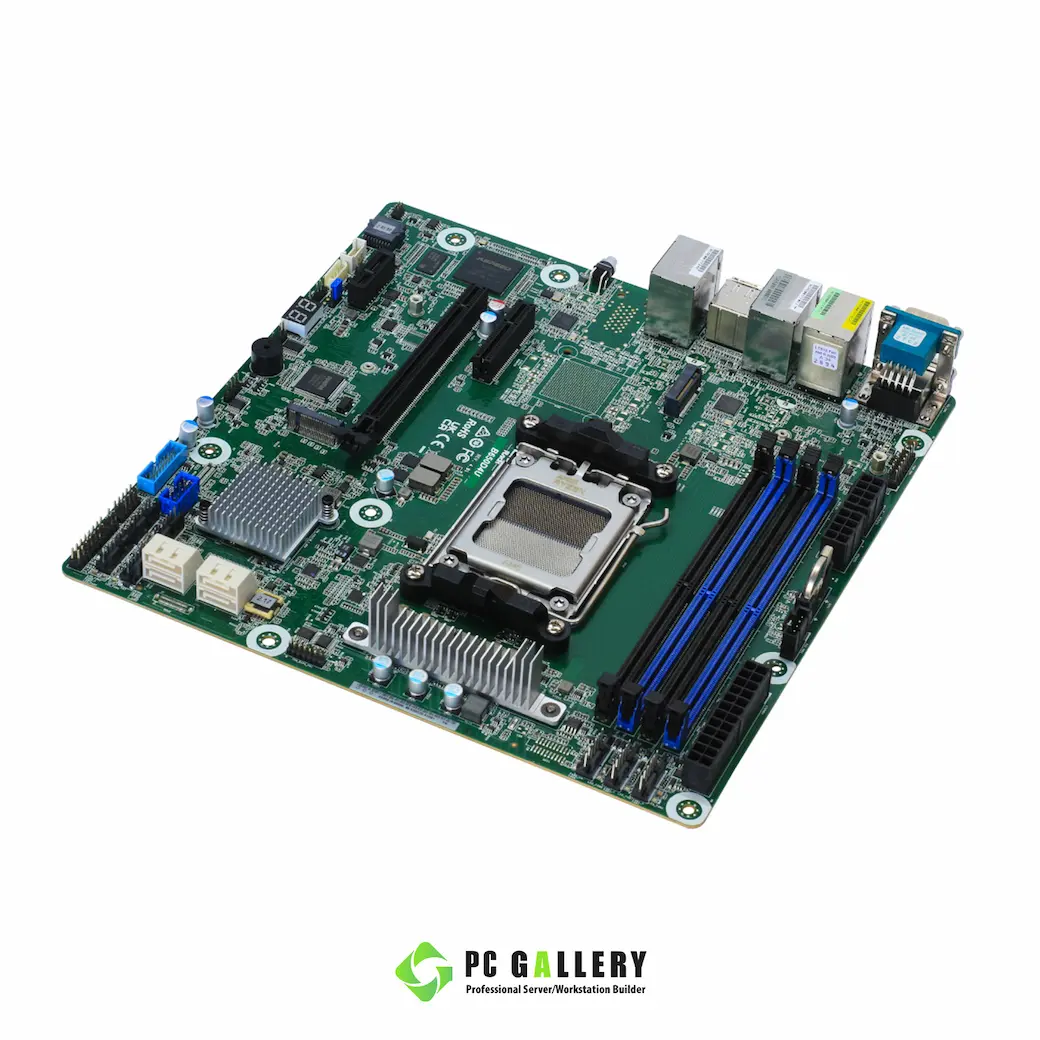

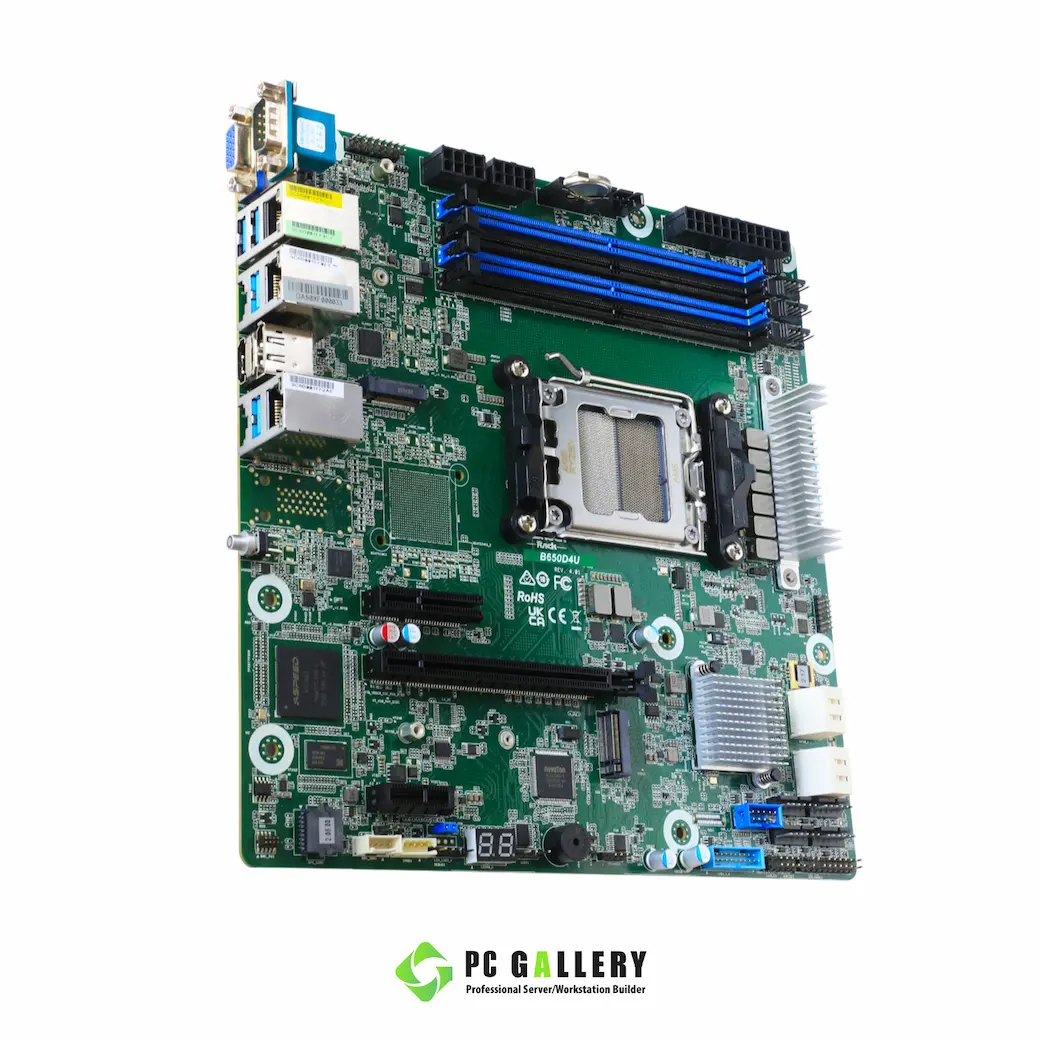

เมนบอร์ด ASRock Rack B650D4U, AM5, Micro-ATX

  • ► AMD socket AM5 (LGA 1718)
  • ► Chipset AMD B650E
  • ► 4 x DDR5 ECC-UDIMM/Non-ECC
  • ► PCIe 4.0 and PCIe 5.0
  • ► 2 x GLAN
  • ► Remote management (IPMI)
  • ► Micro-ATX 9.6″ x 9.6″ (244 mm x 244 mm)

฿17,500.00

แจ้งกับทางร้านก่อนชำระเงิน เพื่อตรวจสอบสถานะสินค้า และค่าจัดส่ง

News & Update

News & Update

Physical Status
Form factor
  • Micro-ATX(9.6″ x 9.6″)
Dimensions
  • 9.6” x 9.6” (244 mm x244 mm)
Processor
Processor Support
  • Support AMD Ryzen 7000 series Processors
Socket

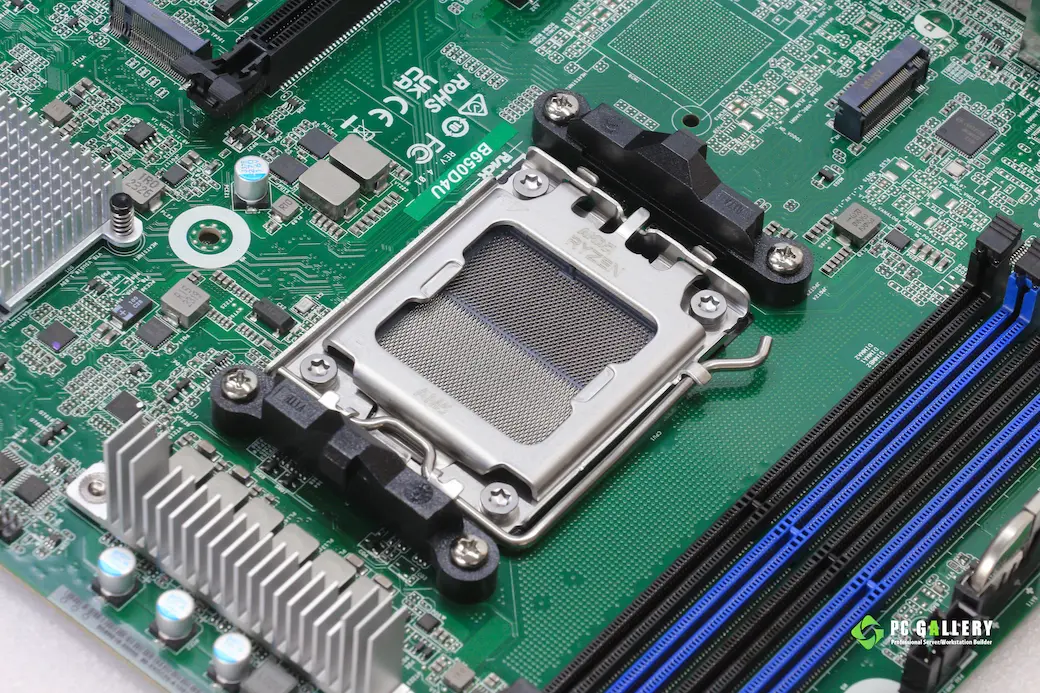

  • Single Socket AM5 (LGA 1718)
Chipset
  • AMD B650E

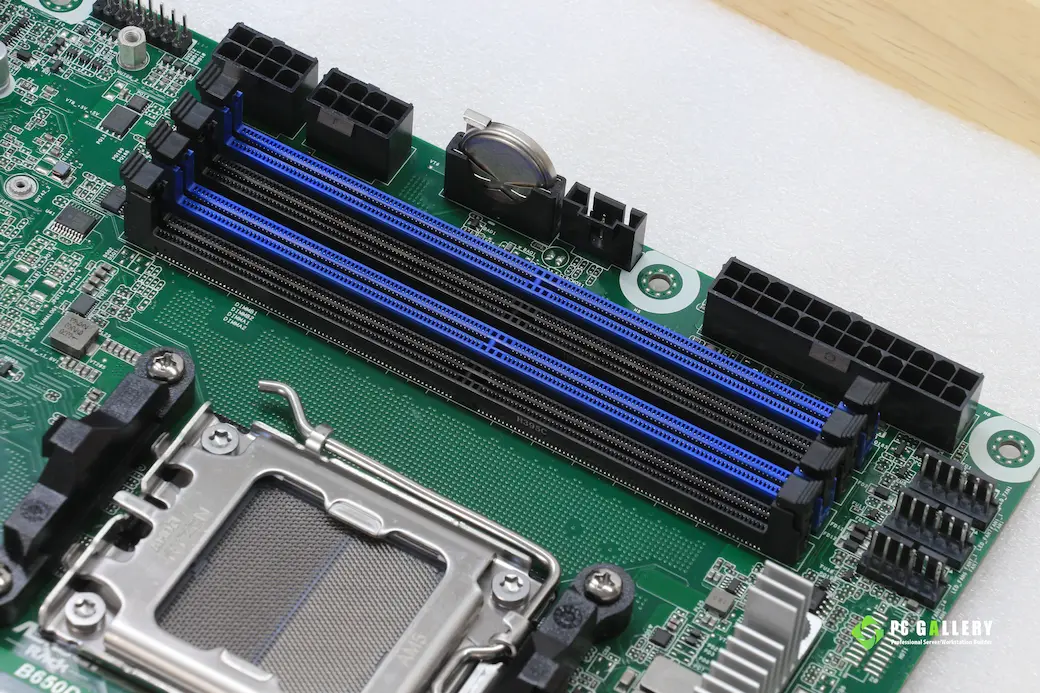

Memory Support
Total Slot

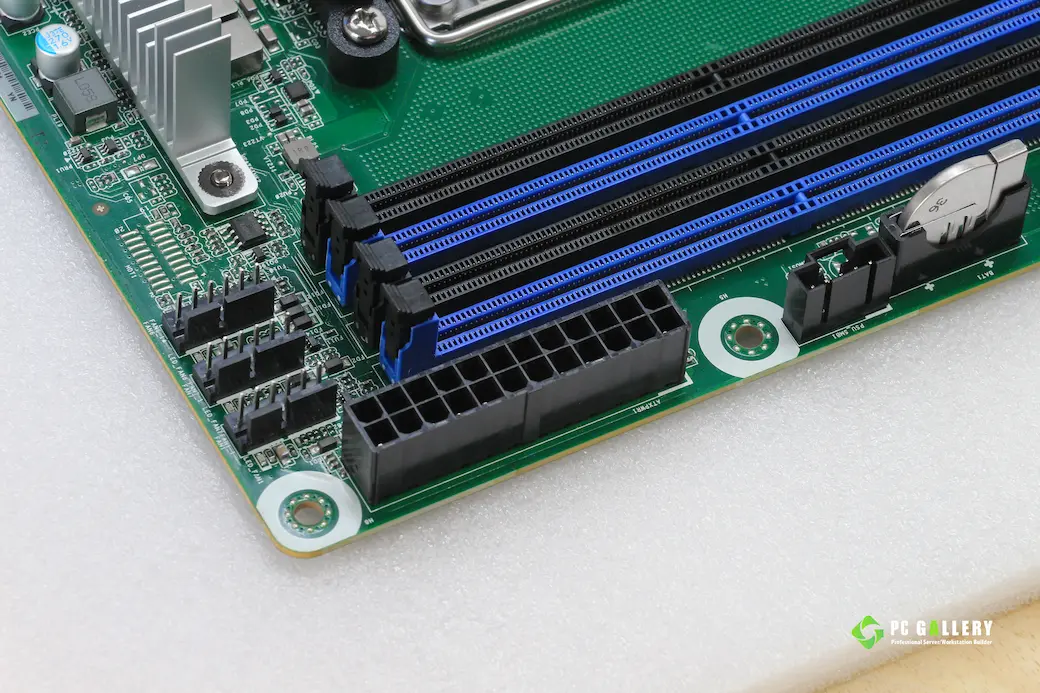

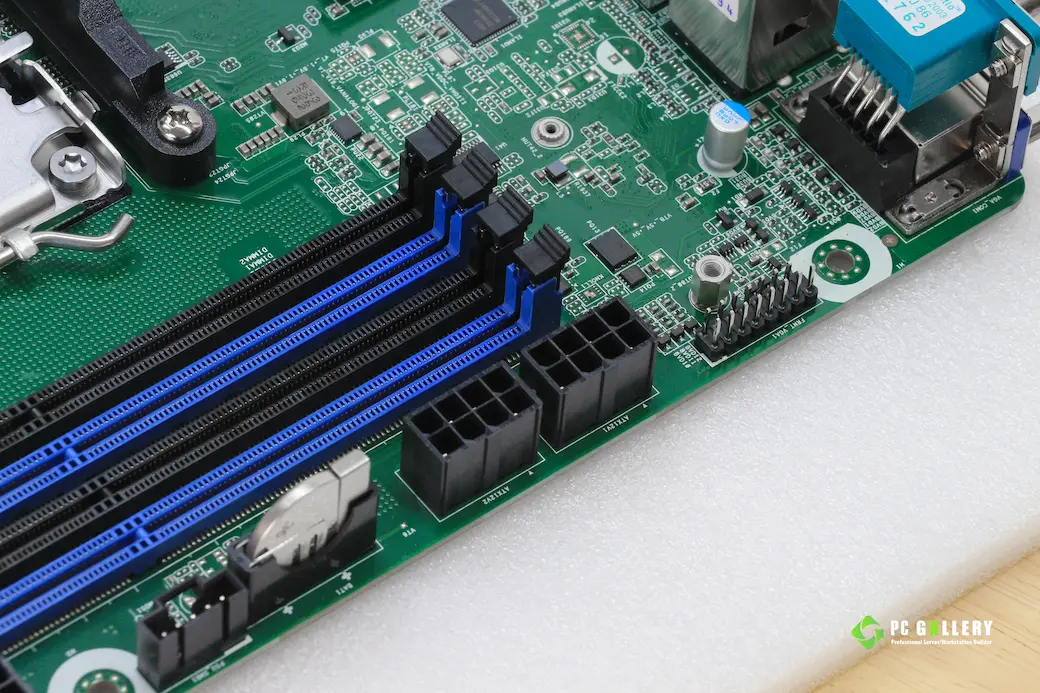

  • 4 DIMM slots
Max Memory Size
  • Up to 128GB
Memory Capacity
  • 8GB, 16GB, 32GB
  • up to 128GB

DIMM Type
  • DDR5  ECC-UDIMM / NON-ECC
Frequency
  • 5200 MHz (1DPC); 3600 MHz (2DPC)
Network / IPMI
Integrated LAN
  • 2 RJ45 (1GbE) by Intel® i210
IPMI



  • 1 Realtek RTL8211F for dedicated management GLAN

Graphic
Controller

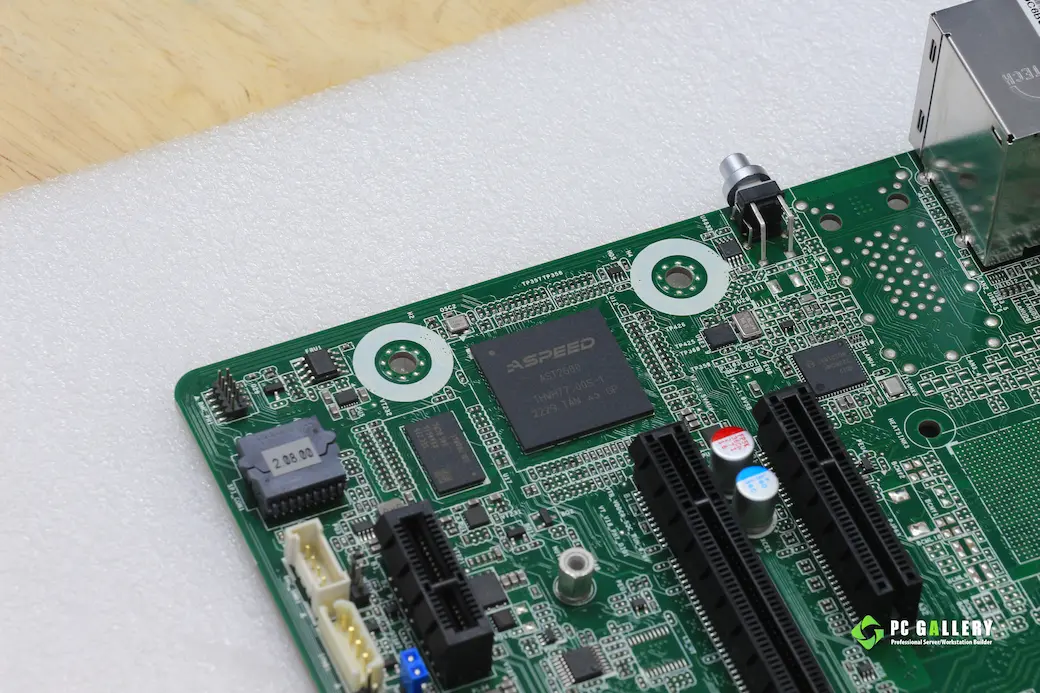

  • ASPEED AST2600 BMC

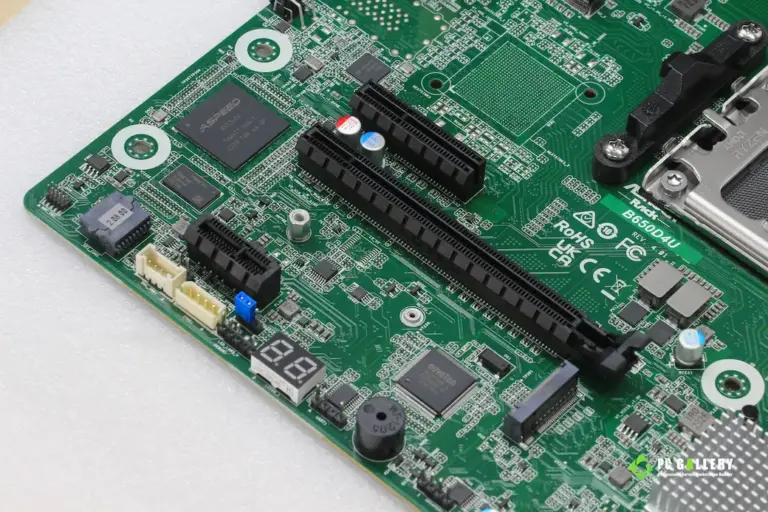

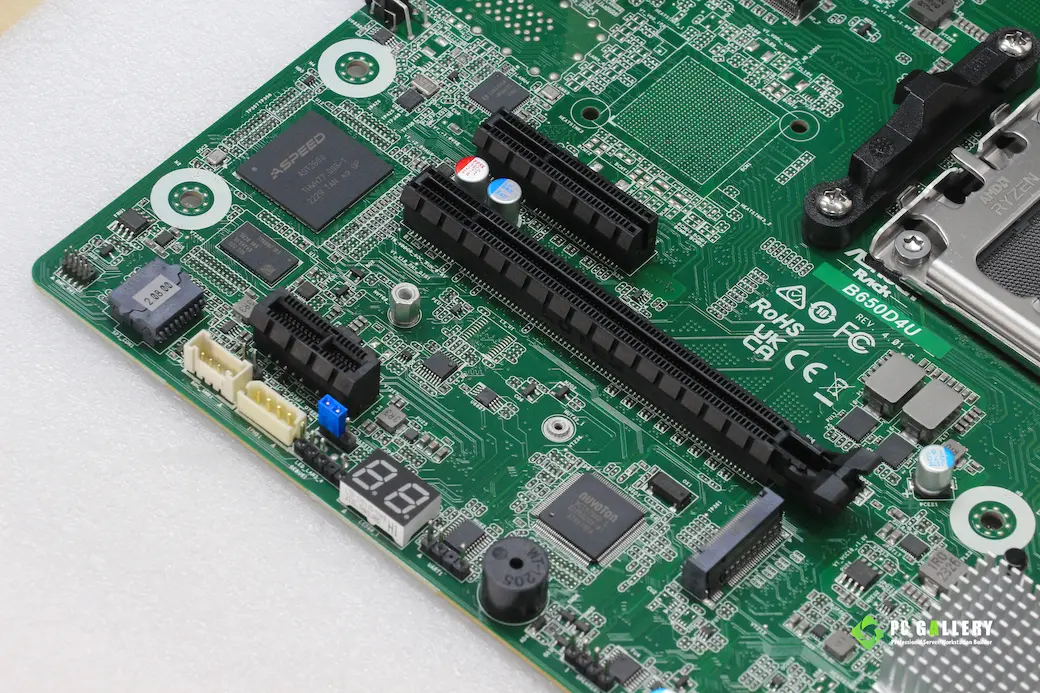

Expansion Slots
PCI-Express (PCI-E)
  • 1 PCIe5.0 x16
  • 1 PCIe5.0 x4
  • 1 PCIe4.0 x1
M.2
  • 1 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU]
  • 1 M-key (PCIe4.0 x4), supports 2280/2242 form factor [FCH]
Storage / Controller
PCH Built-in Storage

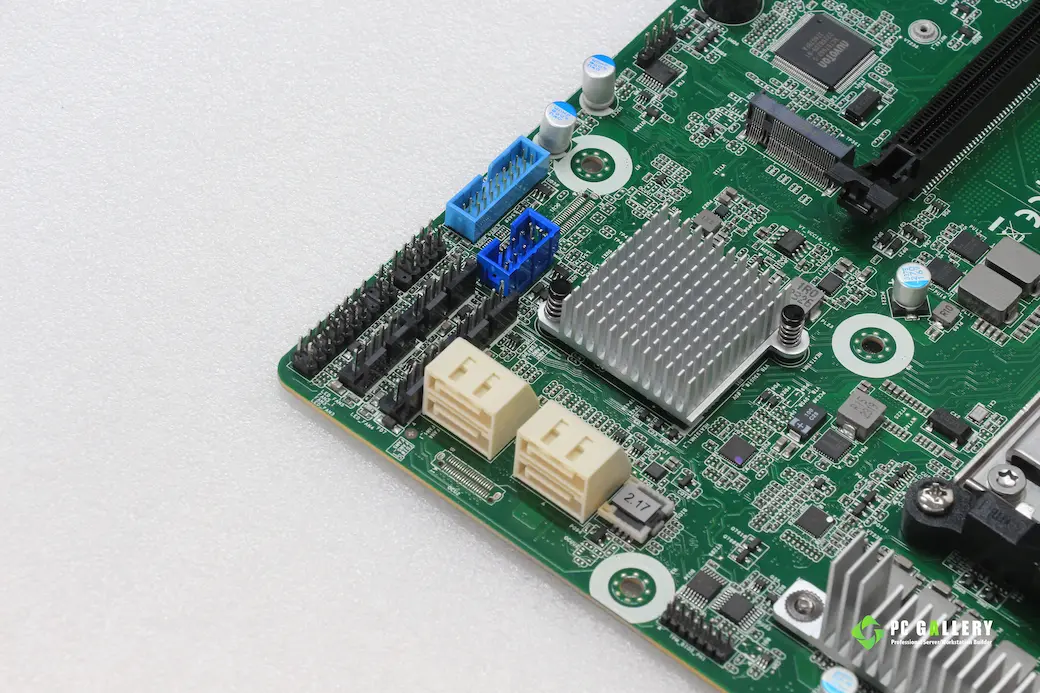

  • AMD B650E (4 SATA 6Gb/s)
  • 4 SATA 7-pin
Storage Controller
  • N/A

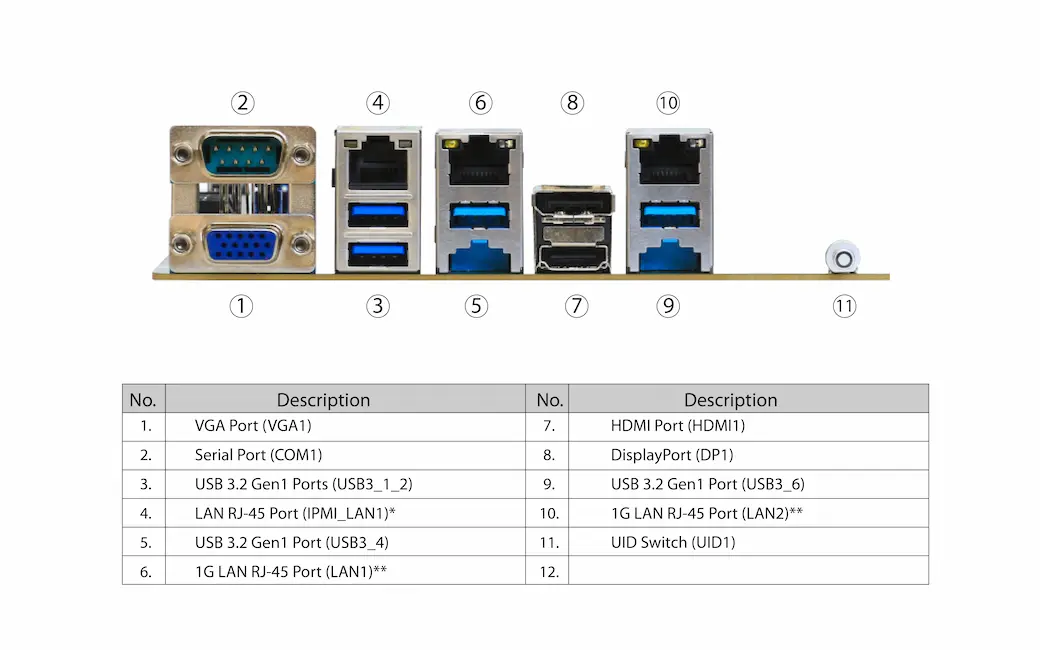

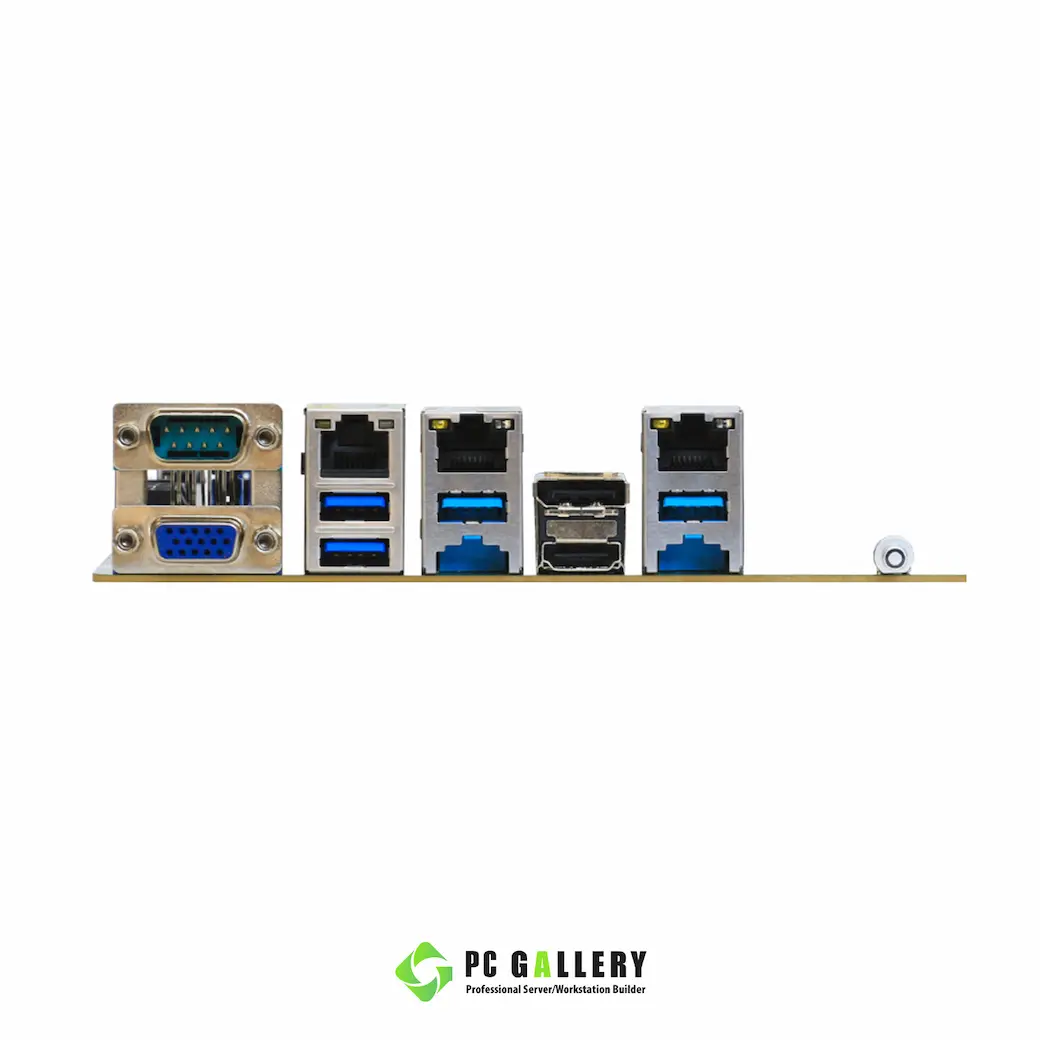

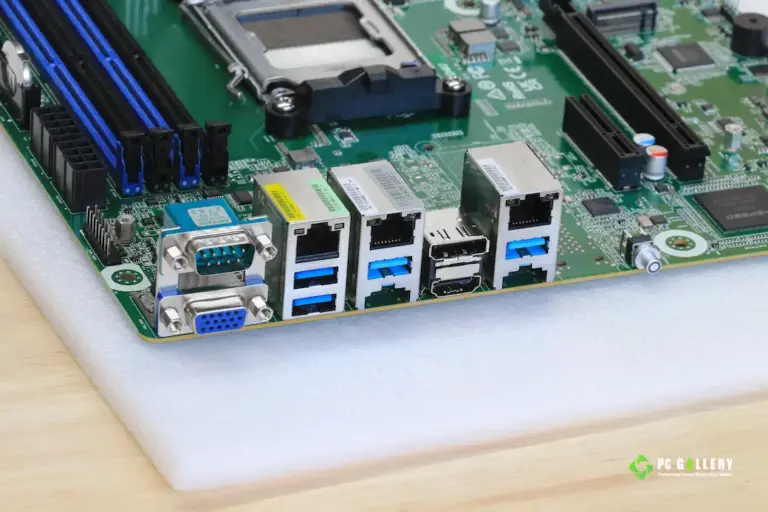

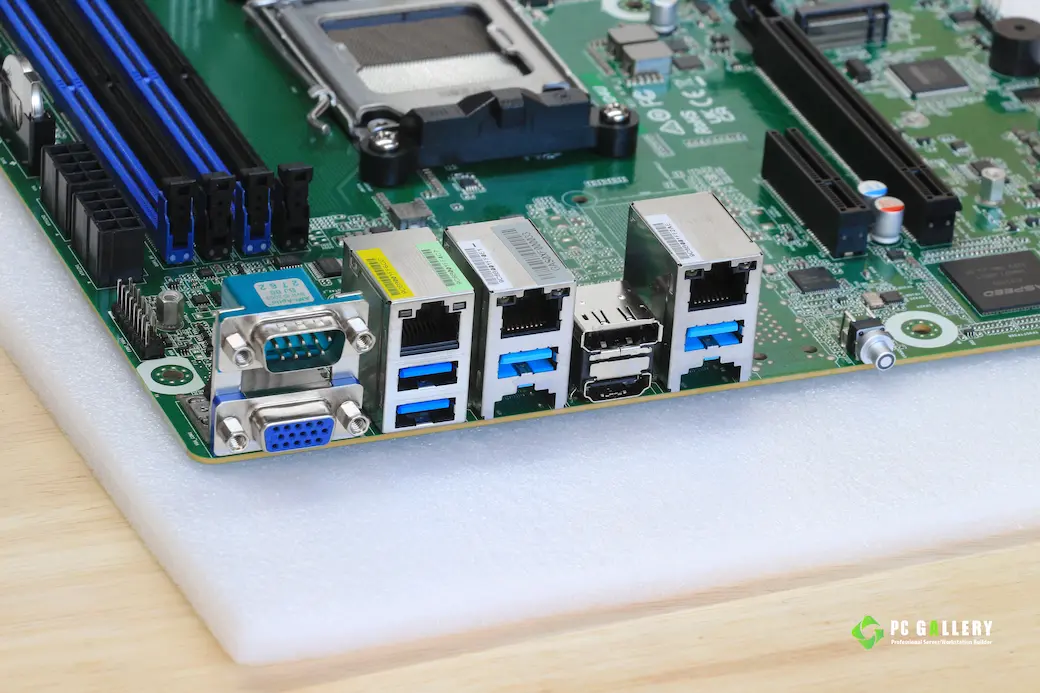

Input / Output
SATA
  • 4 x SATA3 (6Gbps) port(s)
LAN
  • 2 x RJ45 Gigabit Ethernet LAN ports
Dedicate LAN
  • 1 dedicated IPMI
USB
  • 4 Type-A (USB3.2 Gen1)
Video Output
  • 1 x VGA port
  • HDMI Port
  • Display Port
Serial Port
  • 1 DB9 (COM)
DOM
  • N/A
TPM
  • 1 (13-pin, SPI)

Supported OS

Microsoft Windows



Linux



Virtual Machine
