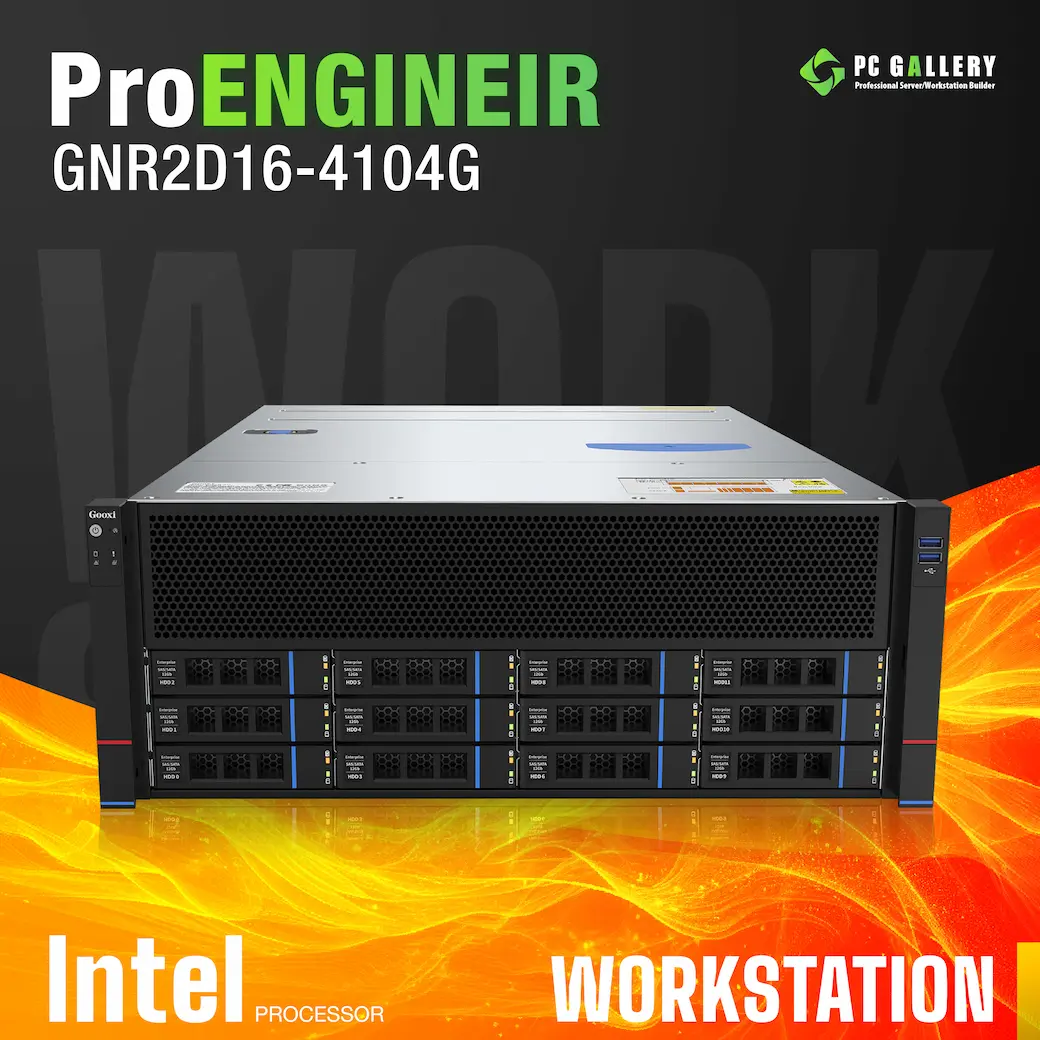

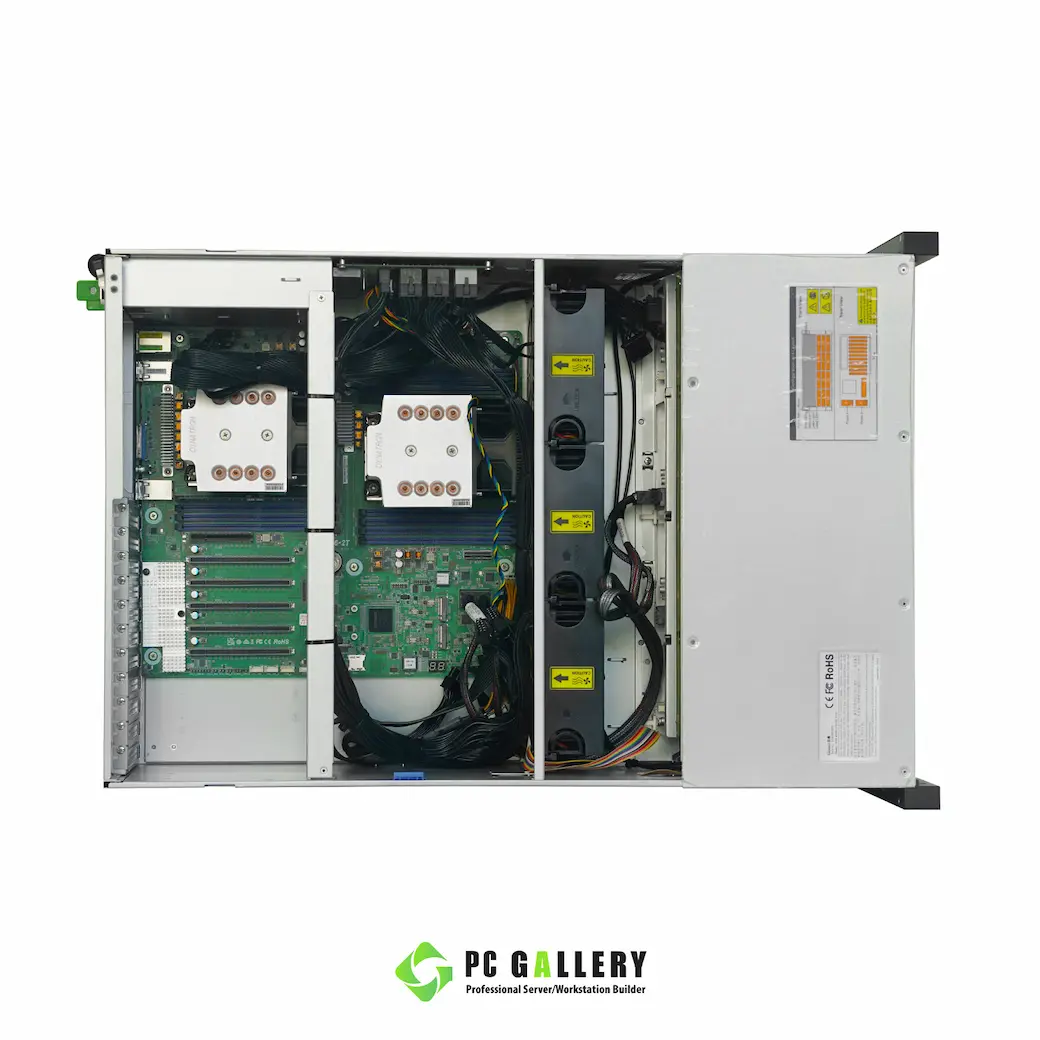

GPU คอมพิวเตอร์ ProENGINEIR GNR2D16-4104G, Dual Intel Xeon 6520P, 24C/48T, NVIDIA, RTX PRO 4500 Blackwell
• Model: GNR2D162T-4104G-2200R-D24C48T
• CPU: 2 x Intel Xeon 6520P, 2.4GHz, 144MB Cache, 210W, 24C/48T
• CPU COOLER: Active Sink
• RAM: Option
• SSD: Option
• VGA: VGA, NVIDIA, RTX PRO 4500 Blackwell, 32GB, GDDR7 (สูงสุด 3 ตัว)
• RAID: RAID Controller, SAS, 9361-8i, 12Gb/s, SAS/SATA, 8port, 1GB
• Drive: 12 x 3.5/2.5” hot-swap, 2x 2.5”
• LAN: 2 x 10GbE RJ45 by Intel® X710-AT2
• IPMI: 1 RJ45 Dedicated IPMI
• CHASSIS: 4U Rackmount
• PSU: 2200W Redundant
• Warranty: 3Years (3-3-0) | เฉพาะ GPU ประกัน 1ปี
฿429,600.00
ติดต่อสอบถามเกี่ยวกับสินค้าทางไลน์ ก่อนชำระเงิน
Please contact us via LINE for product inquiries before making a payment.
ProENGINEIR
GNR2D16-4104G
GPU Server ระดับองค์กรที่ออกแบบมาสำหรับงาน AI, Machine Learning และ High Performance Computing โดยใช้หน่วยประมวลผล Intel Xeon 6520P 24 Core / 48 Thread รองรับการติดตั้งการ์ดจอ NVIDIA RTX PRO 4500 Blackwell สูงสุด 3 ตัว ตัวเครื่องเป็น Rackmount ขนาด 4U รองรับไดรฟ์แบบ Hot-Swap สูงสุด 12 ช่อง มาพร้อมเครือข่ายความเร็วสูง 2 x 10 GbE LAN พร้อม Power Supply แบบ Redundant 2200W
คุณสมบัติที่โดดเด่น
Hot-Swap 12 Bays
12 x 3.5"/2.5” hot-swap hard drive bays
Intel Xeon 6520P
Intel Xeon 6520P, 2.4GHz, 144MB Cache, 210W, 24C/48T
Dual 10G LAN
2 x RJ45 10GLAN+IPMI
RTX PRO 4500 Blackwell
VGA, NVIDIA, RTX PRO 4500 Blackwell, 32GB, GDDR7 (สูงสุด 3 ตัว)
DDR5 ECC RDIMM
8+8 DIMM slots, support DDR5 RDIMM, DDR5 MRDIMM
PCIe5.0
5 x PCIe5.0 / CXL2.0 X16 1 x PCIe5.0 / CXL2.0 X8

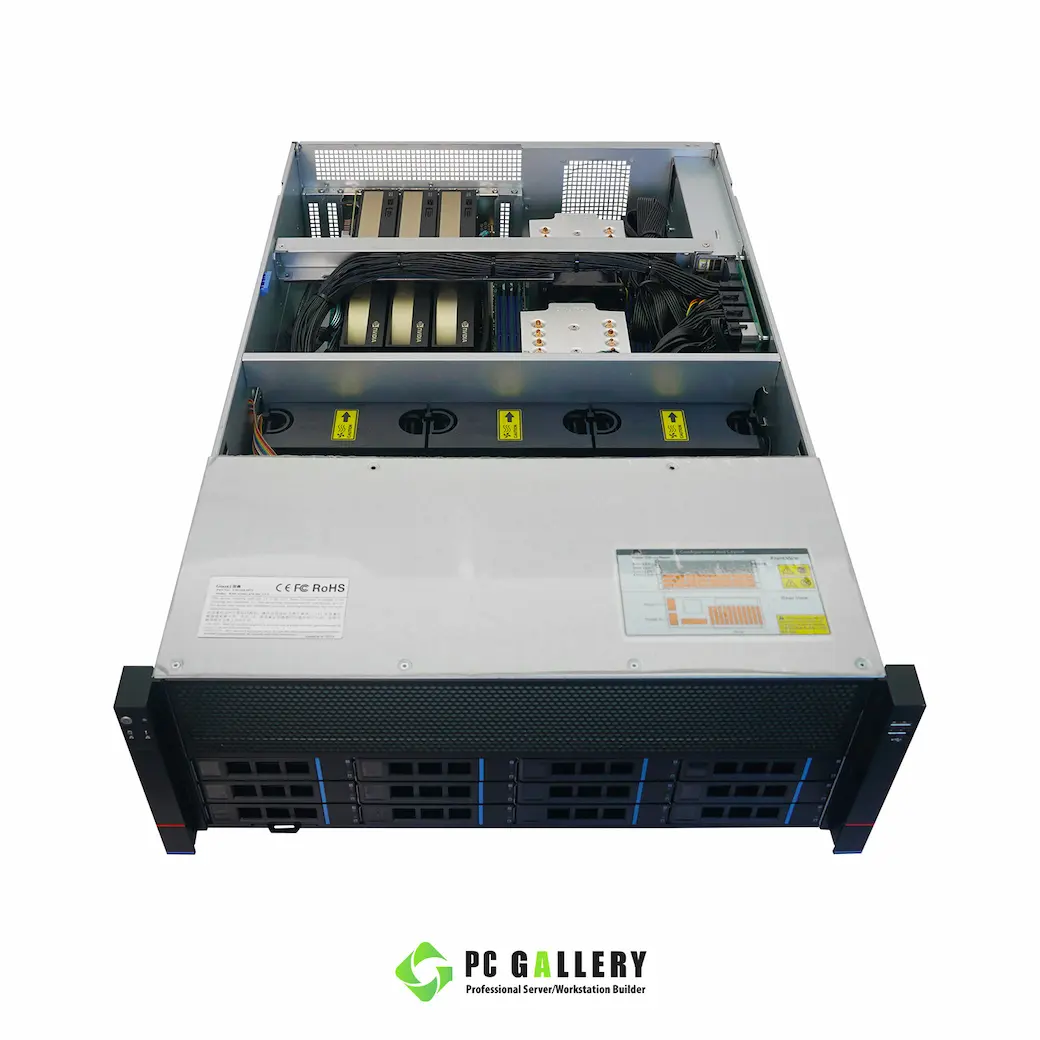

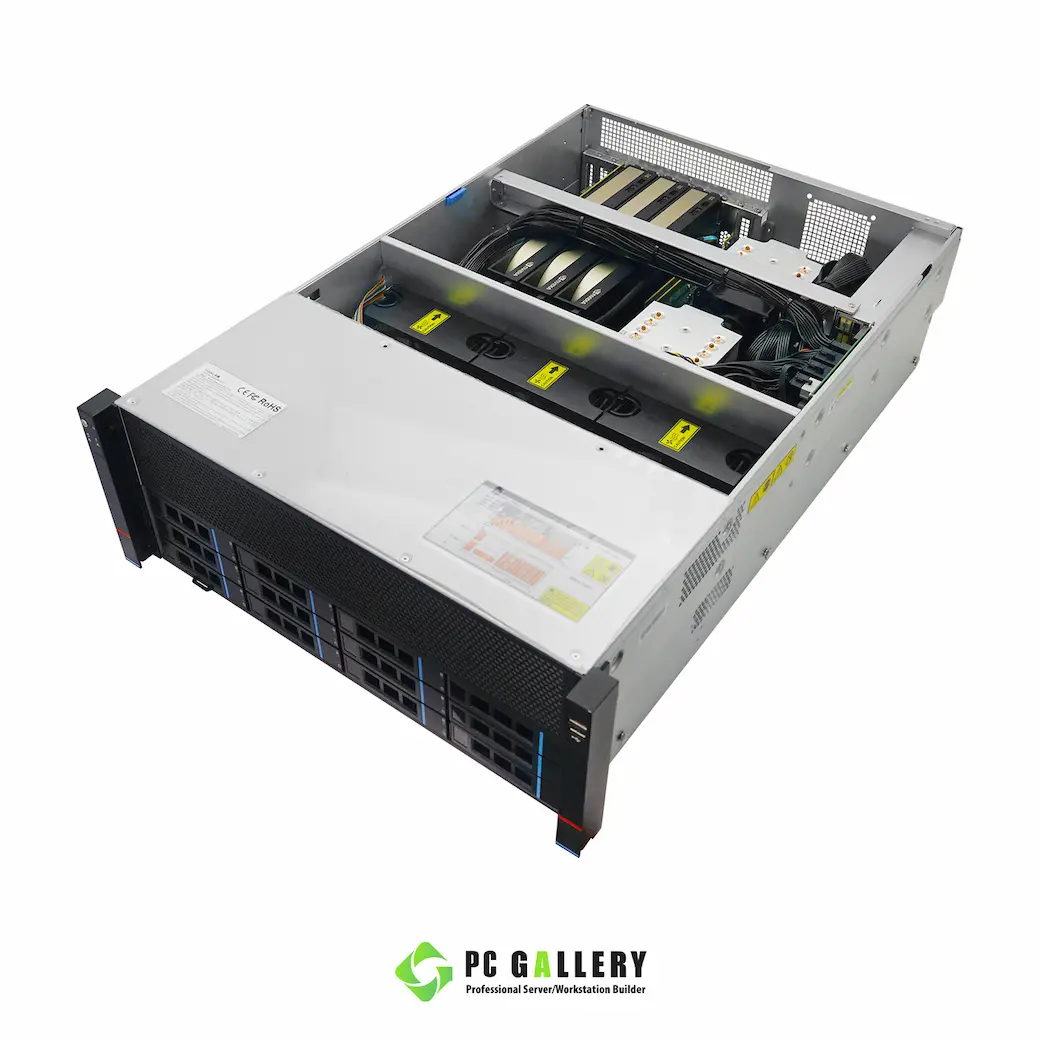

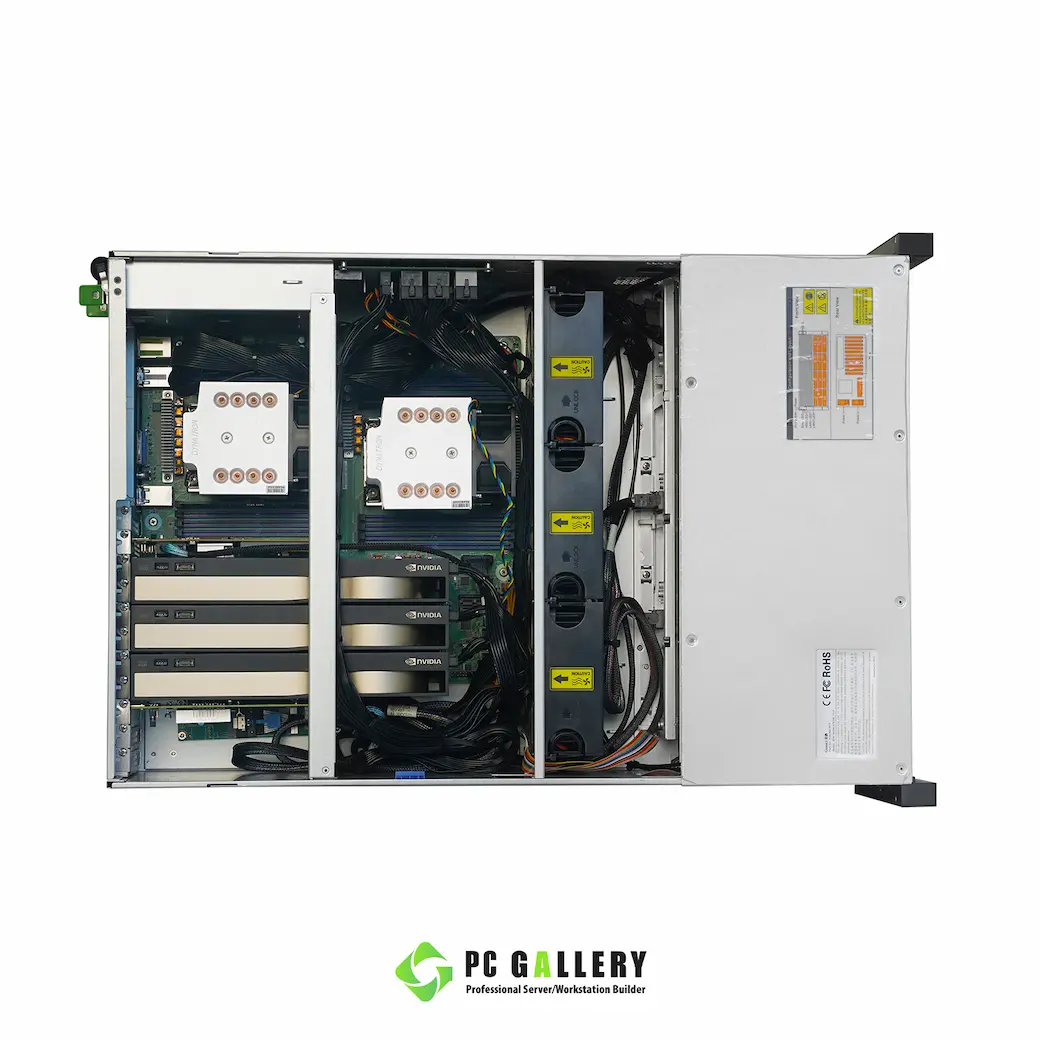

ภาพติดตั้ง RTX Pro 4500 Blackwell 3 ตัว

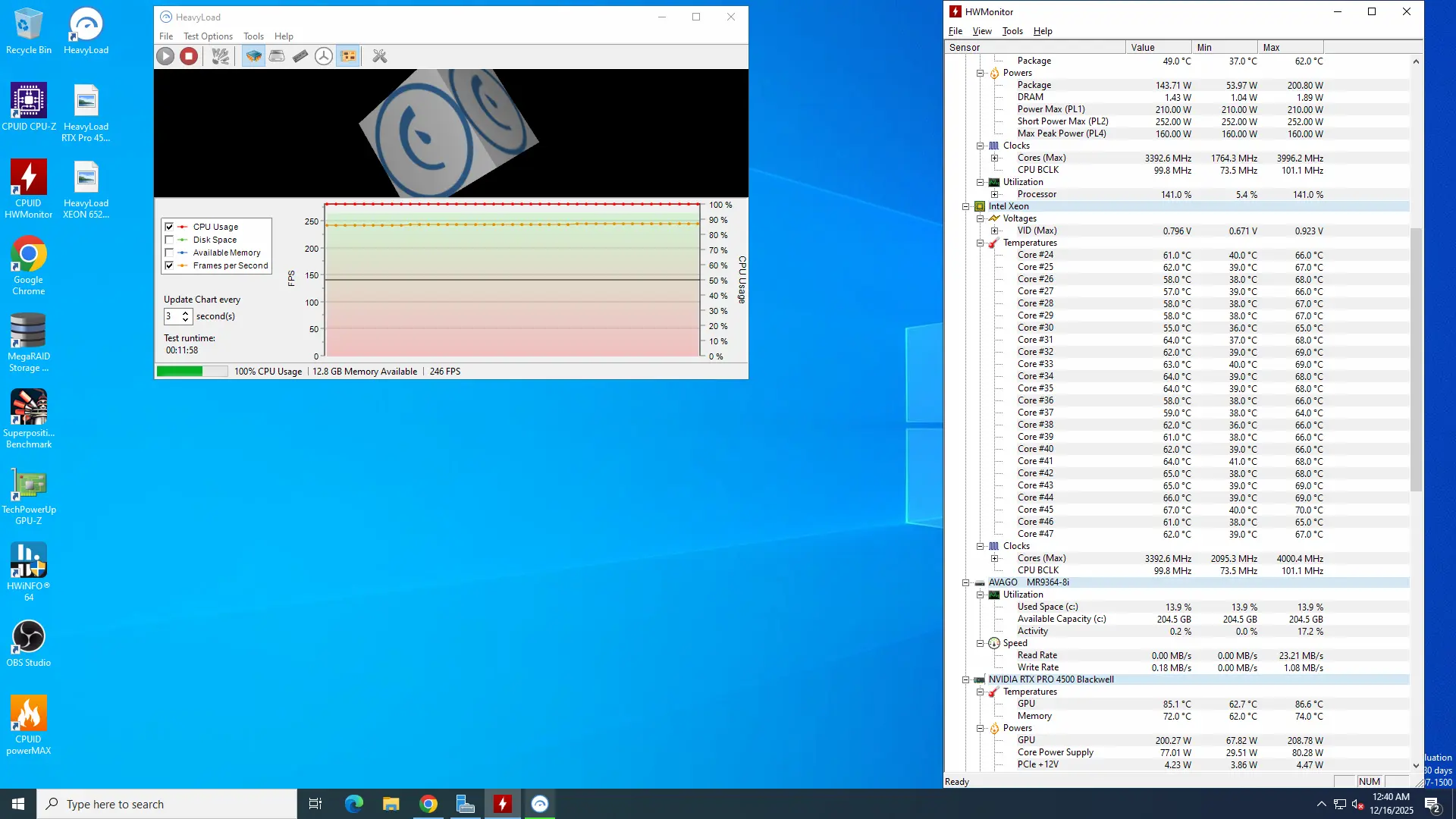

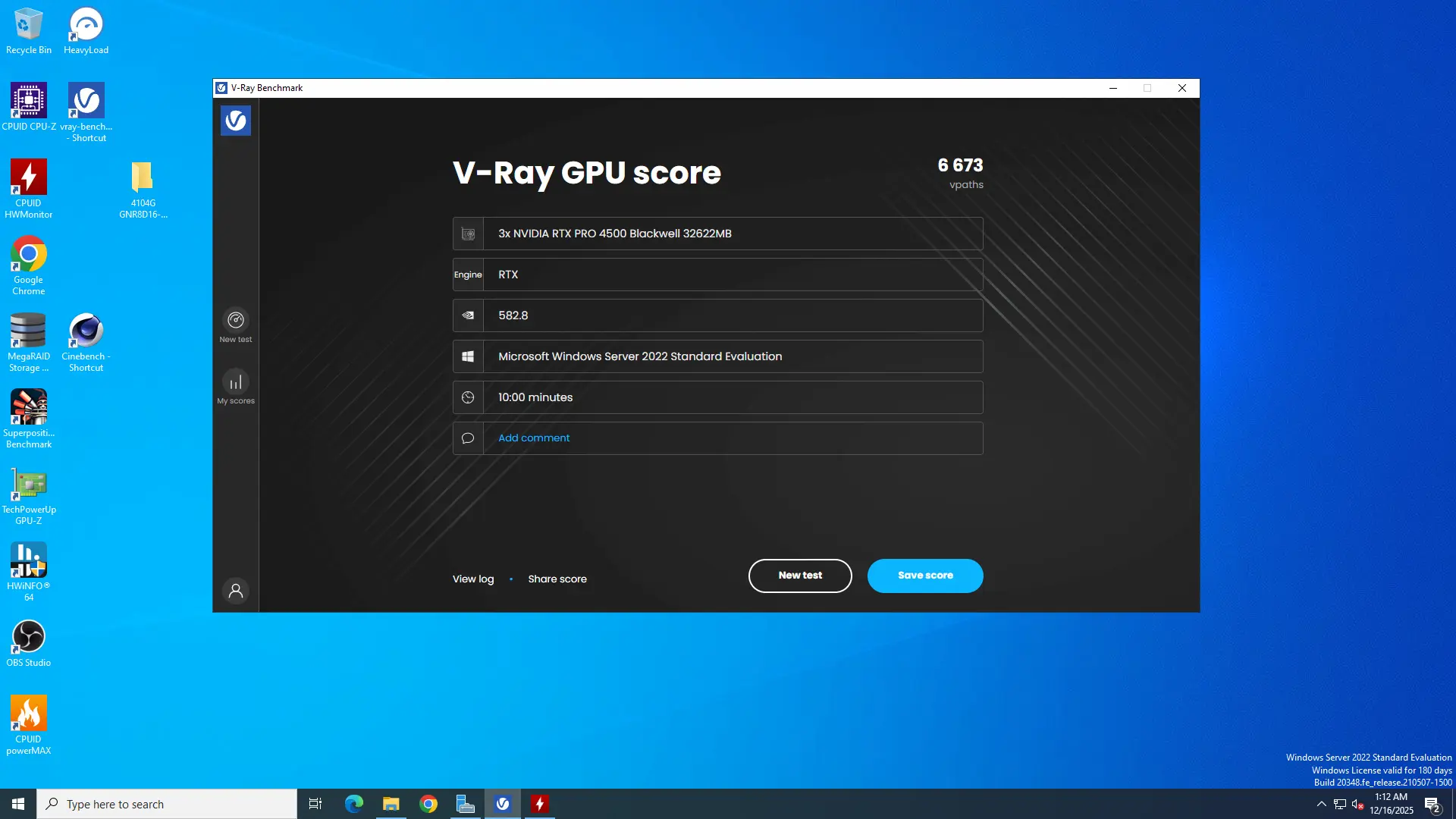

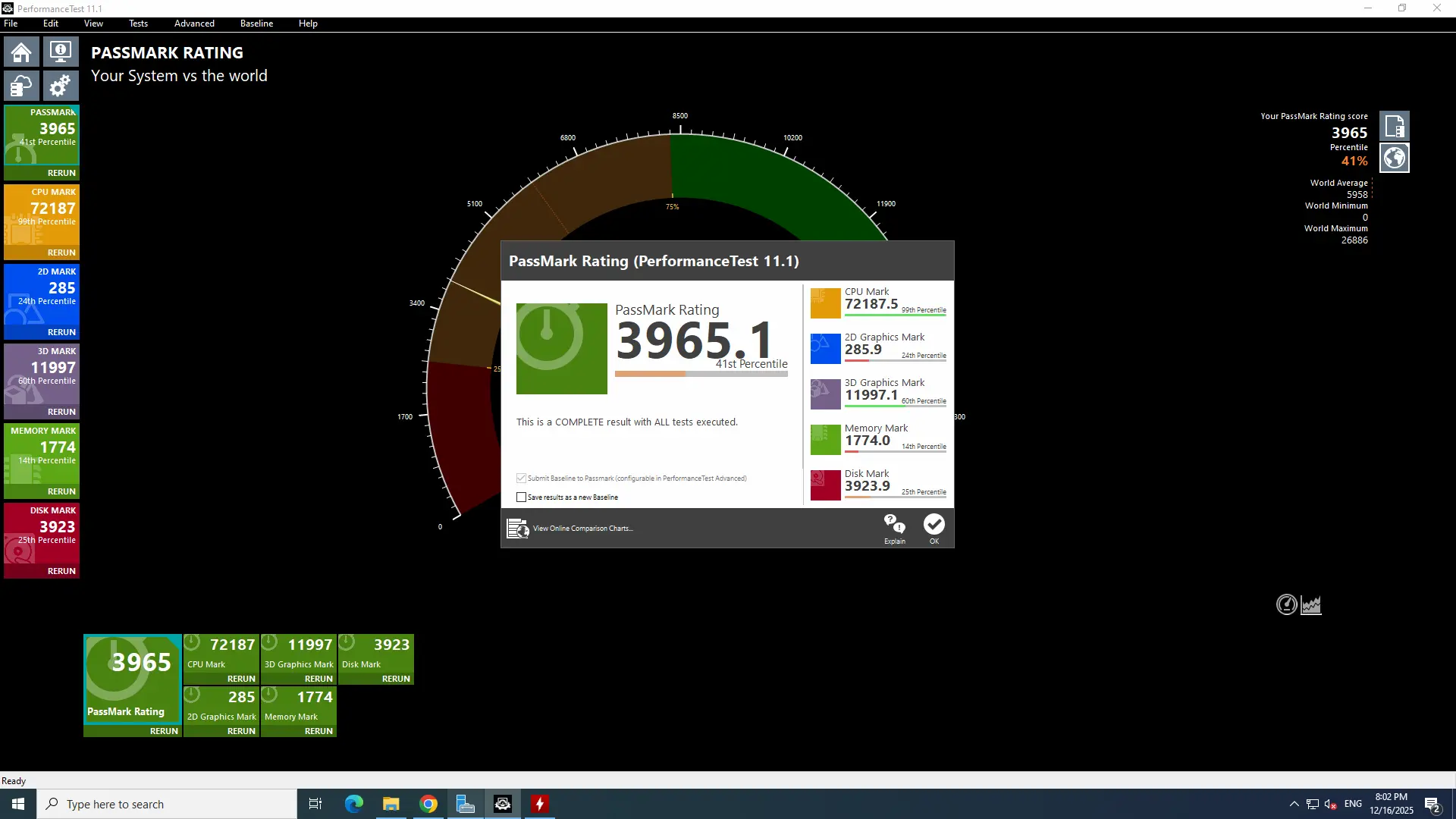

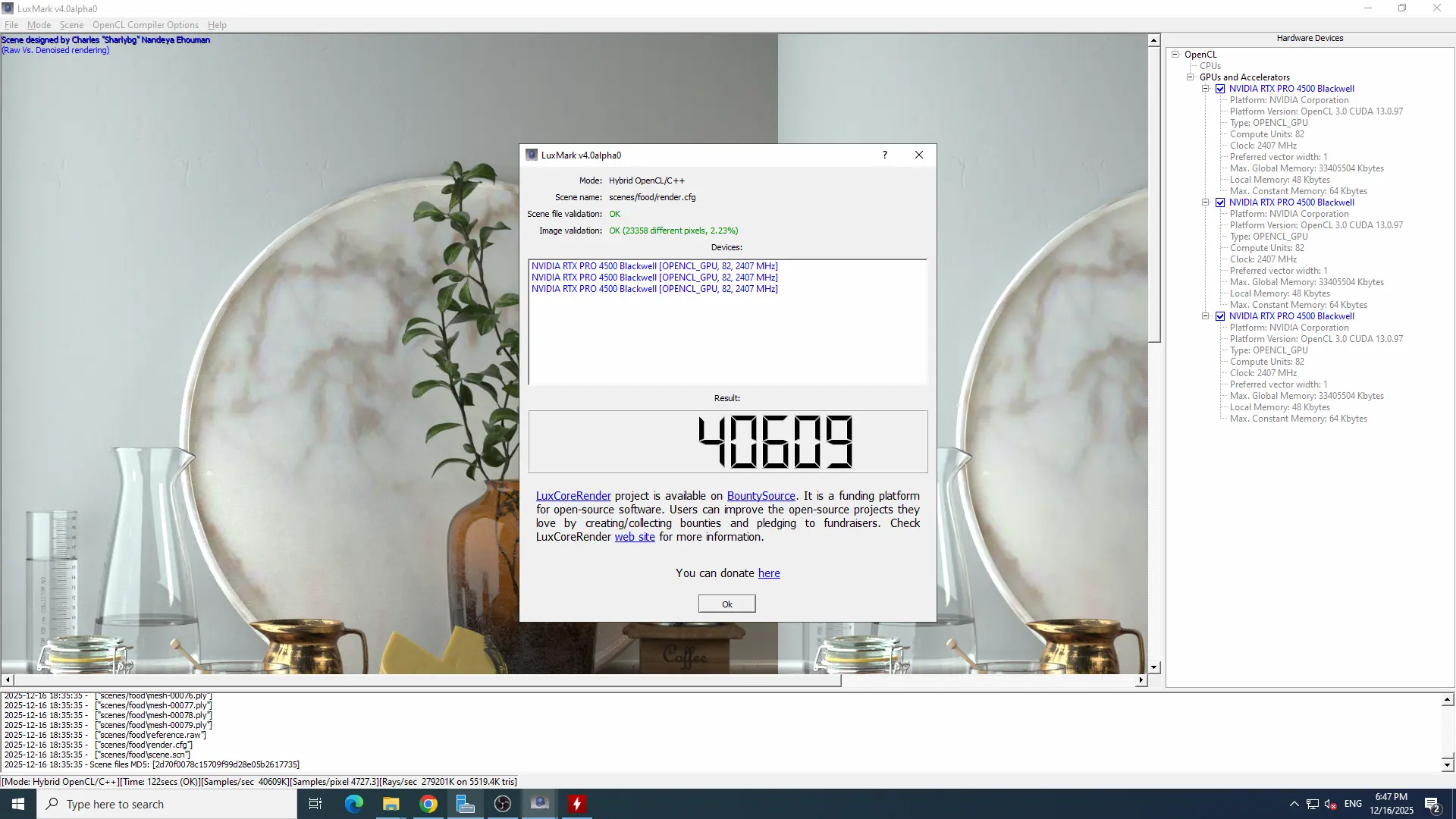

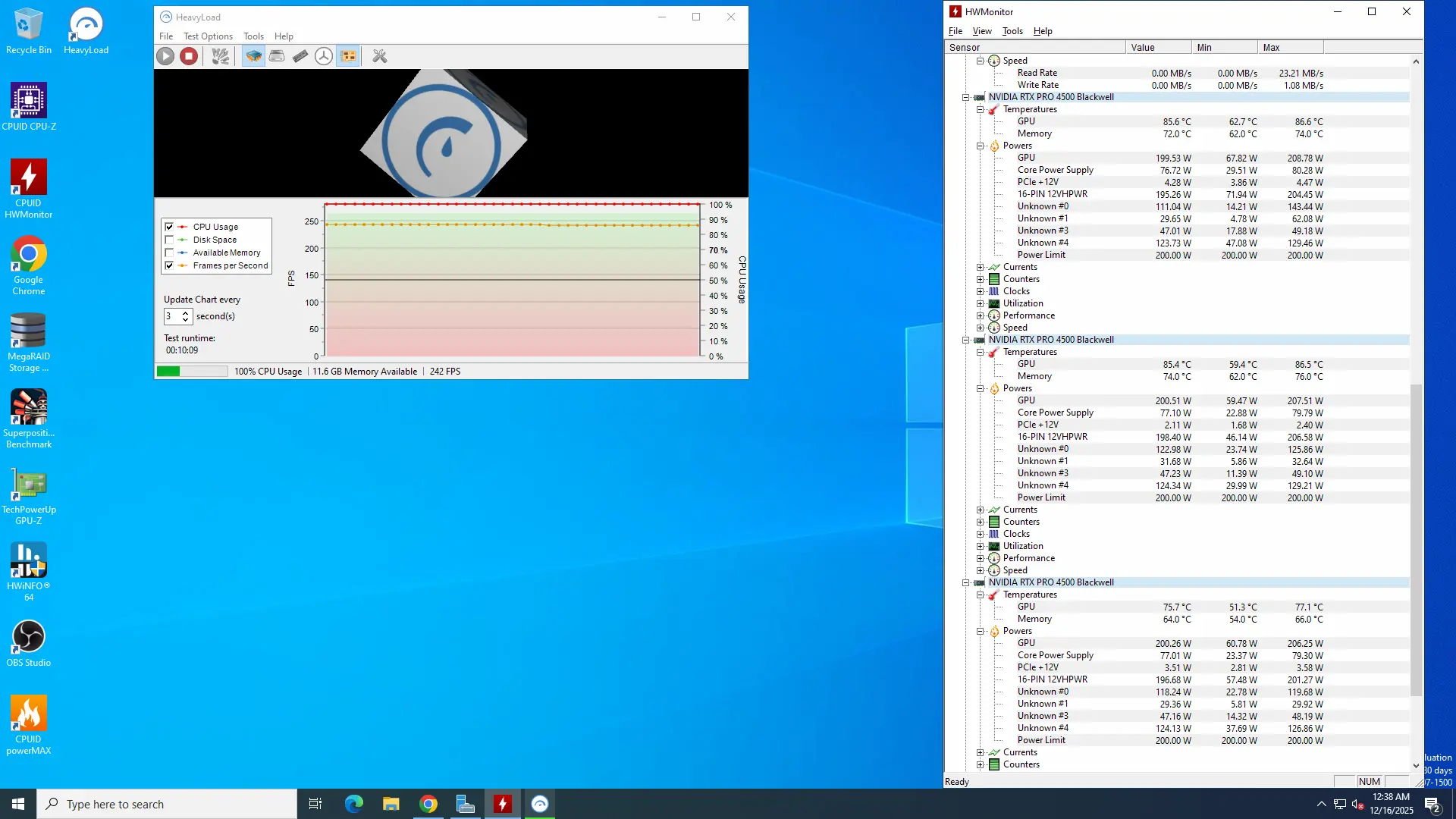

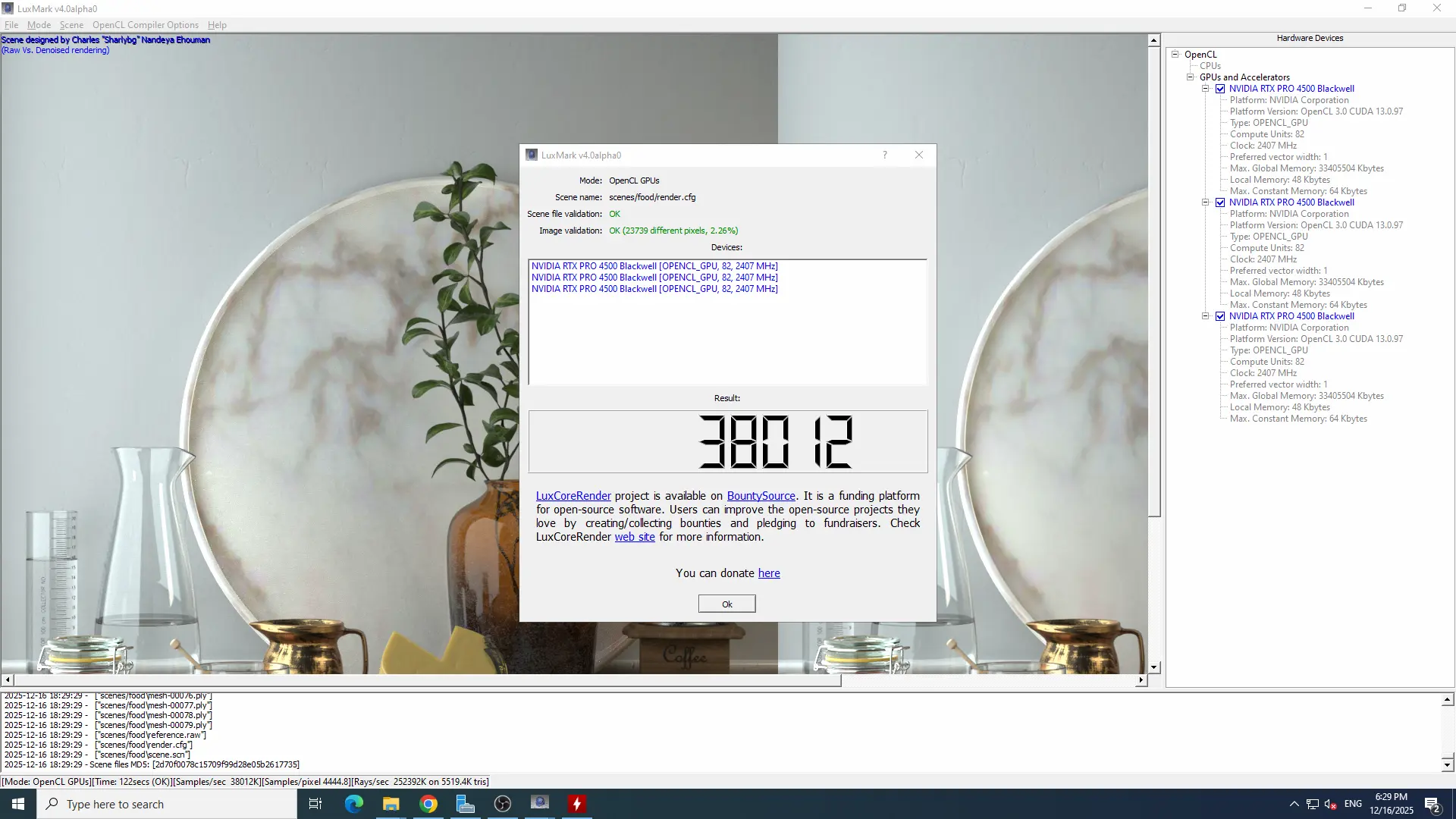

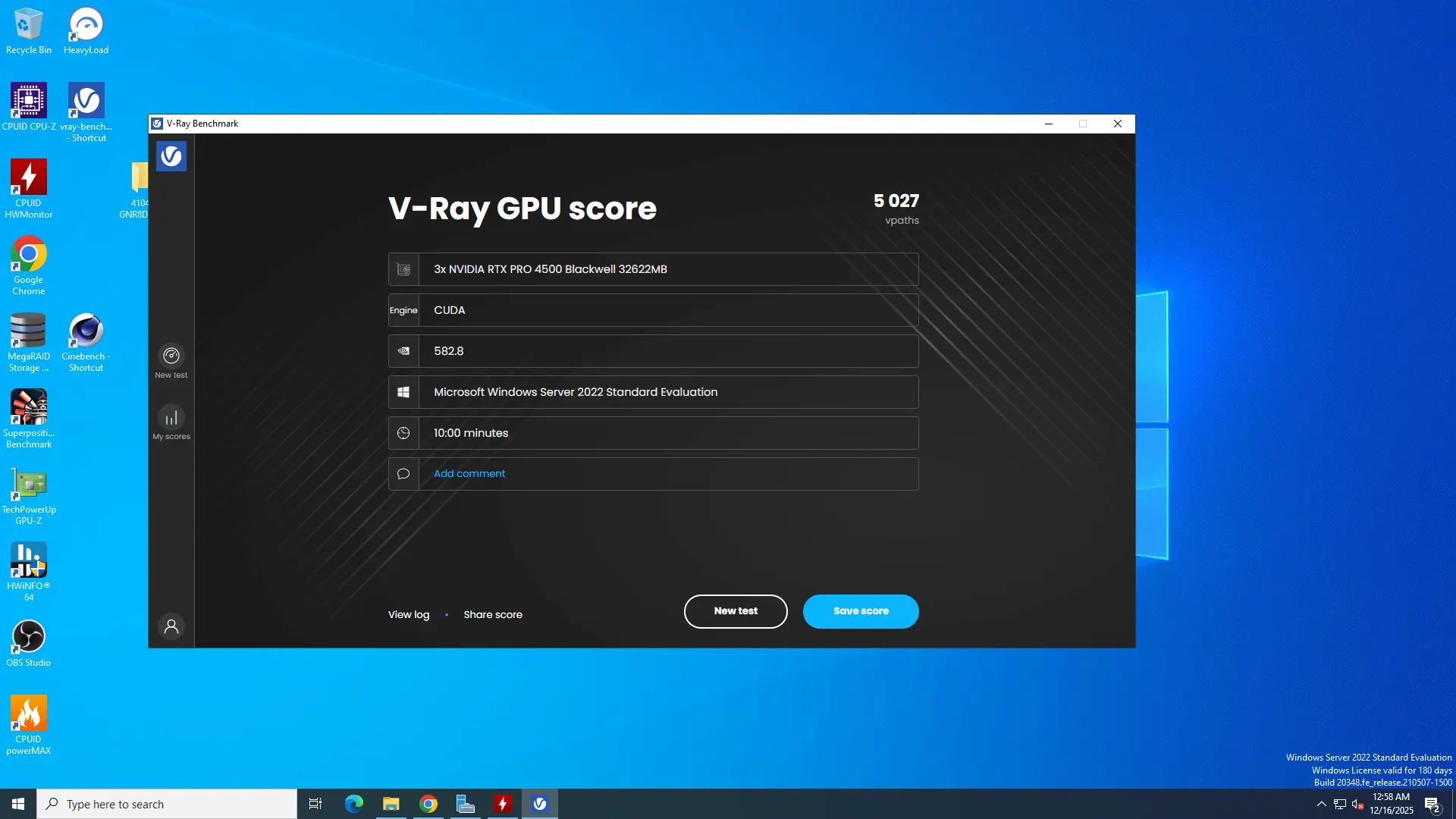

Test Result
ผลทดสอบ
|
CPU |
|
|---|---|
| Standard CPU |
2 x INTEL, 4710, XEON 6520P, 2.4GHz, 144MB Cache, 210W, 24C/48T |
| CPU Support | Supports Intel® Xeon® 6700P-series, 6500P-series, and 6700E-series processors |
| CPU Cooler | Active Sink |
| Memory | |
|
Standard Memory |
Option |
| Memory support |
Total Slots : 8+8 DIMM slots (1DPC) |
| Network / IPMI | |
| Integrated LAN |
2 RJ45 (10GbE) by Intel® X710-AT2 |
| IPMI |
1 x IPMI |
|
Graphic |
|
| Controller | ASPEED AST2600: 1 DB15 (VGA) |
|
Expansion Slots |
|
| PCI-Express (PCI-E) | SLOT1:PCIe5.0 / CXL2.0 x16 [CPU1] SLOT2:PCIe5.0 / CXL2.0 x16 [CPU0] SLOT3:PCIe5.0 / CXL2.0 x16 [CPU1] SLOT4:PCIe5.0 / CXL2.0 x16 [CPU0] SLOT5:PCIe5.0 / CXL2.0 x16 [CPU1] SLOT6:PCIe5.0 / CXL2.0 x8 [CPU0] |
| M.2 | 2 M-key (PCIe5.0 x2), supports 22110/2280 form factor [CPU0] |
| Storage / Controller | |
| Standard Storage | Option |
| Drive Bays | 12 x 3.5/2.5” hot-swap, 2x 2.5” |
| Storage | |
| Storage Controller | RAID Controller, SAS, 9361-8i, 12Gb/s, SAS/SATA, 8port, 1GB |
| SATA | 8 SATA 6Gb/s by ASM1164: 2 Mini-SAS HD |
| Cable | |
| Input / Output | |
| LAN |
2 x 10GbE RJ45 by Intel® X710-AT2 |
| USB | 2 Type-A (UBS3.2 Gen1) |
| Video Output | 1 DB15 (VGA) |
| Serial Port | |
| DOM |
|
| TPM |
1 (13-pin, SPI) |
| Chassis | |
| Form Factor | 4U Rackmount |
| Expansion Slots | 11 PCIe full-H expansion slots |
| Dimension (DxWxH) | 670 x 433 x 177 (mm) |
| Button | power button, restart button |
| LEDs | hard disk LED, systemfault LED, network LEDs |
| Ports | USB2.0 |
| SlideRail | Yes |
|
Power Supply |
2200W Redundant |
|
Supported OS |
|
|
Microsoft Windows |
|
|
Linux |
|
|
Virtual Machine |
|
