เซิร์ฟเวอร์ PowerRACK X13SAE-1650, i9-14900K, Dual GLAN, IPMI
- Model: X13SAEF-1650-400-S24C32T
- • CPU: INTEL, 1700, Core i9-14900K, 3.2GHz, 36MB Cache, 125W, 24C/32T
- • CPU Cooler: Server Liquid Cooler
- • RAM: Option
- • SSD: Option
- • VGA:ASPEED AST2600 BMC
- • RAID: Intel W680 RAID support: 0/1/5/10
- • Drive: 4 x Internal drive bays 3.5″
- • LAN: 1 x 2.5GbE LAN | 1 x GbE LAN | IPMI
- • IPMI: 1 x Dedicated for IPMI
- • Chassis: 1U Rackmount
- • PSU: 400W
- • Warranty: 3-Year อะไหล่และค่าแรง, On-Shop Service
฿75,900.00
ราคาล่าสุดวันที่ July 3, 2026
ติดต่อสอบถามเกี่ยวกับสินค้าทางไลน์ ก่อนชำระเงิน
Please contact us via LINE for product inquiries before making a payment.

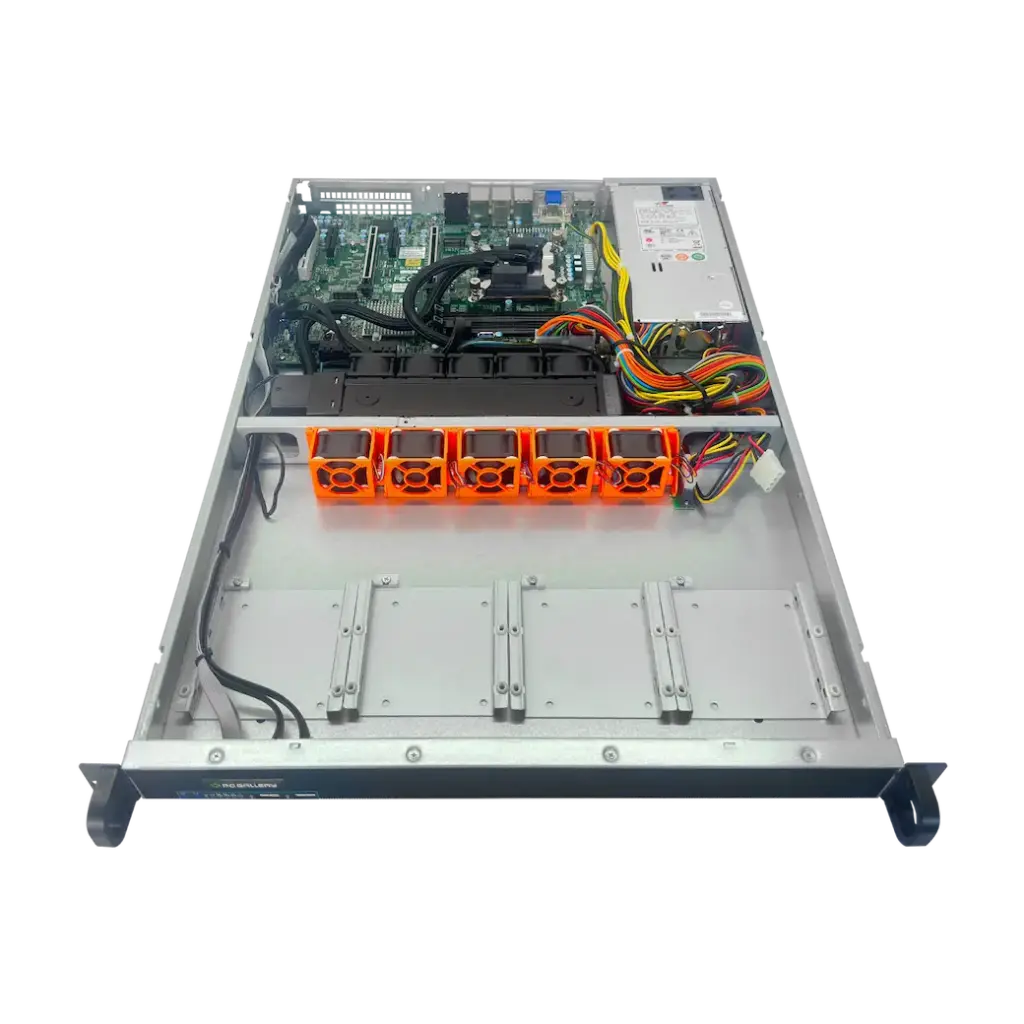

PowerRACK
X13SAE-1650
Rack Server ขนาด 1U ที่ออกแบบมาเพื่องานประมวลผลประสิทธิภาพสูง มาพร้อม Intel Core i9-14900K แบบ 24 Core / 32 Thread และช่องใส่ฮาร์ดดิสก์ภายใน 3.5 นิ้ว สูงสุด 4 ลูก รองรับระบบเครือข่ายความเร็วสูงทั้ง 2.5GbE LAN และ 1GbE LAN นอกจากนี้ยังมีระบบบริหารจัดการเซิร์ฟเวอร์ผ่าน IPMI ช่วยให้ผู้ดูแลระบบสามารถควบคุมและตรวจสอบเครื่องจากระยะไกลได้สะดวก ตัวเครื่องรับประกัน 3 ปี อะไหล่และค่าแรง
|
CPU |
|
|---|---|
| Standard CPU | INTEL, 1700, Core i9-14900K, 3.2GHz, 36MB Cache, 125W, 24C/32T |
| CPU Support | 12th/13th/14th Gen Intel® Core™ i3/i5/i7/i9 Processors |
| CPU Cooler |
1 x liquid Cooler |
| Memory | |
|
Standard Memory |
Option |
| Memory support |
Total Slots : 4DIMM slots |
| Network / IPMI | |
| Integrated LAN | 1 x RJ45 1 GbE LAN ports with Intel® PHY i219LM Controller, for AMT/vPro 1 x RJ45 2.5 GbE LAN ports with Intel® Ethernet i225LM Controller 1 x RJ45 1 GbE LAN ports with Realtek RTL8211F PHY (Dedicated for IPMI) |
| IPMI | 1 x IPMI ASPEED AST2600 BMC |
|
Graphic |
|
| Controller | ASPEED AST2600 BMC, Intel® UHD Graphics 770 |
|
Expansion Slots |
|
| PCI-Express (PCI-E) | 1 x PCIe 5.0 x16 |
| M.2 | 1 x M.2 Interface: PCIe 4.0 x4 (CPU) 2 x M.2 Interface: PCIe 4.0 x4 (PCH) Form Factor: 2280 Key: M-Key |
| Storage / Controller | |
| Standard Storage |
Option |
| Drive Bays | 4 x 2.5″/3.5″ |
| Storage | 8 x SATA3 (6Gbps) port(s) support RAID 0/1/5/10 |
| Storage Controller | Intel W680 RAID support: 0/1/5/10 |
| SATA | 8 x SATA3 (6Gbps) port(s) |
| Cable | |
| Input / Output | |
| LAN |
1 x RJ45 1 GbE LAN ports |
| USB | 4 x USB 2.0 port(s) (2 rear; 2 via header) 2 x USB 3.2 Gen2x2 port(s) (1 rear; 1 via header) 3 x USB 3.2 Gen2x1 port(s) (3 rear type A) 3 x USB 3.2 Gen1x1 port(s) (2 via header; 1 Vertical Type A) |
| Video Output | 1 x VGA port 1 x DVI-D port 1 x DP 1.4a port 1 x HDMI 2.0b port |
| Serial Port | 1 x COM Port (1 header) |
| DOM | – |
| TPM | 1 x TPM Header |
| Chassis | |
| Form Factor |
1U Rackmount |
| Expansion Slots | 1 x full-height & full-length expansion slot (Requires riser card) |
| Dimension (DxWxH) | 650 x 434 x 43 (mm) / 25.6” x 17” x 1.7” |
| Buttons | 1 x Power On/Off 1 x System Reset |
| LEDs | 1 x Power Status 1 x HDD Status 3 x LAN Activity 1 x System Information LED |
| Ports | 2 x USB 3.0 |
| SlideRail | include |
|
Power Supply |
400W |
|
Supported OS |
|
|
Microsoft Windows |
|
|
Linux |
|
|
Virtual Machine |
|
