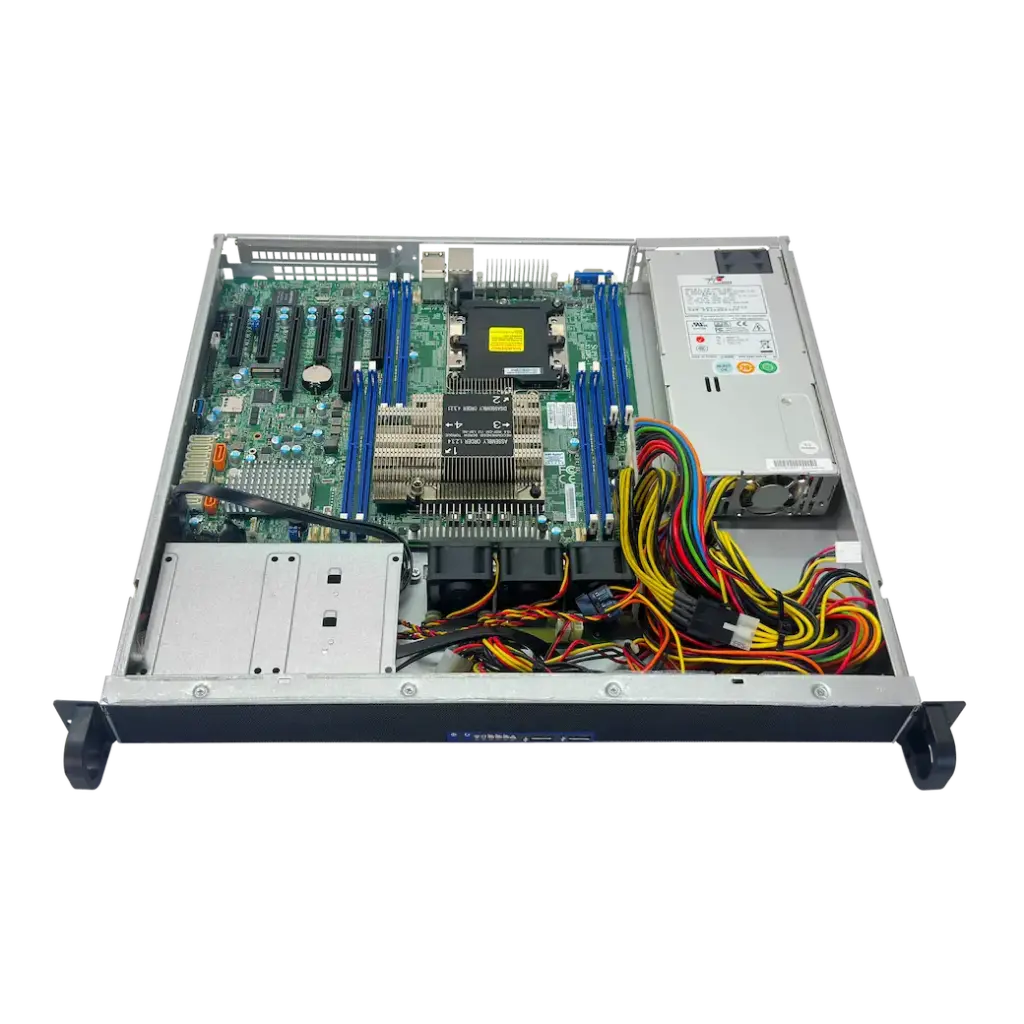

(NEW!) PowerRACK X11DPL-1400, Xeon 6130 16C/32T, 400W
- Model: X11DPL-1400-400-D16C32T
- • CPU: 1 x intel Xeon Gold 6130 (2.1GHz, 16C/32T, 22MB) (Dual CPU Support)
- • CPU Cooler: Passive Cooler
- • RAM: Option
- • SSD: Option
- • VGA: ASPEED AST2500 BMC
- • RAID: Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- • Drive: 1 x 3.5″ fixed drive bays | 2 x 2.5″ fixed drive bays
- • LAN: Dual LAN with 1GbE (with Intel® X722 + Marvell 88E1512)
- • iKVM:1 RJ45 Dedicated IPMI
- • Chassis: 1U Rackmount
- • PSU: 400W
- • Warranty: 1-Year อะไหล่และค่าแรง
- • Service: –
฿66,510.00
ราคาล่าสุดวันที่ June 11, 2026
ติดต่อสอบถามเกี่ยวกับสินค้าทางไลน์ ก่อนชำระเงิน
Please contact us via LINE for product inquiries before making a payment.
PowerRACK
X11DPL-1400
เปิดประสบการณ์การทำงานระดับมืออาชีพกับ PowerRACK X11DPL-1400 สำหรับงานหนักแบบ 24/7 ขับเคลื่อนด้วย CPU Intel Xeon สูงสุดถึง 2 CPU ประมวลผลขั้นสูงได้อย่างลื่นไหล รองรับ RAM DDR 4 ECC Registered
Test Result
ผลการทดสอบ Windows 10Pro
ผลการทดสอบ Windows 11 Pro
ผลการทดสอบ Windows server 2025
| CPU | |
|---|---|
| Standard CPU | 1 x Intel Xeon Gold 6130, 2.1 GHZ, 22MB CACHE, 125W, 16C/32T (Dual CPU Support) |
| CPU Support |
2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors |
| CPU Cooler | Passive Sink |
| Memory | |
| Standard Memory | Option |
| Memory support | Total Slots : 8 DIMM slots Max Memory Size : Up to 2TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-2933MT/s Max. Capacity per DIMM : LRDIMM: 128GB RDIMM: 64GB DIMM Type : 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS) |
| Network / IPMI | |
| Integrated LAN | Dual LAN with 1GbE with Intel® X722 + Marvell 88E1512 |
| IPMI | 1 x IPMI ASPEED AST2500 |
| Graphic | |
| Controller | ASPEED AST2500 BMC port(s) |
| Expansion Slots | |
| PCI-Express (PCI-E) | 1 x PCIe 3.0 x8 |
| M.2 | M.2 Interface: 1 SATA/PCIe 3.0 x4 Form Factor: 2280, 2260 Key: M-Key |
| Storage / Controller | |
| Standard Storage | Option |
| Drive Bays | 1 x 3.5″/2 x 2.5″ Internal drive bays |
| Storage | |
| Storage Controller | Intel® C621 |
| SATA | Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Cable | |
| Input / Output | |
| LAN | Dual LAN with 1GbE (with Intel® X722 + Marvell 88E1512) + IPMI |
| USB | 2 x USB2.0 |
| Video Output | 1 x VGA port(s) |
| Serial Port | 1 x COM |
| DOM | 2 x SuperDOM (Disk on Module) ports |
| TPM | |
| Chassis | |
| Form Factor | 1U Rackmount |
| Expansion Slots | 1 x full-height & full-length expansion slot (riser card required) |
| Dimension (DxWxH) | 400.05 x 434.34 x 43.18mm (DxWxH) |
| Buttons | 1 x Power On/Off 1 x System Reset |
| LEDs | 1 x Power Status 1 x HDD Status 2 x LAN Activity |
| Ports | 2 x USB 3.0 |
| SlideRail | Yes |
| Power Supply | 400W |
| Supported OS | |
| Microsoft Windows | |
| Linux | |
| Virtual Machine | |
