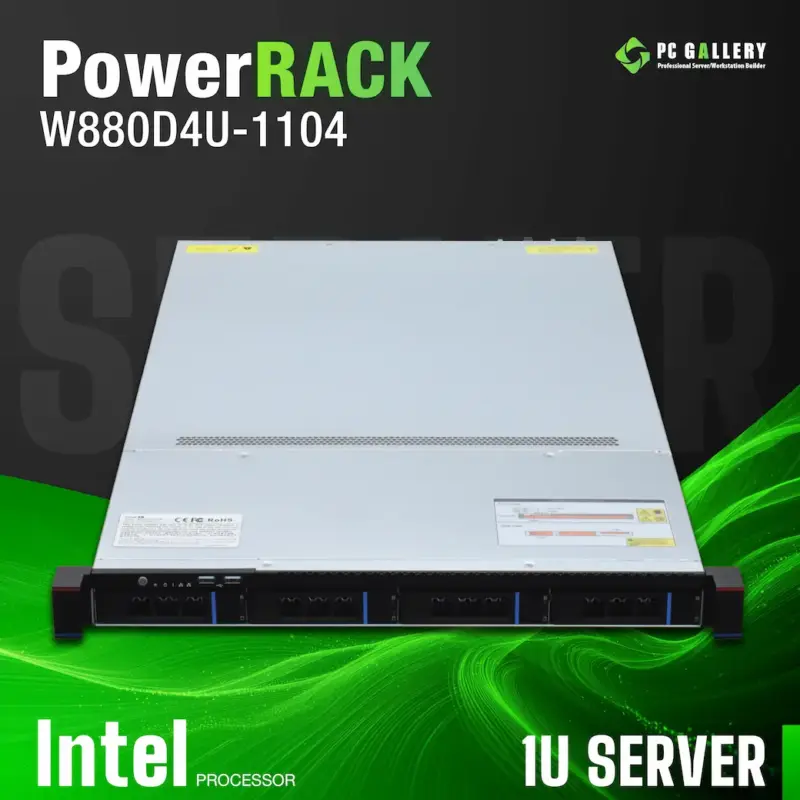

PowerRACK W880D4U-1104, Intel Core Ultra7 265K, 20C/20T
- Model: W880D4U-1104-500-S20C20T
- • CPU: 1 x Intel Core Ultra 7, 265K, 3.9GHz, 30MB Cache, 125W, 20C/20T
- • CPU Cooler: Liquid Cooler
- • RAM: Option
- • SSD: Option
- • VGA: ASPEED AST2600
- • RAID: Intel® W880 (8 SATA 6Gb/s; RAID 0/1/5/10)
- • Drive: 4 x Hot-swap drive bays 2.5″/3.5″ | 2 x Internal Drives 2.5″
- • LAN: 2 x RJ45 (1GbE) by Intel® i210
- • IPMI: 1 x RJ45 Dedicated IPMI
- • Chassis: 1U Rackmount
- • PSU: 500W
- • Warranty: 3-Year อะไหล่และค่าแรง, On-Shop Service
฿61,750.00
ราคาล่าสุดวันที่ July 3, 2026
ติดต่อสอบถามเกี่ยวกับสินค้าทางไลน์ ก่อนชำระเงิน
Please contact us via LINE for product inquiries before making a payment.
PowerRACK
W880D4U-1104
Rack Server ขนาด 1U ที่ออกแบบมาสำหรับองค์กรยุคใหม่ หน่วยประมวลผล Intel Core Ultra 7 265K 20 Core / 20 Thread มาพร้อมระบบระบายความร้อนแบบ Liquid Cooler ช่วยให้การทำงานมีเสถียรภาพต่อเนื่อง รองรับไดรฟ์แบบ Hot-swap สูงสุด 4 ช่อง ตัวเครื่องมี 2 x GLAN เพื่อการเชื่อมต่อที่เสถียรและ IPMI ช่วยให้ผู้ดูแลระบบควบคุมเครื่องจากระยะไกลได้ง่าย การรับประกัน 3 ปีเต็ม รองรับการใช้งานระดับองค์กรอย่างมั่นใจ
| CPU | |
|---|---|
| Standard CPU | Intel Core Ultra 7, 265K, 3.9GHz, 30MB Cache, 125W, 20C/20T |
| CPU Support | Supports Intel® Core™ Ultra Desktop Processors (Series 2) |
| CPU Cooler | Liquid Cooler |
| Memory | |
| Standard Memory | Option |
| Memory support | Total Slots : 4 DIMM slots (2DPC) Max Memory Size : 256GB Max. Capacity per DIMM : 64GB DIMM Type : DDR5 288-pin ECC/non-ECC UDIMM, CUDIMM |
| Network / IPMI | |
| Integrated LAN | 2 RJ45 (1GbE) by Intel® i210 |
| IPMI | 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F |
| Graphic | |
| Controller | ASPEED AST2600: 1 DB15 (VGA) Intel® Integrated Processor Graphics: 1 HDMI, 1 DisplayPort |
| Expansion Slots | |
| PCI-Express (PCI-E) | SLOT6: PCIe5.0 x16 [CPU]* *MCIO1 shared lanes x8 with SLOT6. To enable MCIO1, BIOS settings are required. SLOT4: PCIe5.0 x4 [CPU] |
| M.2 | 1 M-key (PCIe4.0 x4), supports 2280 form factor [CPU] 1 M-key (PCIe4.0 x4), supports 2280 form factor [PCH] |
| Storage / Controller | |
| Standard Storage | Option |
| Drive Bays | 4 x Front Hot-swap drive bays 2.5″/3.5″ SATA6G 2 x Internal Drives 2.5″ |
| Storage | |
| Storage Controller | |
| SATA | Intel® W880 (8 SATA 6Gb/s; RAID 0/1/5/10): 4 SATA 7-pin, 1 Mini-SAS HD |
| Cable | |
| Input / Output | |
| LAN | 2 RJ45 (1GbE) by Intel® i210 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F |
| USB | 2 Type-A (USB3.2 Gen1) |
| Video Output | 1 DB15 (VGA), 1 HDMI, 1 DisplayPort |
| Serial Port | 1 DB9 (COM) |
| DOM | |
| TPM | 1 (13-pin, SPI) |
| Chassis | |
| Form Factor | 1U Rackmount |
| Expansion Slots | 1 x full-height and full-length expansion slots (riser card required) |
| Dimension (DxWxH) | 670 x 433 x 43.5mm |
| Buttons | 1 x Power Button 1 x Reset Button |
| LEDs | 1 x Power Status 1 x HDD Status 2 x LAN Activity 1 x System Information LED |
| Ports | 2 x USB2.0 |
| SlideRail | Yes |
| Power Supply | 500W |
| Supported OS | |
| Microsoft Windows | |
| Linux | |
| Virtual Machine | |
