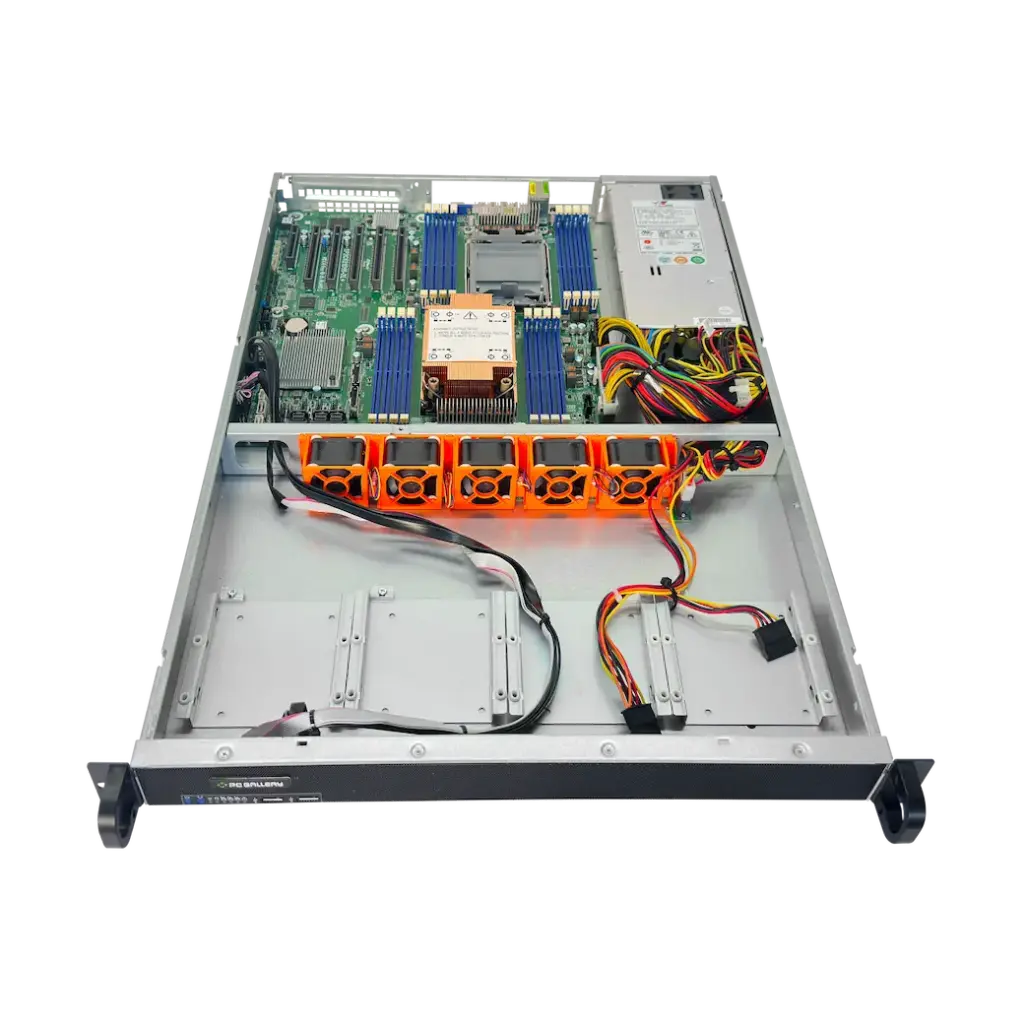

(NEW!) PowerRACK SP2C621D16-1650, Xeon Gold 6326 16C/32T, 400W
- Model: SP2C621D162L-1650-400-D16C32T
- • CPU: 1 x Intel Xeon Gold 6326, 2.90GHz, 24MB Cache, 185W, 16C/32T (Dual CPU Support)
- • CPU Cooler: Passive Cooler
- • RAM: Option
- • SSD: Option
- • VGA: ASPEED AST2500
- • RAID: Intel® C621A (14 SATA 6Gb/s, support RAID 0/1/5/10)
- • Drive: 4 x 2.5″/3.5″
- • LAN: 2 x RJ45 (Intel® I350-AM2)
- • IPMI: 1 RJ45 Dedicated IPMI
- • Chassis: 1U Rackmount
- • PSU: 400W
- • Warranty: 3-Years อะไหล่และค่าแรง
฿130,800.00
ติดต่อสอบถามเกี่ยวกับสินค้าทางไลน์ ก่อนชำระเงิน
Please contact us via LINE for product inquiries before making a payment.
PowerRACK
SP2C621D16-1650
Rack Server ขนาด 1U ที่ออกแบบมาสำหรับงาน Data Center และระบบองค์กรที่ต้องการประสิทธิภาพสูง มาพร้อมหน่วยประมวลผล Intel Xeon Gold 6326, 16 Core / 32 Thread ให้พลังประมวลผลที่เสถียร ตัวเมนบอร์ดรองรับการติดตั้ง CPU ถึง 2ตัว เพื่อเพิ่มขีดความสามารถของระบบในอนาคต รองรับไดรฟ์ได้สูงสุด 4 ลูก ทั้งขนาด 2.5 และ 3.5 นิ้ว มี Dual GLAN และ IPMI ที่ช่วยให้ผู้ดูแลระบบควบคุมเครื่องจากระยะไกลได้สะดวก
|
CPU |
|
|---|---|
| Standard CPU | Intel Xeon Gold 6326, 2.90GHz, 24MB Cache, 185W, 16C/32T (Dual CPU Support) |
| CPU Support | Supports 3rd Gen Intel® Xeon® Scalable processors |
| CPU Cooler |
Passive Sink |
| Memory | |
|
Standard Memory |
Option |
| Memory support | Total Slots : 8+8 DIMM slots (1DPC) DIMM Type : DDR4 288-pin RDIMM/RDIMM-3DS/LRDIMM/LRDIMM-3DS, Intel® Optane™ Persistent Memory 200 Series Frequency : max. 3200MT/s |
| Network / IPMI | |
| Integrated LAN |
2 x RJ45 (1GbE) by Intel® I350-AM2 |
| IPMI |
Remote management (IPMI) |
|
Graphic |
|
| Controller | ASPEED AST2500 |
|
Expansion Slots |
|
| PCI-Express (PCI-E) | PCIe 4.0 x16 for Dual CPU |
| M.2 | 1 M-key (PCIe4.0 x4); Support 22110/2280 form factor [CPU0] |
| Storage / Controller | |
| Standard Storage | Option |
| Drive Bays | 4 x 2.5″/3.5″ |
| Storage | Intel® C621A (14 SATA 6Gb/s, support RAID 0/1/5/10): 1 Mini-SAS HD 8i, 1 Mini-SAS HD 4i, 2 SATA 7-pin |
| Storage Controller | |
| SATA | |
| Cable | |
| Input / Output | |
| LAN | 2 RJ45 (1GbE) by Intel® I350-AM2 1 x IPMI |
| USB | 2 x Type-A (USB3.2 Gen1) |
| Video Output | 1 x DB15 (VGA) |
| Serial Port | |
| DOM |
|
| TPM | 1 (13-pin, SPI) |
| Chassis | |
| Form Factor |
1U |
| Expansion Slots |
1 x full-height & full-length expansion slot (Requires riser card) |
| Dimension (DxWxH) |
650 x 434 x 43 (mm) / 25.6” x 17” x 1.7” |
| Button | 1 x Power On/Off 1 x System Reset |
| LEDs | 1 x Power Status 1 x HDD Status 3 x LAN Activity 1 x System Information LED |
| Ports |
2 x USB 3.0 |
| SlideRail |
|
|
Power Supply |
|
|
Supported OS |
|
|
Microsoft Windows |
|
|
Linux |
|
|
Virtual Machine |
|
