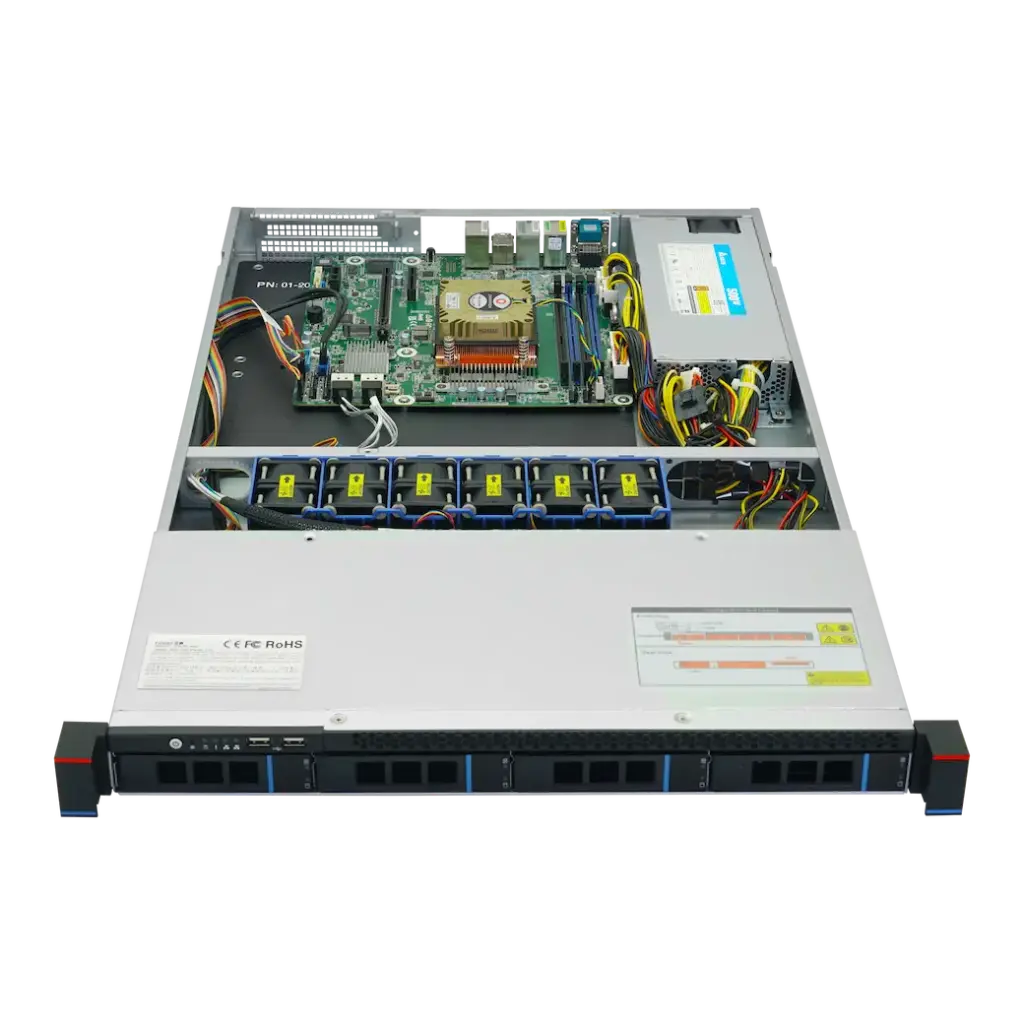

เครื่องเซิร์ฟเวอร์ 1U PowerRACK B650D4U-1104

  • Model: B650D4U-1104-500-6C12T16G
  • • Motherboard: ASRockRACK B650D4U
  • • CPU: 1 x AMD Ryzen5 8500G 6C/12T 3.5GHz 16MB Cache
  • • CPU Cooler: Dynatron A18 Server Cooler
  • • RAM: 1 x 16GB DDR5 ECC-UDIMM
  • • SSD: 1 x 240GB (Non-RAID)
  • • VGA: ASPEED AST2600
  • • RAID: B650E AMD® (0/1/10)
  • • LAN: 2 x 1GbE LAN RJ45 + IPMI by Intel® Ethernet i210
  • • PSU: 500W 80-plus
  • • Warranty: 3-Year อะไหล่และค่าแรง, On-Shop Service

฿42,859.00

In stock

แจ้งกับทางร้านก่อนชำระเงิน เพื่อตรวจสอบสถานะสินค้า และค่าจัดส่ง

Description

รูปผลการทดสอบความร้อน CPU Ryzen9 7900 บนเครื่อง PowerRACK RSP-B650D4U

Specification

CPU

Standard CPU

1 x AMD Ryzen5 8500G 6C/12T 3.5GHz 16MB Cache

CPU Support

Supports AMD Ryzen 7000 series Processors

CPU Cooler

1 x 1U Active Sink

Memory

Standard Memory

1 x 16GB DDR5 ECC-UDIMM

Memory support

Total Slots : 4 DIMM slots
Max Memory Size : 192GB
Max. Capacity per DIMM : 8GB, 16GB, 32GB, 48GB
DIMM Type : DDR5 ECC-UDIMM/non-ECC UDIMM
Supports DDR5 : 5200(1DPC)/3600(2DPC)MHz

Network / IPMI
Integrated LAN

2 x RJ45 Gigabit Ethernet LAN ports with Intel® i210 Gigabit Ethernet Controller

IPMI

1 x IPMI ASPEED AST2600 BMC

Graphic

Controller

ASPEED AST2600 BMC, AMD Radeon™ 740M

Expansion Slots

PCI-Express (PCI-E)

1 x PCI-E 5.0 x16

M.2

1 x M.2 PCI-E 4.0 x 4 M-Key, 2280/2242
1 x M.2 PCI-E 5.0 x 4 M-Key, 2280/2242

Storage / Controller
Standard Storage

1 x 240GB (Non-RAID)

Drive Bays

4 x Front Hot-swap drive bays 2.5″/3.5″ SATA6G
2 x Internal Drives 2.5″

Storage

1 x M.2 PCI-E 4.0 x 4  M-Key, 2280/2242
1 x M.2 PCI-E 5.0 x 4  M-Key, 2280/2242

Storage Controller

Software RAID 6Gb/s
RAID support : 0/1/10

SATA

4 x SATA (6Gbps) ports

Cable

N/A

Input / Output
LAN

2 x RJ45 Gigabit Ethernet LAN ports
1 x RJ45 IPMI Dedicated GLAN

USB

2 x USB 2.0 (Front)
4 x USB 3.2 (Rear)

Video Output

1 x VGA port
1 x HDMI
1 x DisplayPort

Serial Port

1 x COM Port

DOM

N/A

TPM

1 x TPM Header

Chassis
Form Factor

1U

Expansion Slots

1 x full-height & full-length expansion slot (Requires riser card)

Dimension (DxWxH)

670 x 433 x 43.5mm


LEDs

1 x Power Status
1 x HDD Status
2 x LAN Activity
1 x System Information LED

Ports

2 x USB 2.0

SlideRail Yes

Power Supply

500W 80Plus

Supported OS

Microsoft Windows



Linux



Virtual Machine
