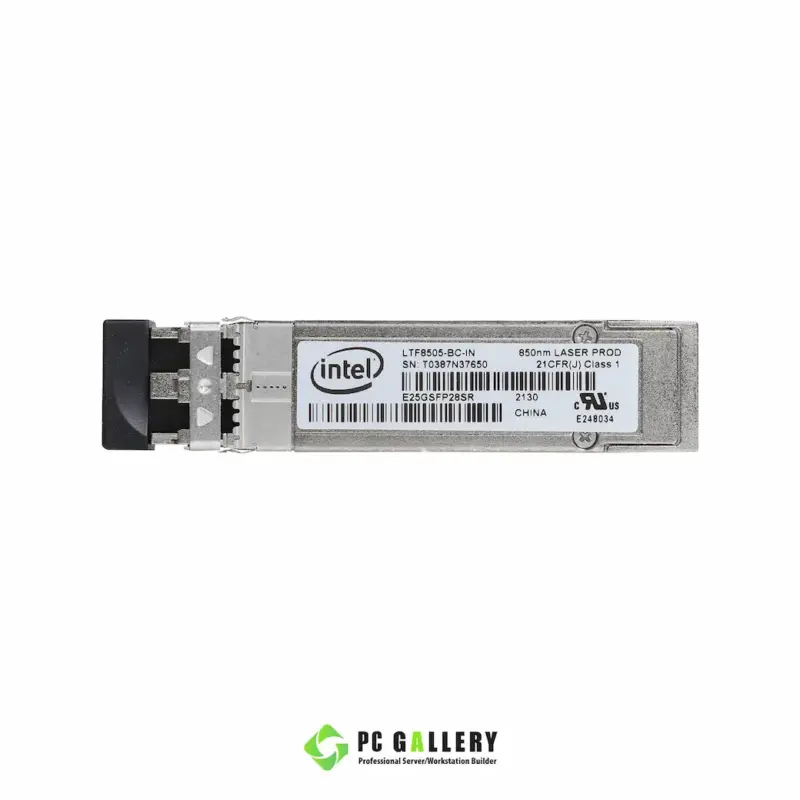

แลนโมดูล Intel E25GSFP28SR สำหรับการ์ดแลน E810-XXVDA2
LAN, INTEL, SFP28-MODULE, E25GSFP28SR, 10G/25GBASE-SR
Transceiver For E810-XXVDA2, 850nm
฿4,300.00
ราคาล่าสุดวันที่ February 18, 2026
ติดต่อสอบถามเกี่ยวกับสินค้าทางไลน์ ก่อนชำระเงิน
Please contact us via LINE for product inquiries before making a payment.
|
Form Factor
|
SFP28 |
|
Media Type
|
Multi-Mode Fiber (MMF) -OM3/OM4/OM5 |
|
Fiber Count
|
Duplex |
|
Connector
|
Double LC/UPC |
|
Maximum Distance
|
100 m |
|
Guaranteed Link Budget
|
5.3 dB |
|
TX Wavelength
|
850 nm |
|
RX Wavelength
|
850 nm |
|
Supported Data Rate
|
8.5 Gbps – 28.1 Gbps |
|
Supportet Ethernet Applications
|
10G Ethernet (10.31Gbps), 25G Ethernet (25.78Gbps) |
|
DDM/DOM
|
Supported |
|
Forward Error Correction (FEC)
|
Host FEC Supported |
|
Transmitter Type
|
VSCEL Laser |
|
Average Launch Power (Min) Each Lane
|
-5 dBm |
|
Average Launch Power (Max) Each Lane
|
2.4 dBm |
|
Extinction Ratio (Min)
|
3 dB |
|
Receiver Type
|
PIN photodiode |
|
Rx Wavelength Bandwidth
|
20 nm |
|
Average Receiver Sensitivity (Min) Each Lane
|
-10.3 dBm |
|
Average Receiver Sensitivity (Max) Each Lane
|
2.4 dBm |
|
Receiver Overload
|
2.4 dBm |
|
Temperature Range
|
Standard 0°-70°C |
|
Storage Temperature
|
-40° to 85°C |
|
Relative Humidity
|
5 to 85% |
|
Power Consumption (Max)
|
0.3 W |
|
Power
|
+3.3V single power supply |
|
Compliance
|
SFF-8432, CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFF-8472, SFP28 MSA |
