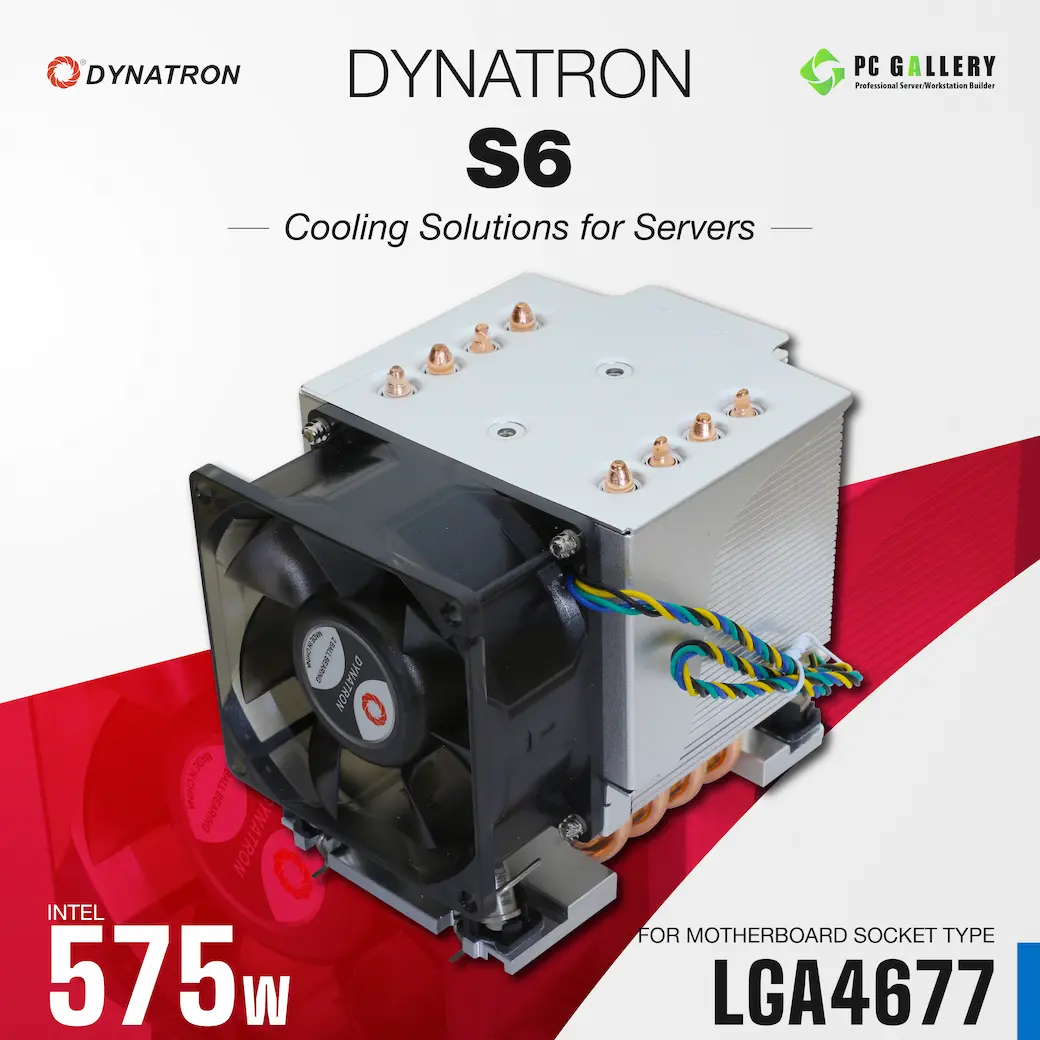

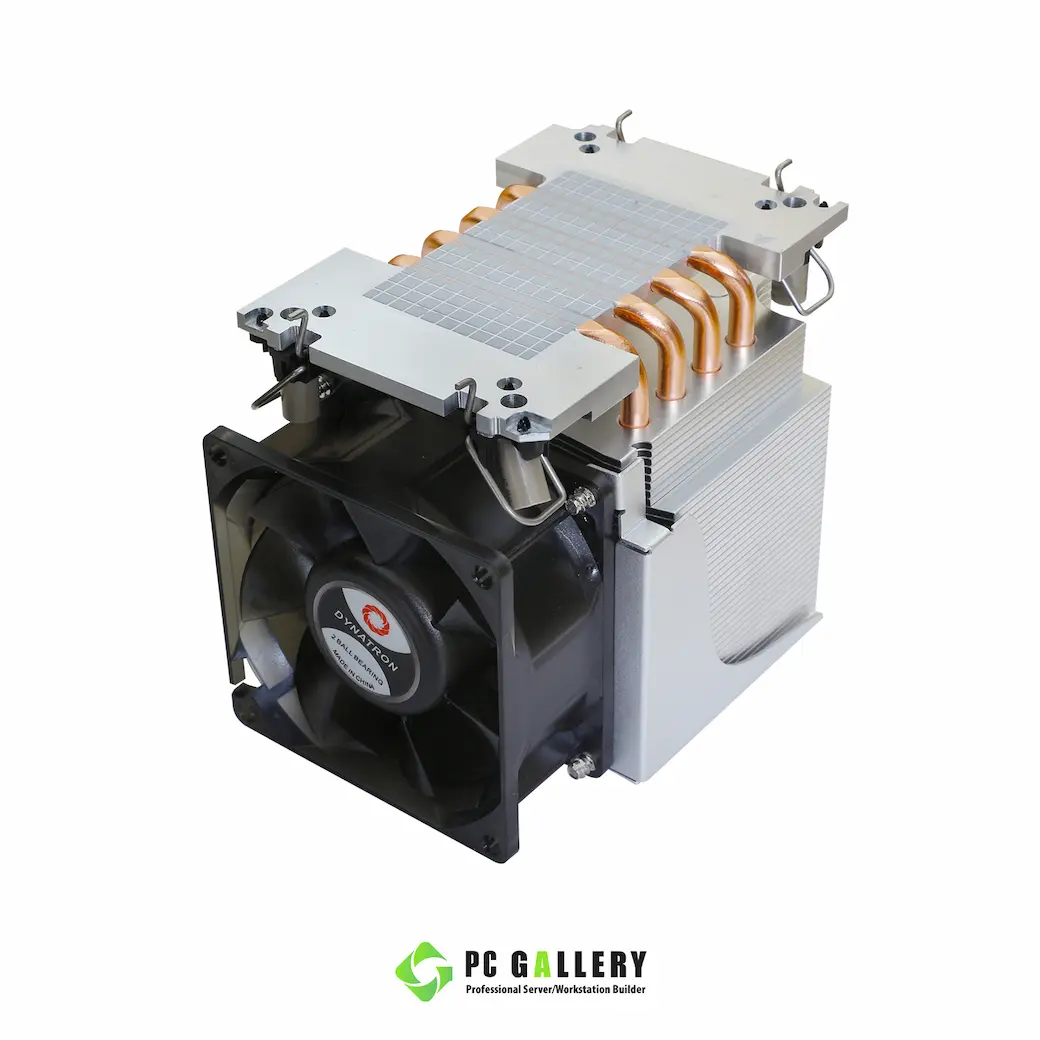

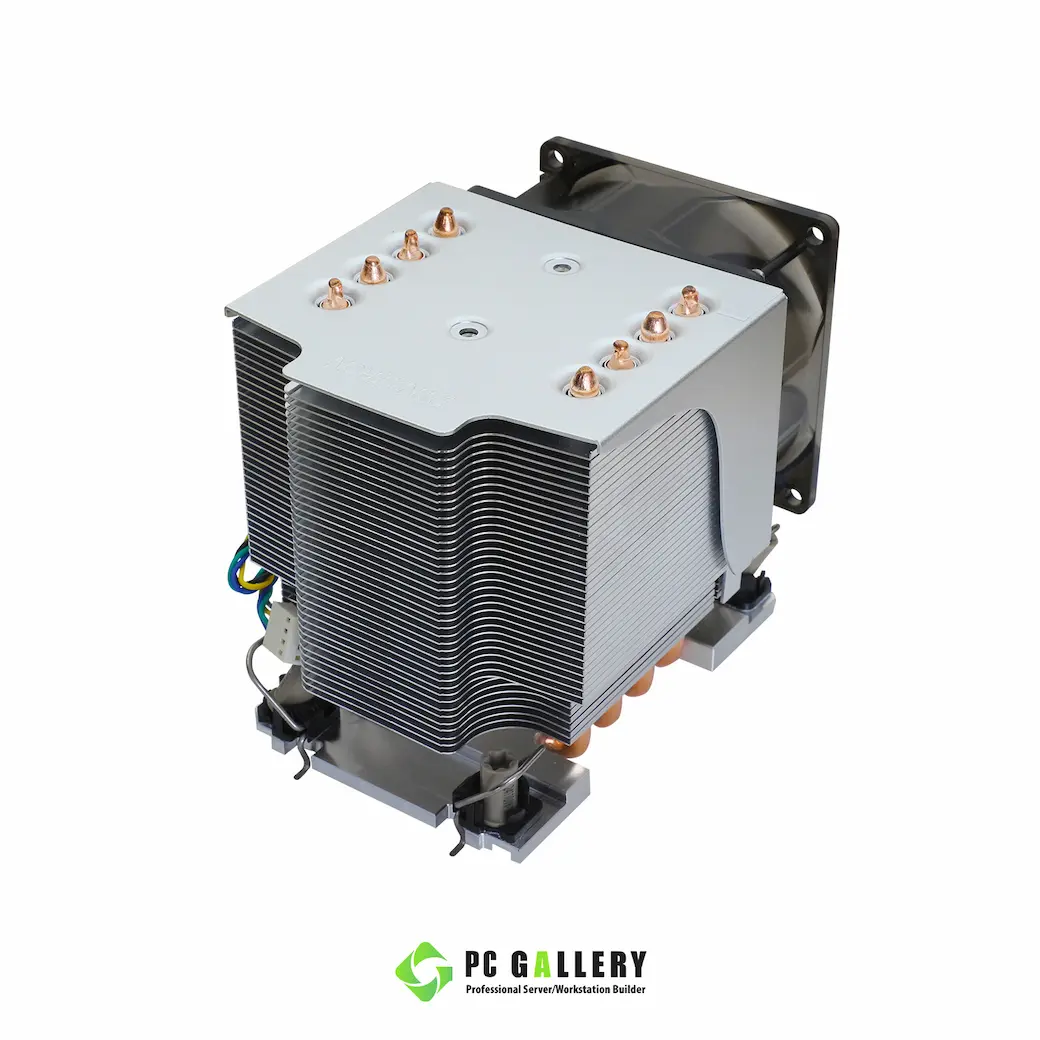

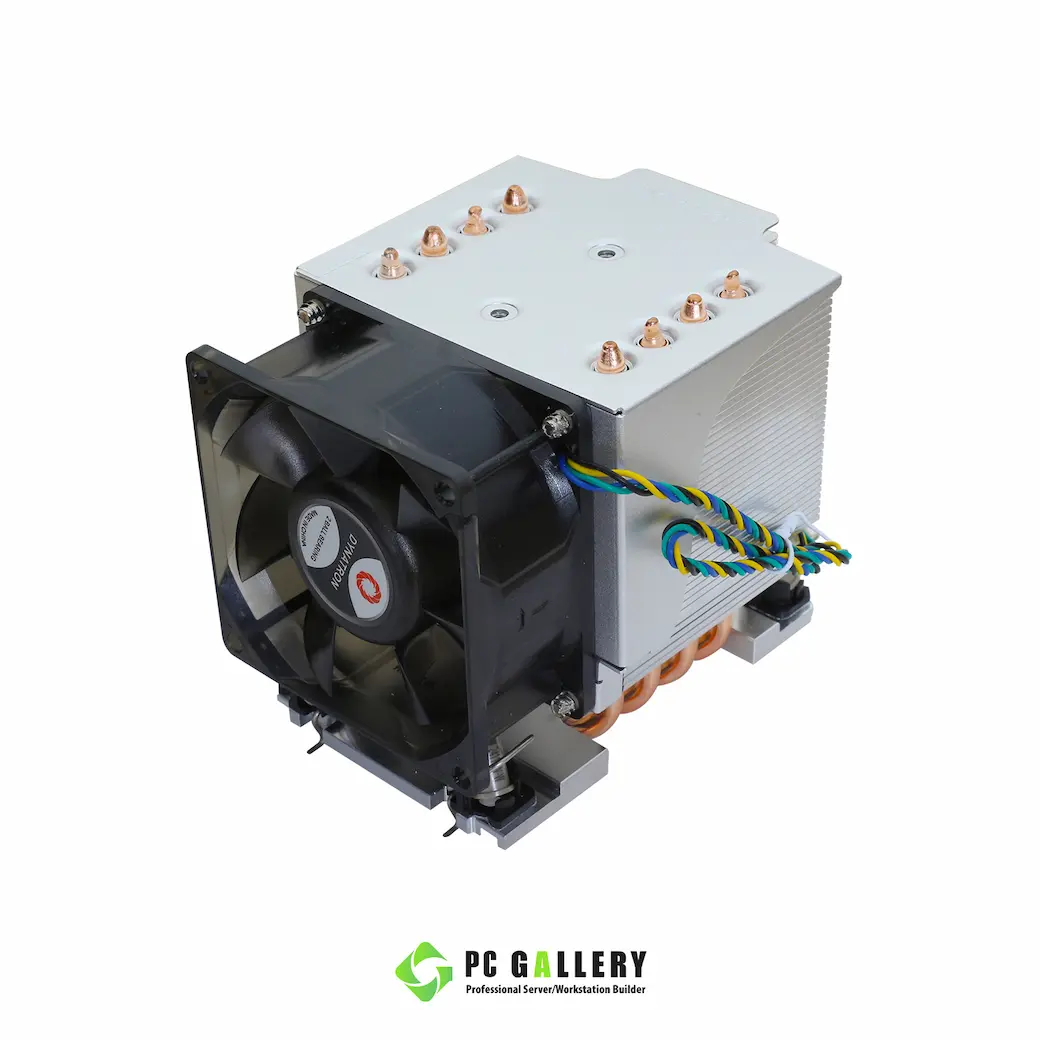

ฮีตซิงค์ Dynatron S6, 3U Active, LGA4677, TDP 575W

CPU Support	Intel
CPU Socket	FCLGA 4677
Screw Type	#8-32
Installation Torque	8 in-lb
Solution	3U Server and Up
Dimensions	118 x 95 x 106 mm
Weight	659.3 g
Material	Aluminum Stacked-Fin with Heat Pipes directly contact CPU
Fan Dimension	80 x 80 x 38 mm
Speed	At Duty Cycle 0~20%: 1300± 200 RPM At Duty Cycle 50%: 2450± 10% RPM At Duty Cycle 100%: 4500±10% RPM
Rated Voltage	12V
Bearing	Double Ball
Power	At Duty Cycle 0~20%: 1.20 W At Duty Cycle 50%: 2.64 W At Duty Cycle 100%: 9.00 W
Air Flow	At Duty Cycle 0~20%: 22.23 CFM At Duty Cycle 50%: 41.90 CFM At Duty Cycle 100%: 76.95 CFM
Noise Level	At Duty Cycle 0~20%: 23.95 dBA At Duty Cycle 50%: 37.71 dBA At Duty Cycle 100%: 50.91 dBA
Air Pressure	At Duty Cycle 0~20%: 1.068 mm-H2O At Duty Cycle 50%: 3.794 mm-H2O At Duty Cycle 100%: 12.798 mm-H2O
Lead Wire Pin Out	Pin#1-Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM)
Thermal Grease	Shin-Etsu 7762 or Equivalent
Life – Continuous operating under normal temperature (40 °C or 104 °F)	70,000 Hours

*All product specifications and product images are subject to change without notice.
