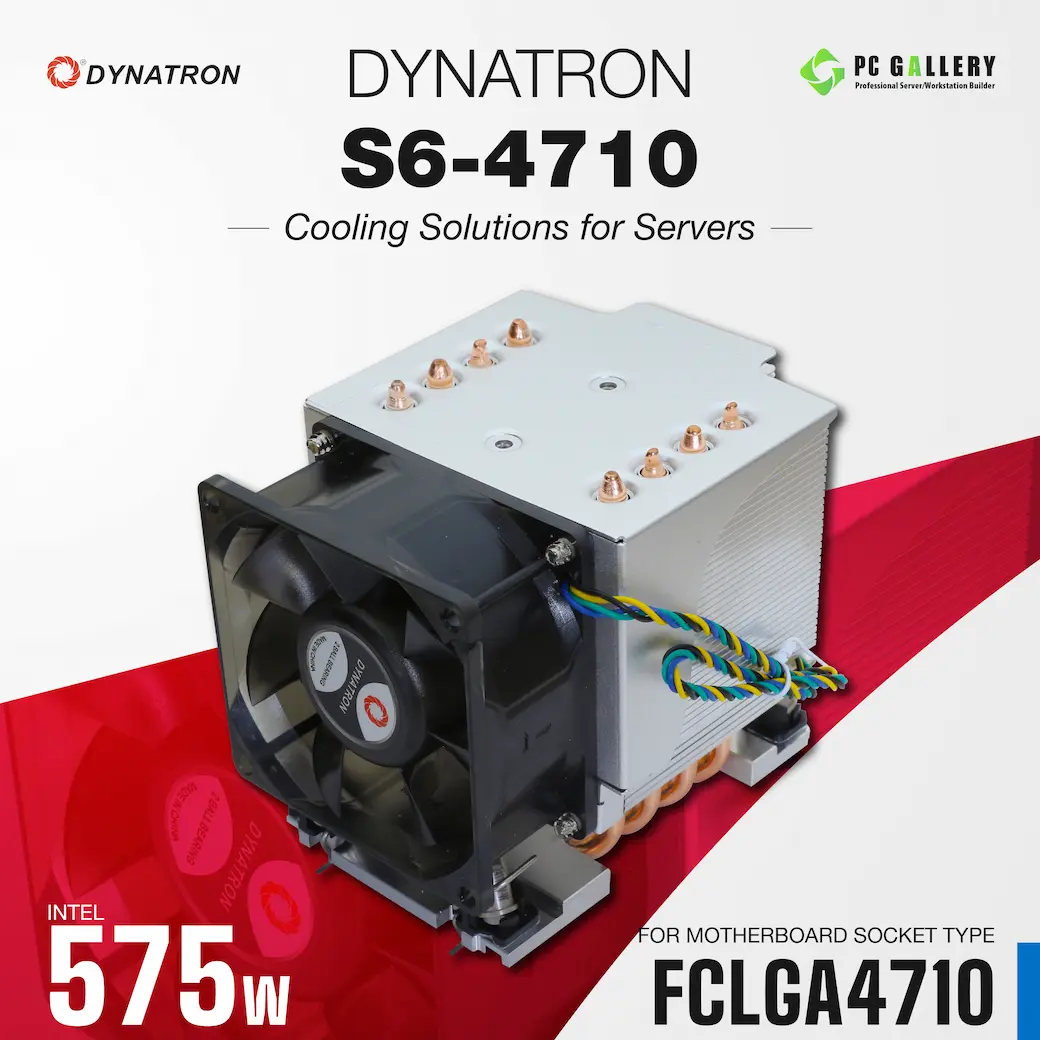

(NEW!) ฮีตซิงค์ Dynatron S6-4710, 3U Active, FCLGA 4710, TDP 575 W

CPU Support

Intel® Granite Rapids SP

CPU Socket

FCLGA 4710

Screw Type

#8-32

Installation Torque

8 in-lb

Solution

3U Server and Up

Dimensions

128 x 91 x 110 mm

Weight

659.3 g

Material

Aluminum Stacked-Fin with Heat Pipes directly contact CPU

Fan Dimension

80 x 80 x 38 mm

Speed

At Duty Cycle 0~20%: 1300± 200 RPM
At Duty Cycle 50%: 2450± 10% RPM
At Duty Cycle 100%: 4500±10% RPM

Rated Voltage

12V

Bearing

Double Ball

Power

At Duty Cycle 0~20%: 1.20 W
At Duty Cycle 50%: 2.64 W
At Duty Cycle 100%: 9.00 W

Air Flow

At Duty Cycle 0~20%: 22.23 CFM
At Duty Cycle 50%: 41.90 CFM
At Duty Cycle 100%: 76.95 CFM

Noise Level

At Duty Cycle 0~20%: 23.95 dBA
At Duty Cycle 50%: 37.71 dBA
At Duty Cycle 100%: 50.91 dBA

Air Pressure

At Duty Cycle 0~20%: 1.068 mm-H2O
At Duty Cycle 50%: 3.794 mm-H2O
At Duty Cycle 100%: 12.798 mm-H2O

Lead Wire Pin Out

Pin#1-Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)

Thermal Grease

Shin-Etsu X23-8079-2

Life – Continuous operating

under normal temperature

(40 °C or 104 °F)

70,000 Hours
