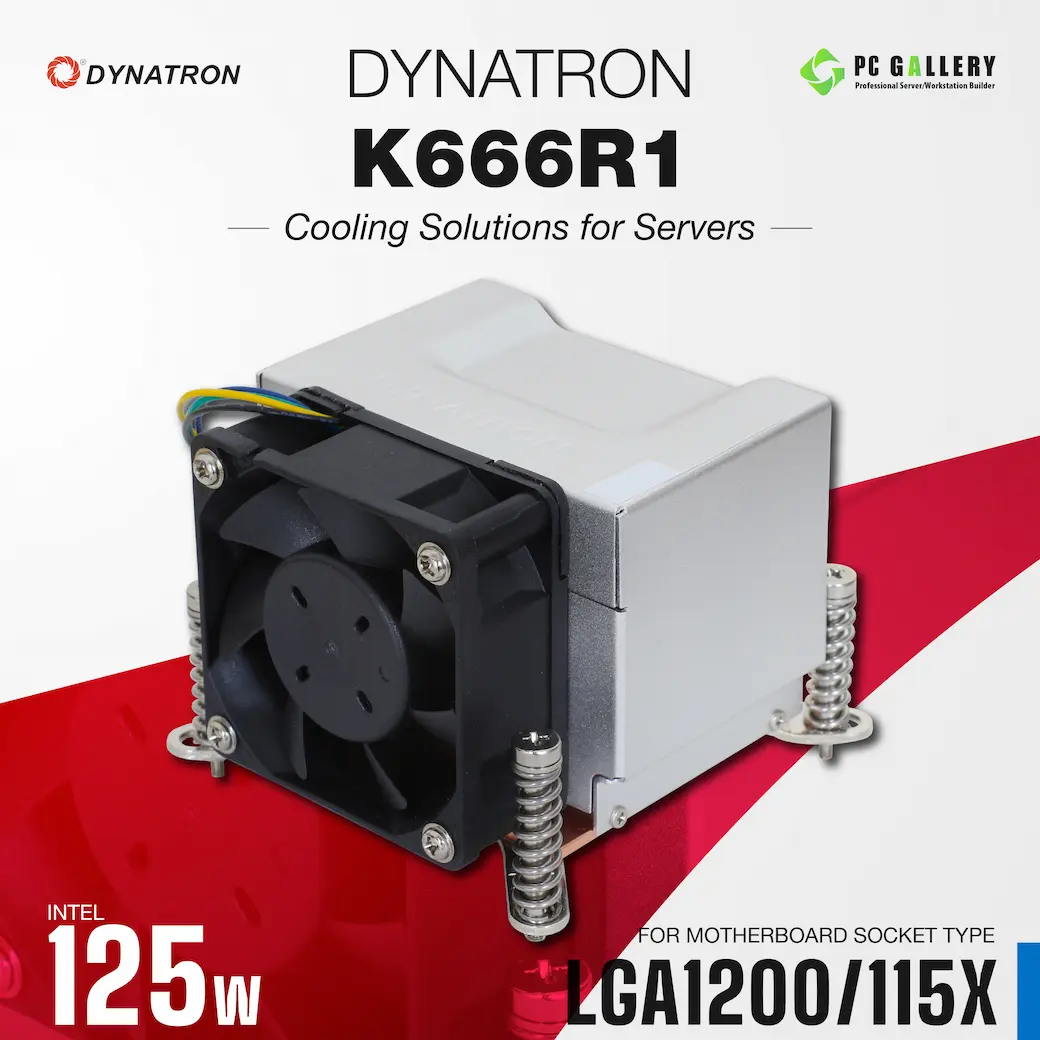

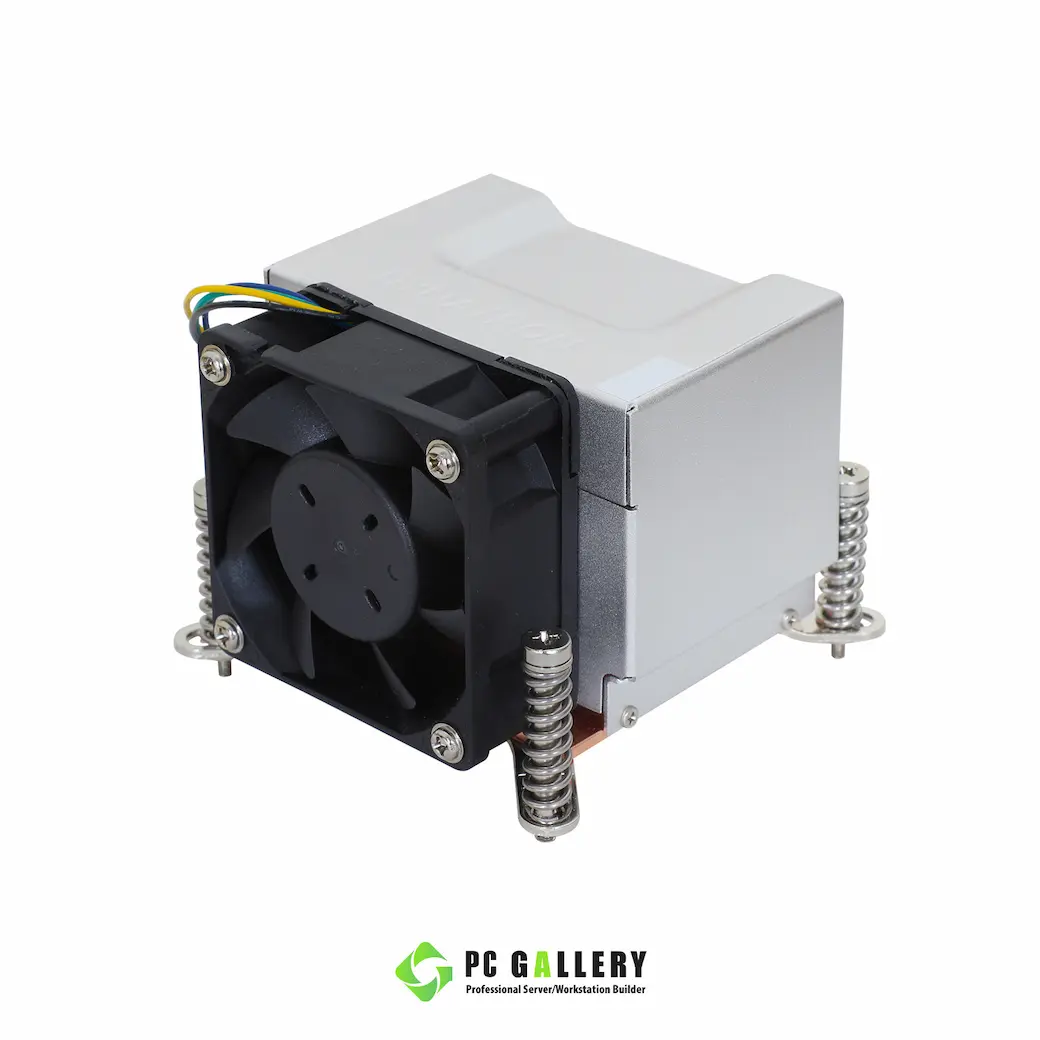

ฮีตซิงค์ Dynatron K666R1, 2U Active, LGA1200/115X, TDP 125W

CPU Support

Intel

CPU Socket

Socket LGA115X/1200

Screw Type

M3

Installation Torque

5-7 in-lb

Weight

500 g

Material

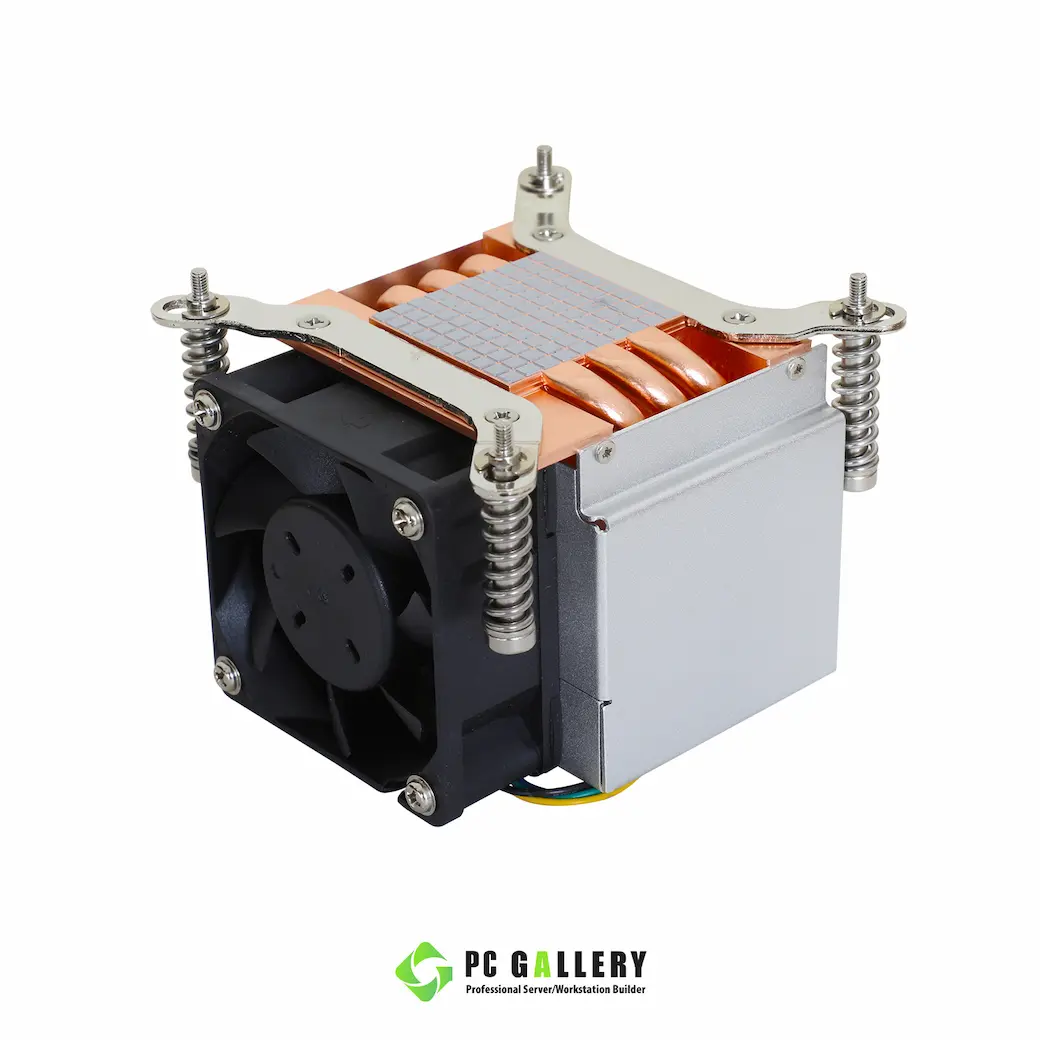

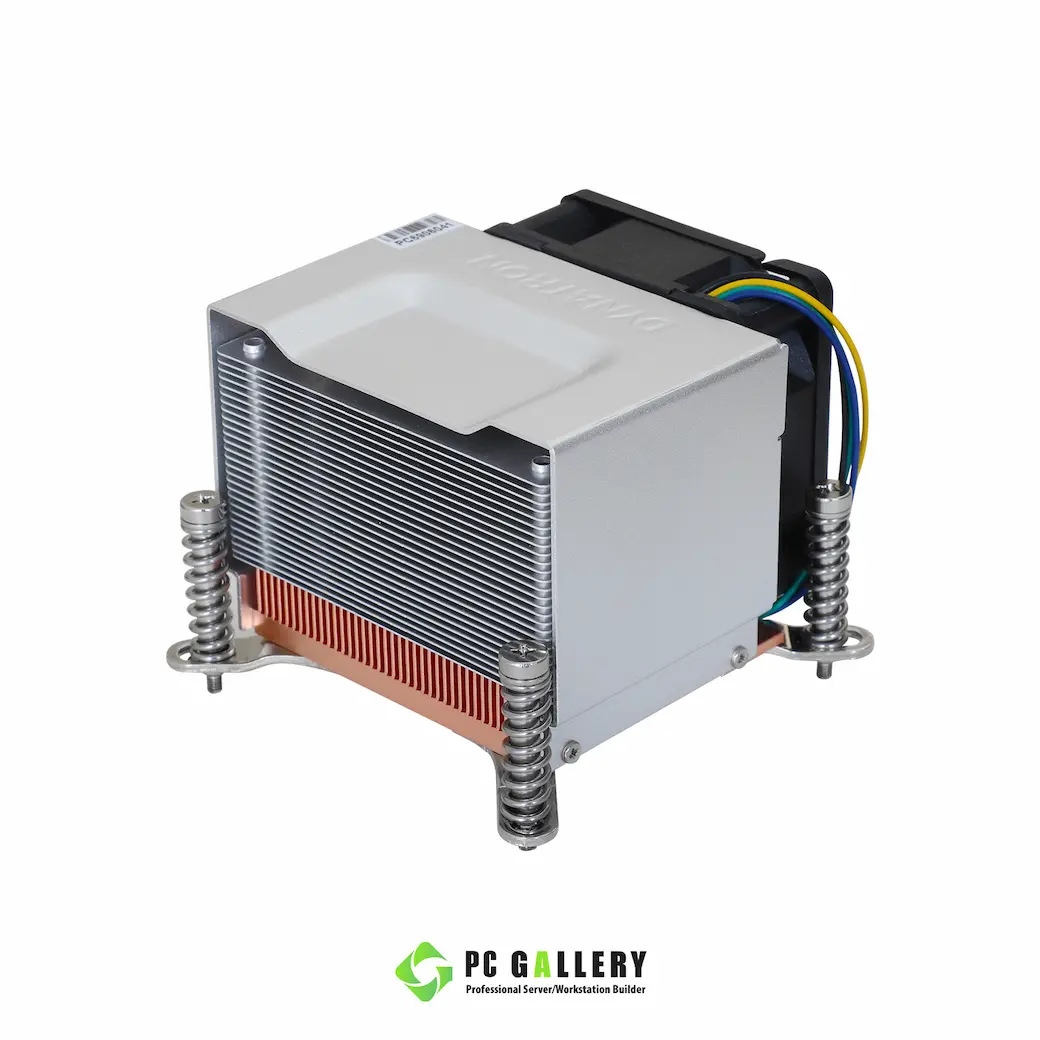

Copper Base & Aluminum Fins with Heat Pipe embedded

Solution

2U Server and Up

Dimensions

90.7 x 85.0 x 64.0 mm

Fan Dimension

60 x 60 x 25 mm

Rated Voltage

12V

Bearing

2 Ball Bearing

Speed

At Duty Cycle 20%: 1600 RPM
At Duty Cycle 50%: 2300 RPM
At Duty Cycle 100%: 5000 RPM

Power

At Duty Cycle 20%: 0.72 W
At Duty Cycle 50%: 1.2 W
At Duty Cycle 100%: 3.0 W

Air Flow

At Duty Cycle 20%: 8.5 CFM
At Duty Cycle 50%: 12.2 CFM
At Duty Cycle 100%: 26.45 CFM

Air Pressure

At Duty Cycle 20%: 0.75 mm-H2O
At Duty Cycle 50%: 1.55 mm-H2O
At Duty Cycle 100%: 7.32 mm-H2O

Lead Wir Pin Out

Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

Life – Continuous operating

under normal temperature

(40 °C or 104 °F)

70,000 Hours
